E-BIKE CHARGING STATIONS

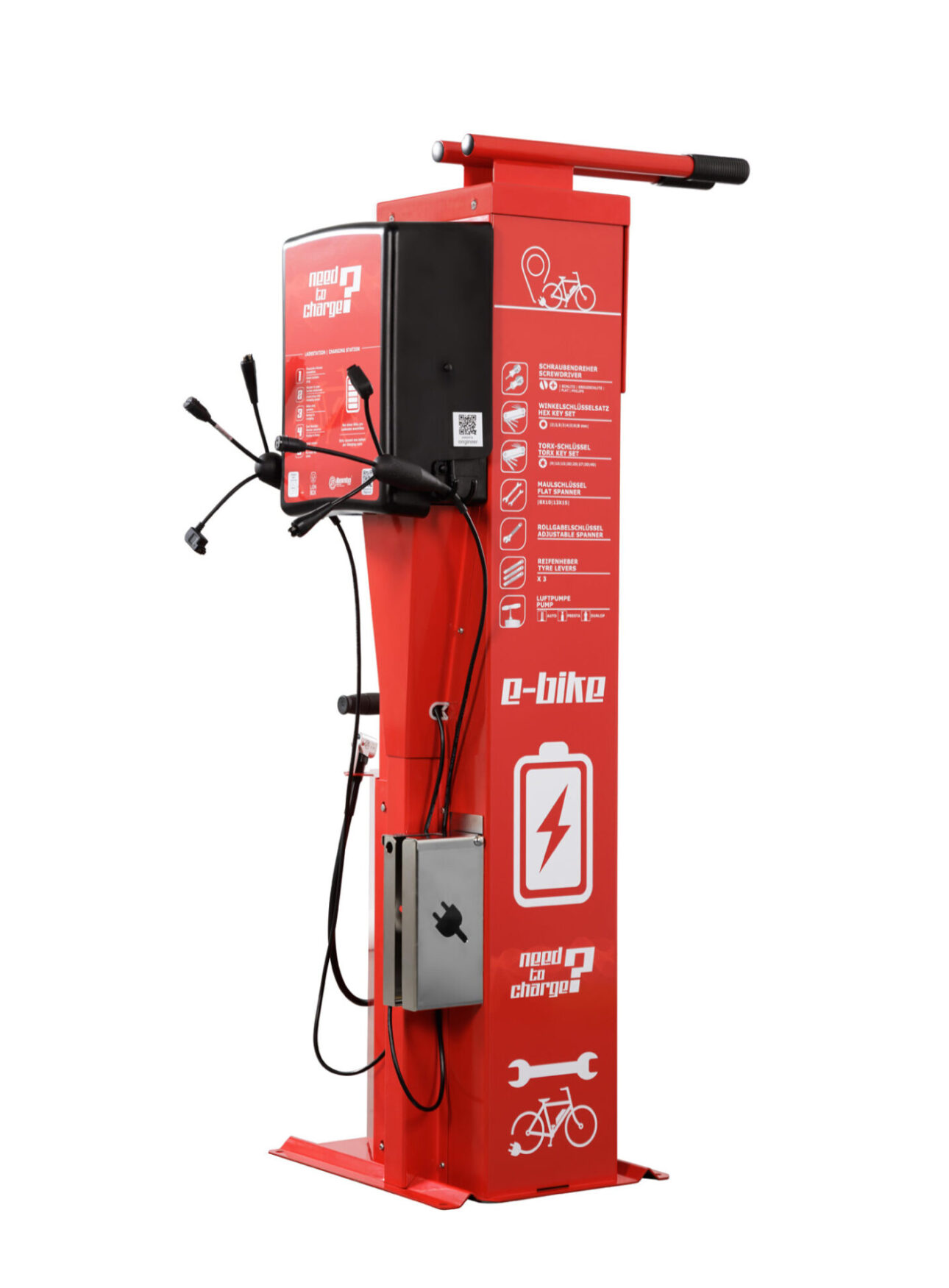

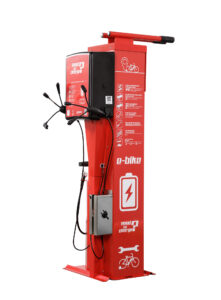

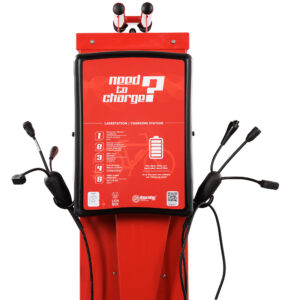

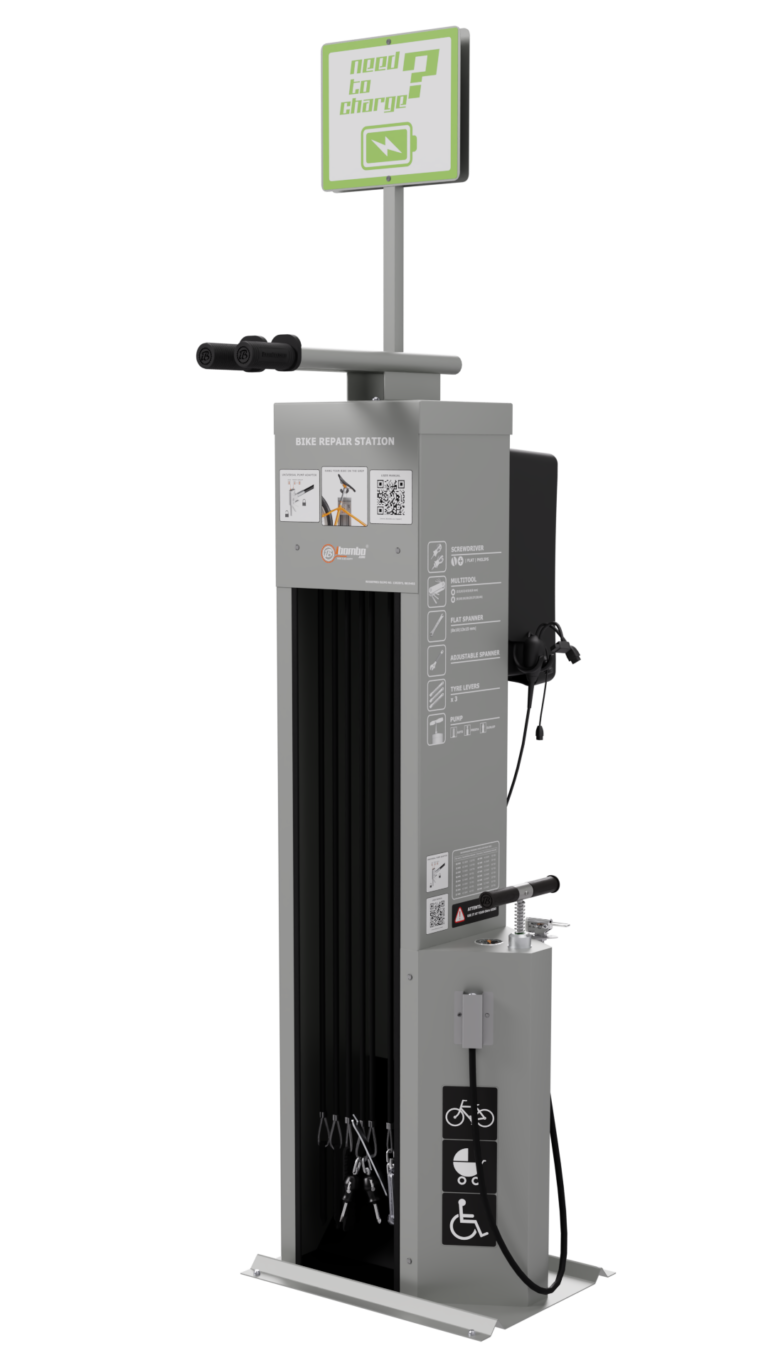

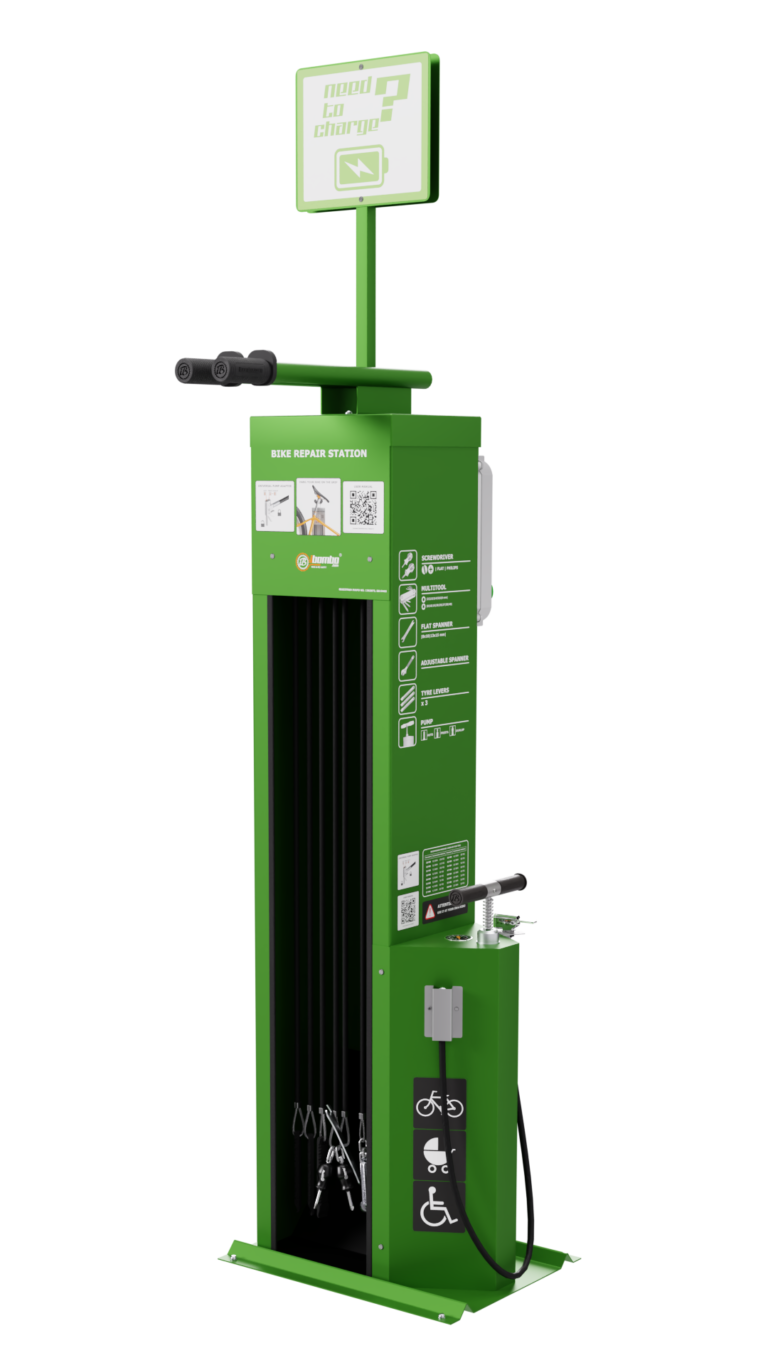

IBOMBO E-PRS-LV2 – LiON
NEW
- Dimensions: 156/226 x 51/61 x 46 cm
- Weight: 75-100 kg
- 9 tools, configuration up to 18
- Pump max 10 BAR (AV/DV/SV)
- Set of various plugs to choose from: BOSCH / Rosenberger / Shimano / Yamaha
- Charging capability for up to 3 bikes
- Up to 4 different plugs
- Charging module LiON with 2 x E-BIKE charging cables
- 1 x Schuko socket 230V
- Grip for hanging the bike
- Up to 7000 cm2 of advertising area
- Selection of 19 standard RAL colors
- Additional options according to customer needs
- Ability to charge E-BIKEs, scooters, and phones

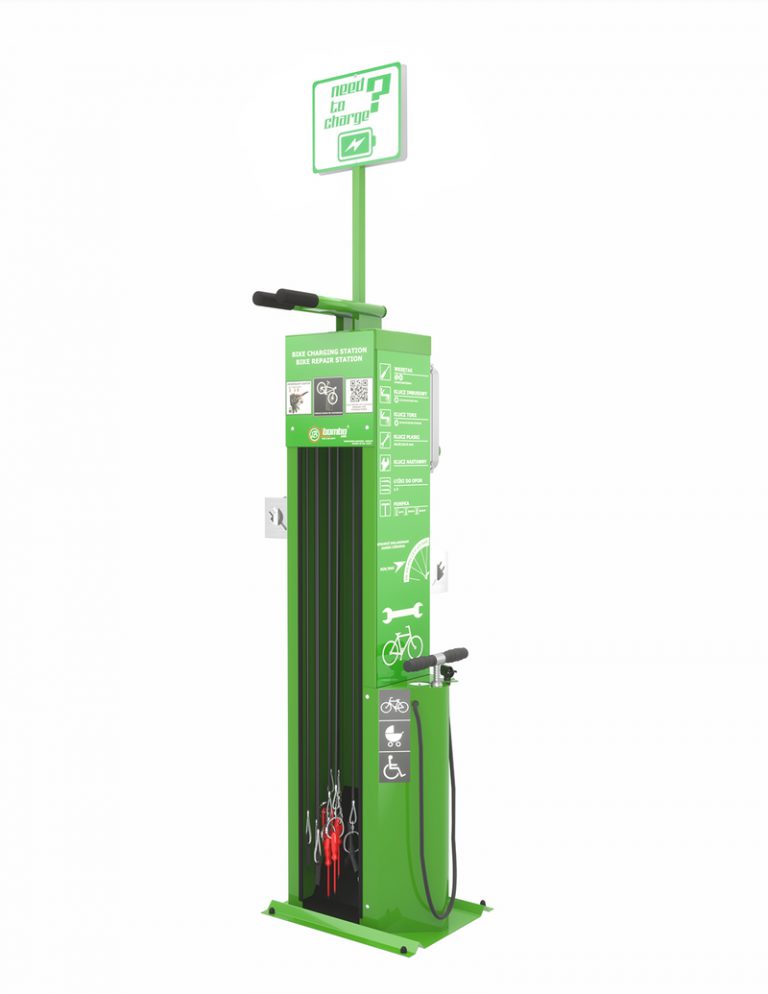

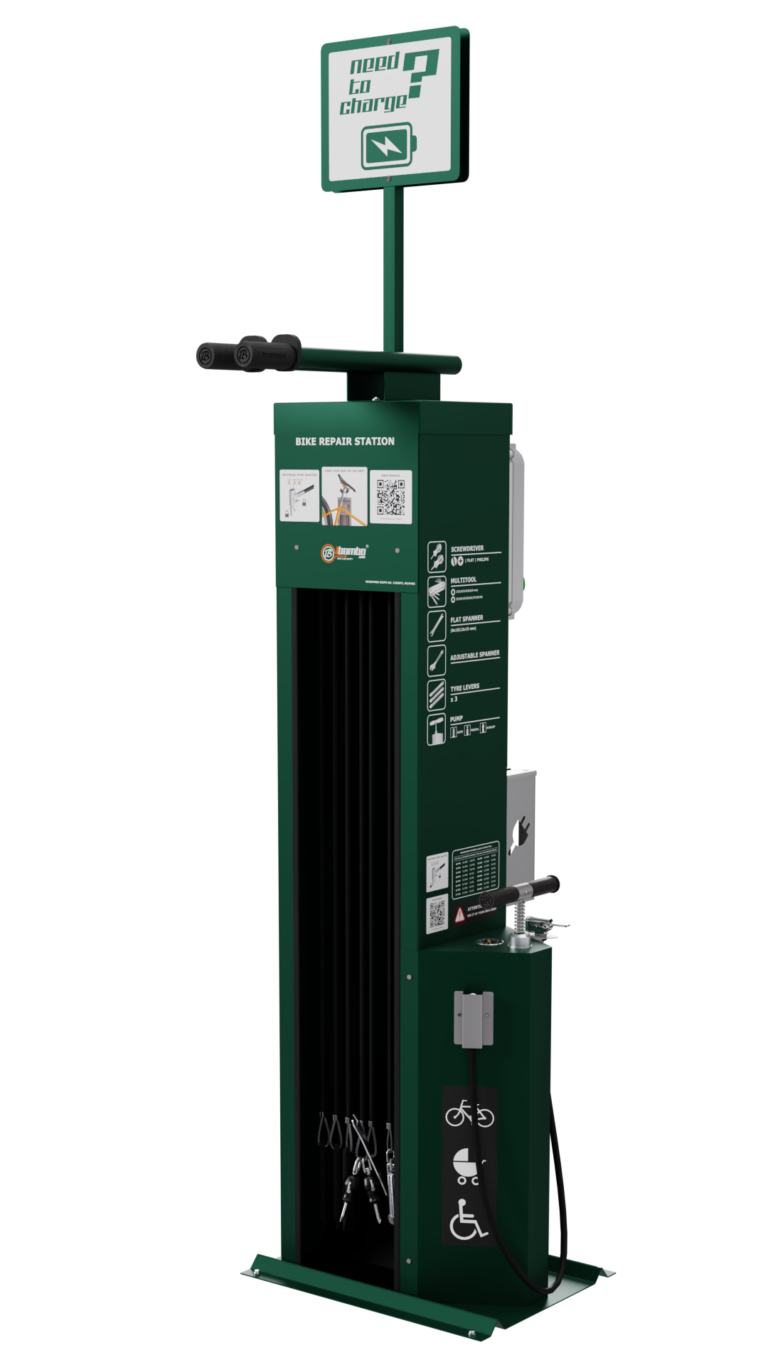

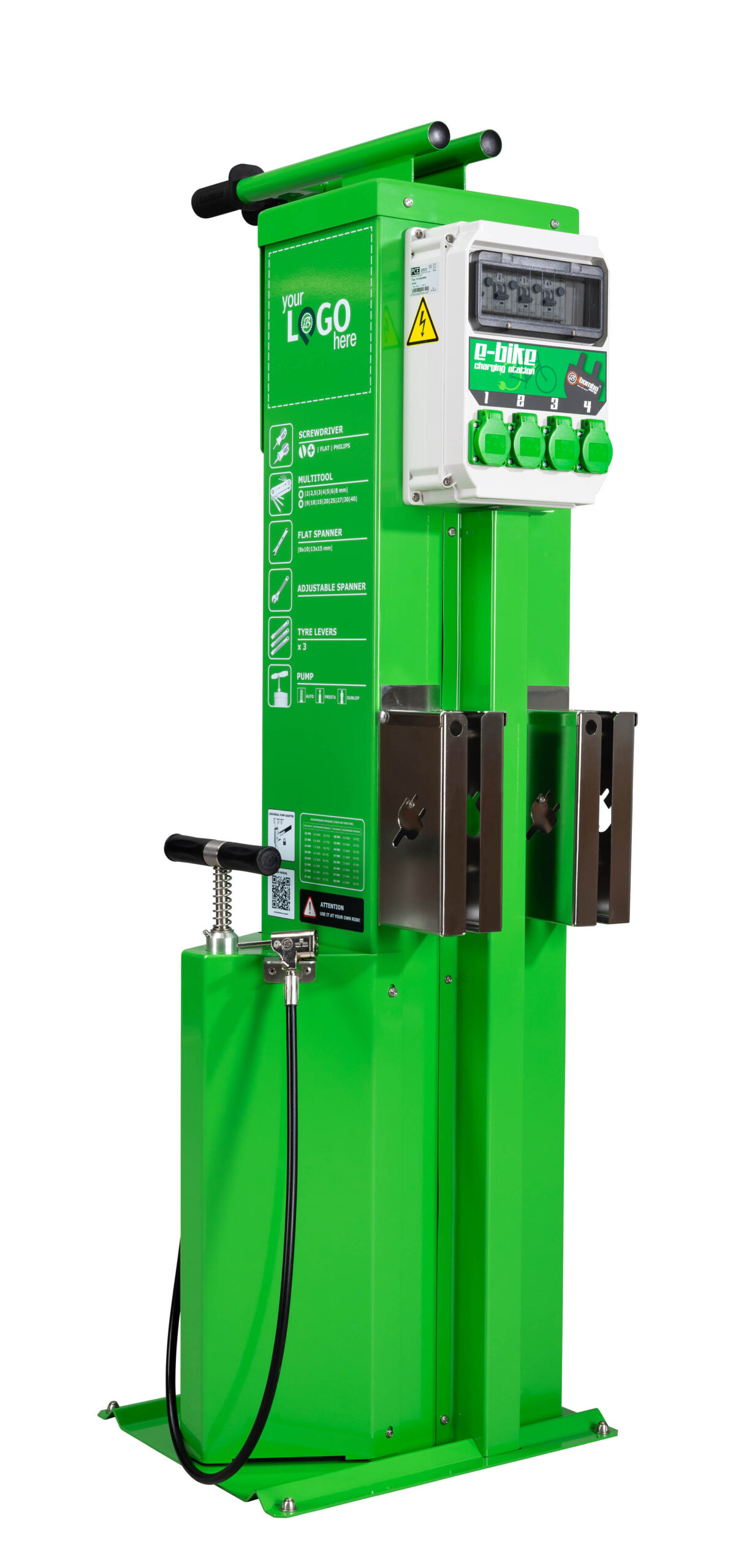

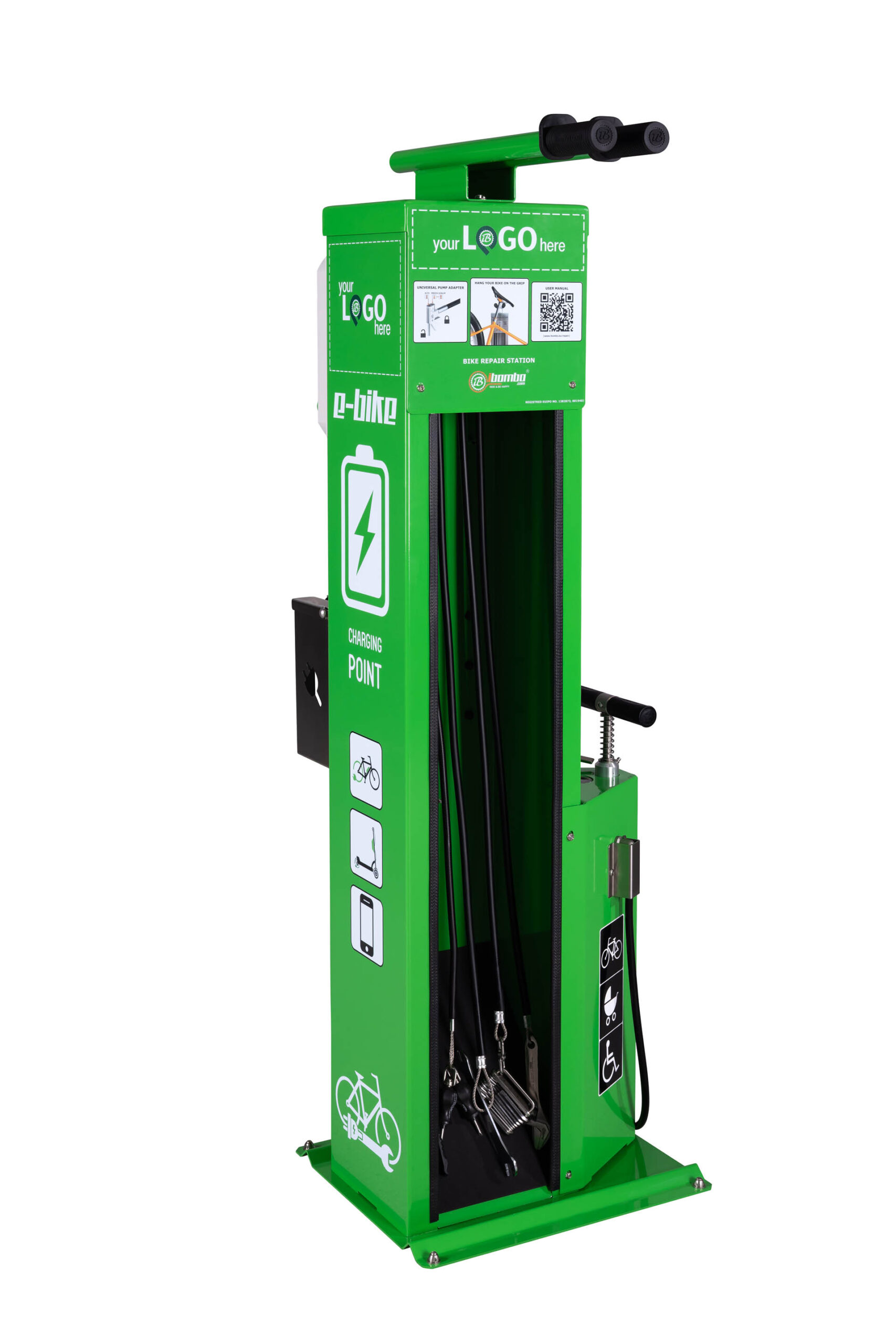

IBOMBO E-PRS-LV2
- Dimensions: 156/226 x 51/61 x 46 cm
- Weight: 75-100 kg
- 9 tools, configuration up to 18
- Pump max 10 BAR (AV/DV/SV)
- Module: 4 x sockets (250V) for E-BIKE charging
- Grip for hanging the bike
- Up to 6300 cm2 of advertising area
- Free print personalization
- Selection of 19 standard RAL colors
- Additional options according to customer needs
- Ability to charge E-BIKEs, scooters, and phones

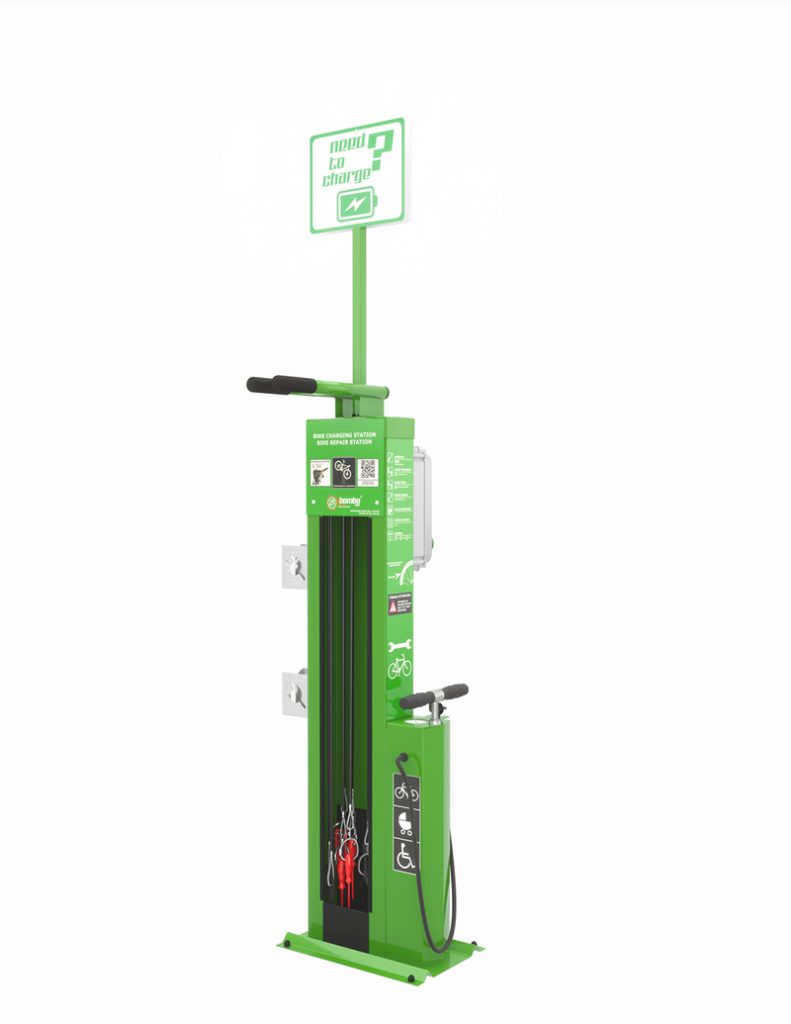

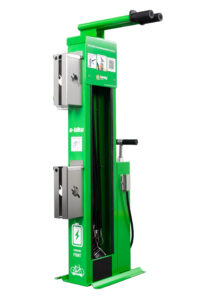

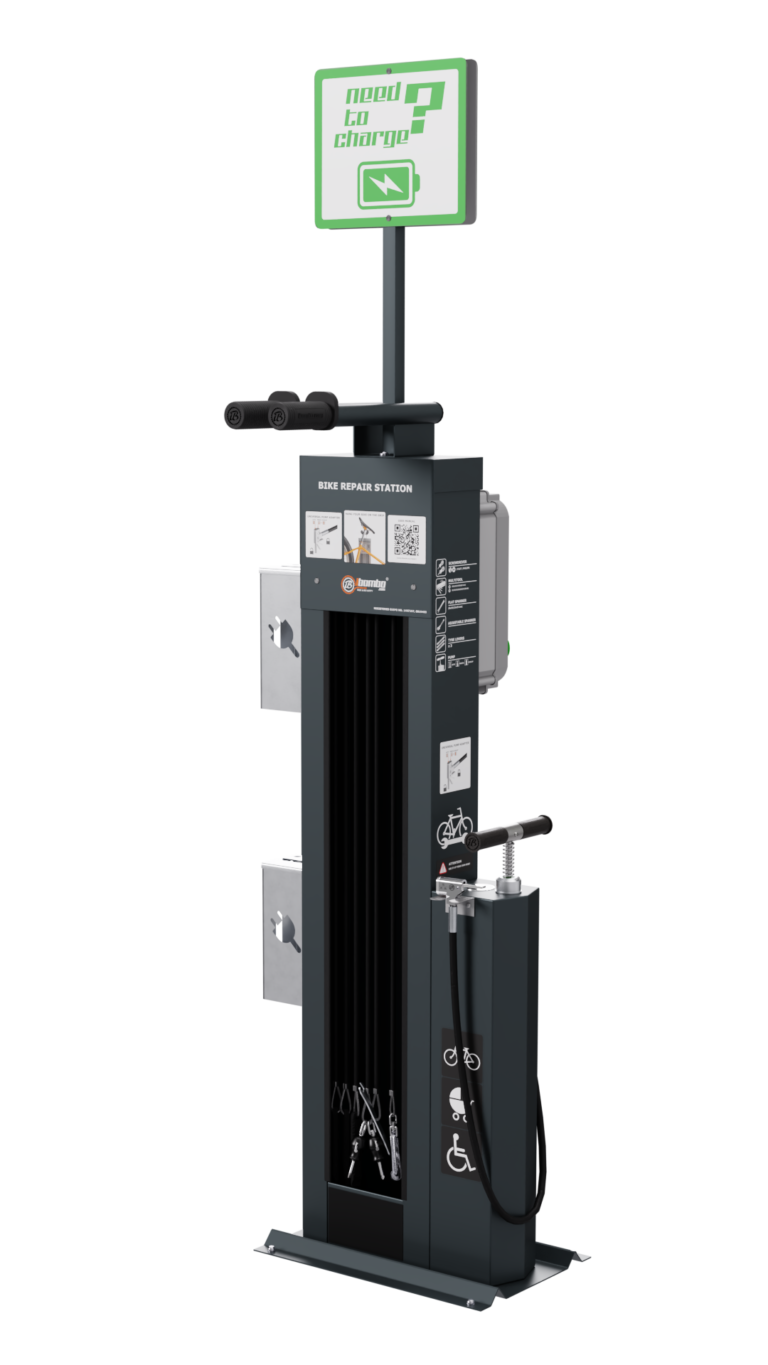

IBOMBO E-PRS-SCANDIC
- Dimensions: 134/226 x 54 x 35 cm
- Weight: 35-50 kg
- 9 tools, configuration up to 16
- Pump max 10 BAR (AV/DV/SV)
- Module: 4 x sockets (250V) for E-BIKE charging
- Grip for hanging the bike
- Up to 1900 cm2 of advertising area
- Free print personalization
- Selection of 19 standard RAL colors
- Additional options according to customer needs
- Ability to charge E-BIKEs, scooters, and phones

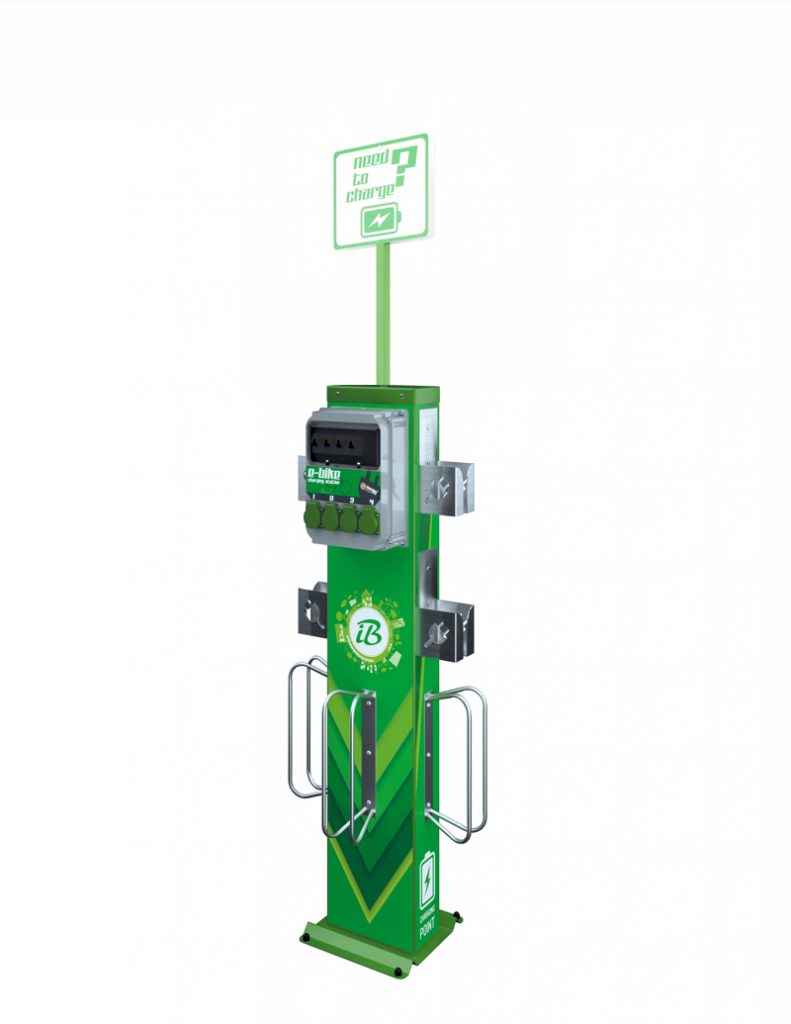

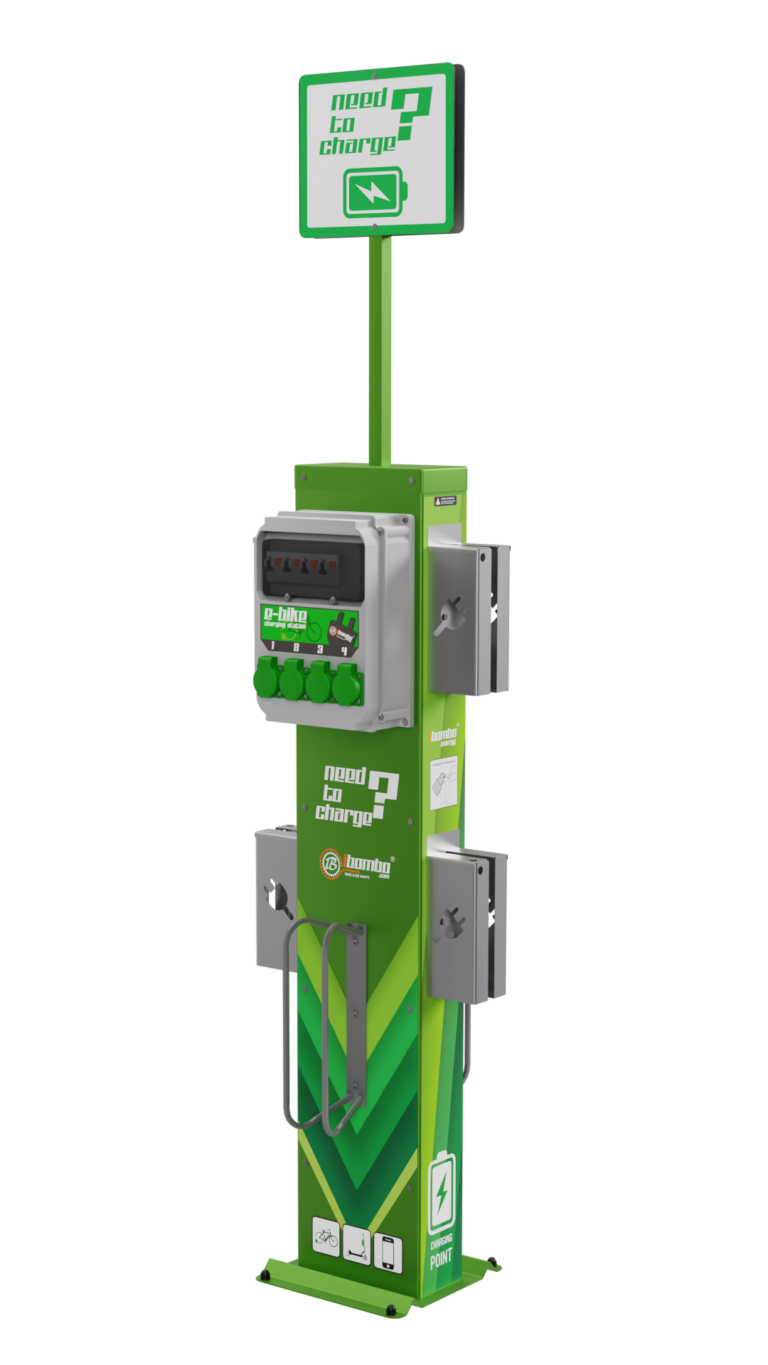

IBOMBO E-HUB
- Dimensions: 126/226 x 54 x 41 cm
- Weight: 30-40 kg
- 8 x sockets (230V) for E-BIKE charging
- Up to 7300 cm2 of advertising area
- Without tools and pump
- Free print personalization
- Selection of 19 standard RAL colors
- Ability to charge E-BIKEs, scooters, and phones
- Additional options according to customer needs

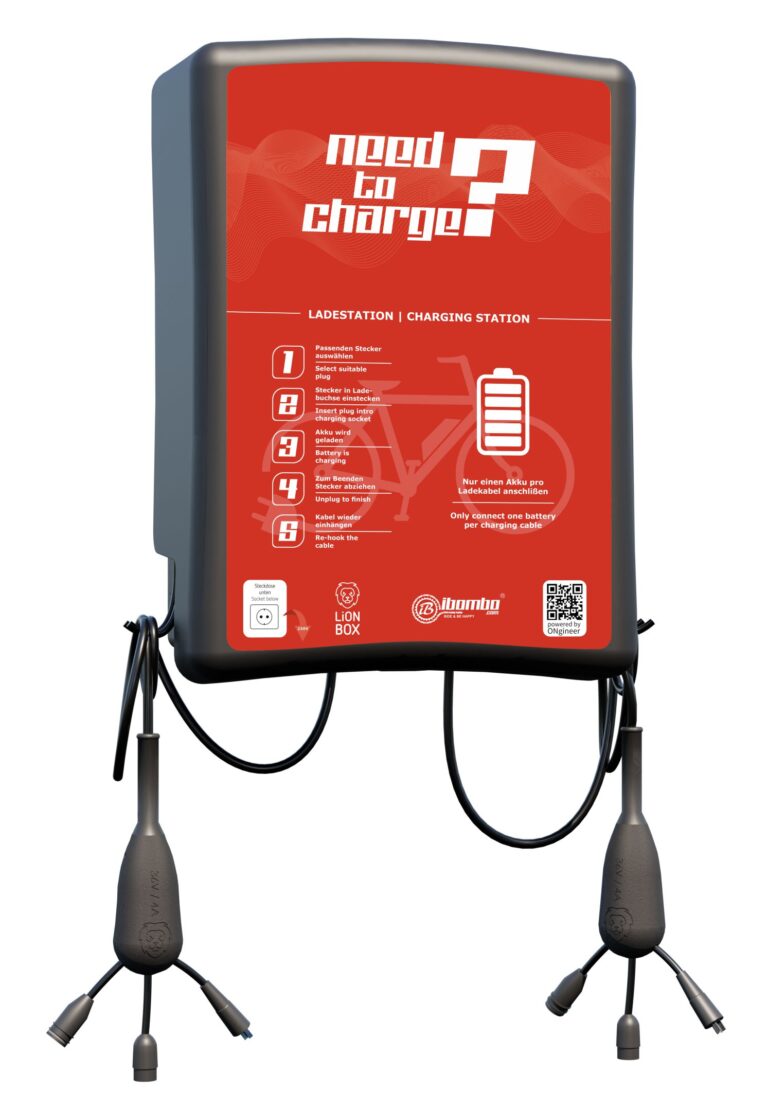

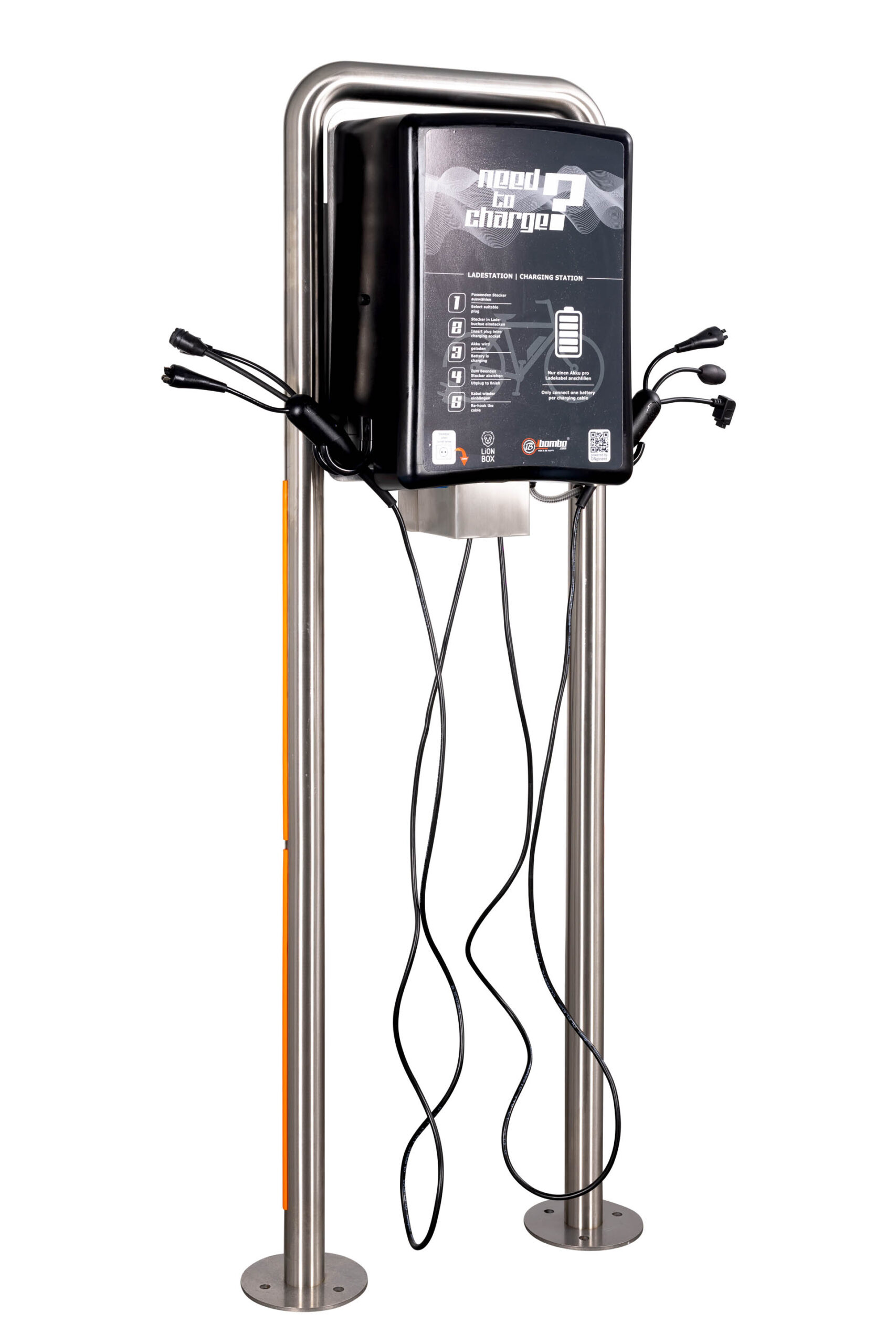

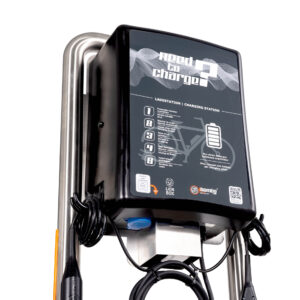

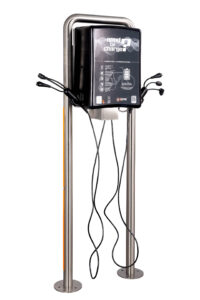

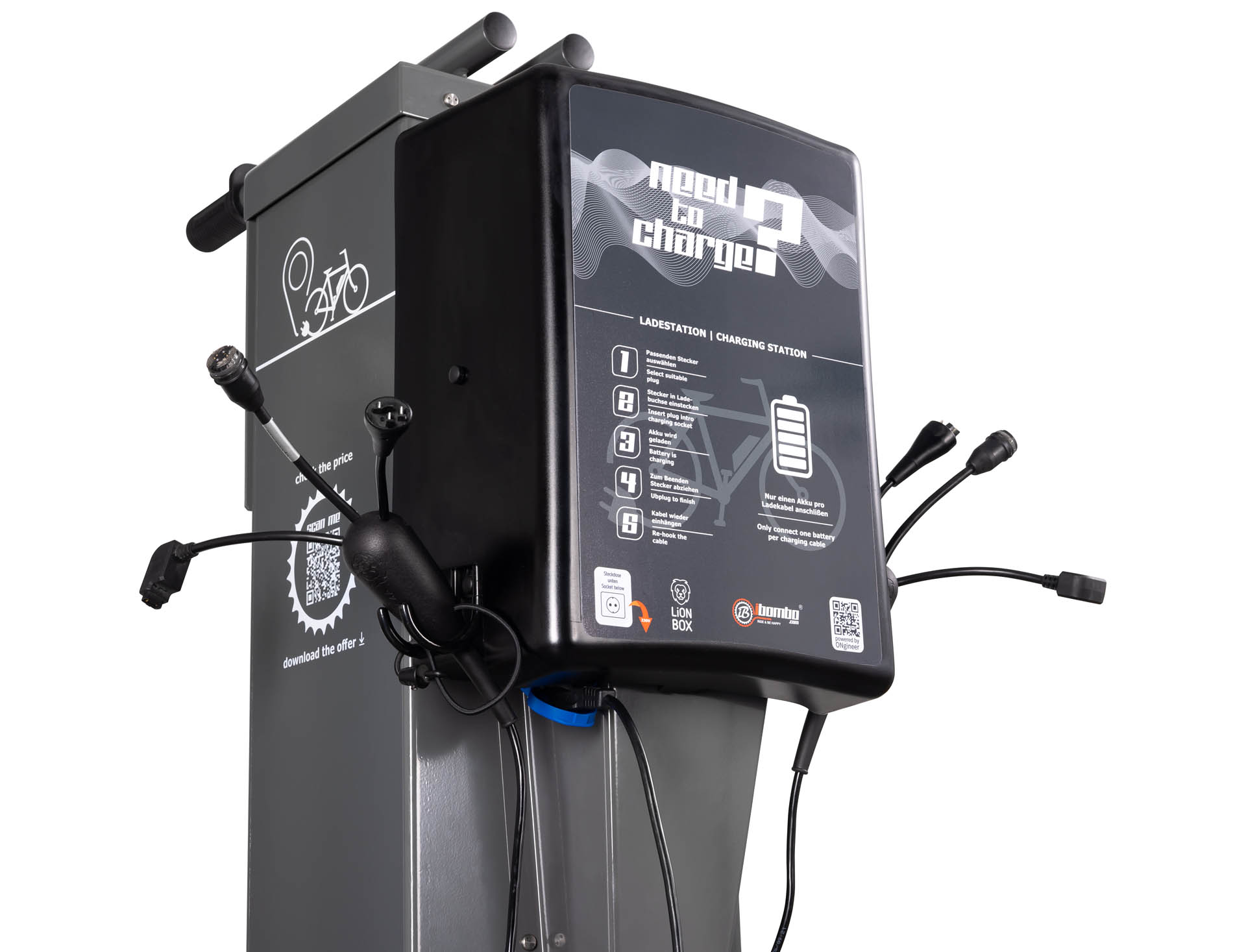

IBOMBO LiON
NEW
- Dimensions: 43,5 x 31,5 x 19 cm
- Weight: 6,5 kg
- Waterproof class: IP54
- A set of various plugs to choose from: BOSCH / Rosenberger / Shimano / Yamaha
- Charging capability for up to 3 bikes
- Up to 4 different plugs
- Charging module LiON with 2 x E-BIKE charging cables
- 1 x Schuko socket 230V
- up to 770cm2 of advertising area
- Selection of 19 standard RAL colors
- Additional options according to customer needs
- Ability to charge E-BIKEs, scooters, and phones

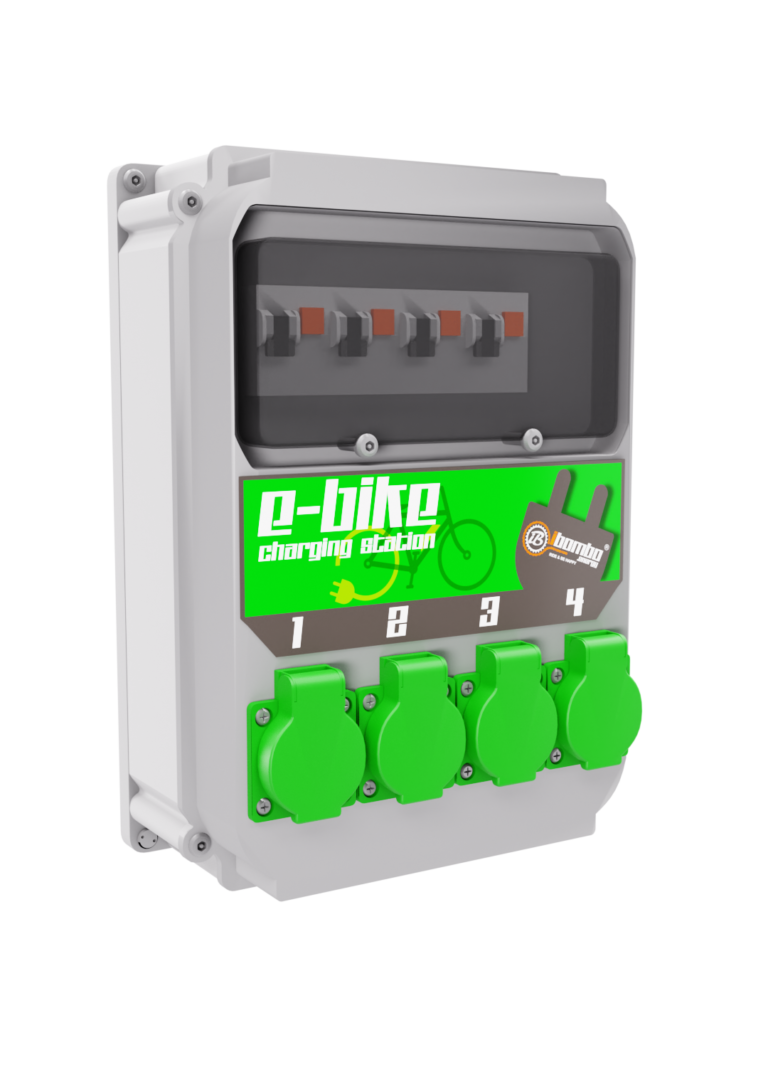

IBOMBO CeON
NEW
- Dimensions: 31 x 22 x 11,5 cm
- Weight: 5,5 kg
- Waterproof class: IP54
- 4 x sockets
- Type of charging plug to choose
- Overcurrent and residual current circuit breaker
- Additional options according to customer needs
Professional e-bike repair stations directly from the producer
On this website we provide you with professional modules for servicing and charging e-bikes. The repair stations provided as part of our offer are entirely produced by IBOMBO and collect excellent opinions from prestigious, well-known companies almost all over the world. Please see the information below to learn more about them.
Professional e-bike repair stations directly from the producer
On this website we provide you with professional modules for servicing and charging e-bikes. The repair stations provided as part of our offer are entirely produced by IBOMBO and collect excellent opinions from prestigious, well-known companies almost all over the world. Please see the information below to learn more about them.
IBOMBO e-bike repair stations with above-average solidity of workmanship
Depending on the specific model, our e-bike repair stations may differ in features such as type of structure, total weight and size. Regardless of these differences, each of the solutions presented above also has a number of common advantages for the entire range. Thanks to the solidity of workmanship the offered products are able to remain almost unchanged for many years despite everyday use.
In order not to be groundless, let’s present the key advantages of our e-bike modules that confirm the aforementioned fact. Repair stations produced by IBOMBO have been designed in a way that ensures their perfect adaptation to use within the broadly understood public space. Their bodies are obtained on the basis of thermoplastic or powder coated sheet, additionally protected against corrosion in the galvanizing process. We also offer stations made of stainless steel, as well as ground / brushed stainless steel, for very difficult weather conditions. All sheet metal details available from the outside and the charging modules themselves are connected with each other by means of special anti-theft screws (the bits are delivered together with the order), and the whole device is permanently attached to the ground.
The e-bike charging module itself is stored by repair inside a sturdy, compact, high-strength PC / ABS housing. It is also equipped with additional RCBO (6A) protective elements, covered by a shock-resistant window. All external parts are made of high-quality stainless steel. The charging sockets are made on the basis of polyamide with nickel-plated contacts (a protection degree of IP54). The cores of the tool ropes are also made of high-quality stainless steel and placed in tool cabinets (IBOMBO E-PRS-LV2 and IBOMBO E-PRS-SCANDIC models are equipped with this type of cabinets).
e-bike repair stations from IBOMBO – functionality and simplicity of use
The robustness of our e-bike repair stations is just one of their two main advantages. The second, no less important, is optimized usability and safety. Our devices combine the features of fixing and charging stations, in which their front is dedicated to repairs, while the back is used for charging. Thanks to omega, a cover panel placed on the back of the station made of steel and secured with anti-theft screws, we protect the electric cable against manipulation from the outside. Our module also has security features in accordance with European Union directives regarding the provision of electrical sockets in public spaces.
On the front of our stations there are the aforementioned tool cabinets, in which the accessories are attached to steel ropes braided with rubber covers. Thanks to this rubber protection, the lines do not get tangled with each other and do not pose a risk of scratching the frames of the serviced vehicles. In addition, they also have an appropriately selected length, thanks to which they allow you to reach all vehicle components that require special attention. E-bike repair stations are also equipped with manual pumps with adapters that are suitable for all bicycle valves. The bike itself, on the other hand, can be placed on a special grip which enables an ideal position for carrying out various repairs.
All the aforementioned features contribute to above-average functionality and long-term reliability of the offered e-bike repair stations. The best confirmation of this is the long list of global brands that we have served and the unambiguously positive opinions of their representatives regarding our devices. Among them there were “giants” such as Google, Amazon, Orange, Zalando or Toyota. Contact us if you want your company to join this group and if you would like to get to know the price of each of our solutions.
