BIKE REPAIR POINT – IBOMBO HOKO

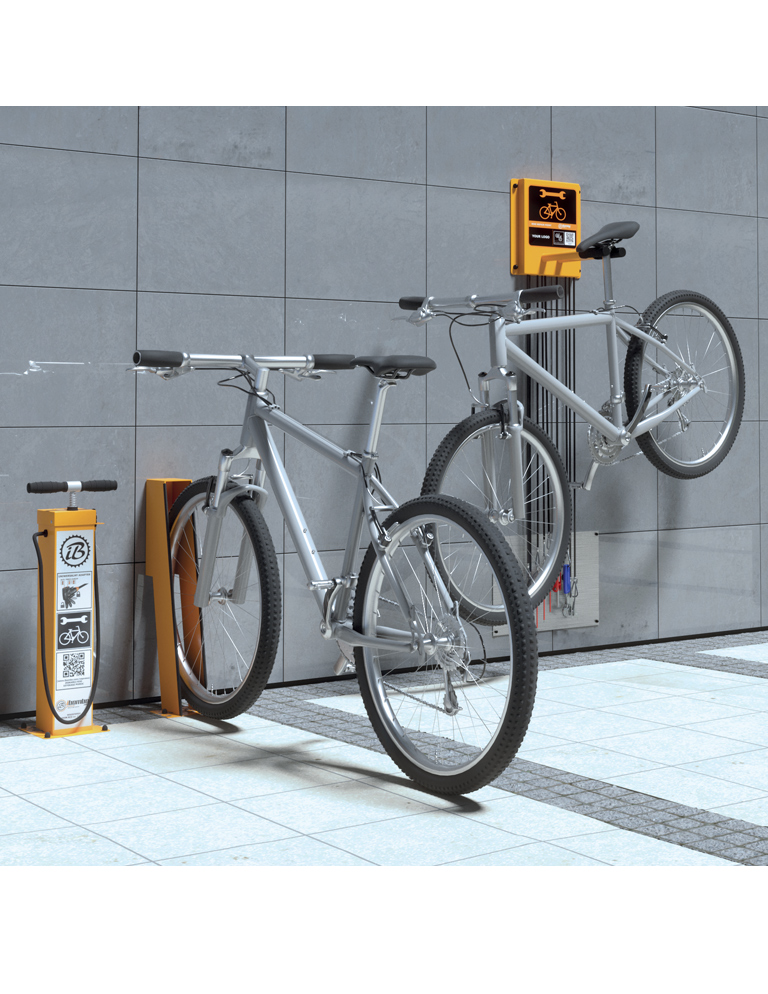

This product can be additionally equipped with, among others, an IBOMBO PRS-sV1 pump and a side-or-back bike rack.

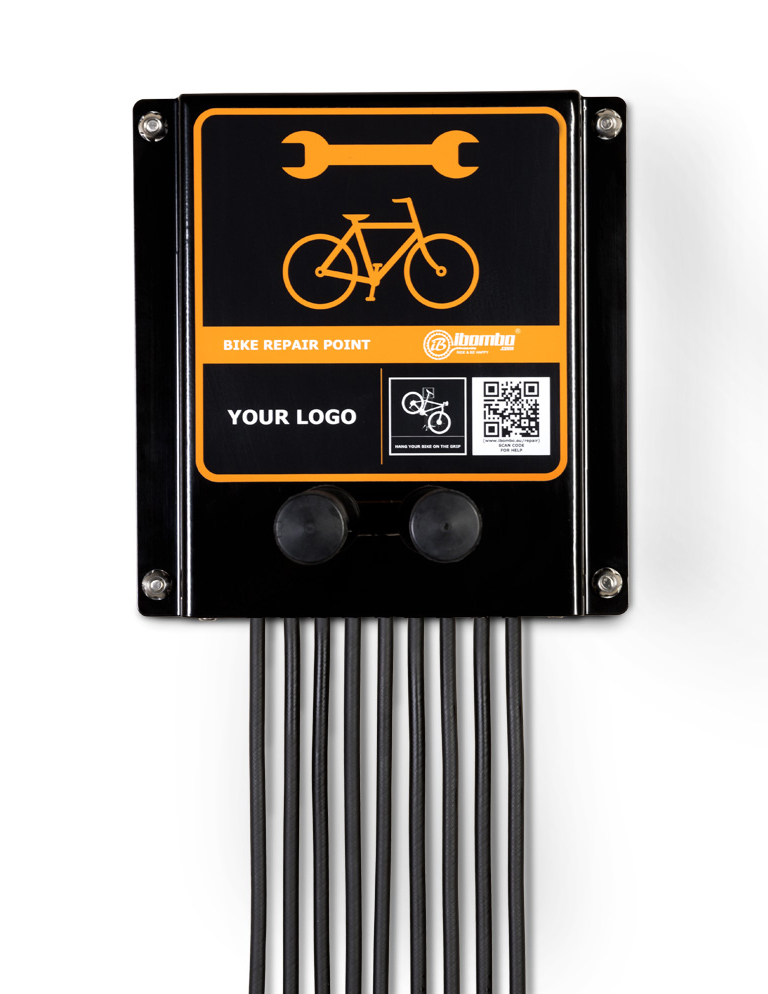

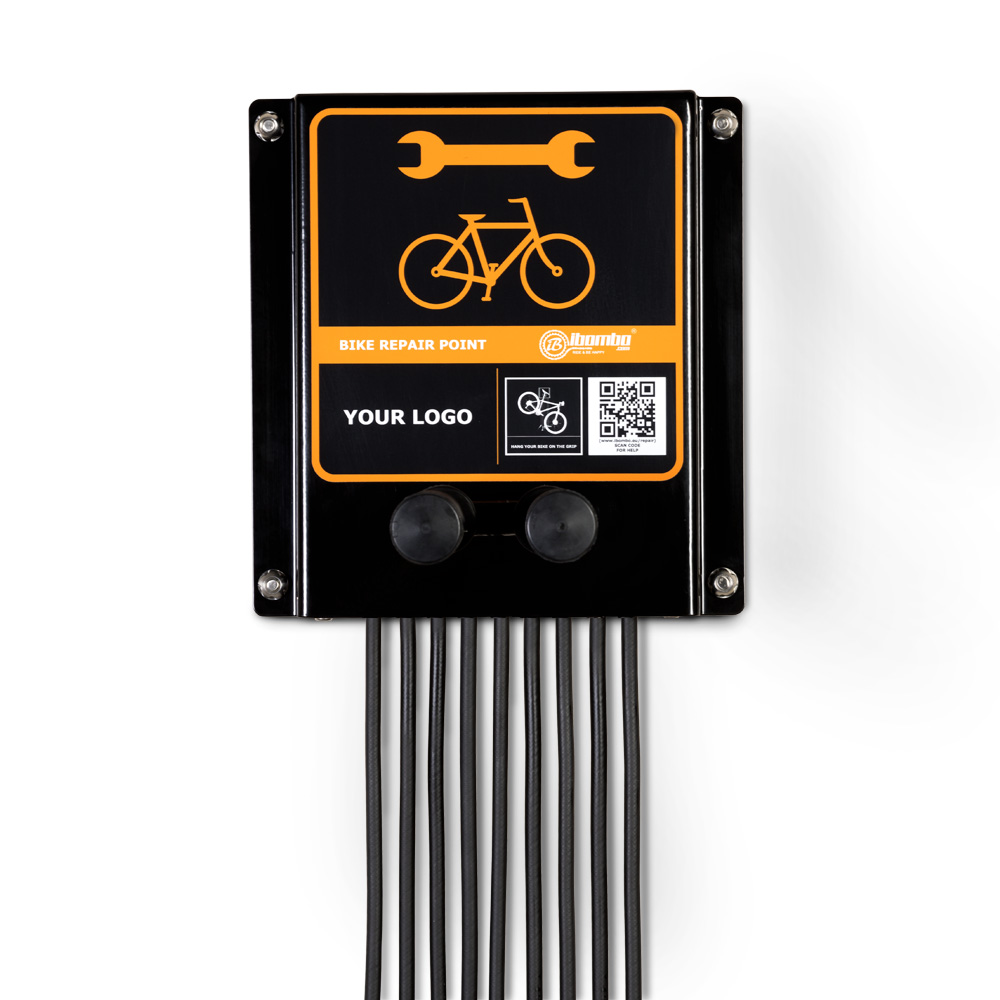

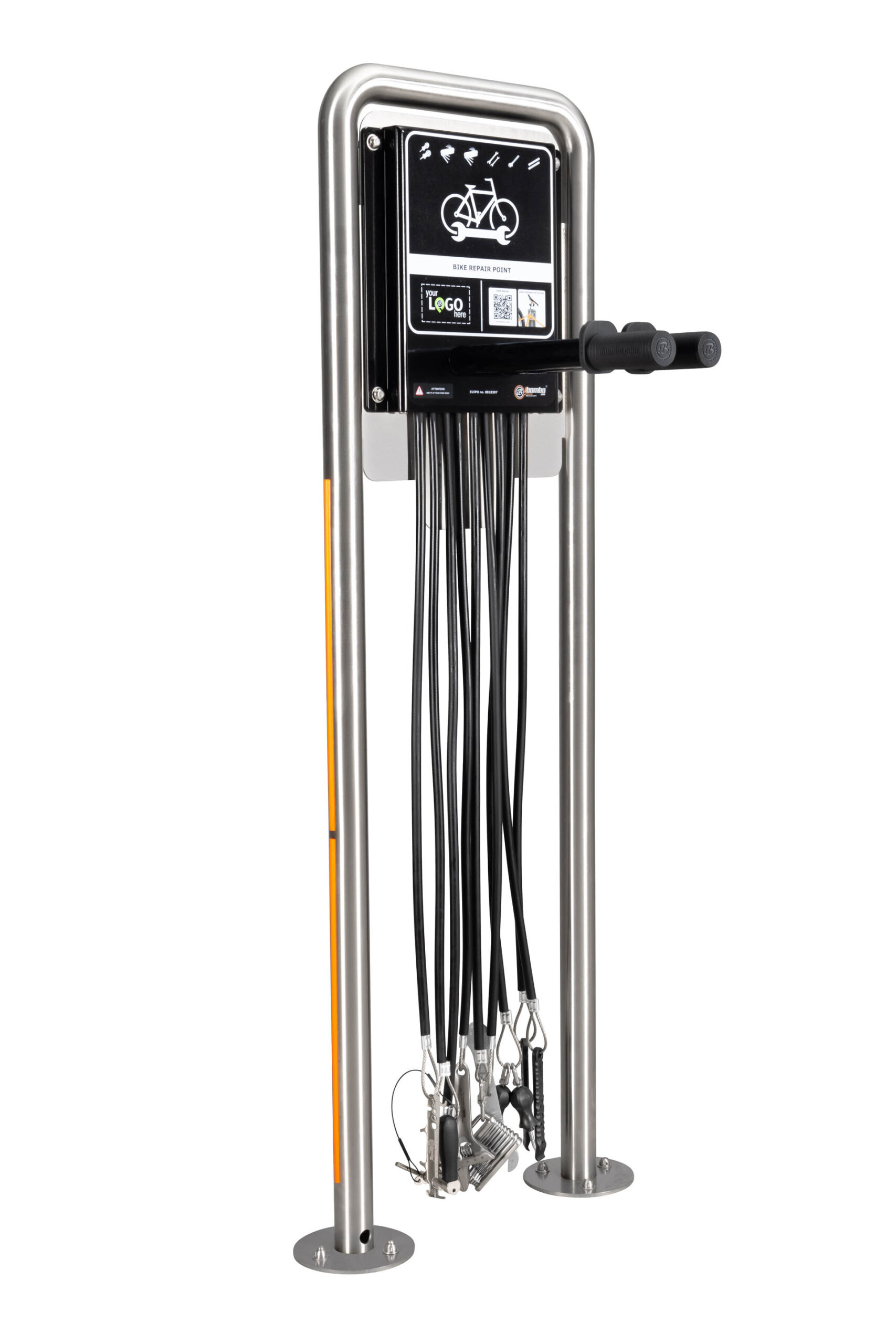

Bike Repair Point – IBOMBO HOKO is suitable for public spaces. It is designed for both: indoor and outdoor use and dedicated for small spaces. It is made of galvanized steel with powder coating. The device is designed for wall mounting.

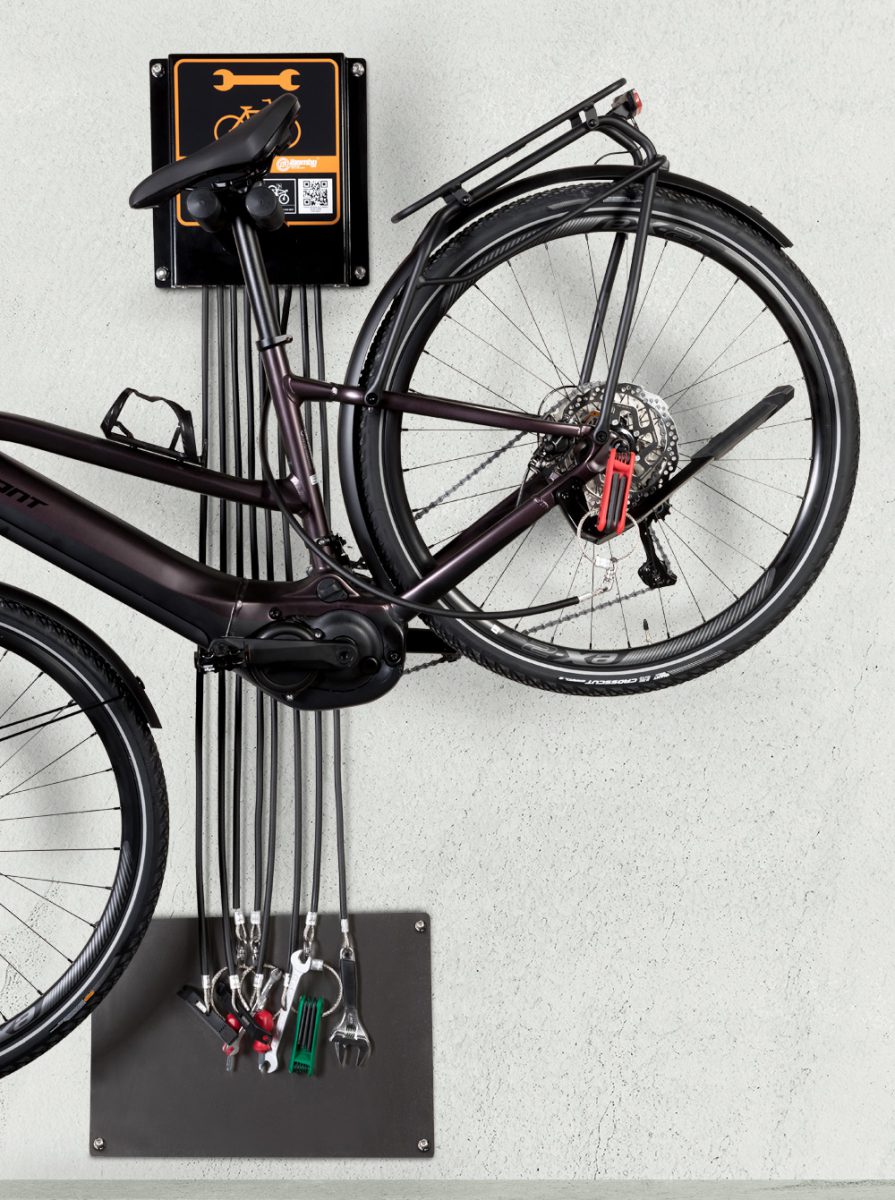

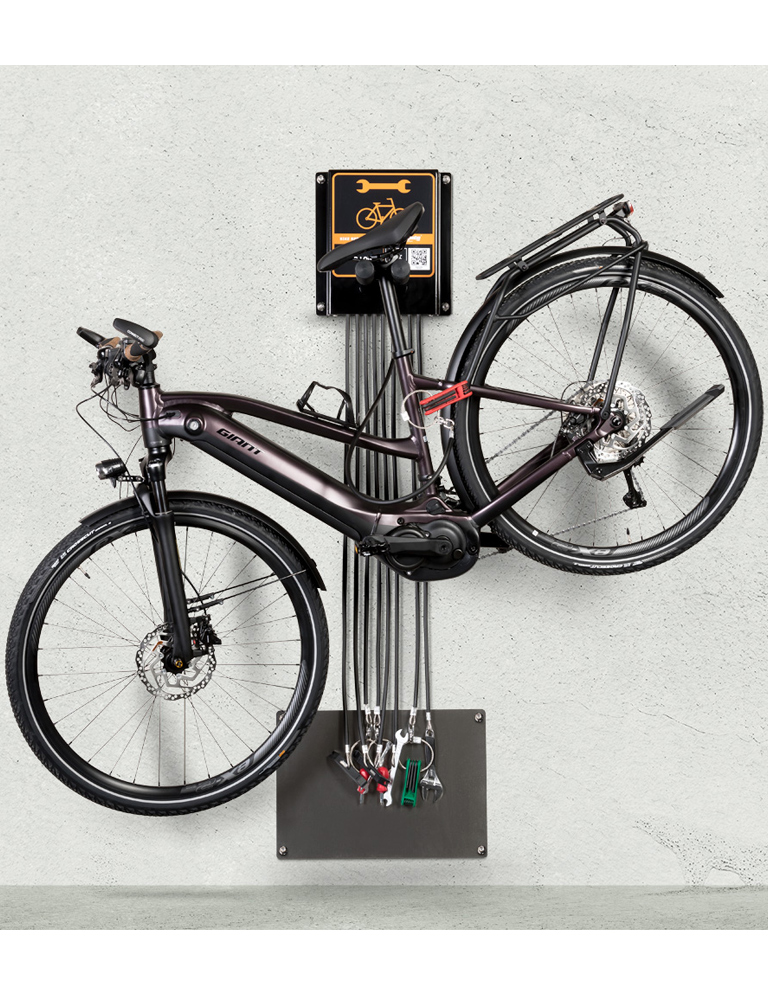

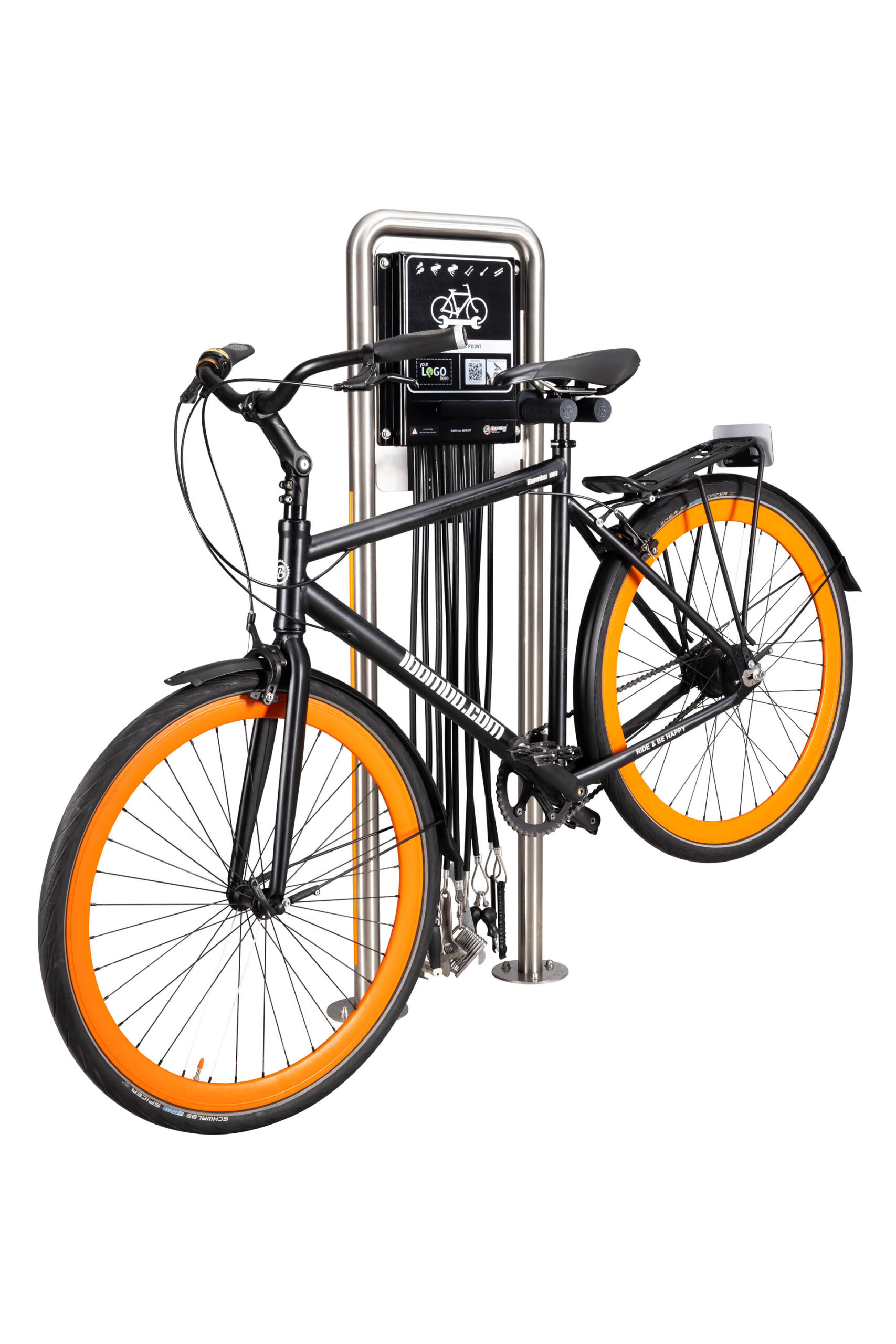

Sheet metal elements of the device are fastened with anti-theft screws. The construction of the station allows you to place the bicycle on the grip, so you can easily turn the crank while repairing the bike.

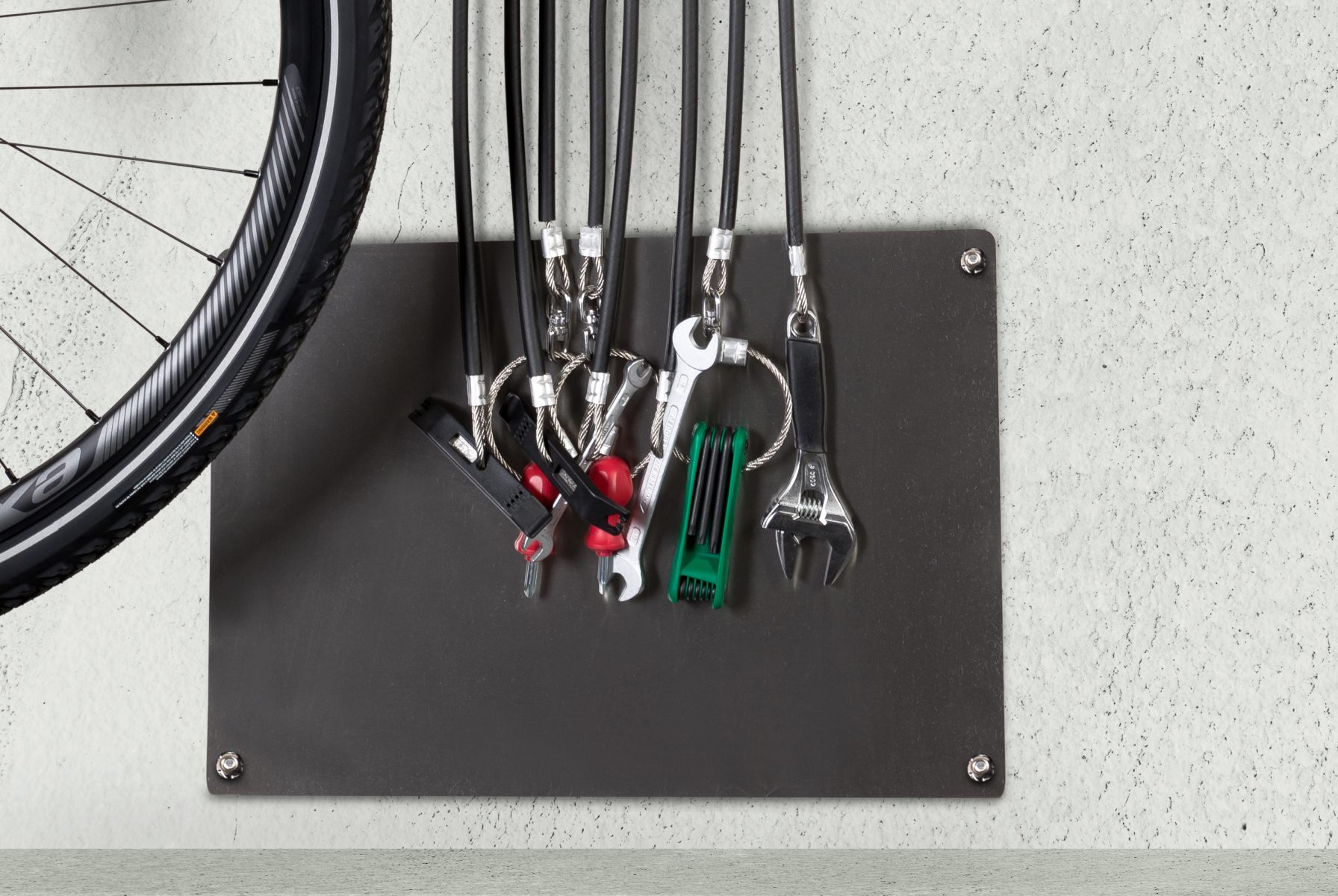

The tools are attached to the stainless steel ropes hanging from the device; the length of the ropes allows you to reach all bicycle components. The rubber coating of the ropes prevents tools from tangling and protects the bicycle frame from scratching. Wall bumper plate made of brushed INOX stainless steel (AISI 304) protects the wall against dirt and damage.

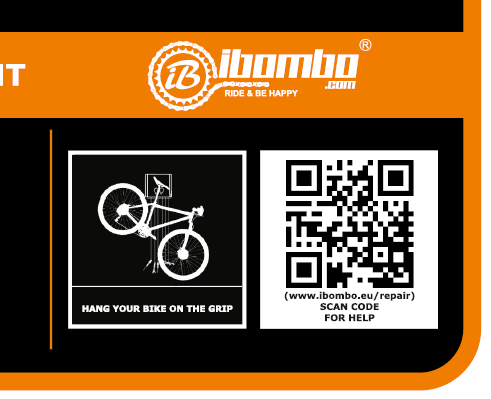

QR CODE placed on the front panel enables an immediate access to online publications containing repair manual.
This product can be additionally equipped with, among others, IBOMBO PRS-sV1 pump and Side-or- back bike stands.

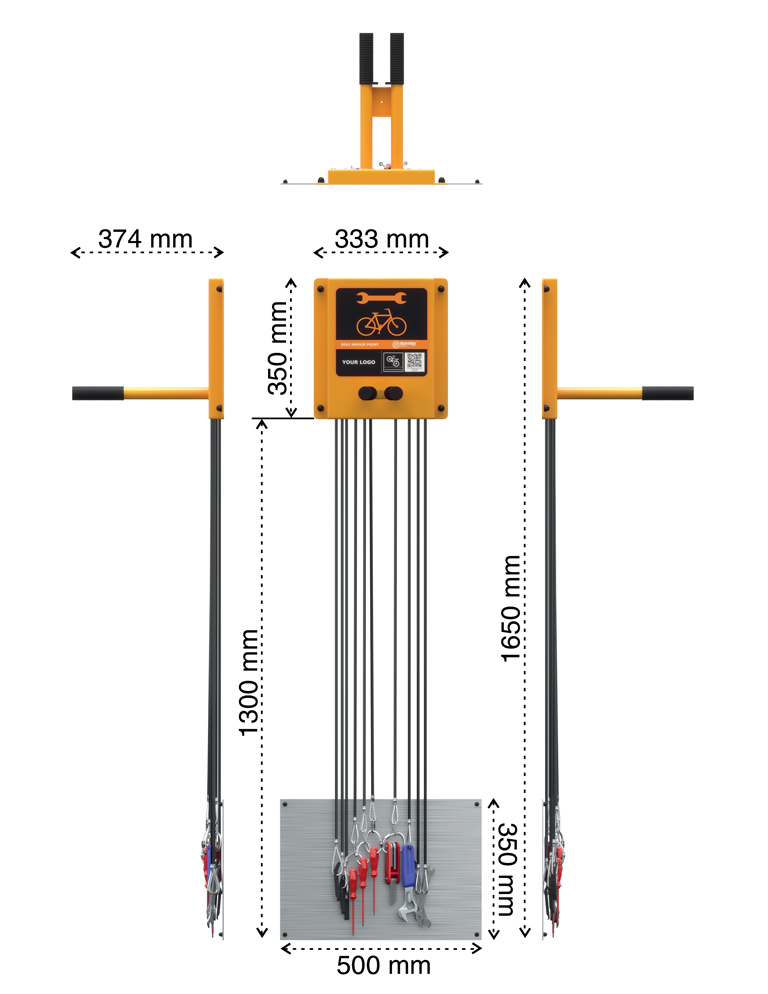

Dimensions:
33 x 35 x 37 cmWeight:
10 kgAdvertising area:
up to 625 cm2Material:
galvanized-
housing made of galvanized steel
Galvanized sheet metal
-
Tools mounted on aircraft cable ropes (7×7 multistrand, Ø 4 mm) made of AISI 316 marine stainless steel, ropes protected by a flexible rubber cover and terminated with precise machine crimps made of nickel-plated aluminum sleeves
Tools mounted on aircraft cable ropes (7×7 multistrand, Ø 4 mm) made of AISI 316 marine stainless steel, ropes protected by a flexible rubber cover and terminated with precise machine crimps made of nickel-plated aluminum sleeves
- powder coating
- up to 576 cm2 of advertising area
-
QR CODE with repair manual
QR CODE with repair manual
-

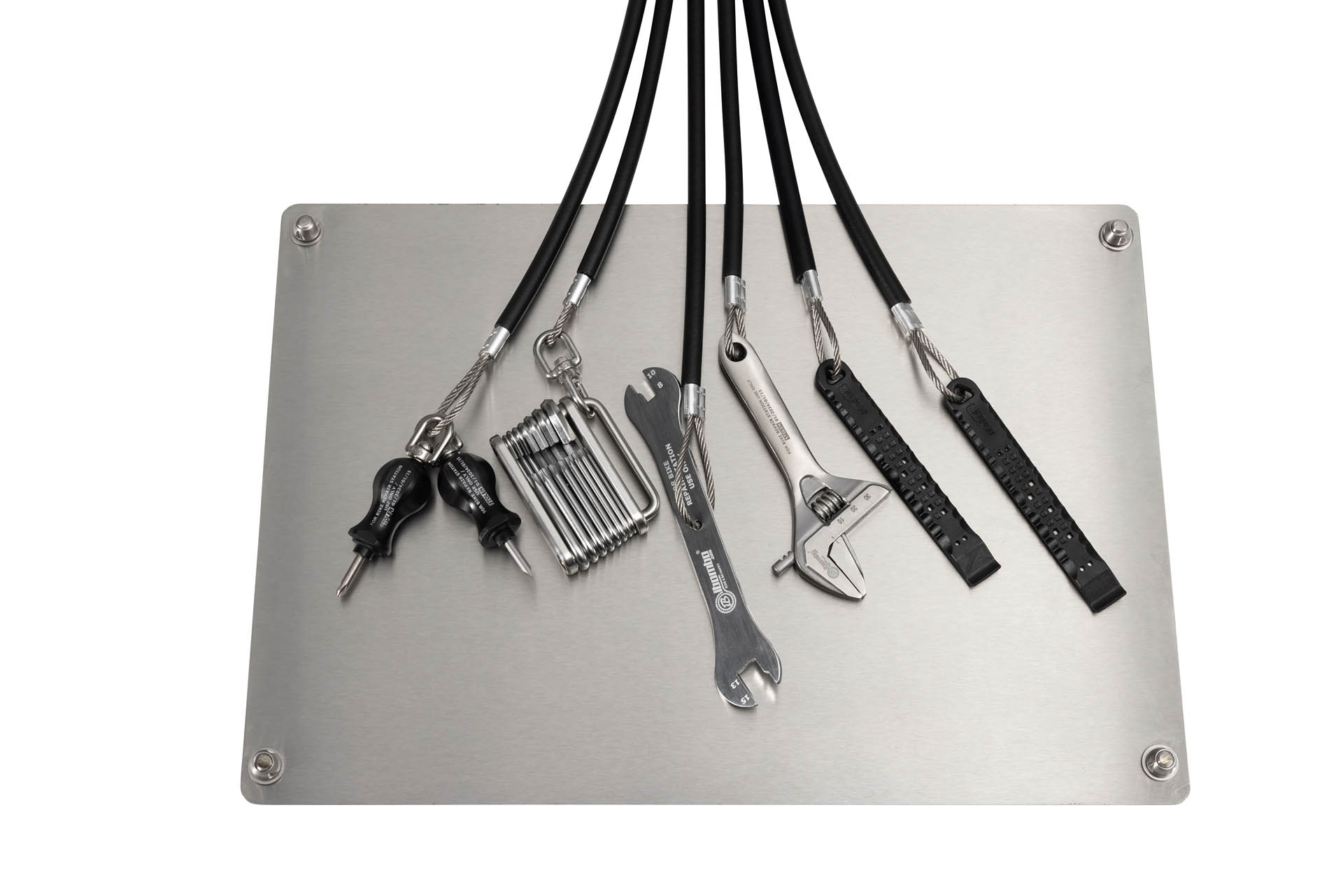

wall bumper plate made of Inox stainless steel (AISI 304)
wall bumper plate made of Inox brushed stainless steel (AISI 304)
-

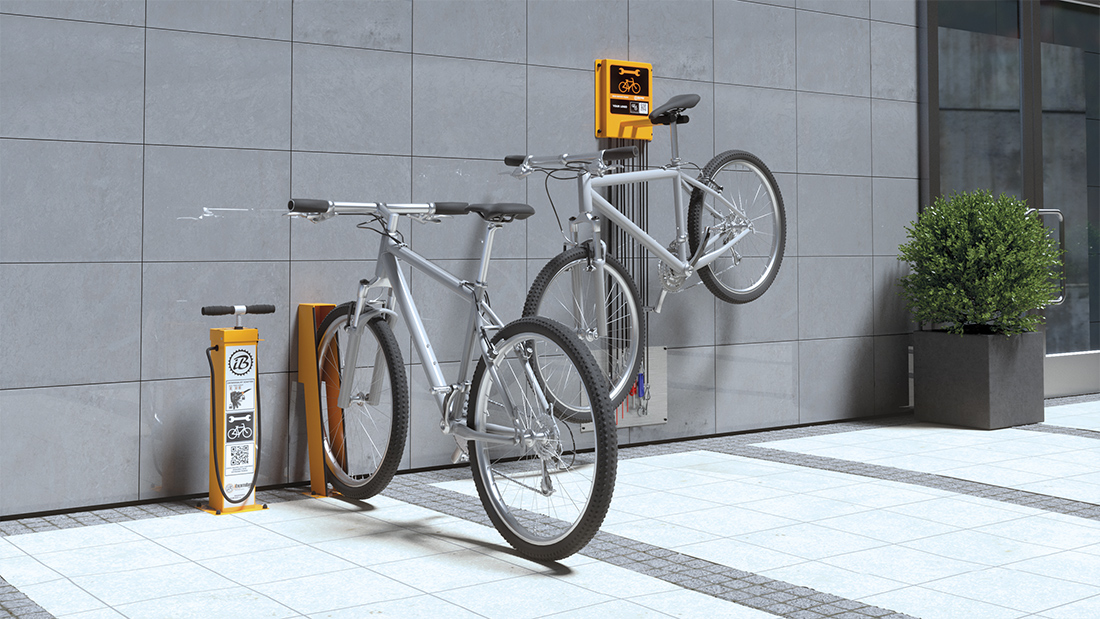

Big Side-or-back bike stand – powder coated
Big Side-or-back bike stand – powder coated
-

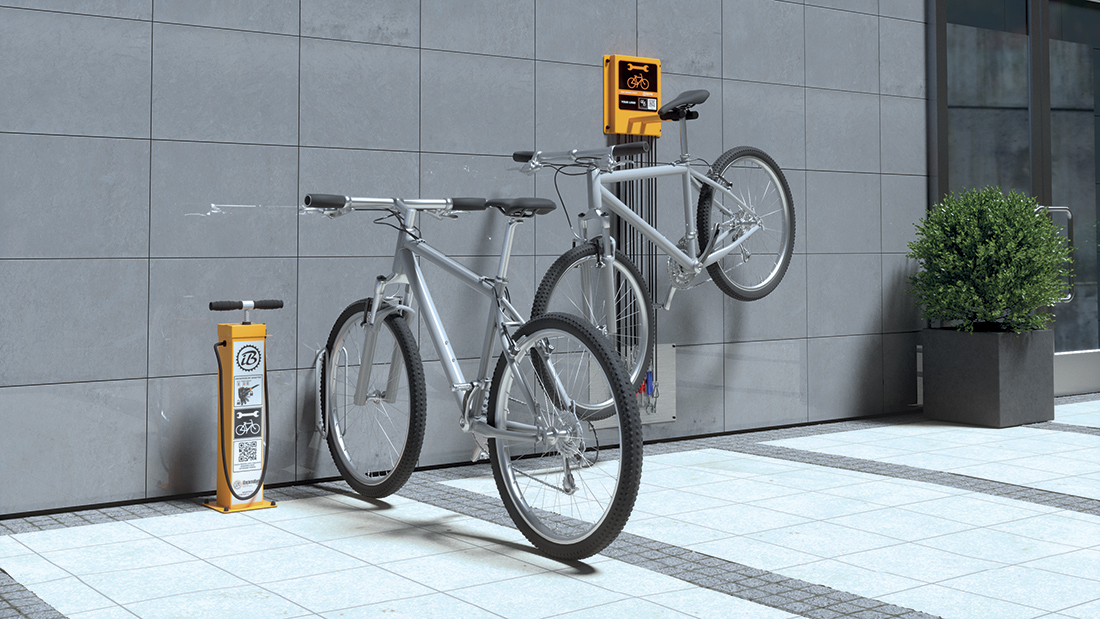

Small Side-or-back bike stand - stainless steel (AISI 304)
Small Side-or-back bike stand - stainless steel (AISI 304)
Small Side-or-back bike stand - stainless steel (AISI 304)
-
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
-
Phillips screwdriver PH2 with integrated swivel-stainless steel AISI 304/420
Phillips screwdriver PH2 with integrated swivel-stainless steel AISI 304/420
Phillips screwdriver PH2 with integrated swivel-stainless steel AISI 304/420
-
Flat screwdriver 5.5 mm with integrated swivel- stainless steel AISI 304/420
Flat screwdriver 5.5 mm with integrated swivel- stainless steel AISI 304/420
Flat screwdriver 5.5 mm with integrated swivel- stainless steel AISI 304/420
-
TORX/HEX multitool with integrated swivel – AISI 304/316/420 stainless steel + nickel-plated TORX |9|10|15|20|25|27|30|40| HEX |2|2.5|3|4|5|6|8|"
TORX/HEX multitool with integrated swivel – AISI 304/316/420 stainless steel + nickel-plated TORX |9|10|15|20|25|27|30|40| HEX |2|2.5|3|4|5|6|8|"
TORX/HEX multitool with integrated swivel – AISI 304/316/420 stainless steel + nickel-plated TORX |9|10|15|20|25|27|30|40| HEX |2|2.5|3|4|5|6|8|"
-
Adjustable spanner 0-36 mm - AISI 420 stainless steel + nickel plated
Adjustable spanner 0-36 mm - AISI 420 stainless steel + nickel plated
Adjustable spanner 0-36 mm - AISI 420 stainless steel + nickel plated
-
Flat spanners 8x10 mm and 13x15 mm- AISI 420 stainless steel, nickel-plated
Flat spanner 8x10- AISI 420 stainless steel, nickel-plated
Flat spanner 13x15 mm- AISI 420 stainless steel, nickel-plated
-

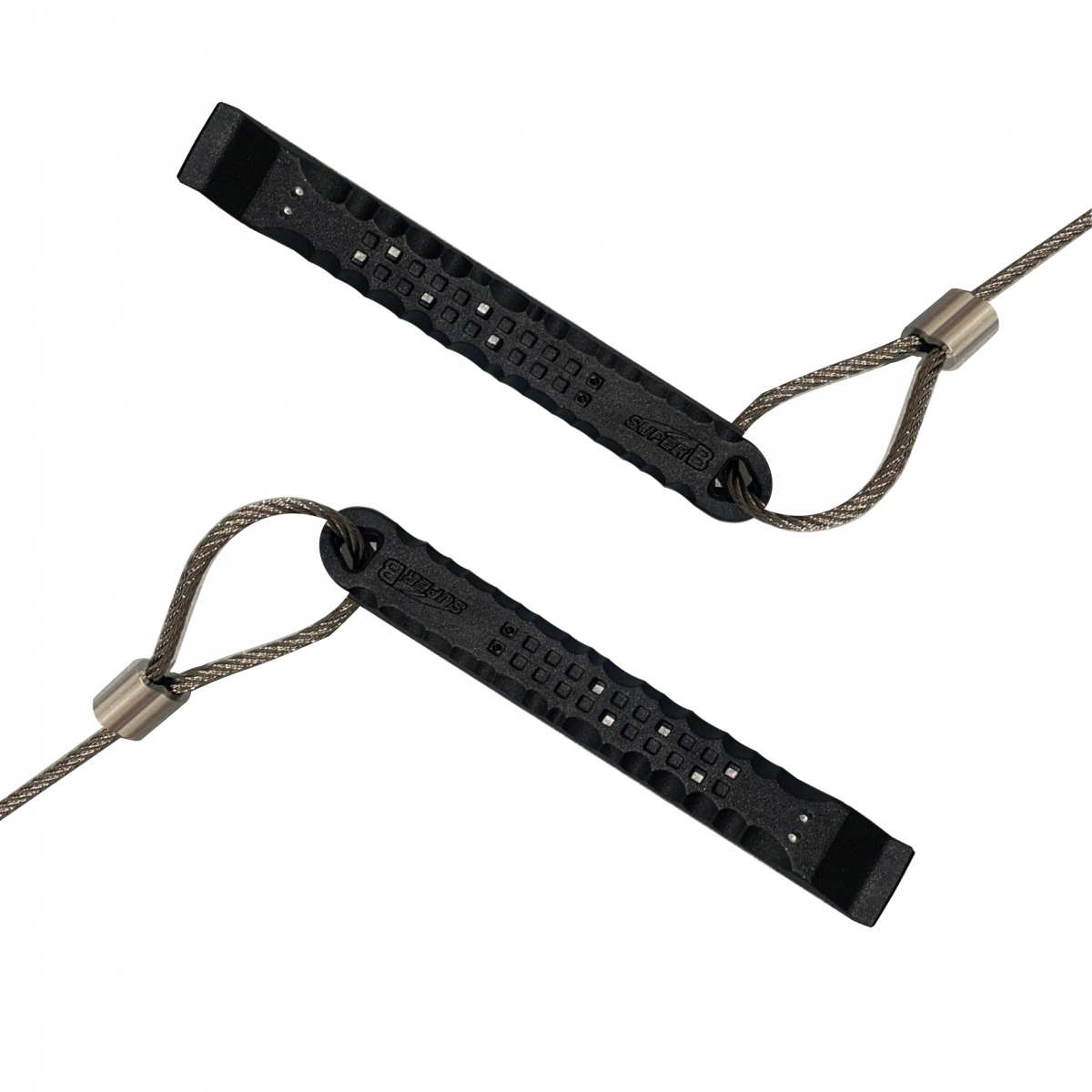

2 x tire levers with AISI420 stainless steel core – nylon coated for rim protection
2 x tire levers with AISI420 stainless steel core – nylon coated for rim protection
Pure white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Bright red orange
Traffic red
Telemagenta
Claret violet
Yellow green
Moss green
Light blue
Sky blue
Traffic blue
Ultramarine blue
Sapphire blue
Our products can be powder coated in many colours from the RAL palette – after checking the availability.
Despite all efforts to keep the most accurate colour representation possible, our palette is used for informational purposes only. The best colour representation can be found in samplers.
We can place your logo / graphics on our products to take care of your brand image.
See our portfolio
PRODUCT REGISTERED IN EUIPO No. 8818397
We have the priority right to register an industrial design at the European Union Intellectual Property Office (EUIPO) in Alicante. We have acquired the exclusive right to use the design throughout the EU.
