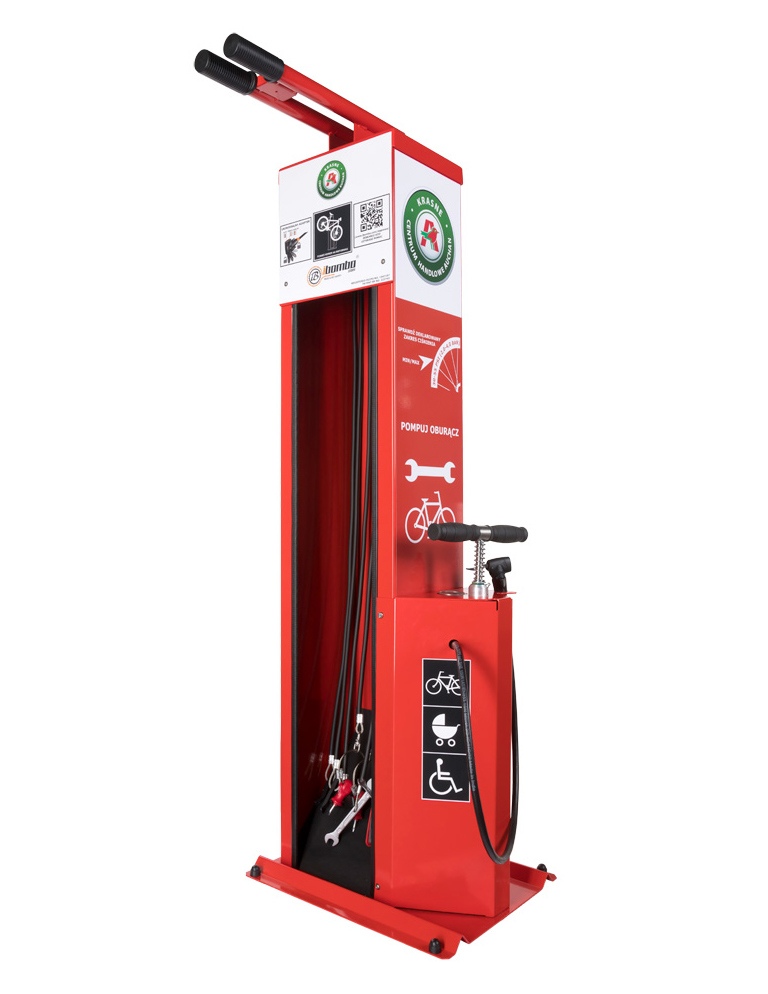

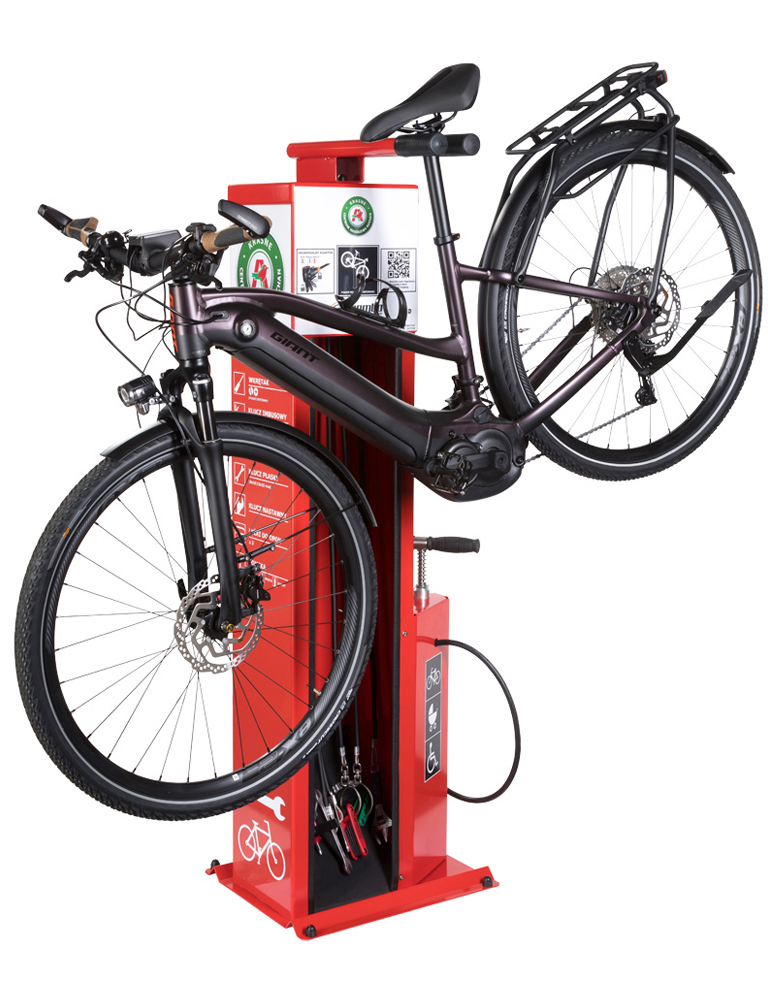

IBOMBO PRS-LV2

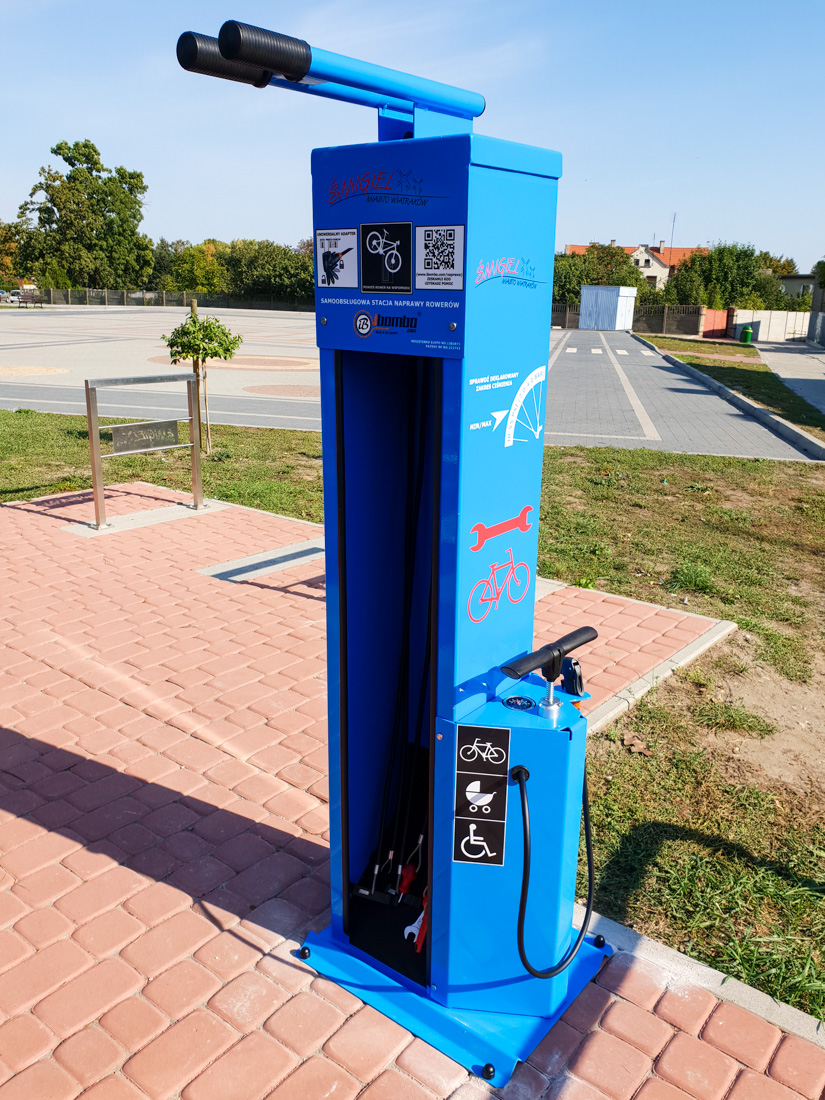

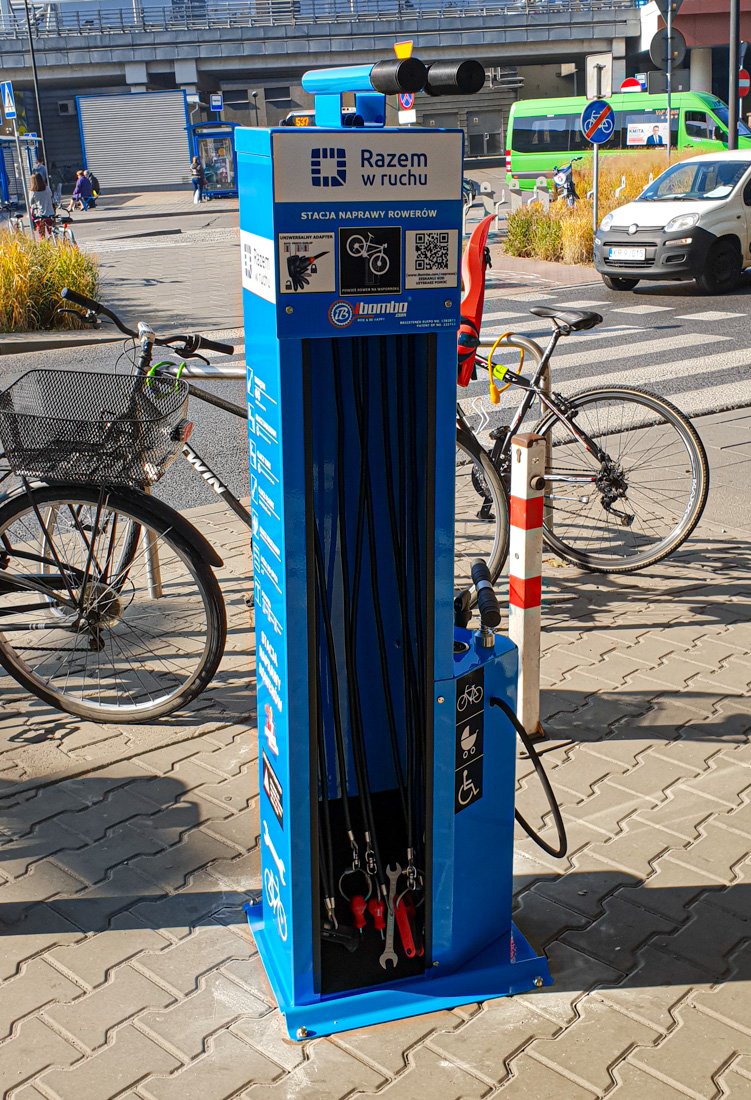

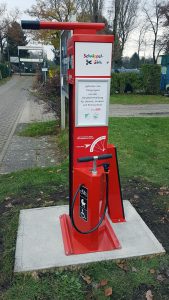

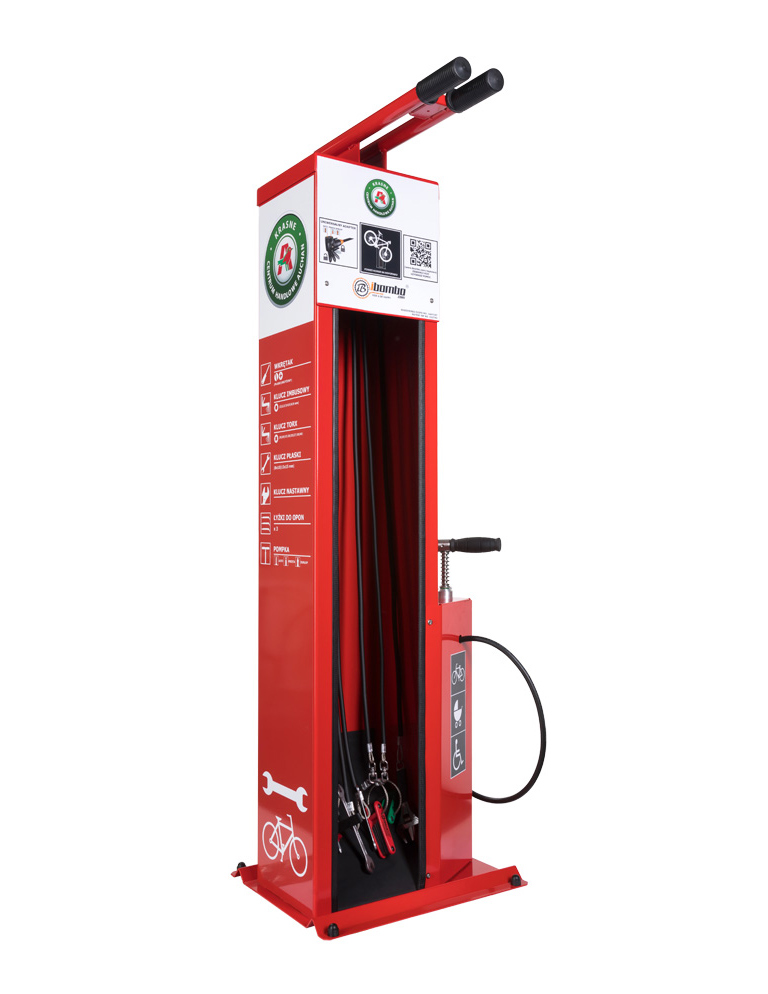

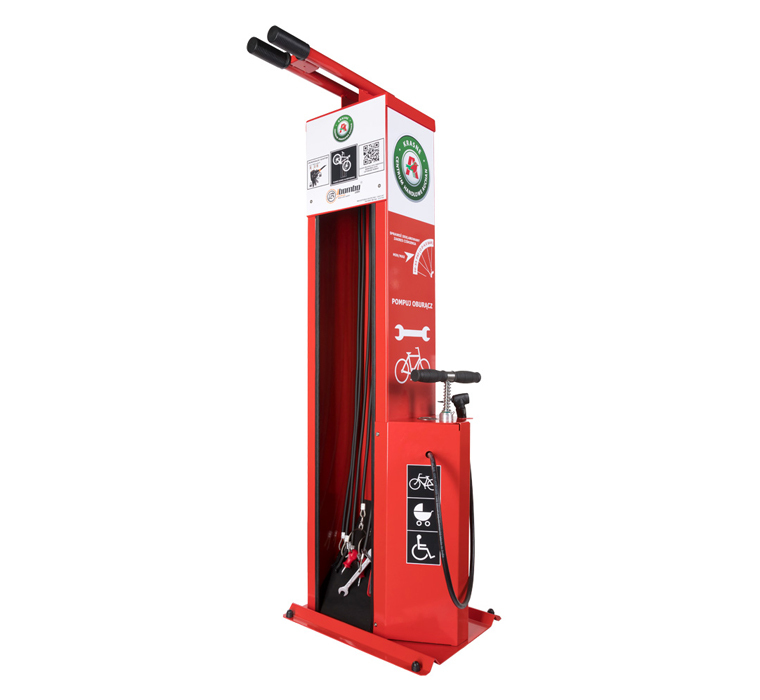

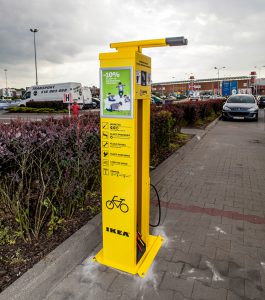

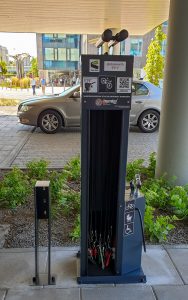

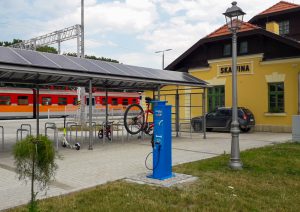

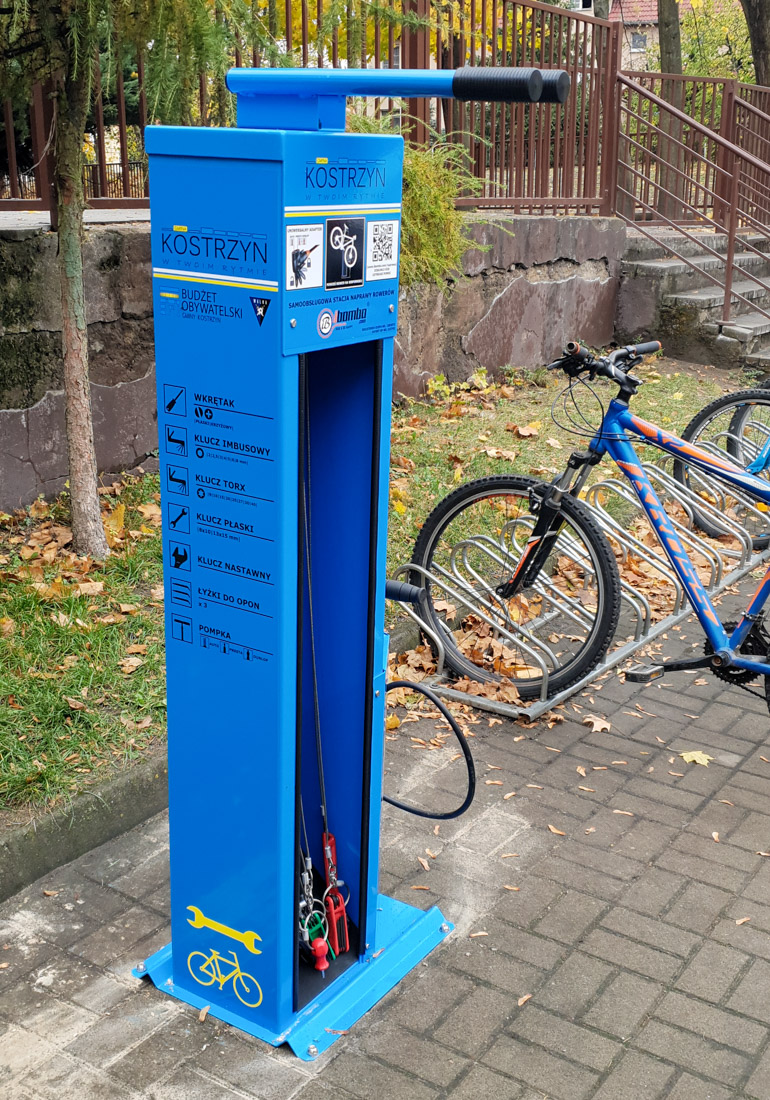

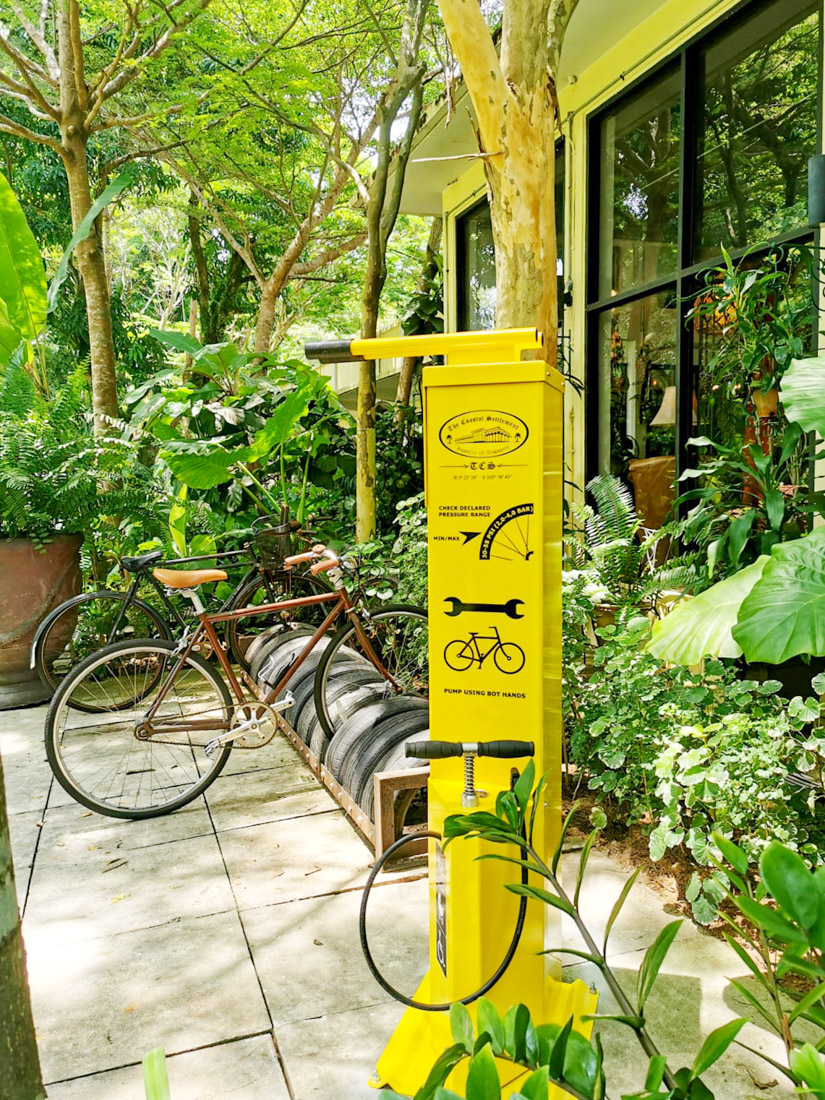

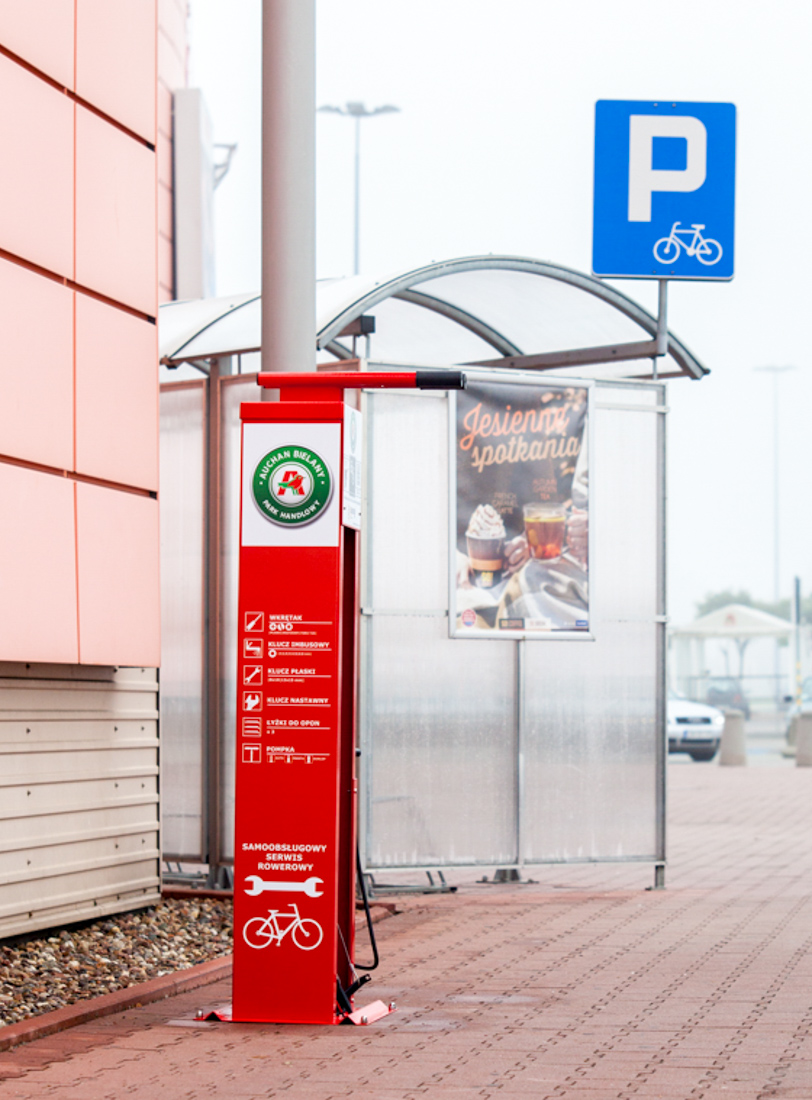

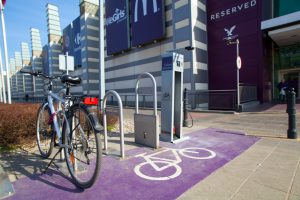

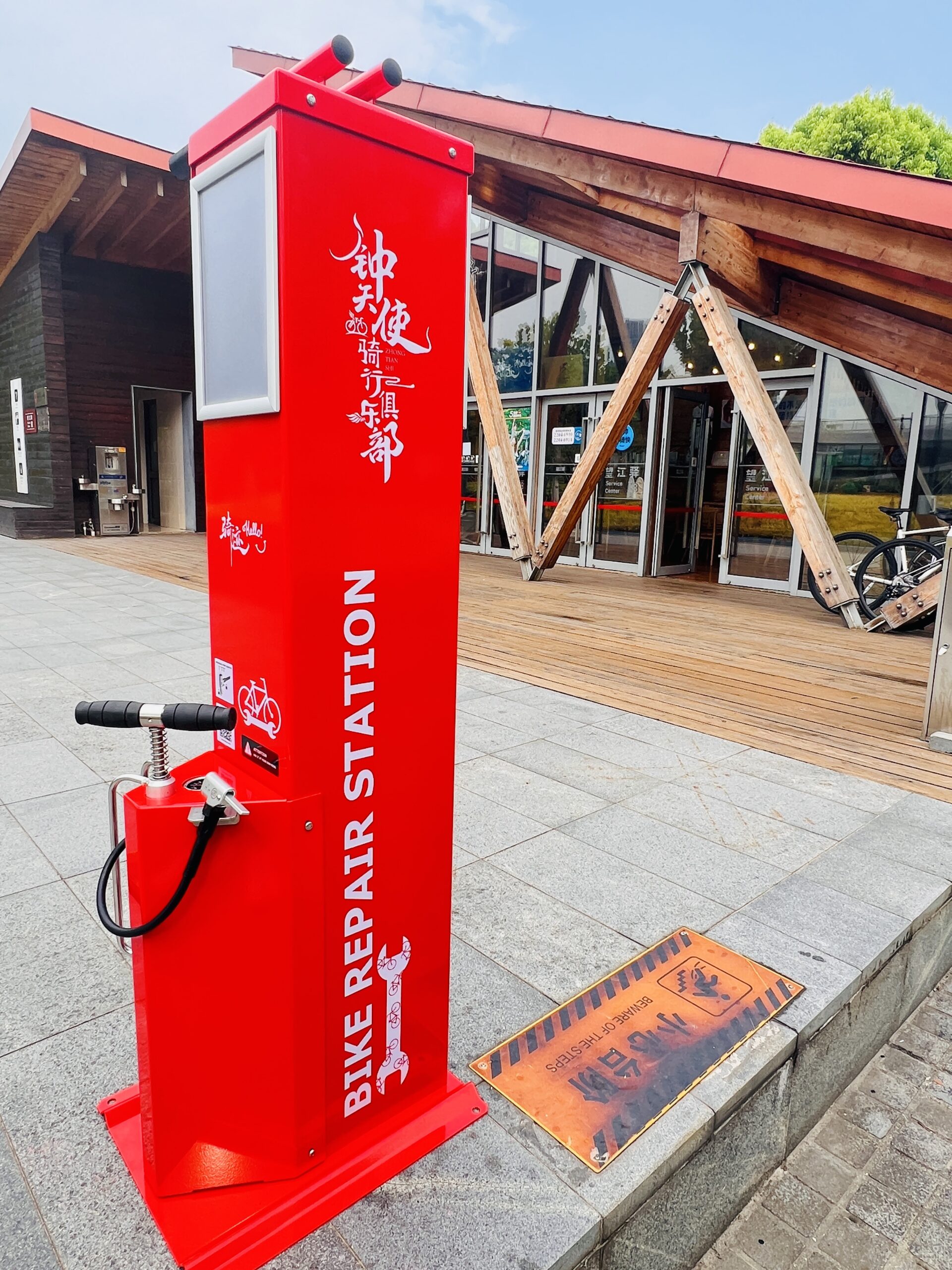

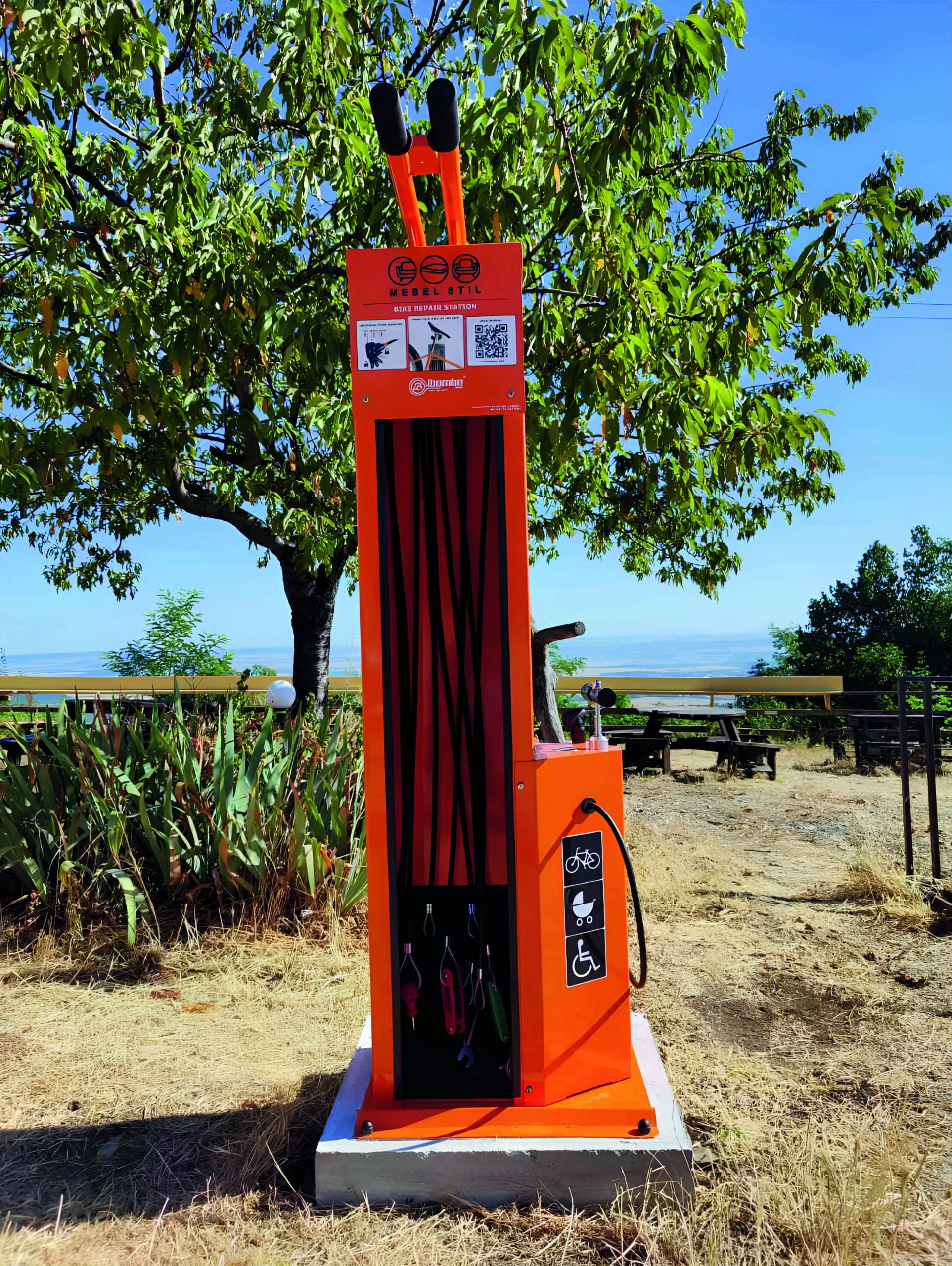

Self-Service Bike Repair Station – IBOMBO PRS-LV2 is adapted for use in public spaces. The housing of the device is made of galvanized or stainless steel with powder or thermoplastic coating The device is mounted to the ground or wall with the aid of anchors.

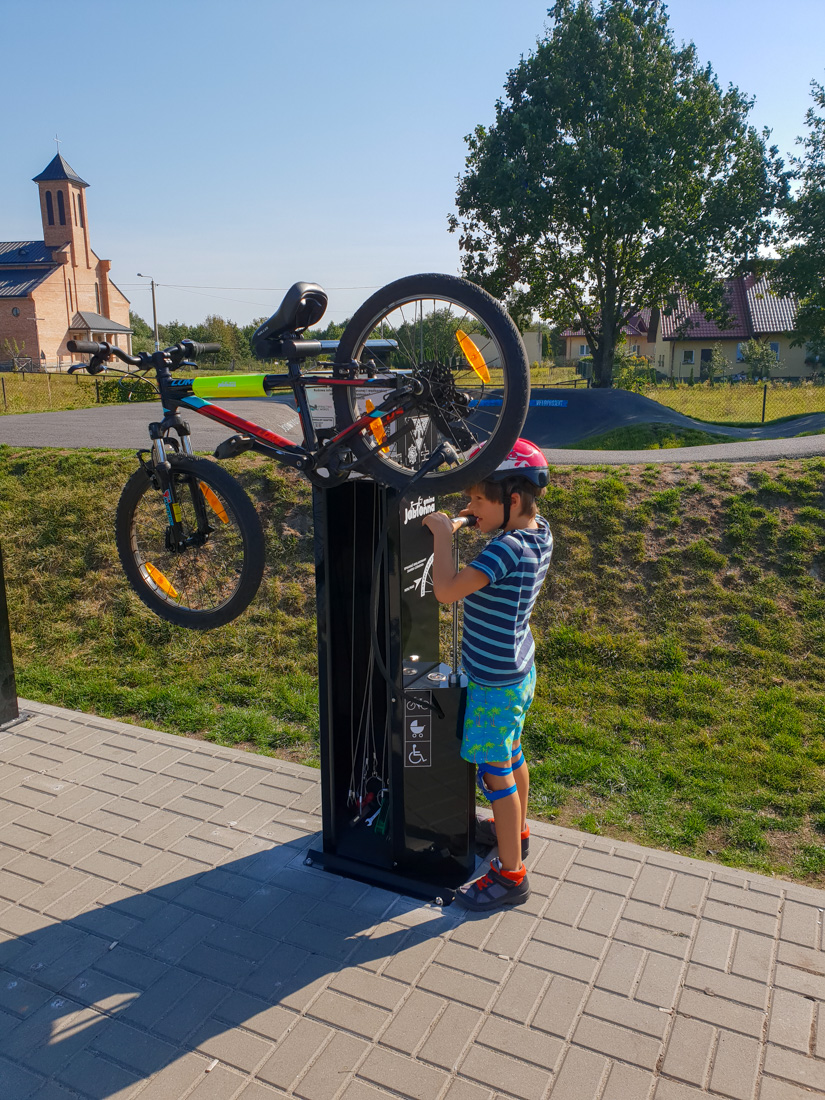

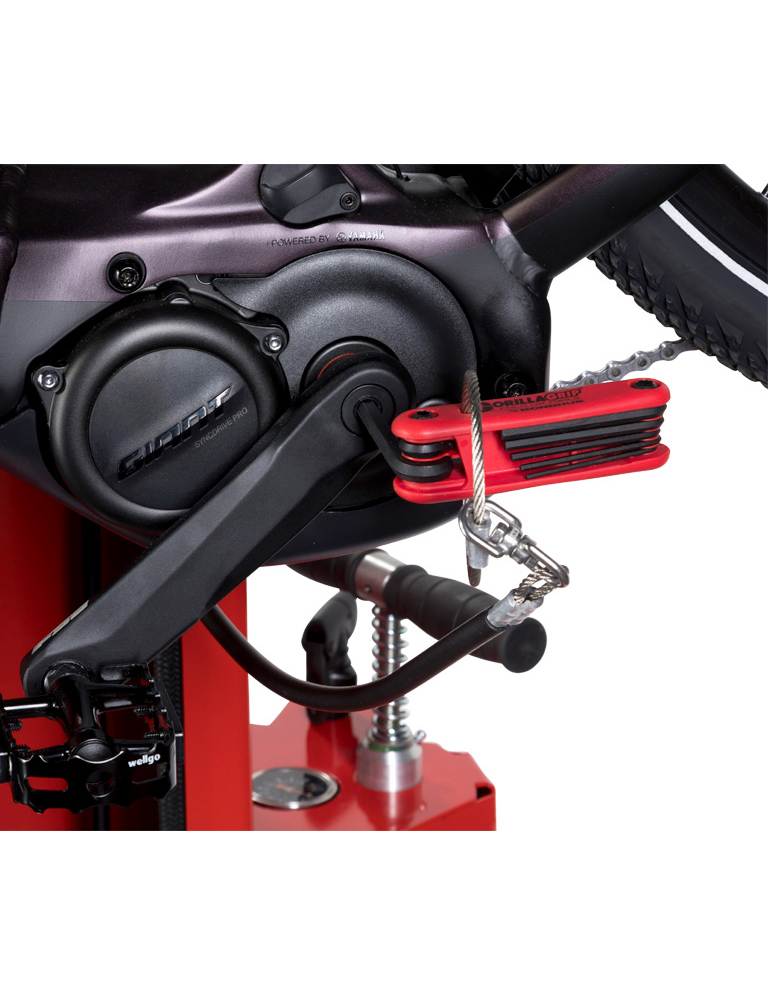

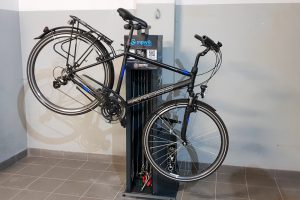

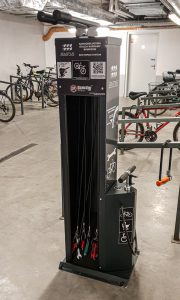

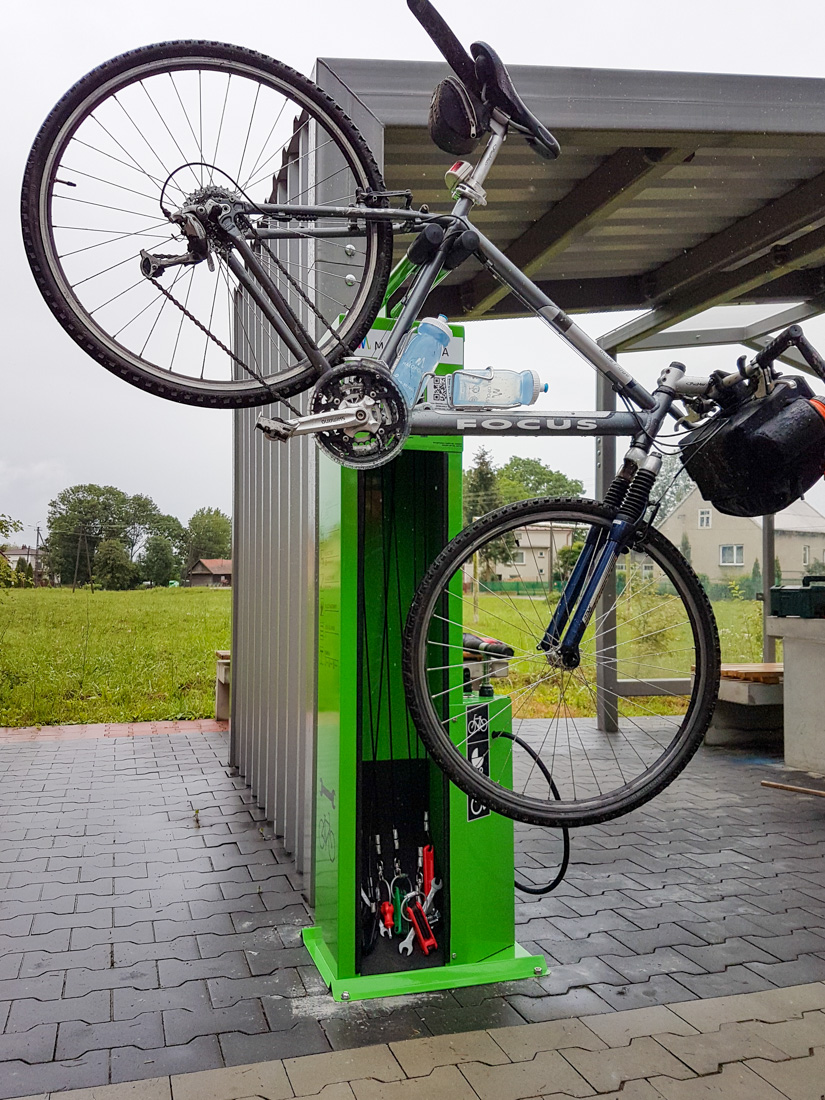

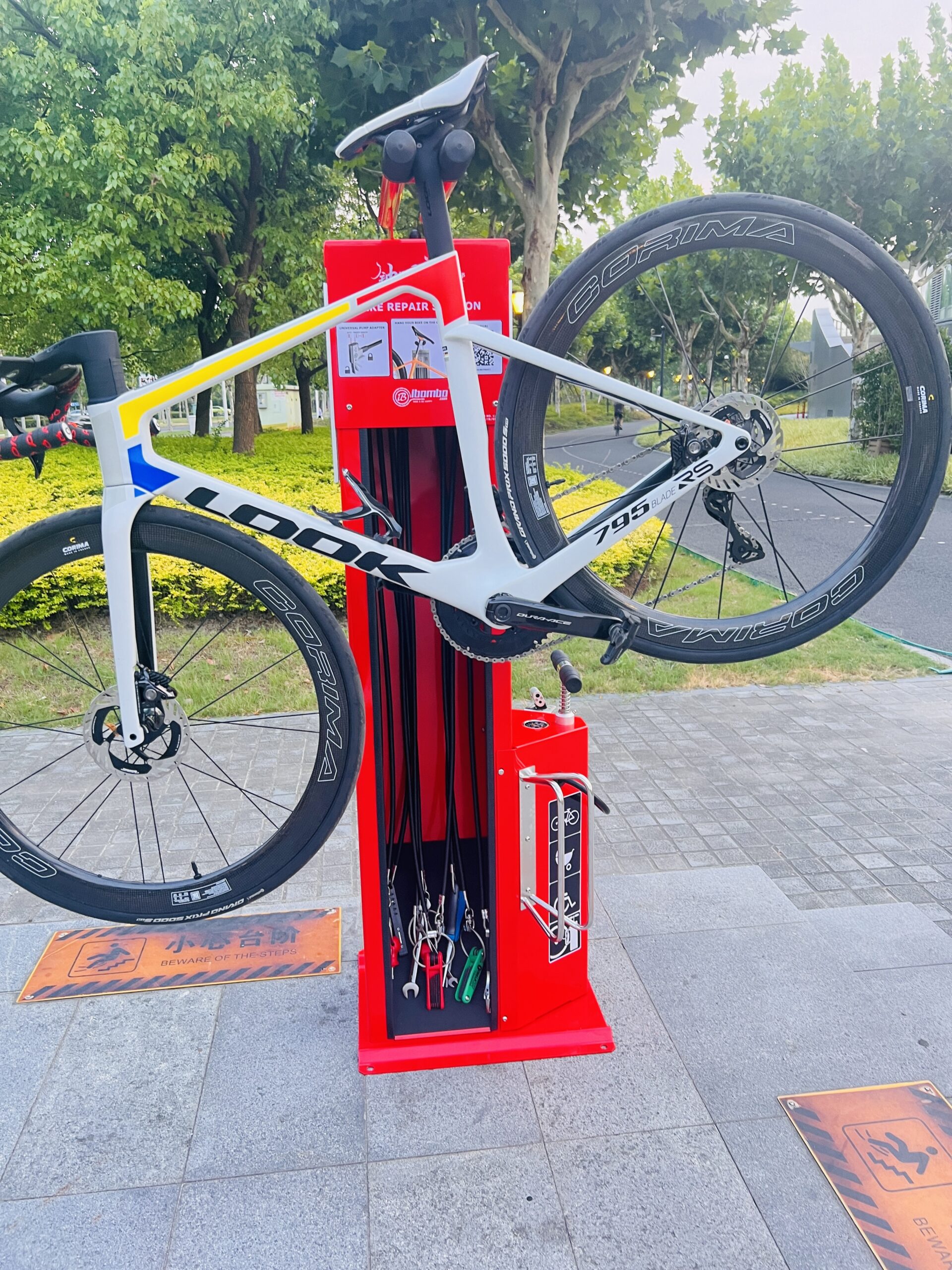

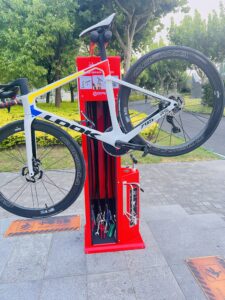

The tools are attached to the stainless steel ropes hanging inside the column of the station; the length of the ropes allows you to reach all bicycle components. The rubber coating of the ropes prevents tools from tangling and protects the bicycle frame from scratching. The construction of the station allows you to place the bicycle on the grip, so you can easily turn the crank while repairing the bike. The station is equipped in a hand pump with an adapter for all valve types.
The QR CODE placed on the front of the station allows you to use online publications containing instructions on repairing bicycle faults. Sheet metal elements of the device are fastened with anti-theft screws – the bits for these screws will be handed over to the customer. This model of the station can be additionally equipped with, among others, aluminium waterproof frames, side-or-back bike stand, a pneumatic skateboard holder or E-BIKE bicycle charging module.

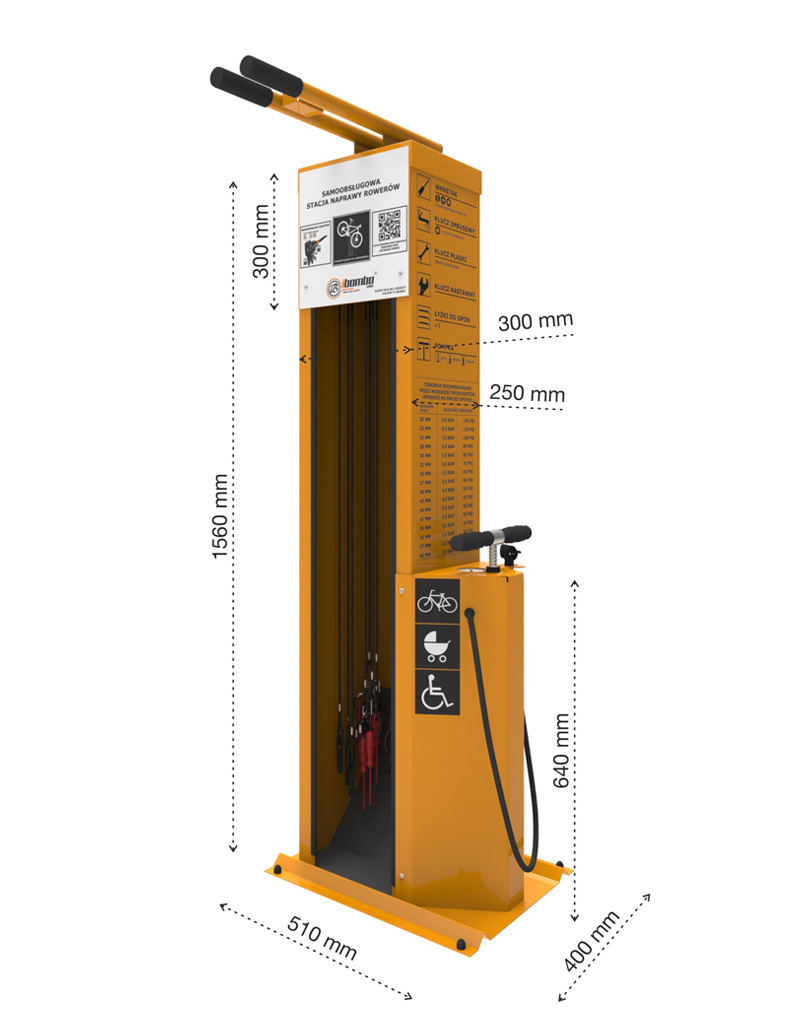

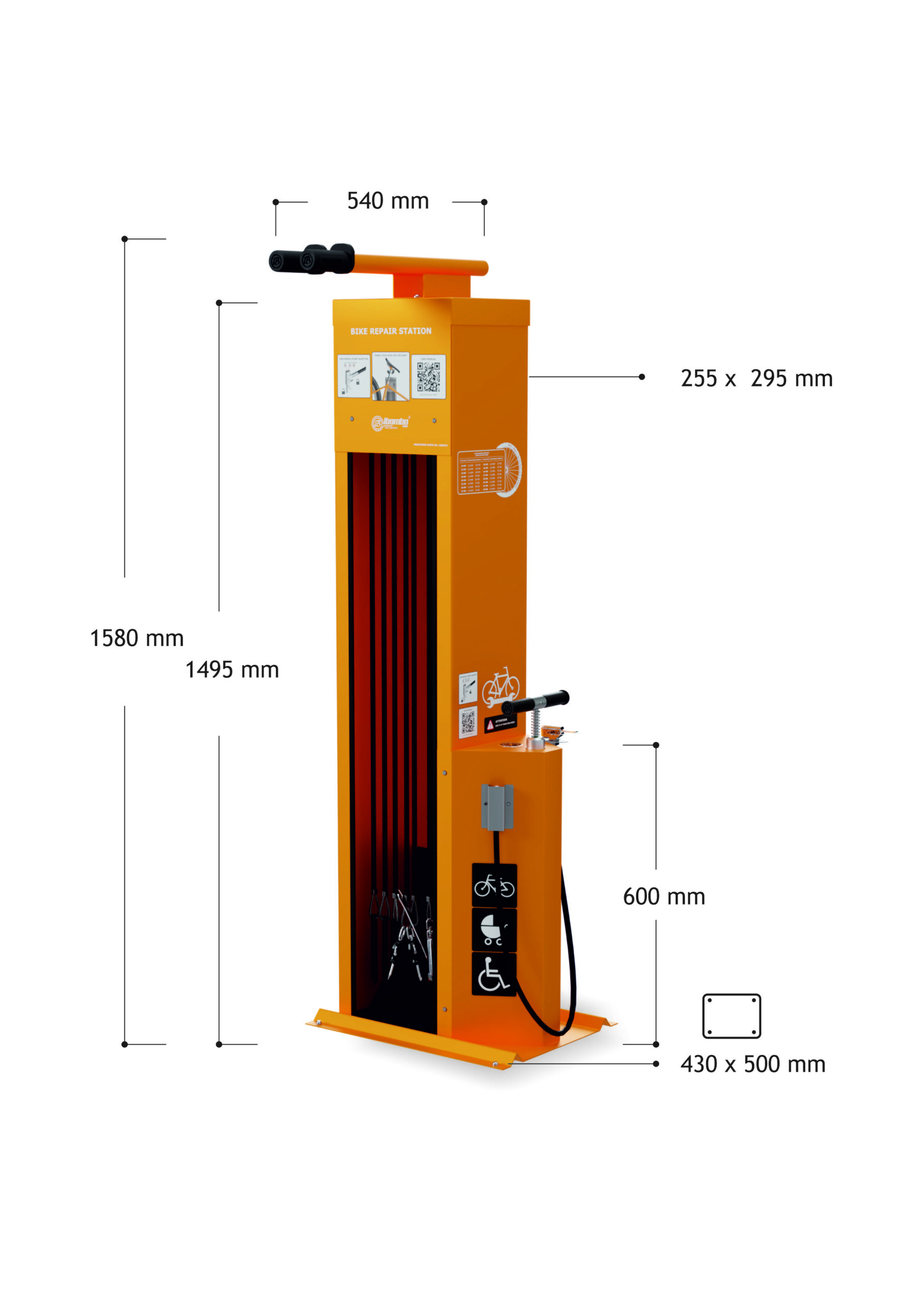

Dimensions:
156 x 51 x 40 cmWeight:
65-90 kg (depending on optional equipment)Advertising area:
up to 15000 cm2Material:
galvanized | stainless steel AISI 304- housing made of galvanized or stainless steel (AISI 304)
- powder or thermoplastic coating
- up to 15000 cm2 of advertising area
-
QR CODE with repair manual
QR CODE with repair manual
-

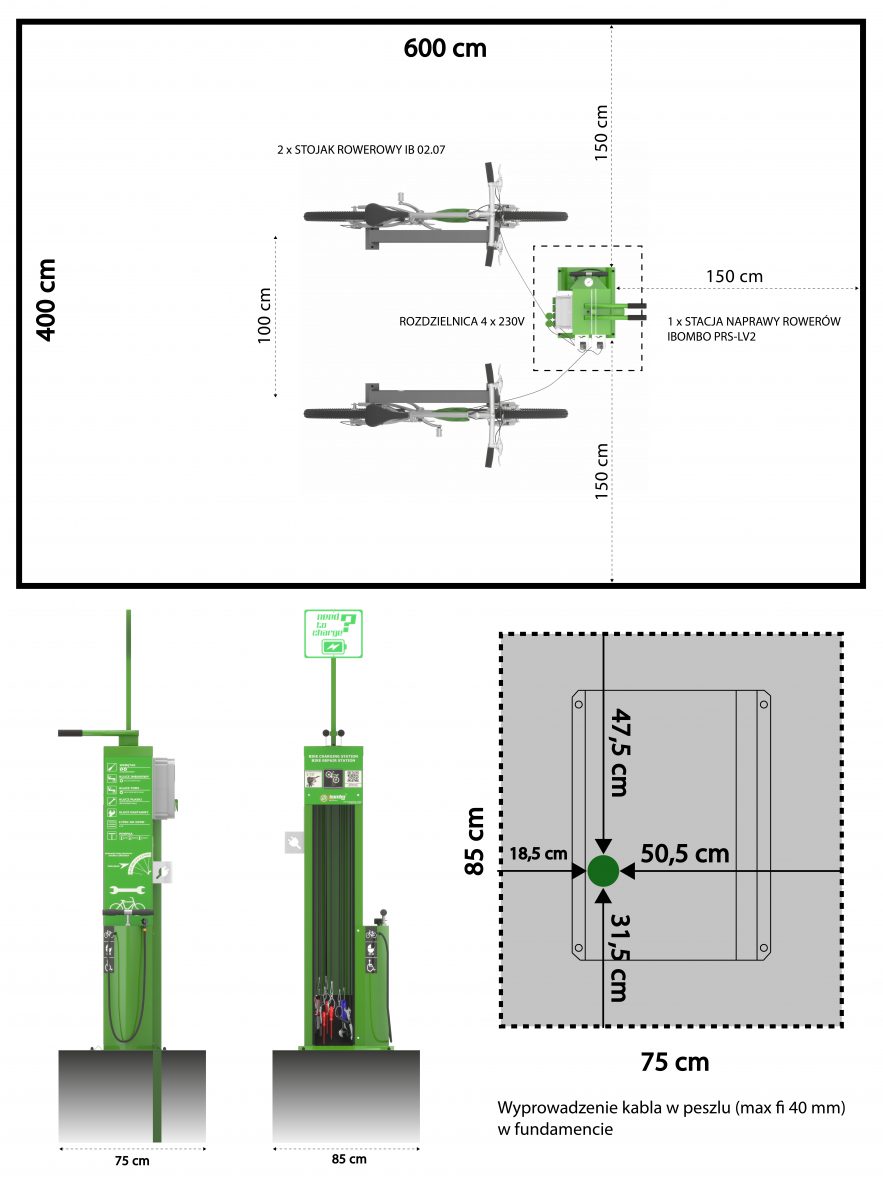

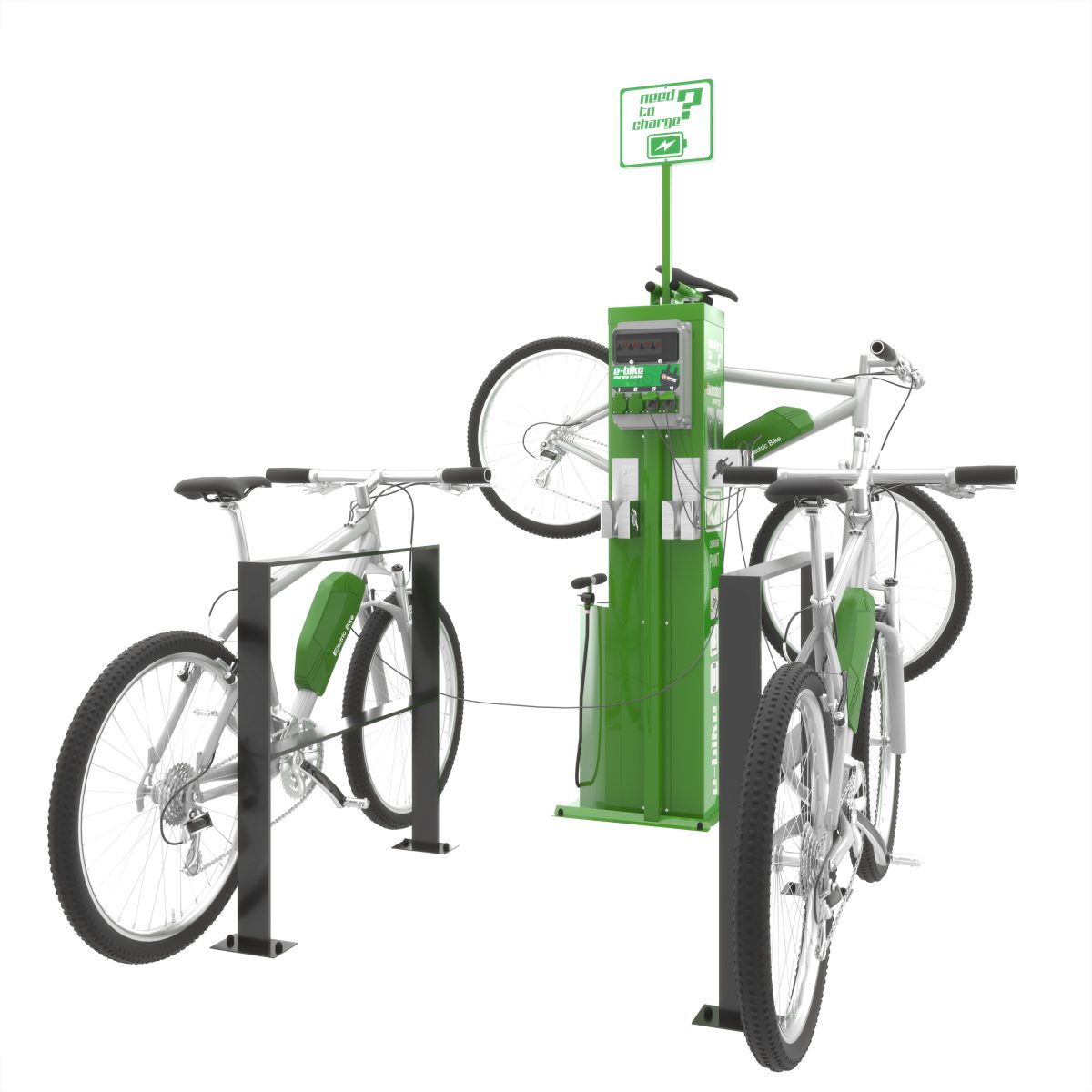

E-BIKE charging module
E-BIKE charging moduleE-BIKE charging module
-
Big Side-or-back bike stand – powder coated
Big Side-or-back bike stand – powder coatedBig Side-or-back bike stand – powder coatedBig Side-or-back bike stand – powder coated
-
Small Side-or-back bike stand - stainless steel (AISI 304)
Small Side-or-back bike stand - stainless steel (AISI 304)
-

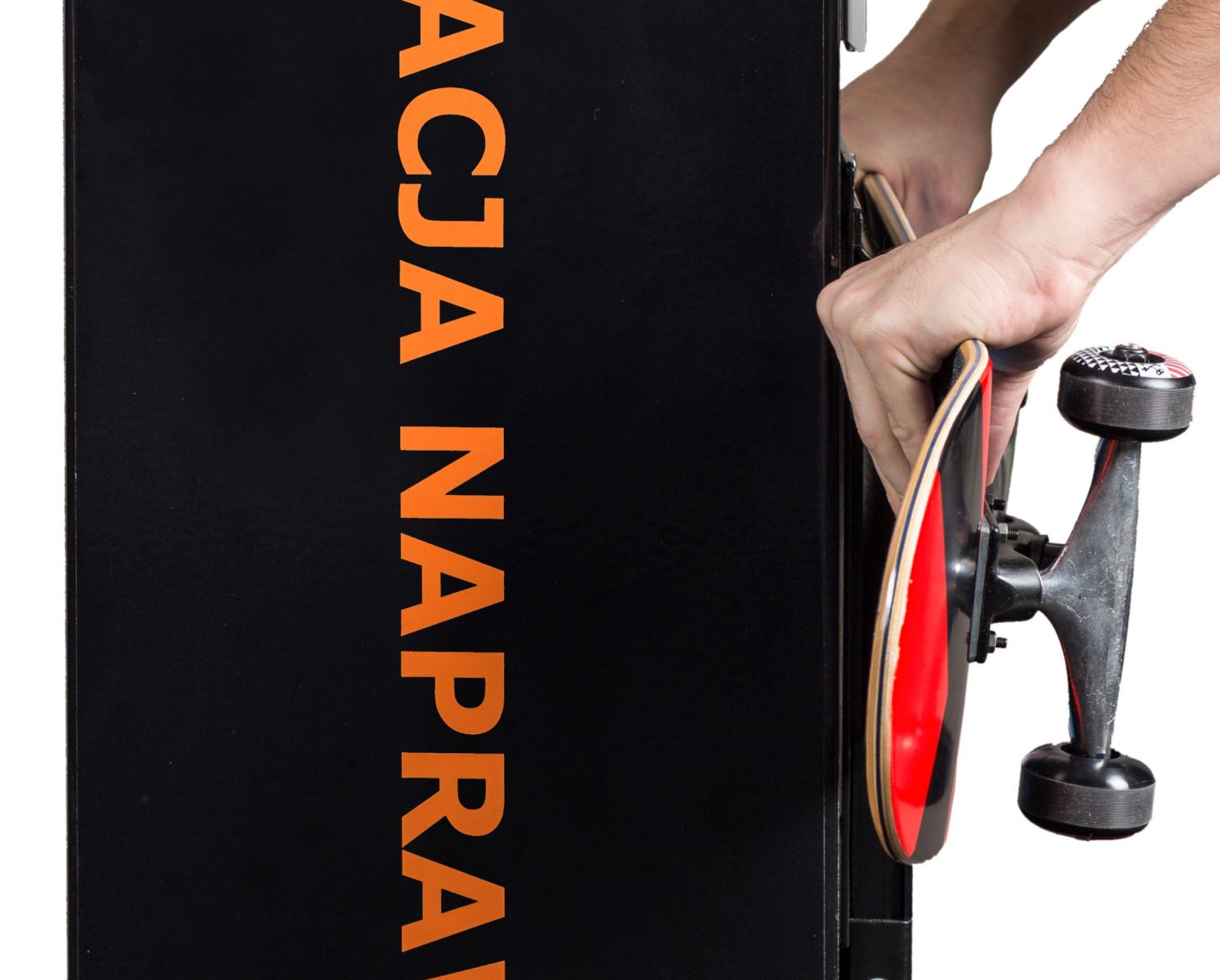

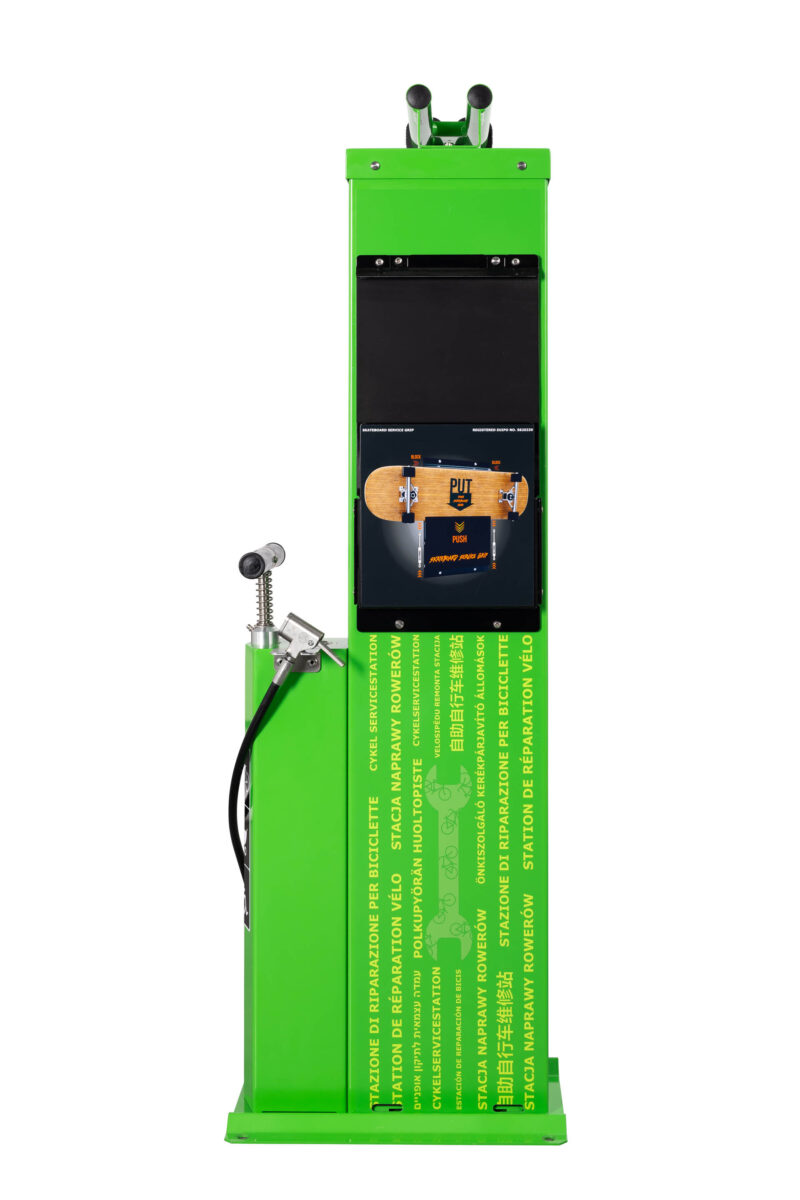

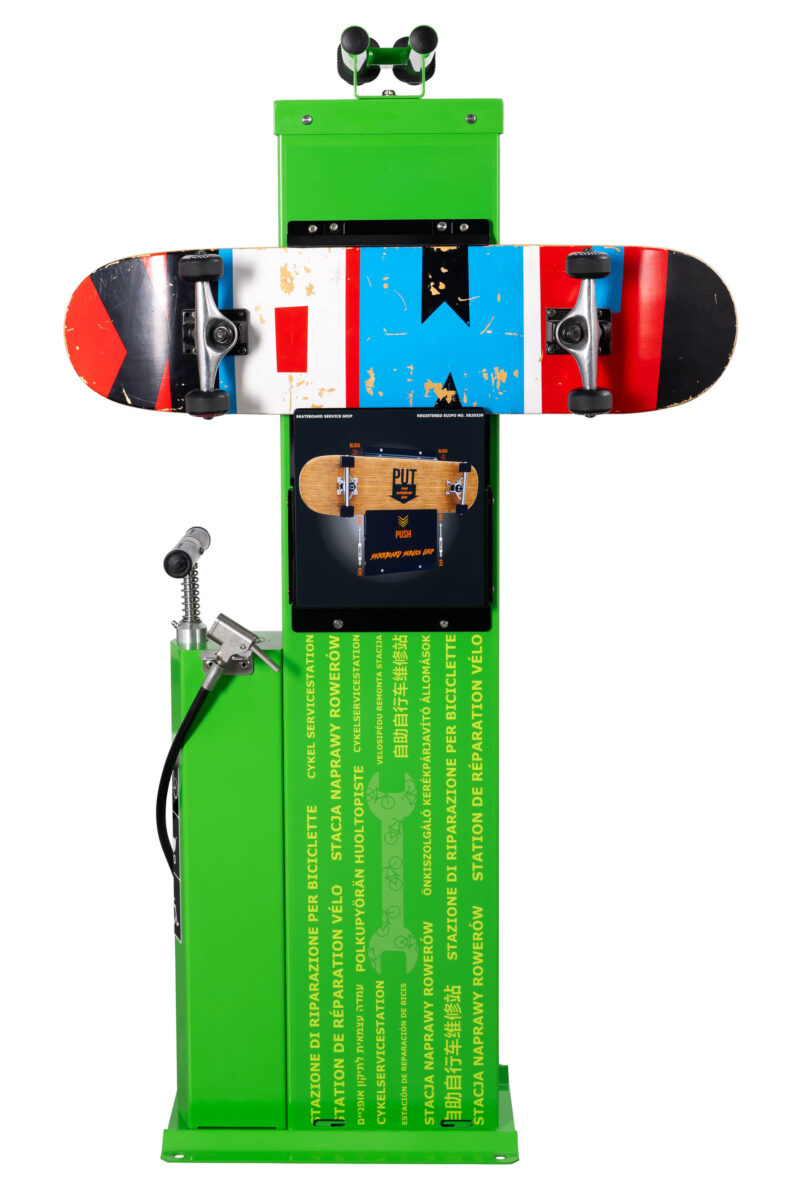

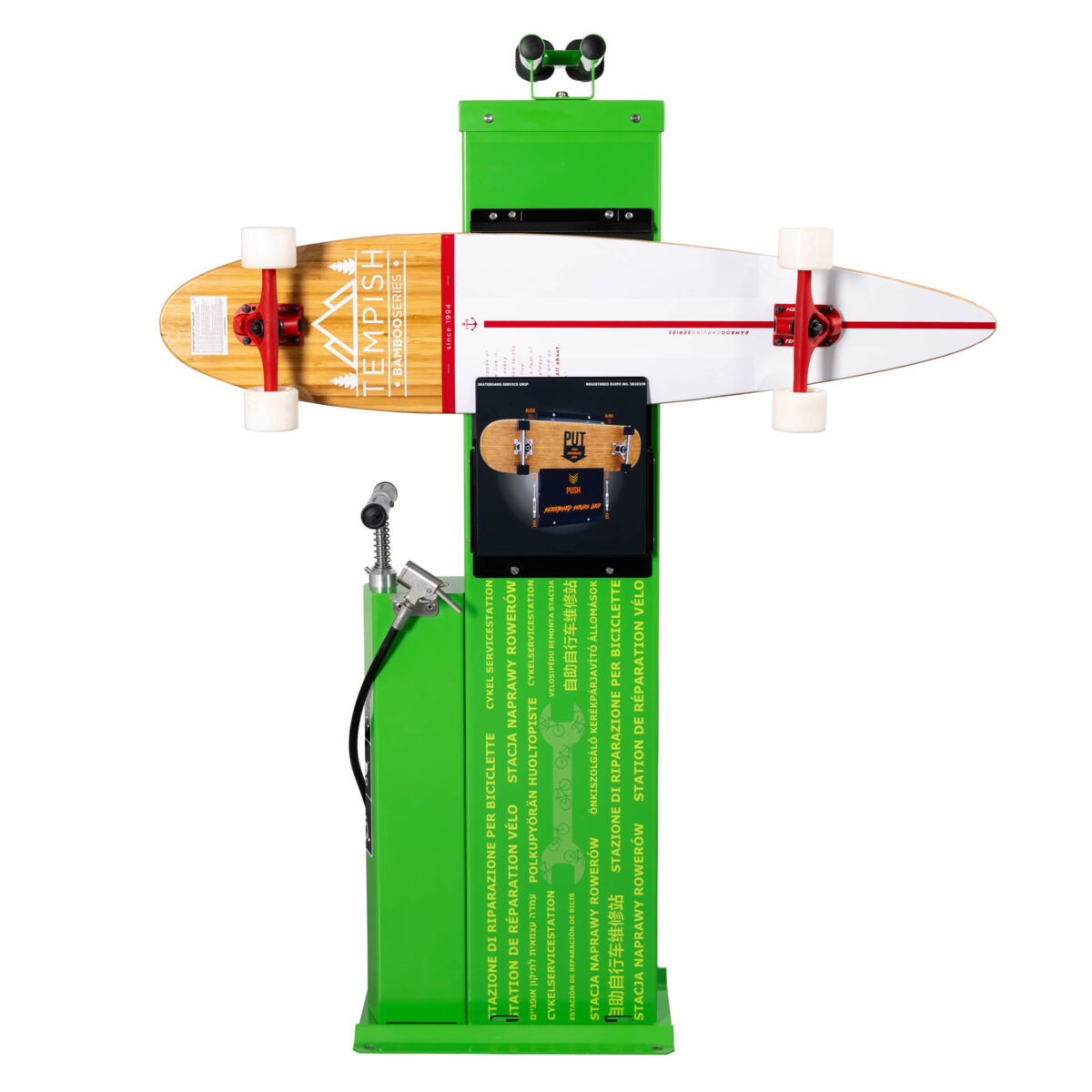

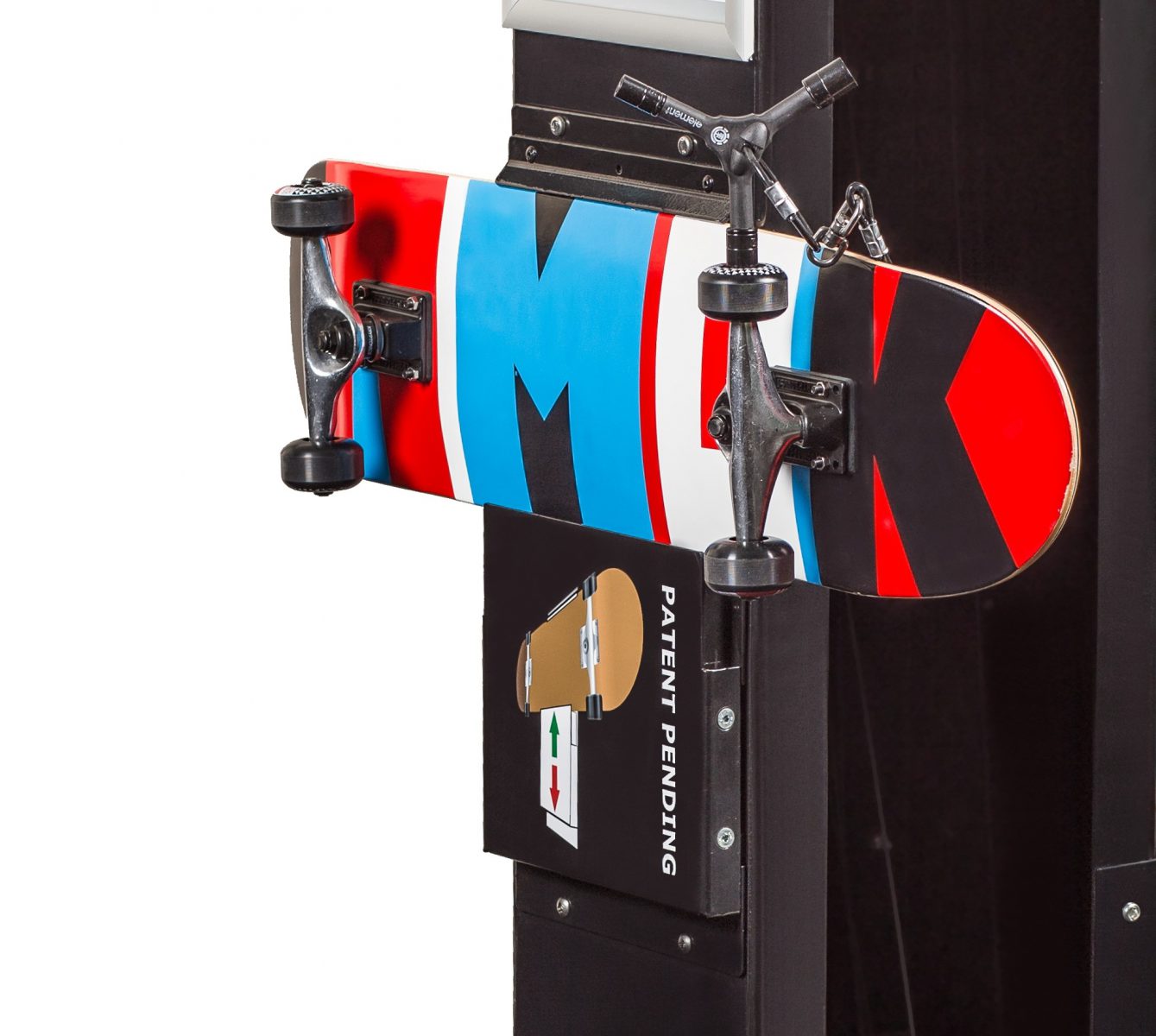

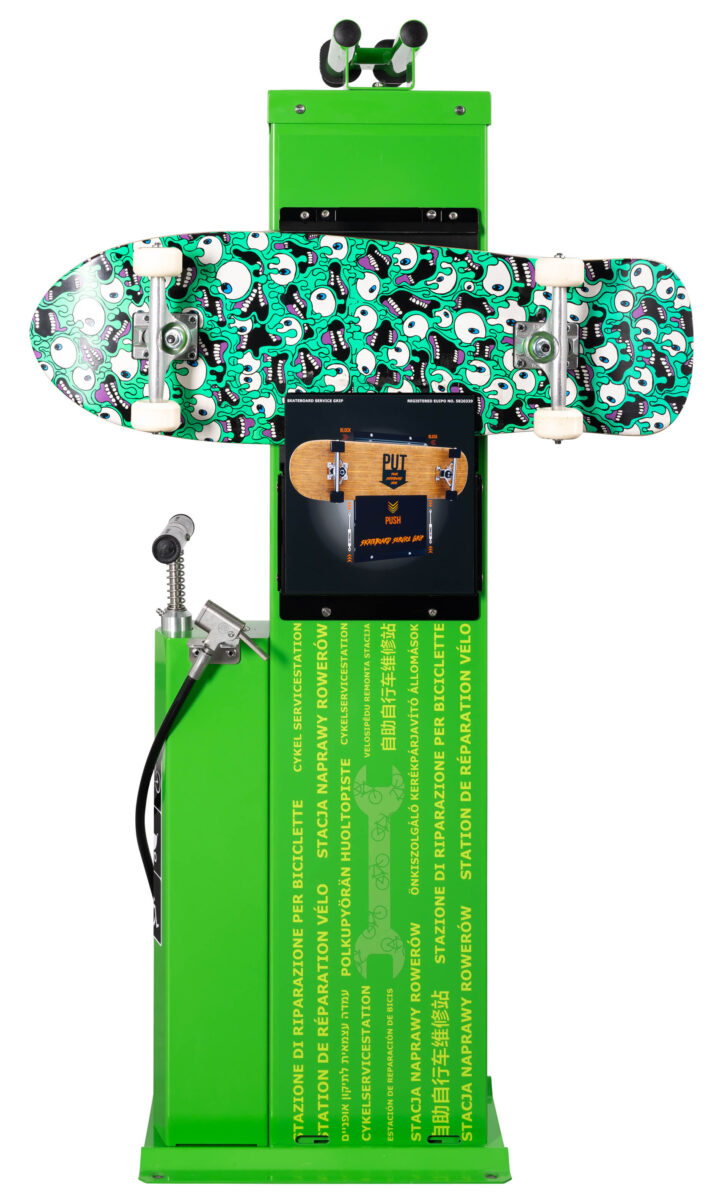

pneumatic skateboard holder
pneumatic skateboard holderpneumatic skateboard holderpneumatic skateboard holder
-
aluminium waterproof frames (exchangeable A4 content)
aluminium waterproof frames (exchangeable A4 content)aluminium waterproof frames (exchangeable A4 content)
-
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
-
stainless steel ropes fi 4 (AISI 316) with rubber coating fi11
stainless steel ropes fi 4 (AISI 316) with rubber coating fi11
-
Phillips screwdriver PH2 + swivel fi4 (AISI 304)
Phillips screwdriver PH2 + swivel fi4 (AISI 304)swivel fi4 (AISI 304)
-
flat screwdriver 5.5 x 1.0 + swivel
flat screwdriver 5.5 x 1.0 + swivelswivel
-
hex key set| 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivel
hex key set| 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivelswivel
-
TORX key set | 9 | 10 | 15 | 20 | 25 | 27 | 30 | 40 | + swivel
TORX key set | 9 | 10 | 15 | 20 | 25 | 27 | 30 | 40 | + swivelswivel
-
adjustable spanner 0-32 mm
adjustable spanner 0-32 mm
-
flat spanners 8x10 mm and 13x15 mm (stainless steel)
flat spanner 13x15 mmflat spanner 8x10 mm
-
flat pliers
flat pliers
-
skateboard tools | 9/16 | 1/2 | 3/8 | + swivel
skateboard tools | 9/16 | 1/2 | 3/8 | + swivelswivel
-
3 x tire levers with stainless steel core - nylon coated
3 x tire levers with stainless steel core - nylon coated
-

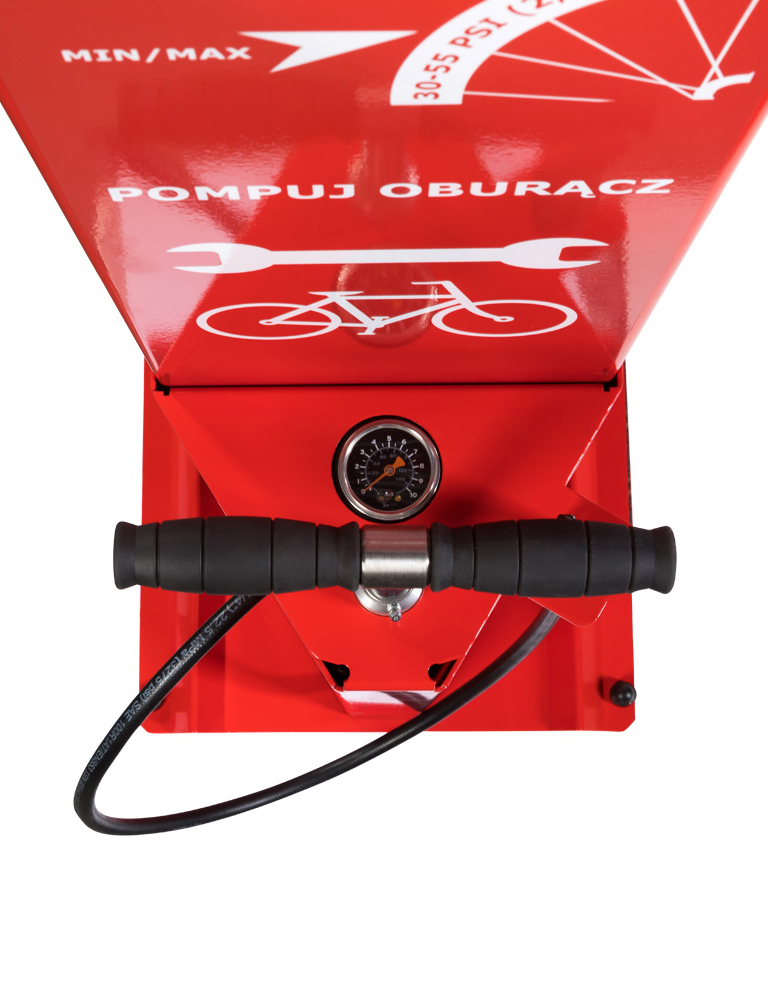

Stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealant
Stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealantStationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealant
-
Dual chamber anodized aluminum pump adapter IBOMBO AISIPRO HEAD™ with industrial grade AISI304 stainless steel internals dedicated to all types of bicycle valves (Presta, Schrader and Dunlop)
Dual chamber anodized aluminum pump adapter IBOMBO AISIPRO HEAD™
Pure white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Bright red orange
Traffic red
Telemagenta
Claret violet
Yellow green
Moss green
Light blue
Sky blue
Traffic blue
Ultramarine blue
Sapphire blue
Our products can be powder coated in many colours from the RAL palette – after checking the availability.
Traffic white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Traffic red
Moss green
Light ivory
Traffic blue
Sky blue
Thermoplastic coating is the most comprehensive solution on the market. It provides the highest level of resistance against the influence of environmental factors, wear, damage and vandalism. It also requires little maintenance. It is recommended as a coating for our galvanized products. More information »
Despite all efforts to keep the most accurate colour representation possible,
our palette is used for informational purposes only.
The best colour representation can be found in samplers.

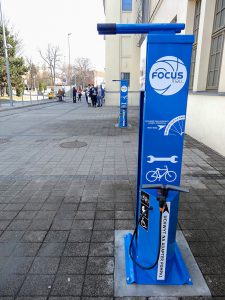

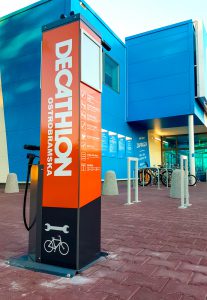

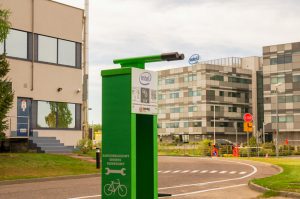

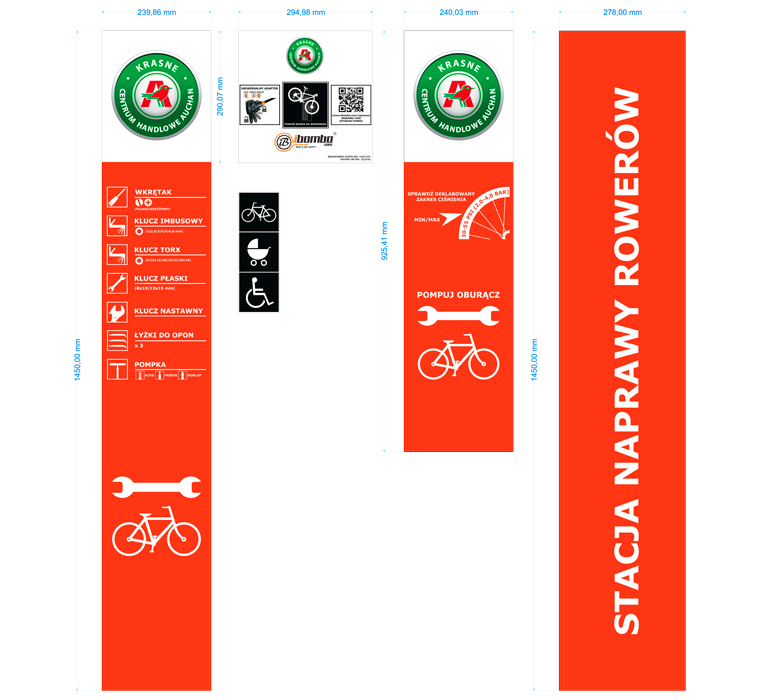

We can place your logo / graphics on our products to take care of your brand image.
See our portfolioPRODUCT REGISTERED IN EUIPO No. 1382873
We have the priority right to register an industrial design at the European Union Intellectual Property Office (EUIPO) in Alicante. We have acquired the exclusive right to use the design throughout the EU.
