IBOMBO E-PRS-LV2

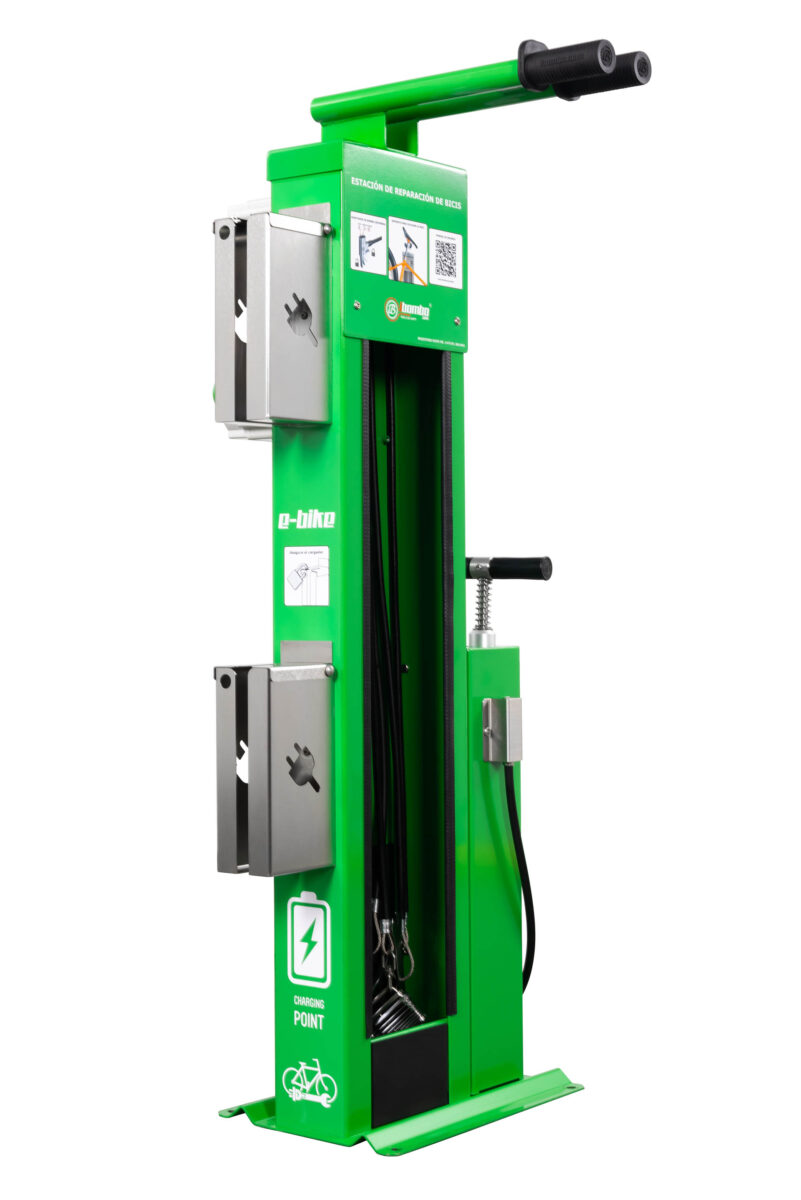

Self-service Bike Repair Station – E-IBOMBO LV2 is adapted for use in public spaces. Its housing is made of galvanized or stainless steel with powder coating. The device in the E-BIKE version is mounted to the ground. Sheet metal elements and the E-BIKE charging module are fastened with anti-theft screws – the bits for the screws will be handed over to the customer.

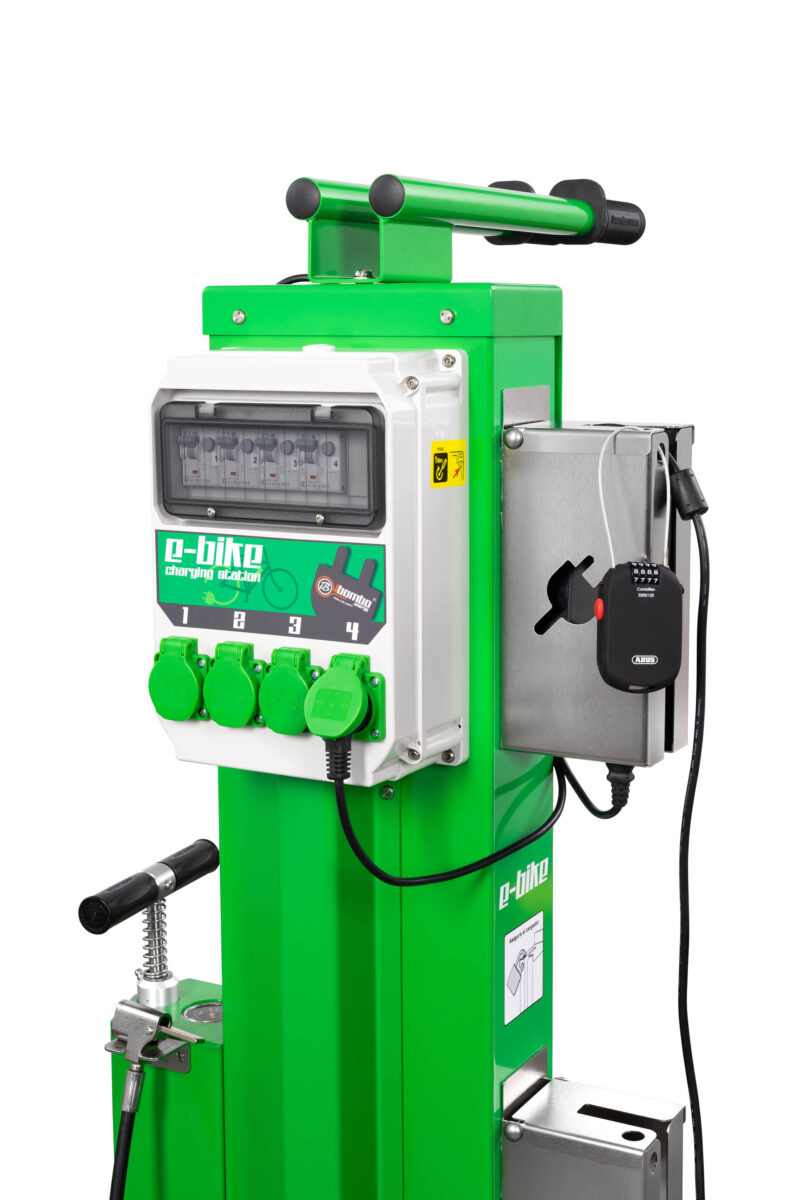

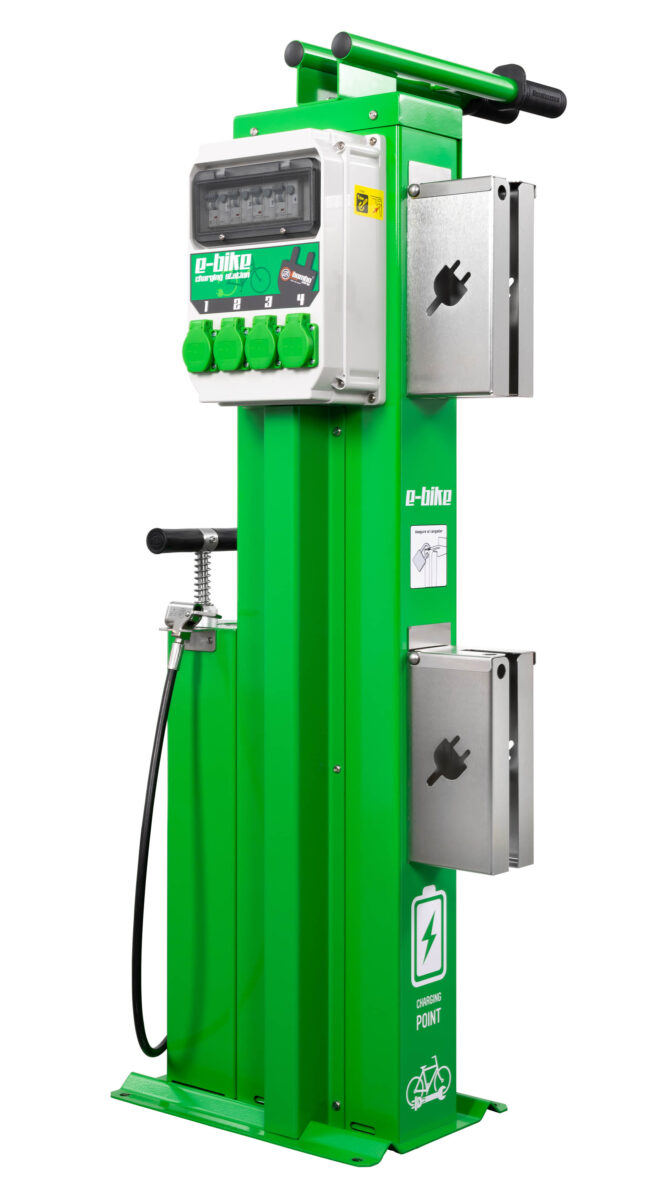

On the back of the device there is a module with 4 x sockets for charging electric bikes (E-BIKE), 2 x stainless steel holders for chargers and a metal strip covering the power cord coming from the base. The E-BIKE charging module has a compact housing made of high-strength PC / ABS; it has additional RCBO (6A) protection located behind a protective, impact-resistant window. All external parts are made of stainless steel. The sockets (250V) are made of polyamide (PA6) with nickel-plated contacts (IP54).

A safe and convenient complement to the E-BIKE charging module will be our bike racks » CLASSIC SERIES » SILICONE PROTECT.

The tools are attached to the stainless steel ropes hanging inside the column of the station; the length of the ropes allows you to reach all bicycle components. The rubber coating of the ropes prevents tools from tangling and protects the bicycle frame from scratching. The station is equipped in a hand pump with an adapter for all valve types. The construction of the station allows you to place the bicycle on the grip, so you can easily turn the crank while repairing the bike.

QR CODE placed on the front enables an immediate access to online publications containing manual repair.

The E-BIKE module complies with European standards:
Directive (RoHS) 2011/65 / EU and 2015/863
2014/35 / EU Low Voltage Directive
Electromagnetic Compatibility (EMC) Directive 2014/30 / EU
Used standards: EC / EN 61439-1; IEC / EN 61439-4

Dimensions:

156/226 x 51/61 x 46 cm

Weight:

75-100 kg

Module:

4 x sockets (250V) for E-BIKE charging

Advertising area:

up to 10000 cm²

Material:

galvanized | stainless steel AISI 304

Ask for price

Product features and components Colours and branding Download here

Housing made of galvanized or stainless steel (AISI 304)

Galvanized sheet metal

Stainless steel sheet AISI 304
powder coating
up to 6300 cm² of advertising area
capability to charge E-BIKES, scooters, and phones
QR CODE with repair manual

QR CODE with repair manual
E-BIKE charging module

E-BIKE charging module

E-BIKE charging module

E-BIKE charging module

E-BIKE charging module

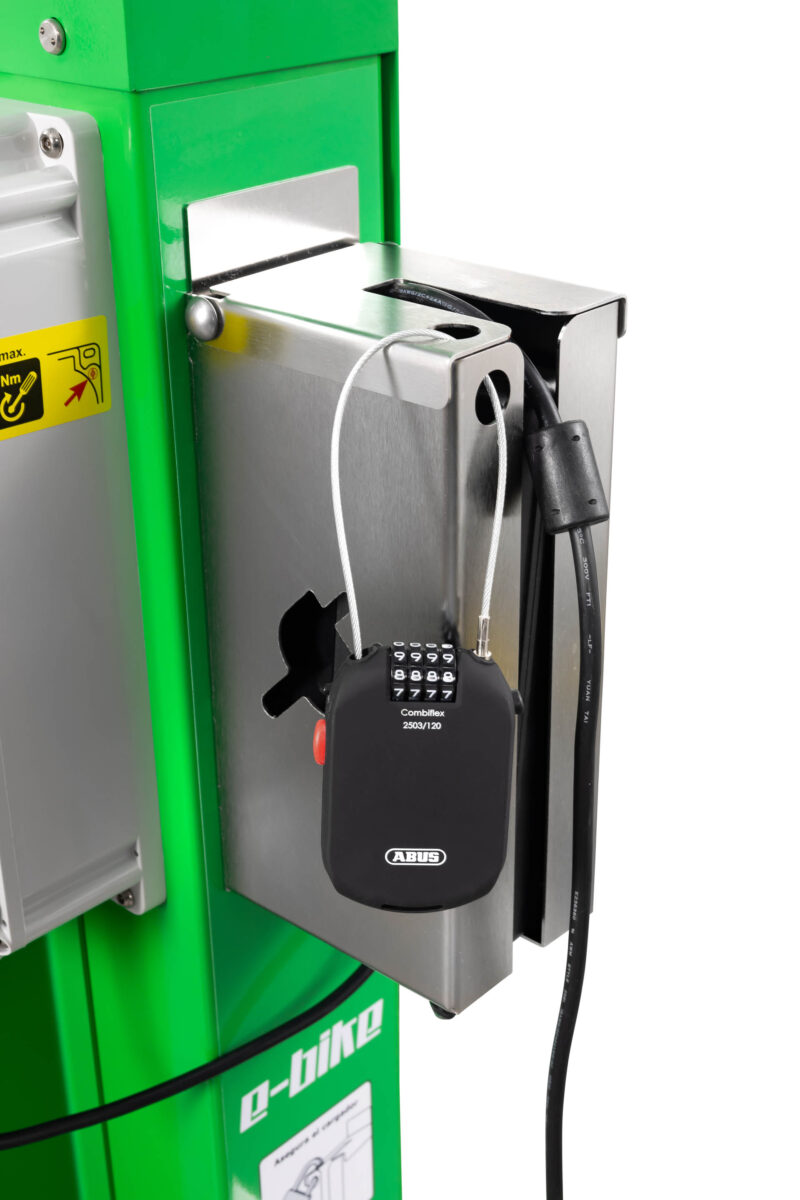

2 x holders for E-BIKE chargers

2 x holders for E-BIKE chargers
1 x stand with an E-BIKE information plate

1 x stand with an E-BIKE information plate
big Side-or-back bike stand – powder coated

big Side-or-back bike stand – powder coated

big Side-or-back bike stand – powder coated

big Side-or-back bike stand – powder coated
Small Side-or-back bike stand- polished stainless steel AISI 304 + electropolished

Small Side-or-back bike stand- polished stainless steel AISI 304 + electropolished
Pneumatic skateboard mount - stainless steel + Skateboard Tool - AISI 420 stainless steel + nickel plated

Pneumatic skateboard mount - stainless steel + Skateboard Tool - AISI 420 stainless steel + nickel plated

Pneumatic skateboard mount - stainless steel + Skateboard Tool - AISI 420 stainless steel + nickel plated

Pneumatic skateboard mount - stainless steel + Skateboard Tool - AISI 420 stainless steel + nickel plated

Pneumatic skateboard mount - stainless steel + Skateboard Tool - AISI 420 stainless steel + nickel plated
Aluminium waterproof frames (exchangeable A4 content)

Aluminium waterproof frames (exchangeable A4 content)

Aluminium waterproof frames (exchangeable A4 content)
Anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base

Anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base

Tools on stainless steel wire Ø 4 mm AISI 316 in rubber coating Ø 11

Tools on stainless steel wire Ø 4 mm AISI 316 in rubber coating Ø 11

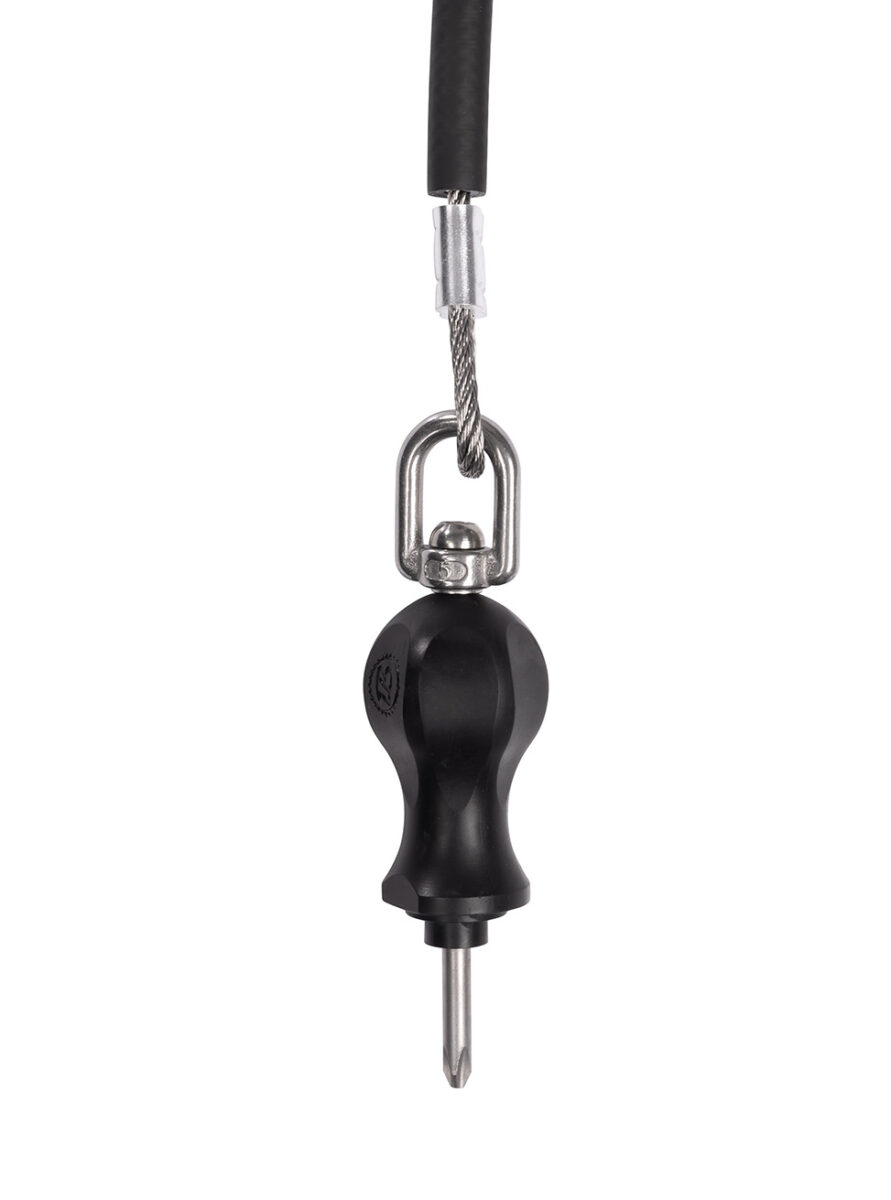

Phillips screwdriver PH2 with integrated swivel-stainless steel AISI 304/420

Phillips screwdriver PH2 with integrated swivel-stainless steel AISI 304/420

Phillips screwdriver PH2 with integrated swivel-stainless steel AISI 304/420
Flat screwdriver 5.5 mm with integrated swivel- stainless steel AISI 304/420

Flat screwdriver 5.5 mm with integrated swivel- stainless steel AISI 304/420

Flat screwdriver 5.5 mm with integrated swivel- stainless steel AISI 304/420
TORX/HEX multitool with integrated swivel – AISI 304/316/420 stainless steel + nickel-plated TORX |9|10|15|20|25|27|30|40| HEX |2|2.5|3|4|5|6|8|"

TORX/HEX multitool with integrated swivel – AISI 304/316/420 stainless steel + nickel-plated TORX |9|10|15|20|25|27|30|40| HEX |2|2.5|3|4|5|6|8|"

TORX/HEX multitool with integrated swivel – AISI 304/316/420 stainless steel + nickel-plated TORX |9|10|15|20|25|27|30|40| HEX |2|2.5|3|4|5|6|8|"
Adjustable spanner 0-36 mm - AISI 420 stainless steel + nickel plated

Adjustable spanner 0-36 mm - AISI 420 stainless steel + nickel plated

Adjustable spanner 0-36 mm - AISI 420 stainless steel + nickel plated
Flat spanners 8x10 mm and 13x15 mm- AISI 420 stainless steel, nickel-plated

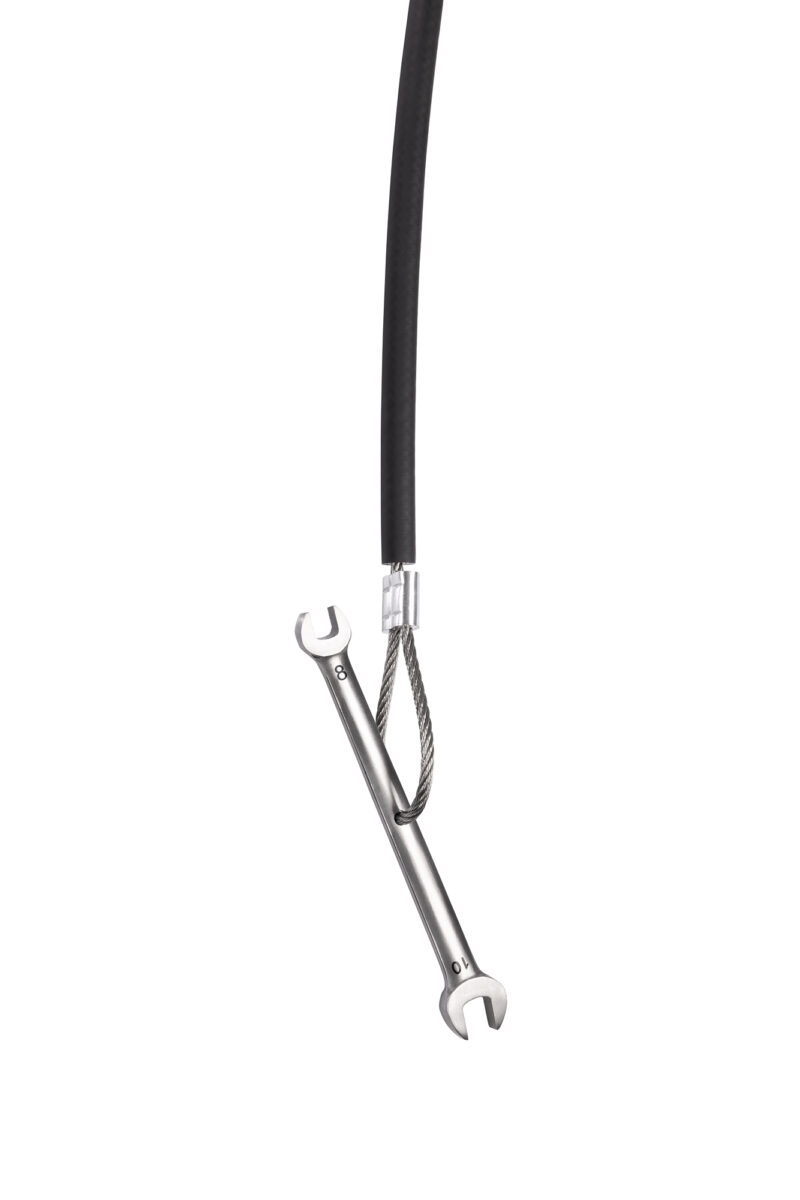

Flat spanner 8x10- AISI 420 stainless steel, nickel-plated

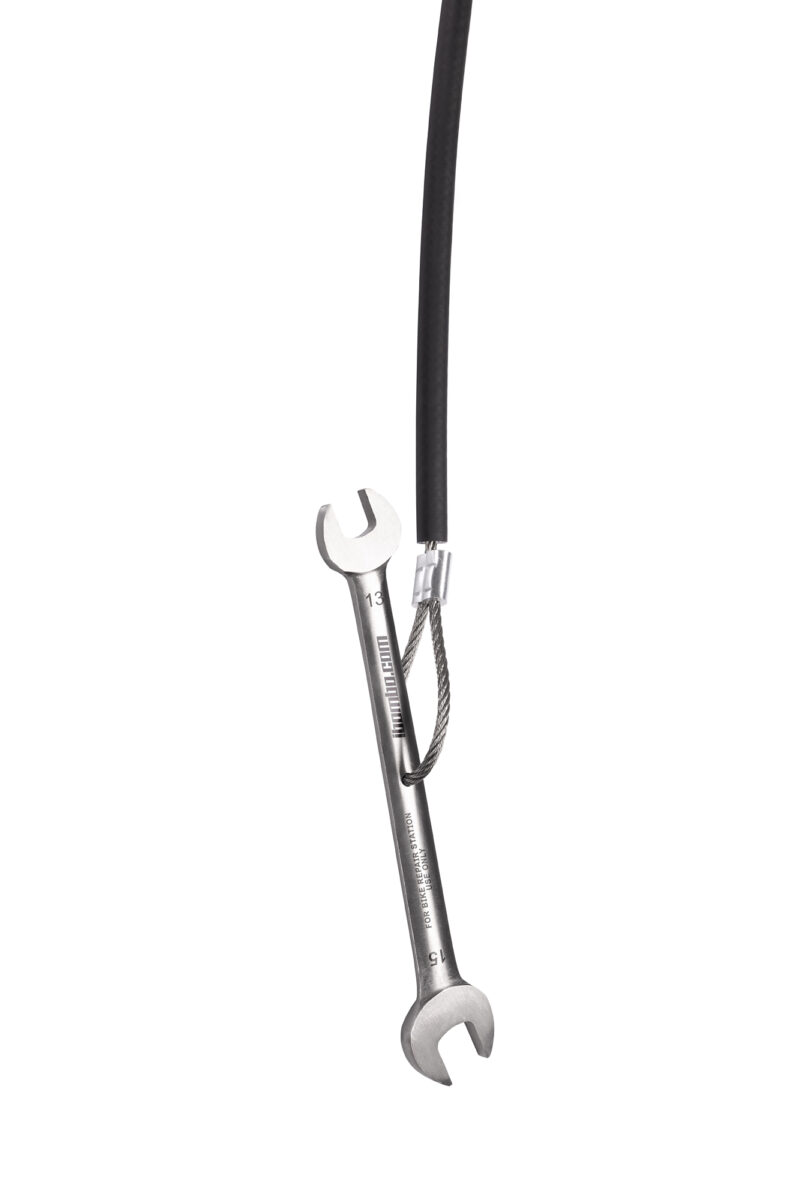

Flat spanner 13x15 mm- AISI 420 stainless steel, nickel-plated
Flat pliers

Flat pliers

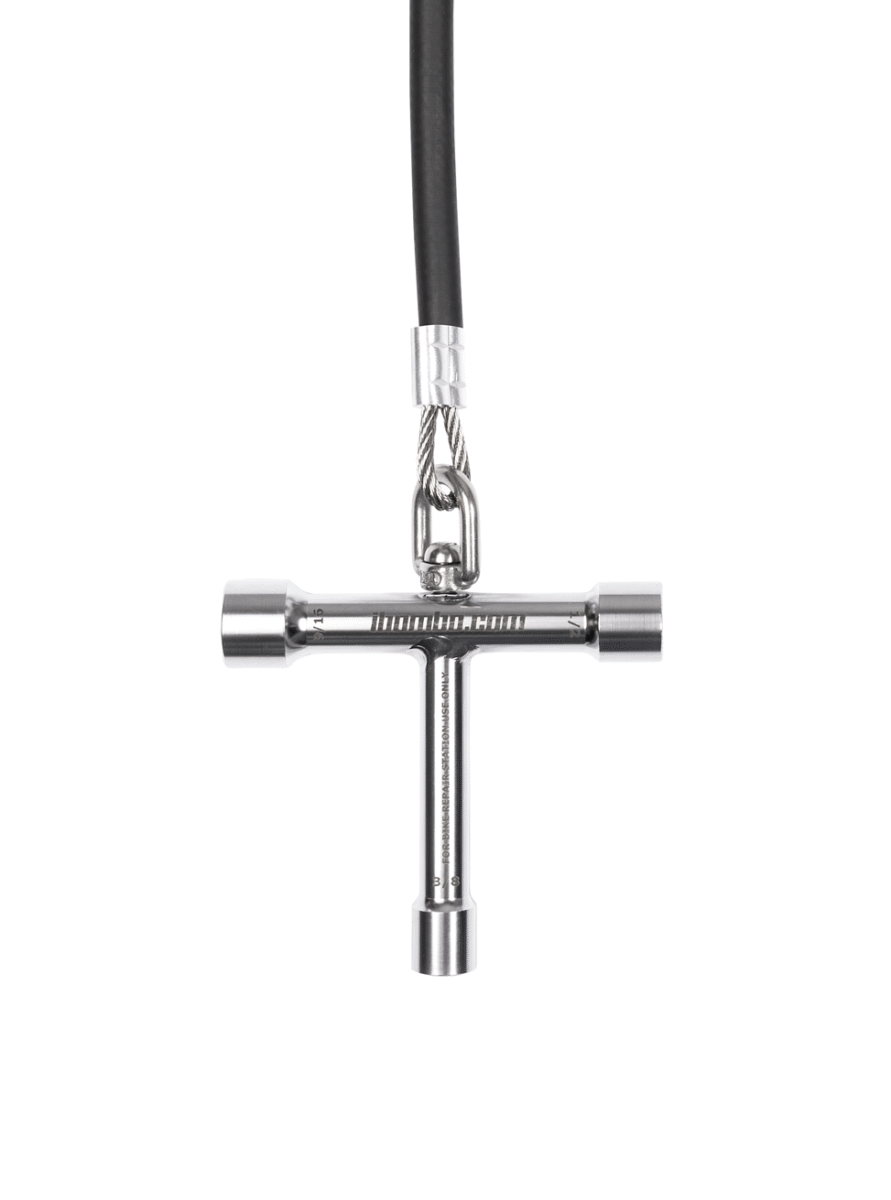

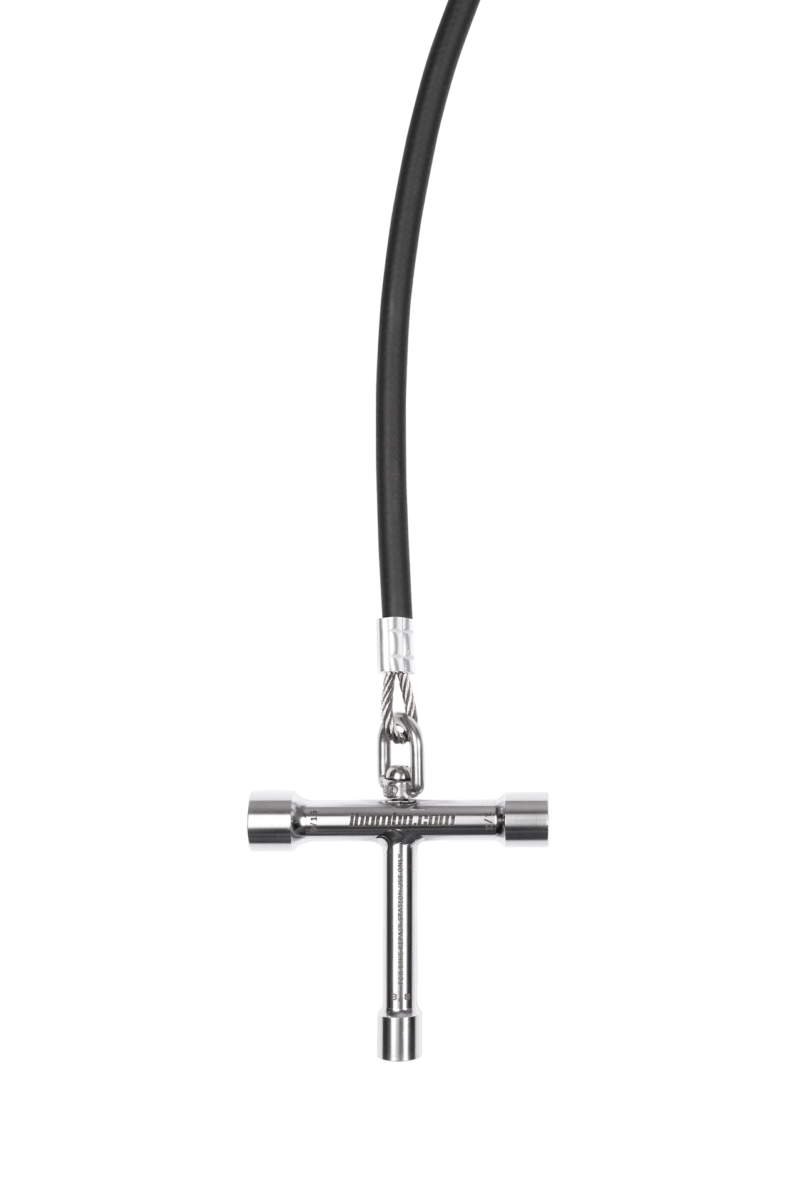

Skateboard socket wrench - AISI 420 stainless steel + nickel plated

Skateboard socket wrench - AISI 420 stainless steel + nickel plated

Skateboard socket wrench - AISI 420 stainless steel + nickel plated

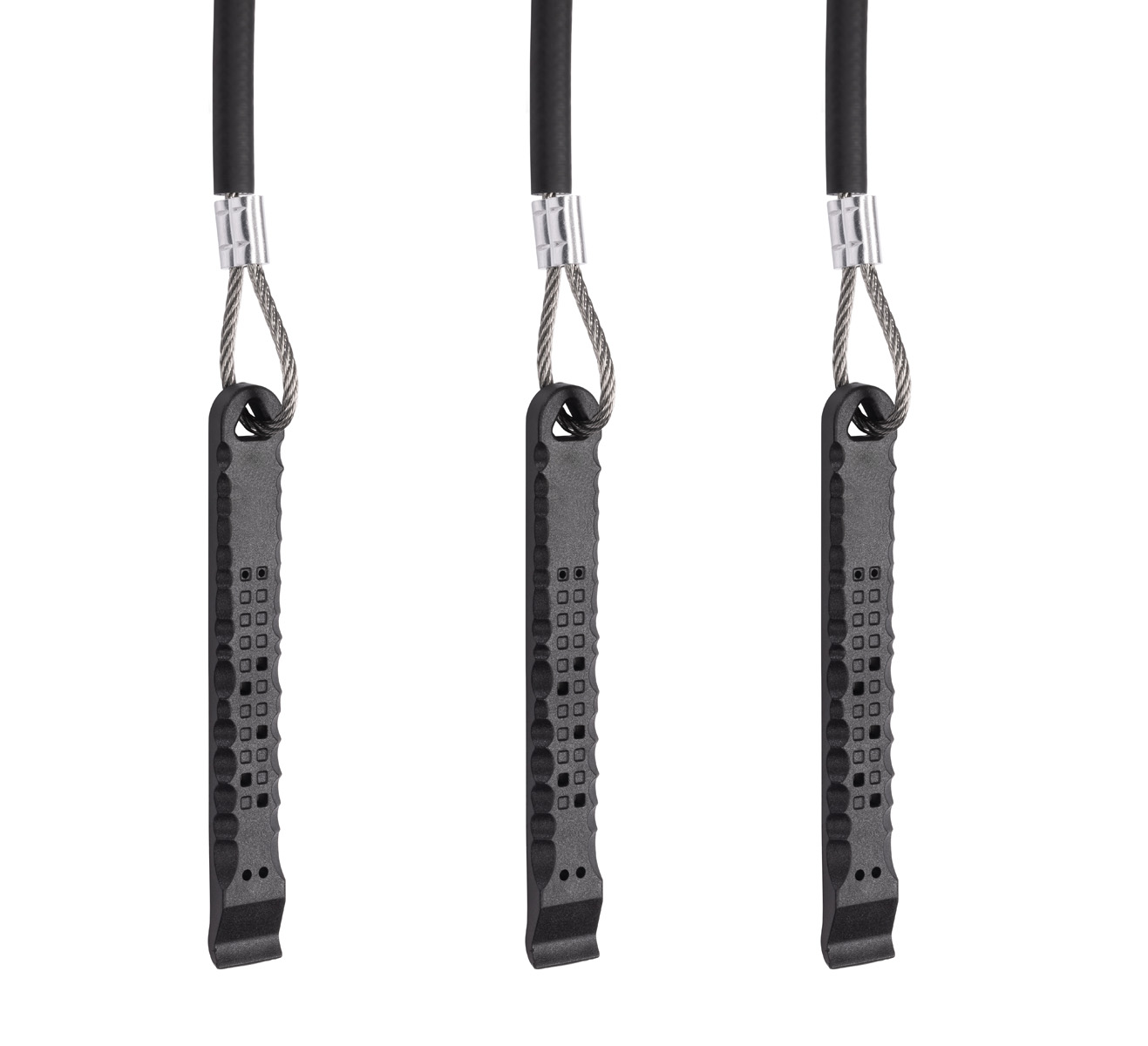

3 x tire levers with AISI 420 stainless steel core – nylon-coated to protect rims

3 x tire levers with AISI 420 stainless steel core – nylon-coated to protect rims

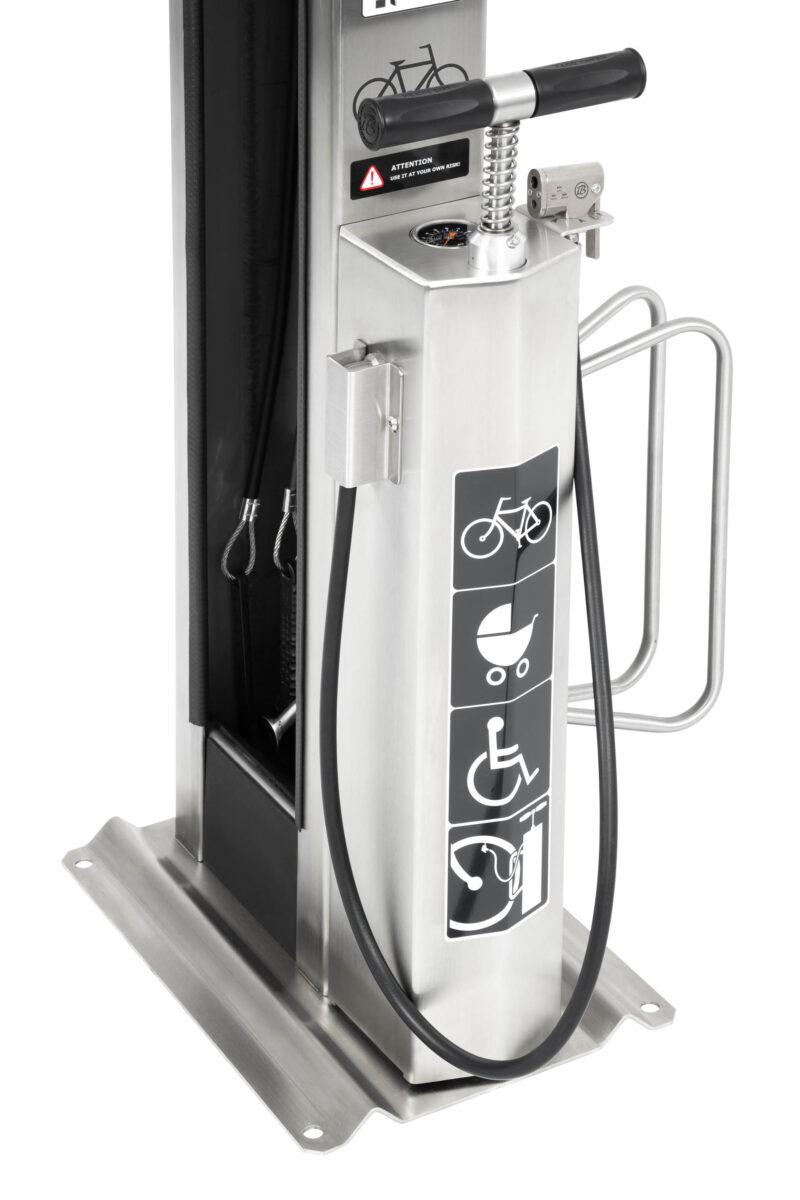

Stationary hand pump with piston (Ø14) and handle (Ø32) made of stainless steel (AISI 304) – pressure range 0–10 BAR + glycerin-filled (Antifog) pressure gauge + anodized aluminum (PA6) sealing-lubricating flange

Stationary hand pump with piston (Ø14) and handle (Ø32) made of stainless steel (AISI 304) – pressure range 0–10 BAR + glycerin-filled (Antifog) pressure gauge + anodized aluminum (PA6) sealing-lubricating flange

Stationary hand pump with piston (Ø14) and handle (Ø32) made of stainless steel (AISI 304) – pressure range 0–10 BAR + glycerin-filled (Antifog) pressure gauge + anodized aluminum (PA6) sealing-lubricating flange
Dual-chamber pump adapter – stainless steel AISI 630 + nickel-plated – compatible with all types of bicycle valves (Presta, Schrader, and Dunlop) with industrial-grade AISI 304 components (IBOMBO AISIPRO 630 HEAD™

Dual-chamber pump adapter – stainless steel AISI 630 + nickel-plated – compatible with all types of bicycle valves (Presta, Schrader, and Dunlop) with industrial-grade AISI 304 components (IBOMBO AISIPRO 630 HEAD™

Dual-chamber pump adapter – stainless steel AISI 630 + nickel-plated – compatible with all types of bicycle valves (Presta, Schrader, and Dunlop) with industrial-grade AISI 304 components (IBOMBO AISIPRO 630 HEAD™

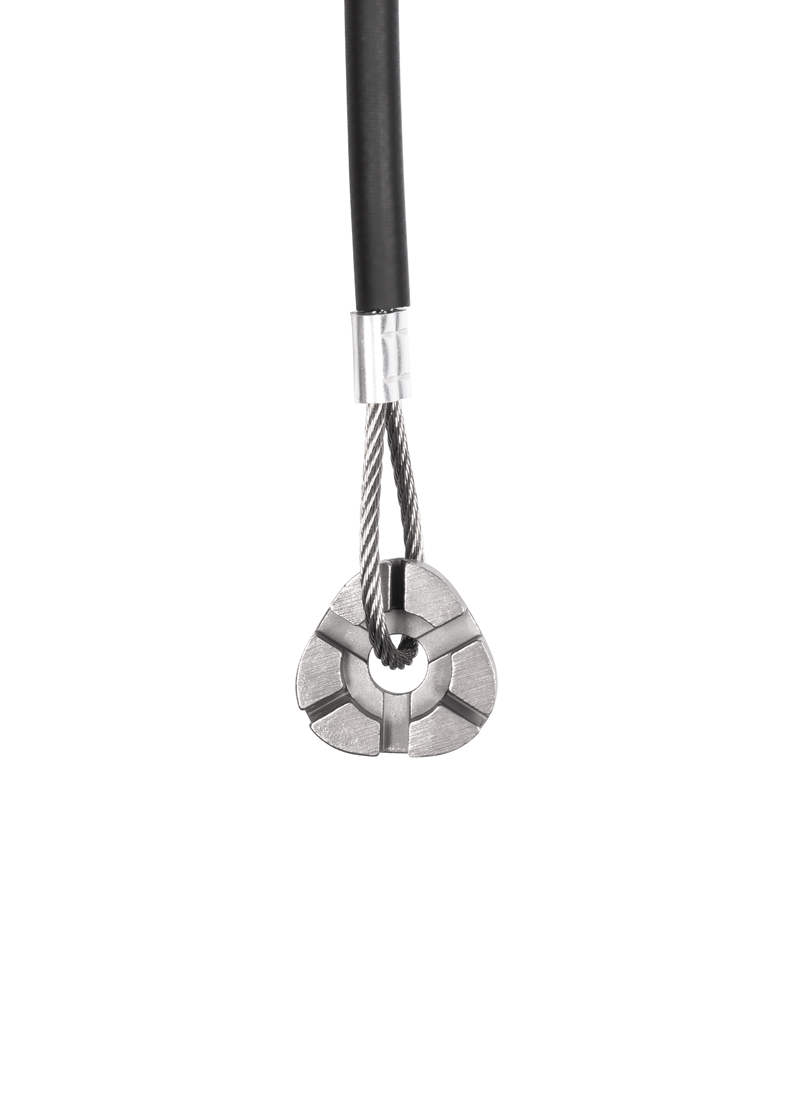

Spoke ring wrench - AISI 420 stainless steel

Spoke ring wrench - AISI 420 stainless steel

Spoke ring wrench - AISI 420 stainless steel

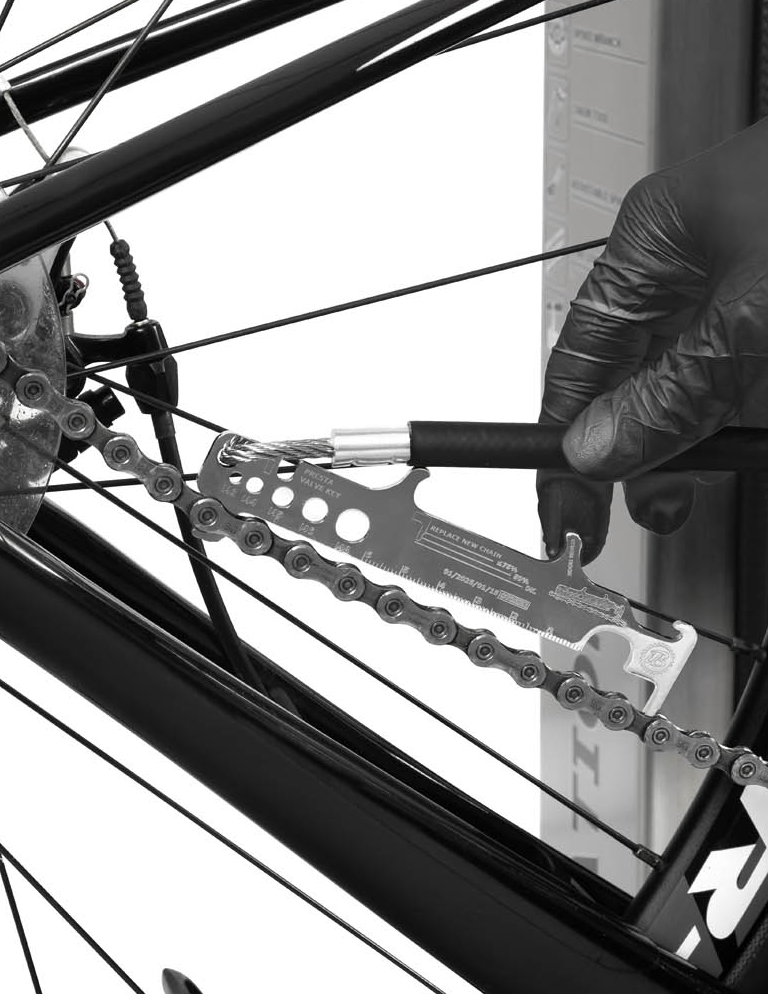

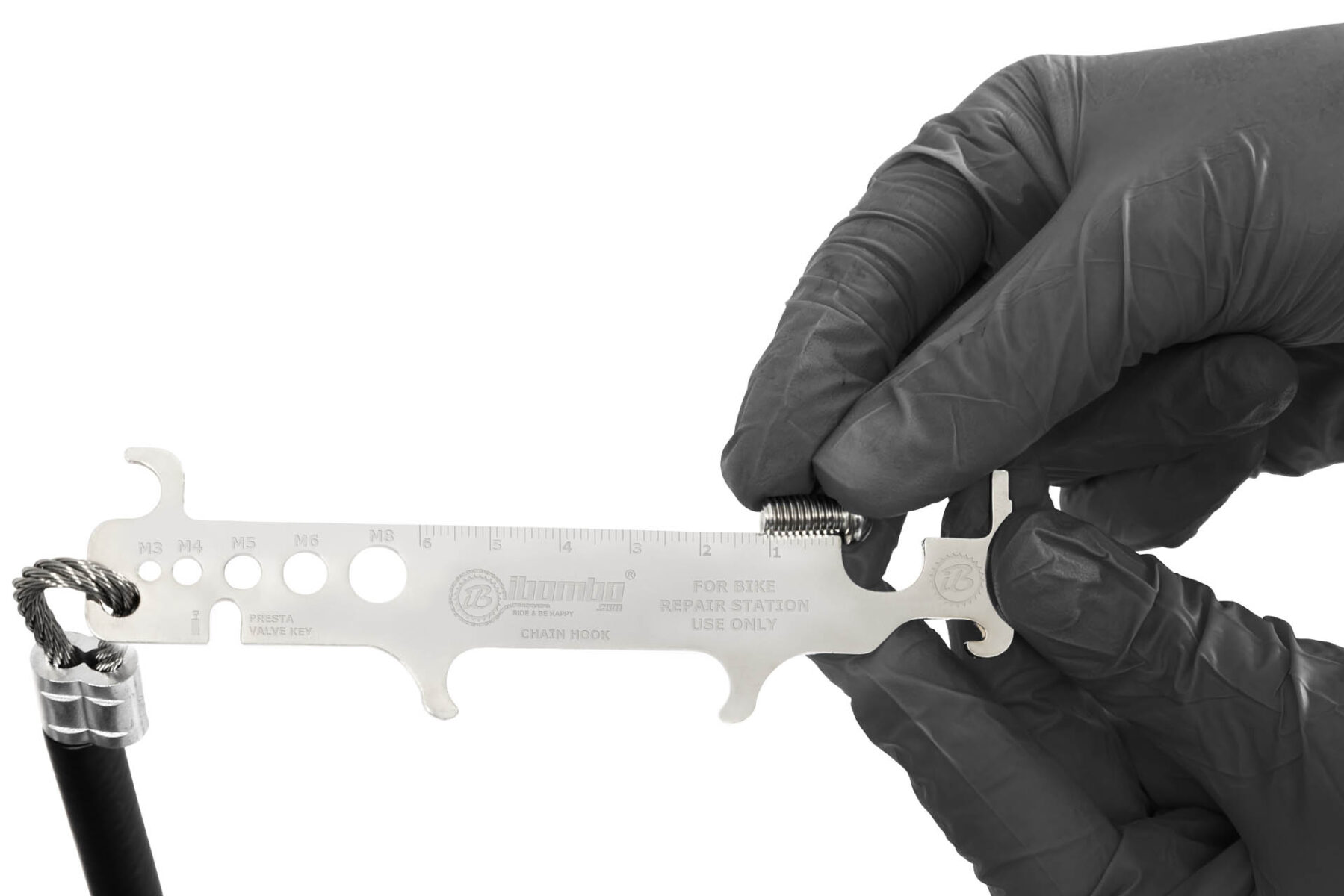

Chain wear gauge - AISI 316 stainless steel + nickel plated

Chain wear gauge - AISI 316 stainless steel + nickel plated

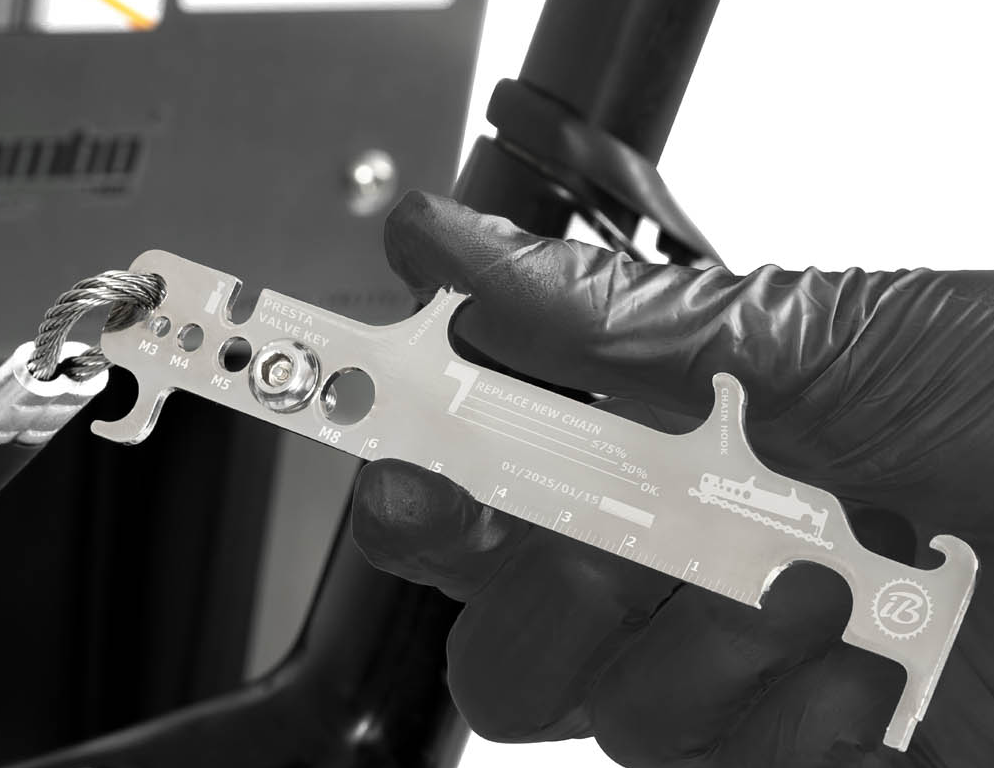

Screw size gauge – stainless steel AISI 316 + nickel-plated

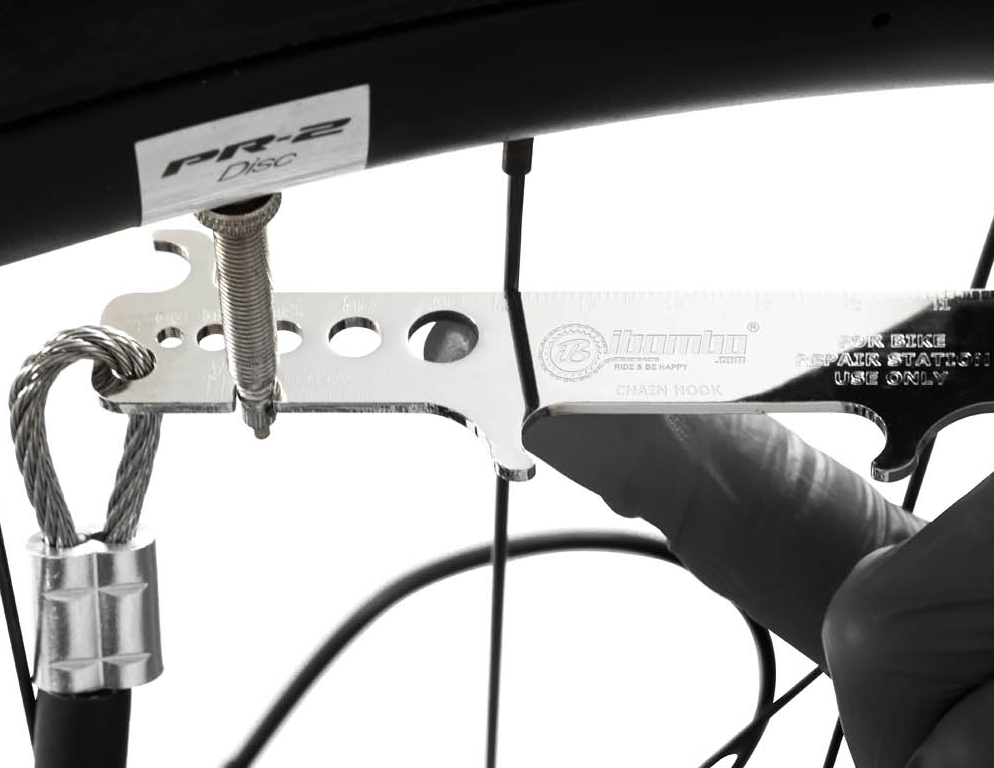

Presta valve removal wrench – stainless steel AISI 316 + nickel-plated

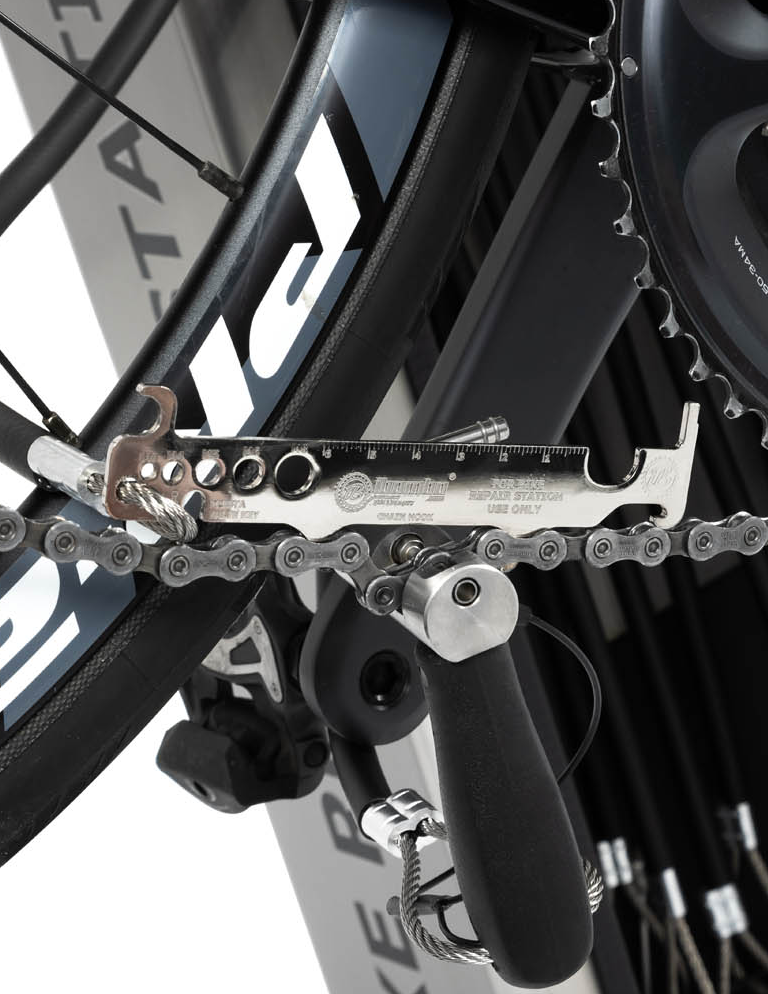

Chain link clip – stainless steel AISI 316 + nickel-plated

Measuring gauge – stainless steel AISI 316 + nickel-plated

Basic palette - powder coating

RAL 9010

Pure white

RAL 7035

Light grey

RAL 7001

Silver grey

RAL 9006

Silver metallic

RAL 7016

Anthracite grey

RAL 9005

Jet black

RAL 1021

Colza yellow

RAL 2008

Bright red orange

RAL 3020

Traffic red

RAL 4010

Telemagenta

RAL 4004

Claret violet

RAL 6018

Yellow green

RAL 6005

Moss green

RAL 5012

Light blue

RAL 5015

Sky blue

RAL 5017

Traffic blue

RAL 5002

Ultramarine blue

RAL 5003

Sapphire blue

Our products can be powder coated in many colours from the RAL palette – after checking the availability.

Despite all efforts to keep the most accurate colour representation possible, our palette is used for informational purposes only. The best colour representation can be found in samplers.

Place your logo for free!

We can place your logo / graphics on our products to take care of your brand image.

See our portfolio

Product safety instructions Technical data sheet of the E-BIKE module AutoCAD Switchgear safety instructions

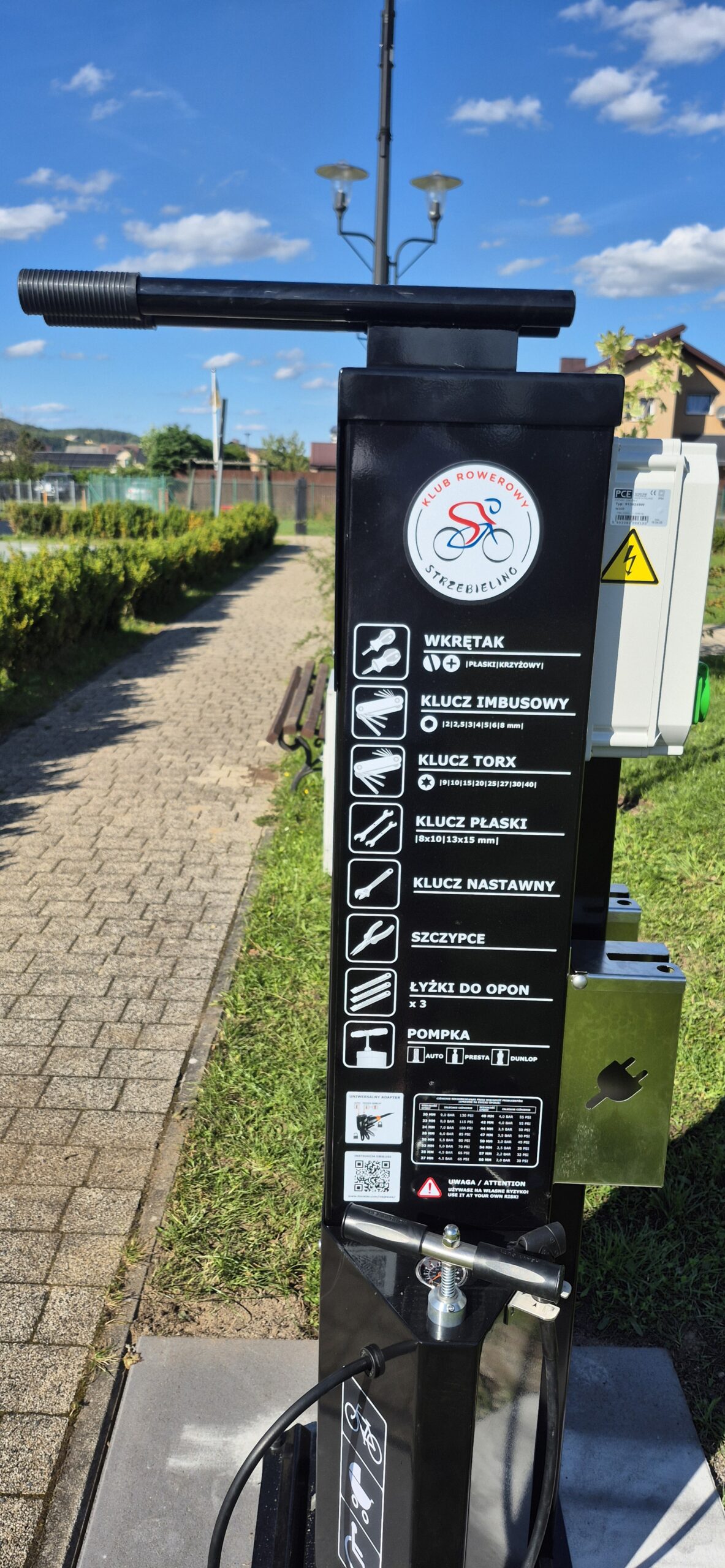

Sample projects

PRODUCT REGISTERED IN EUIPO No. 8819403, 1382873

We have the priority right to register an industrial design at the European Union Intellectual Property Office (EUIPO) in Alicante. We have acquired the exclusive right to use the design throughout the EU.
