IBOMBO E-PRS-LV2 – LiON

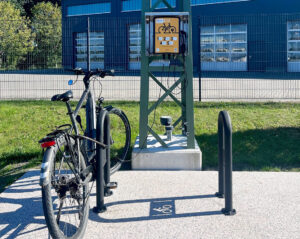

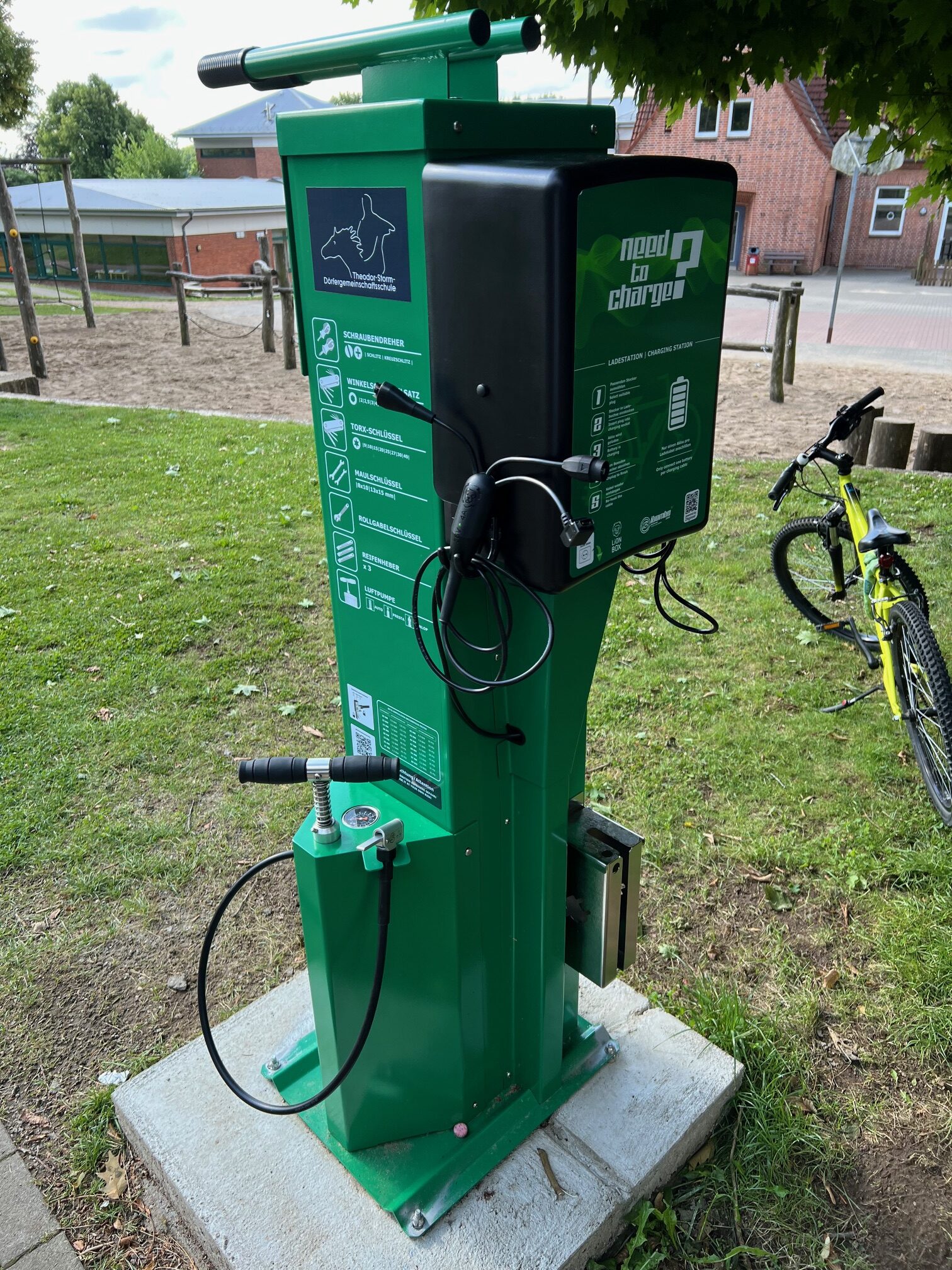

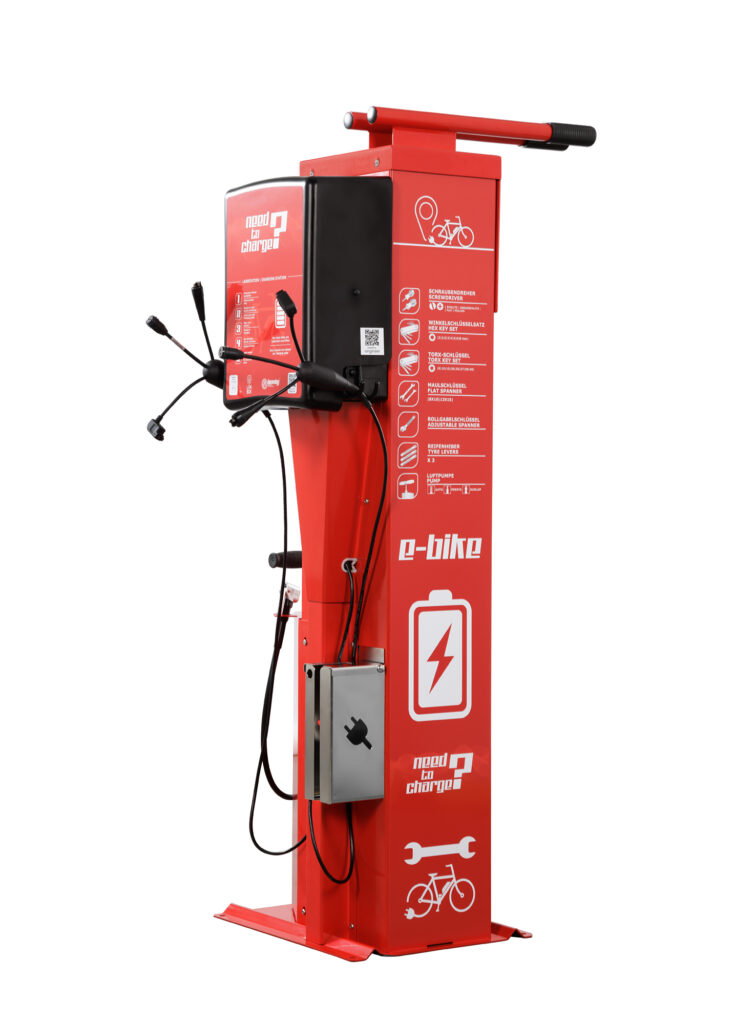

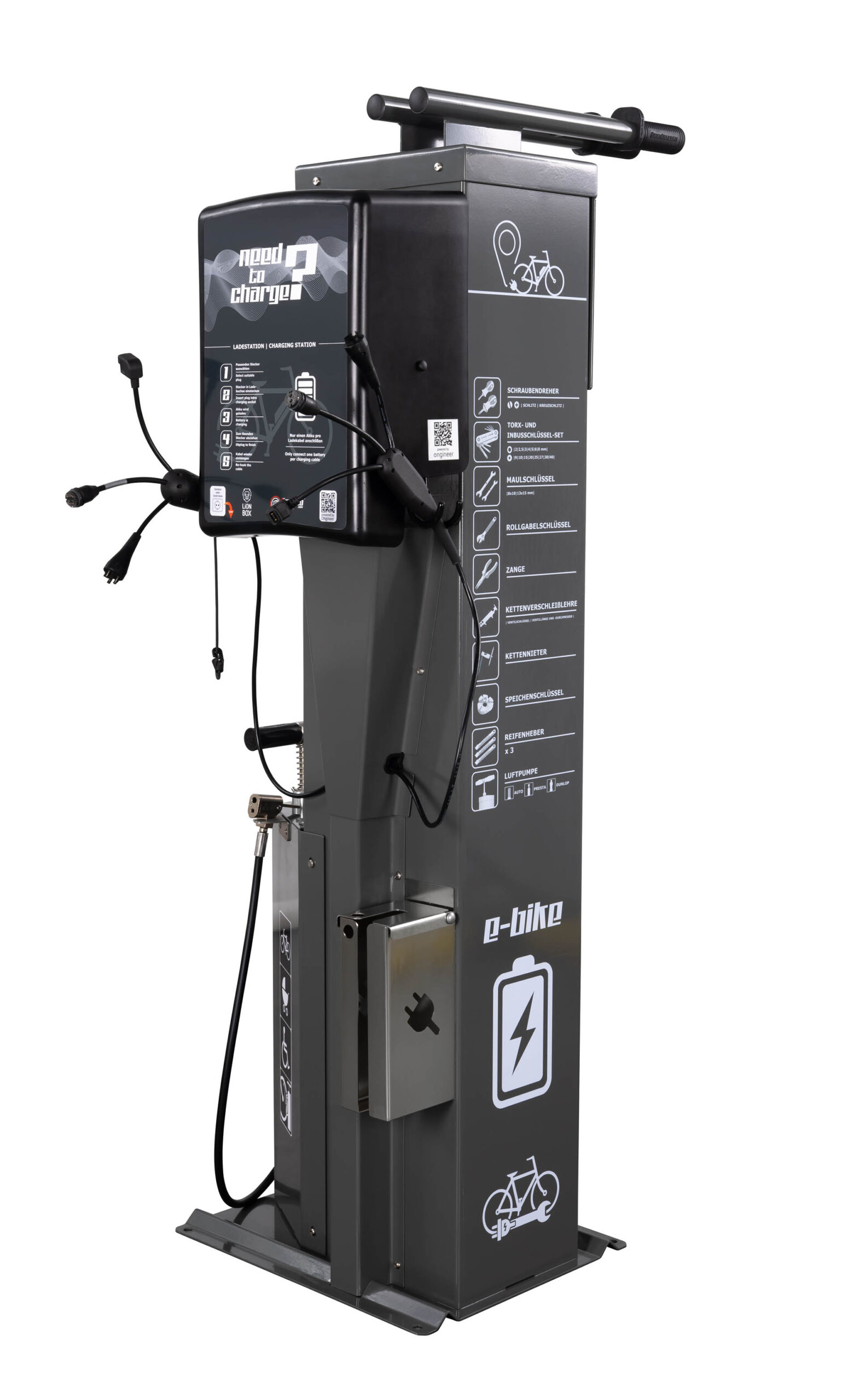

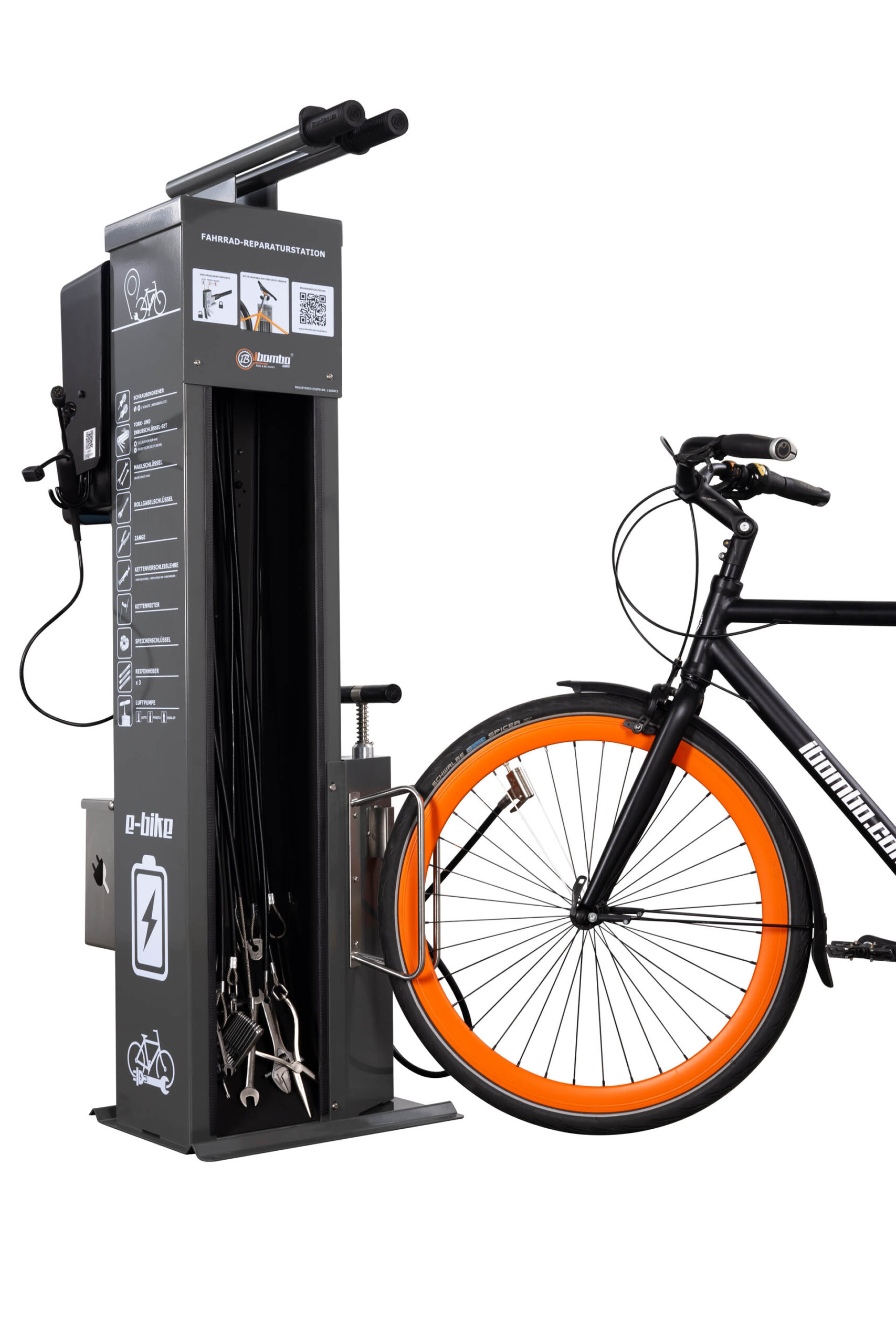

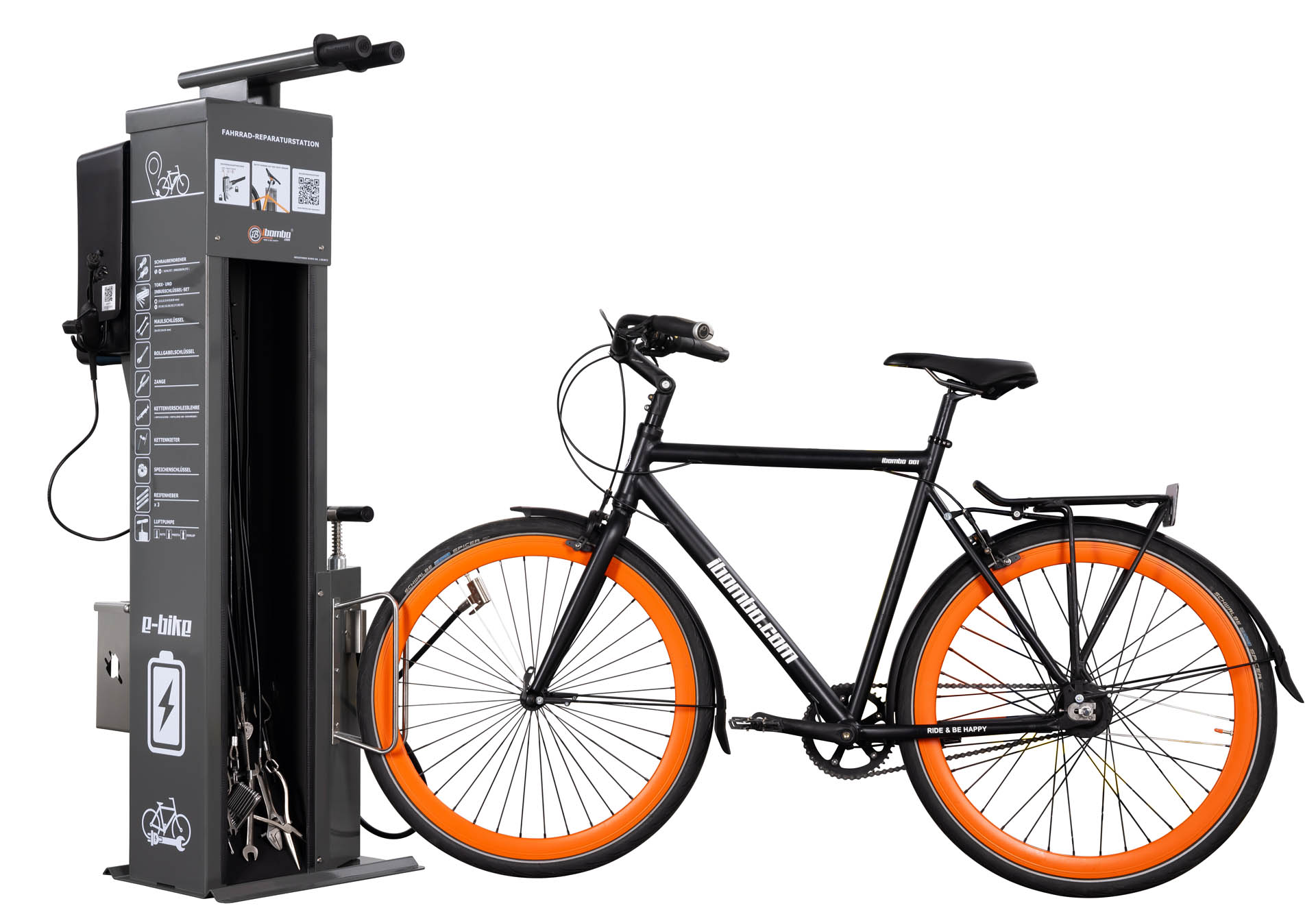

The self-service bike repair station – IBOMBO E-PRS-LV2 LiON is suitable for use in public areas. Its housing is made of galvanized or stainless steel with a powder coating. The E-BIKE version of the device is mounted on the ground. Sheet metal elements and the E-BIKE charging module are fastened with anti-theft screws – the bits for the screws are supplied to the customer.

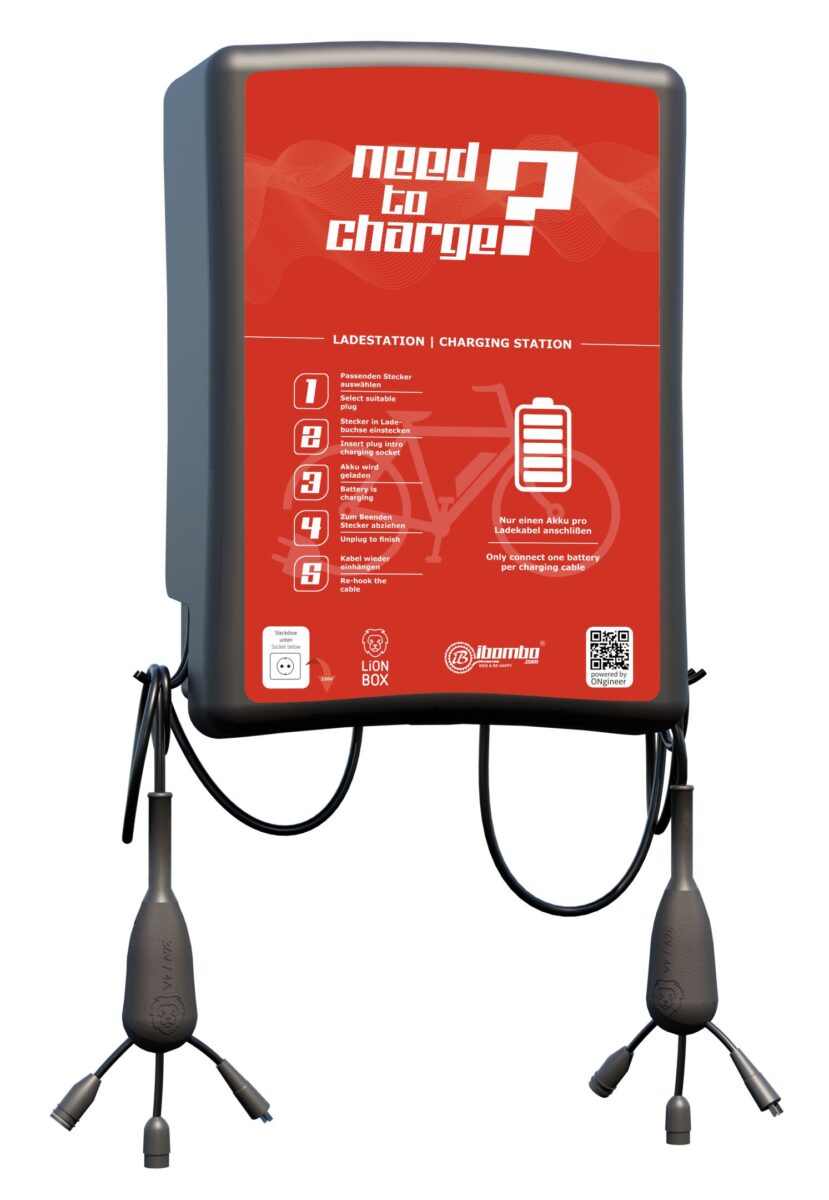

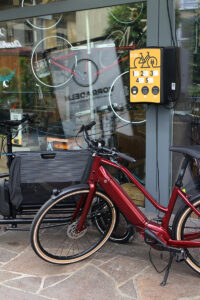

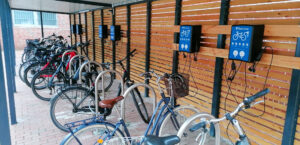

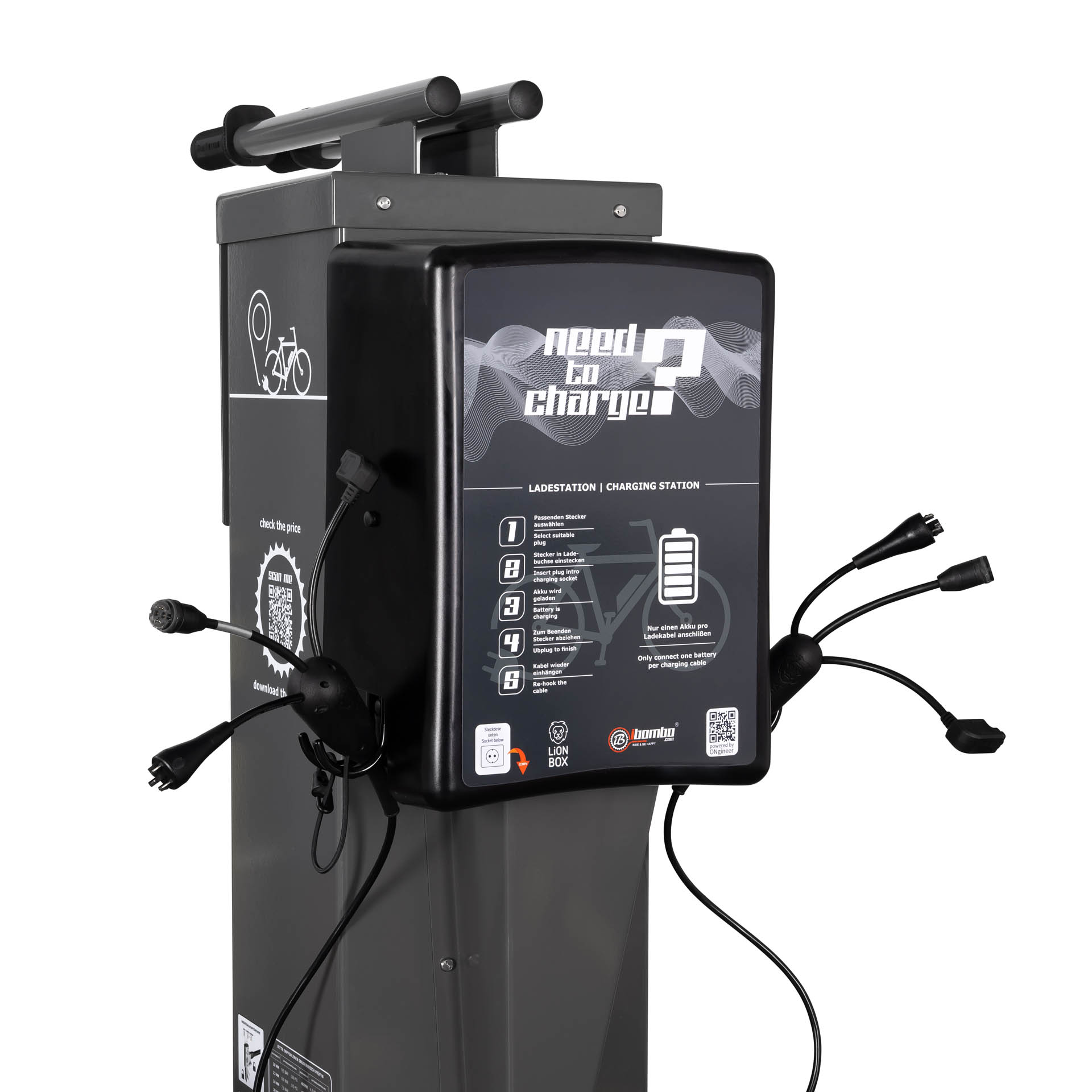

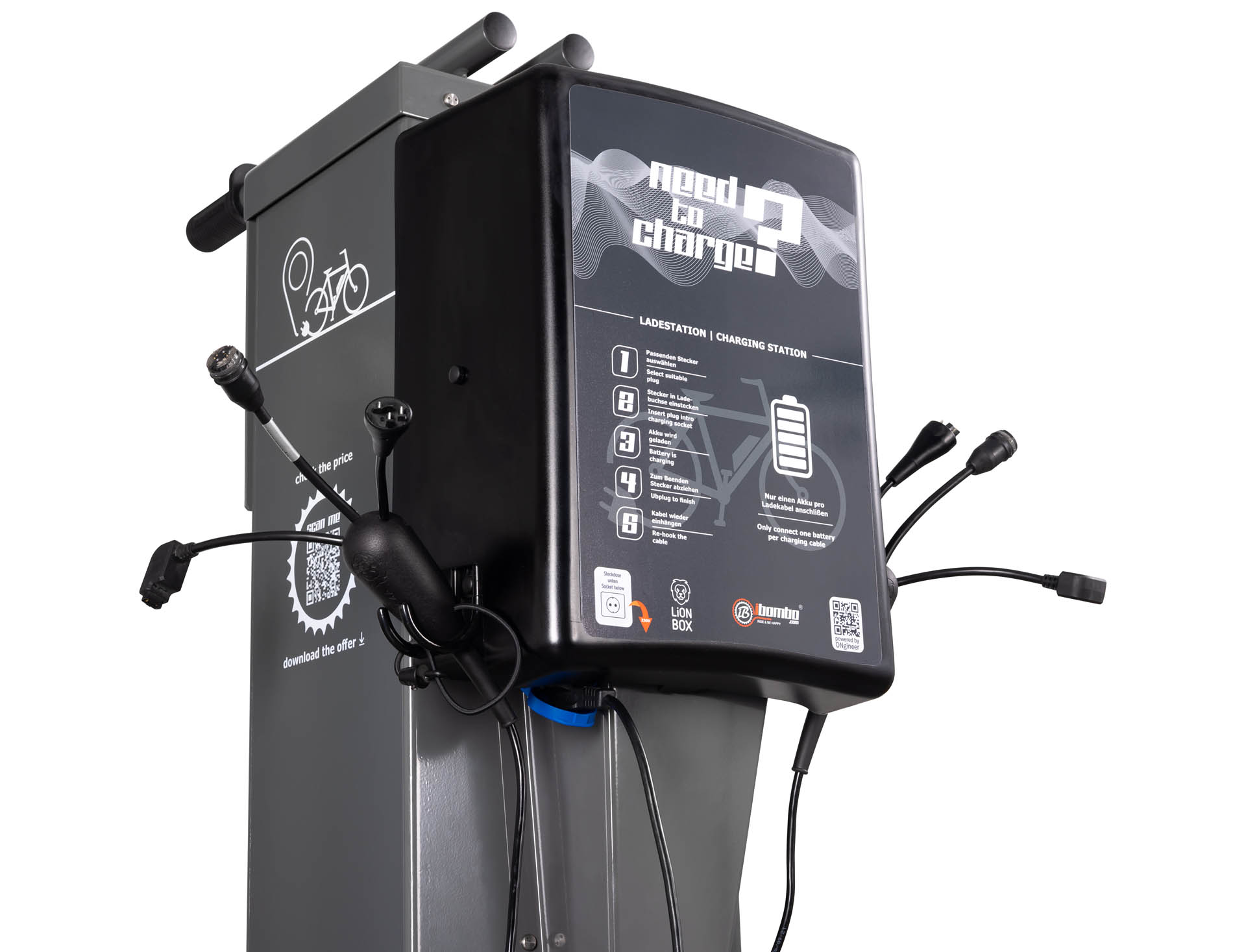

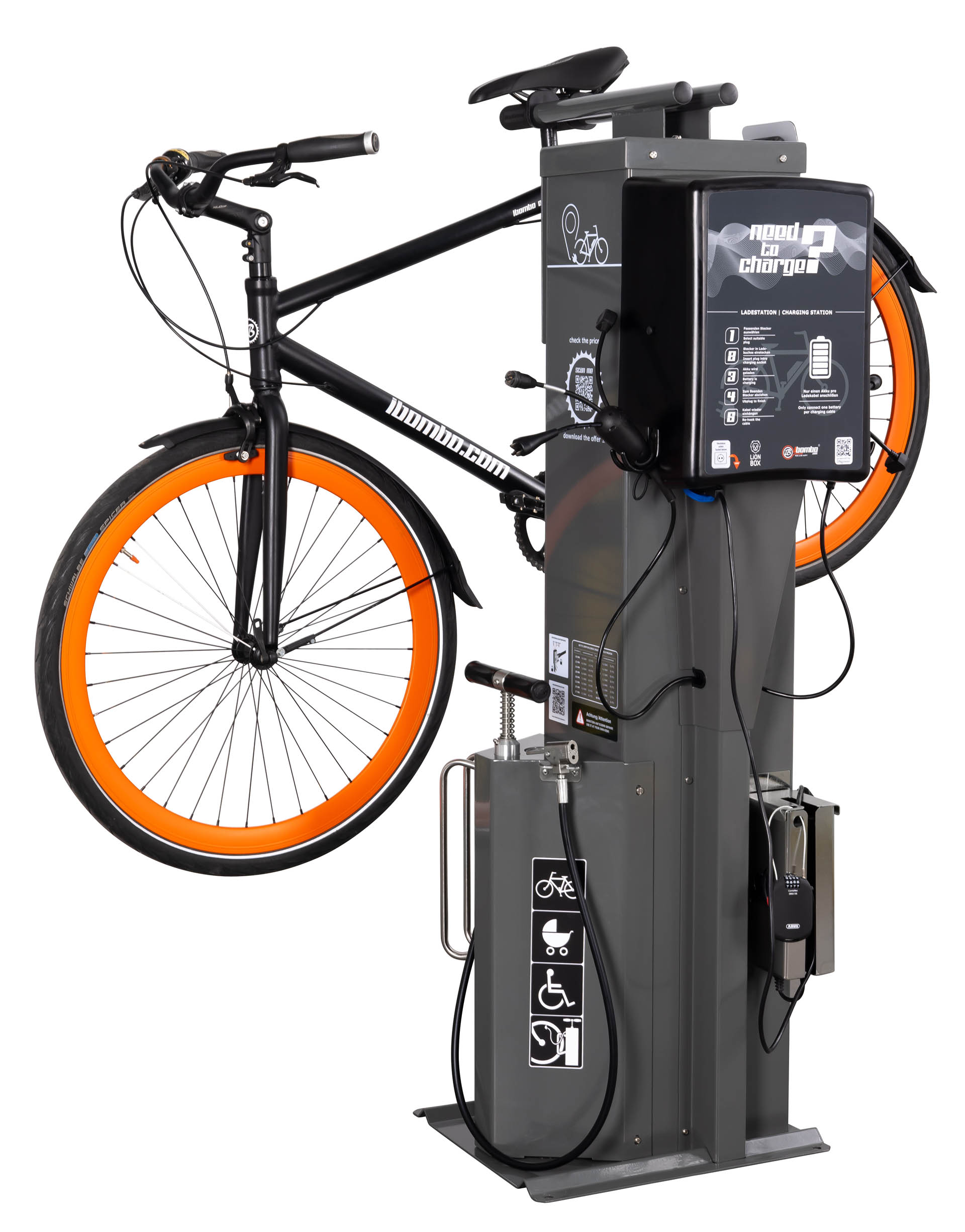

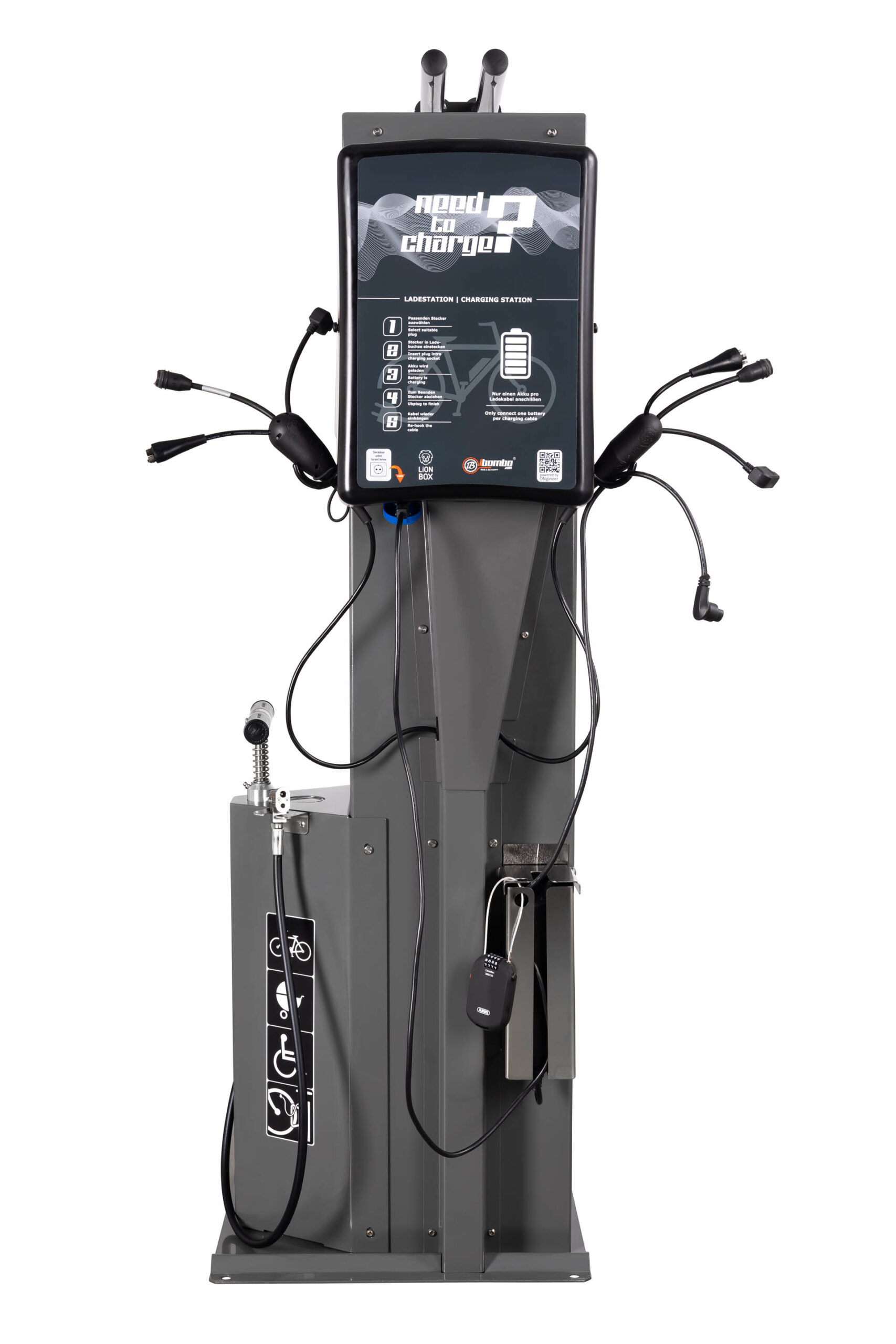

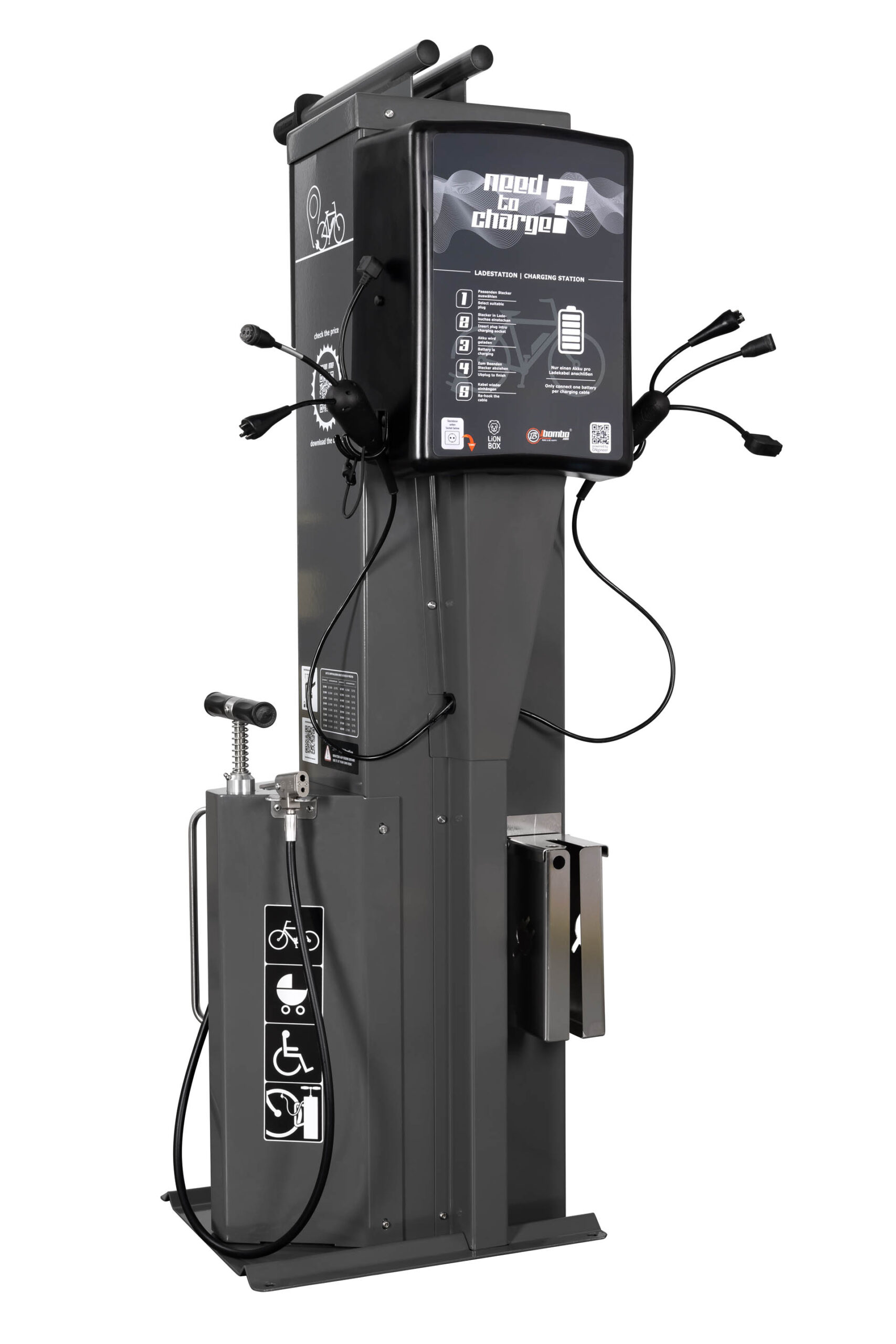

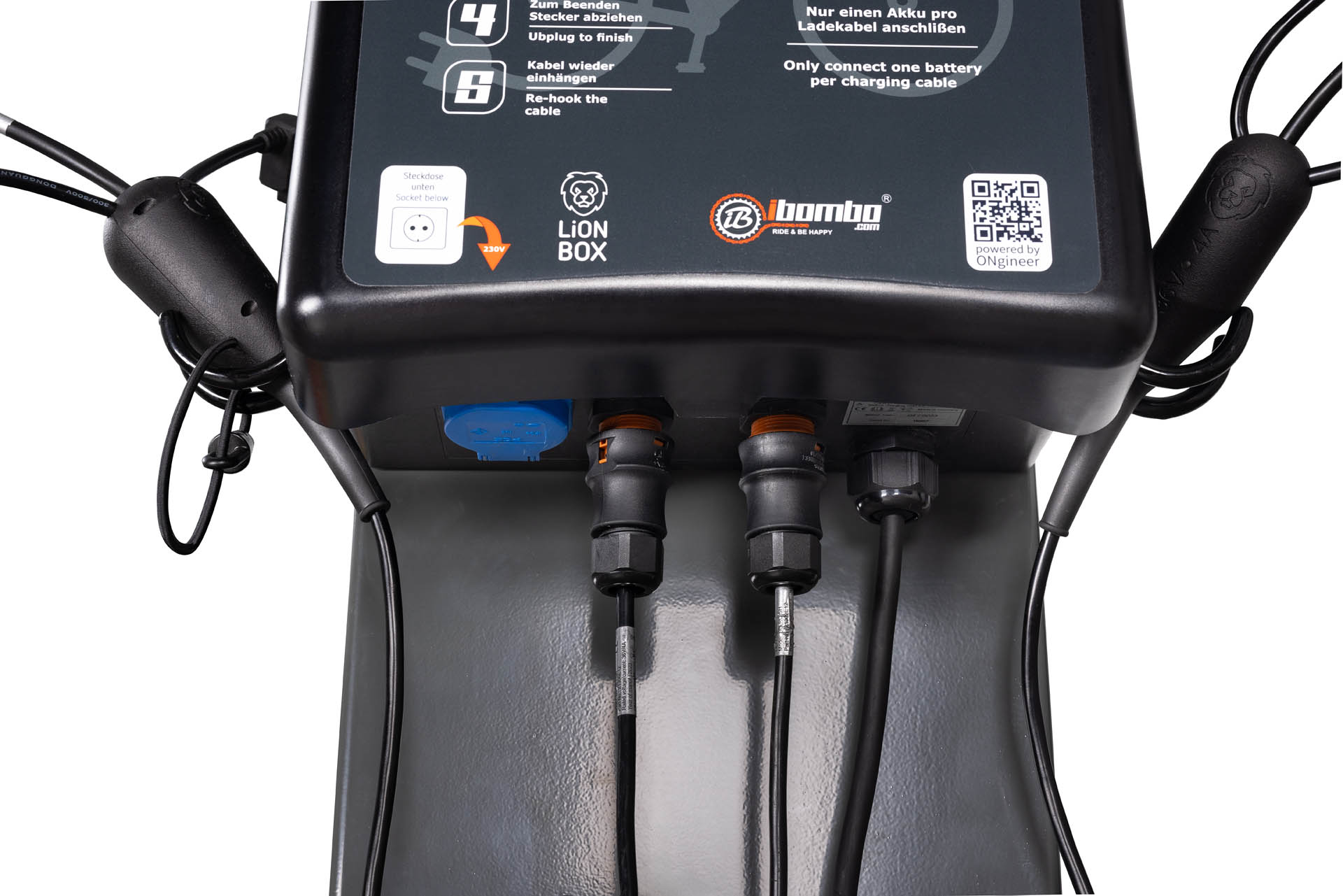

On the back of the device there is a module with 2 x electric bike (E-BIKE) charging cables, each with 3 different power plugs for the battery in your bike. Several different plugs to choose from: BOSCH / Rosenberger / Shimano / Yamaha. Additionally, there is a stainless steel basket for connecting an external charger that can be secured with a padlock and a metal strip that protects against damage and manipulation by outsiders. The E-BIKE charging module is in a compact housing made of high-strength plastic. Comprehensive protection circuits ensure additional safety.

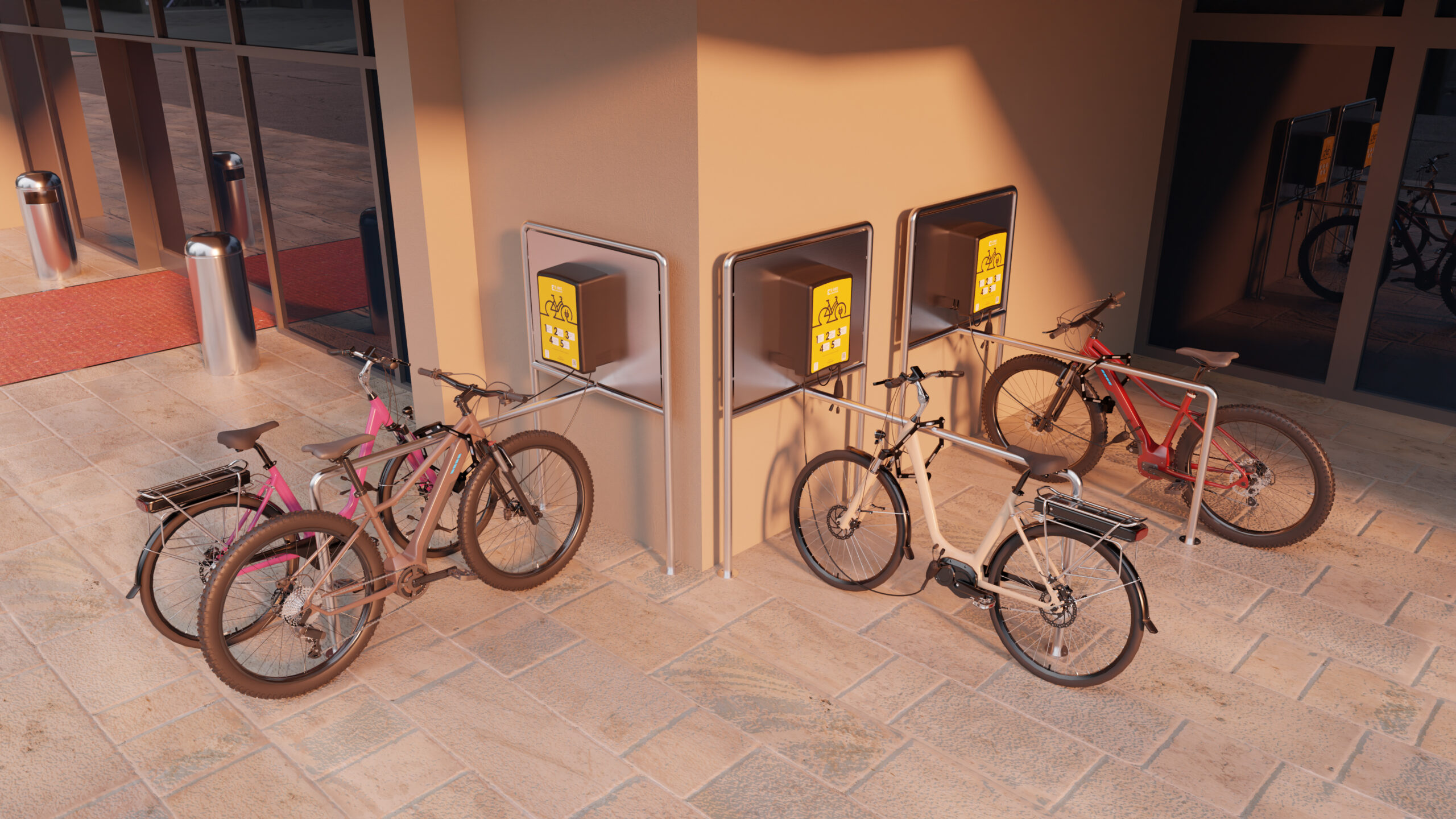

A safe and convenient complement to the E-BIKE charging module are our bike racks » CLASSIC SERIES » SILICONE PROTECT.

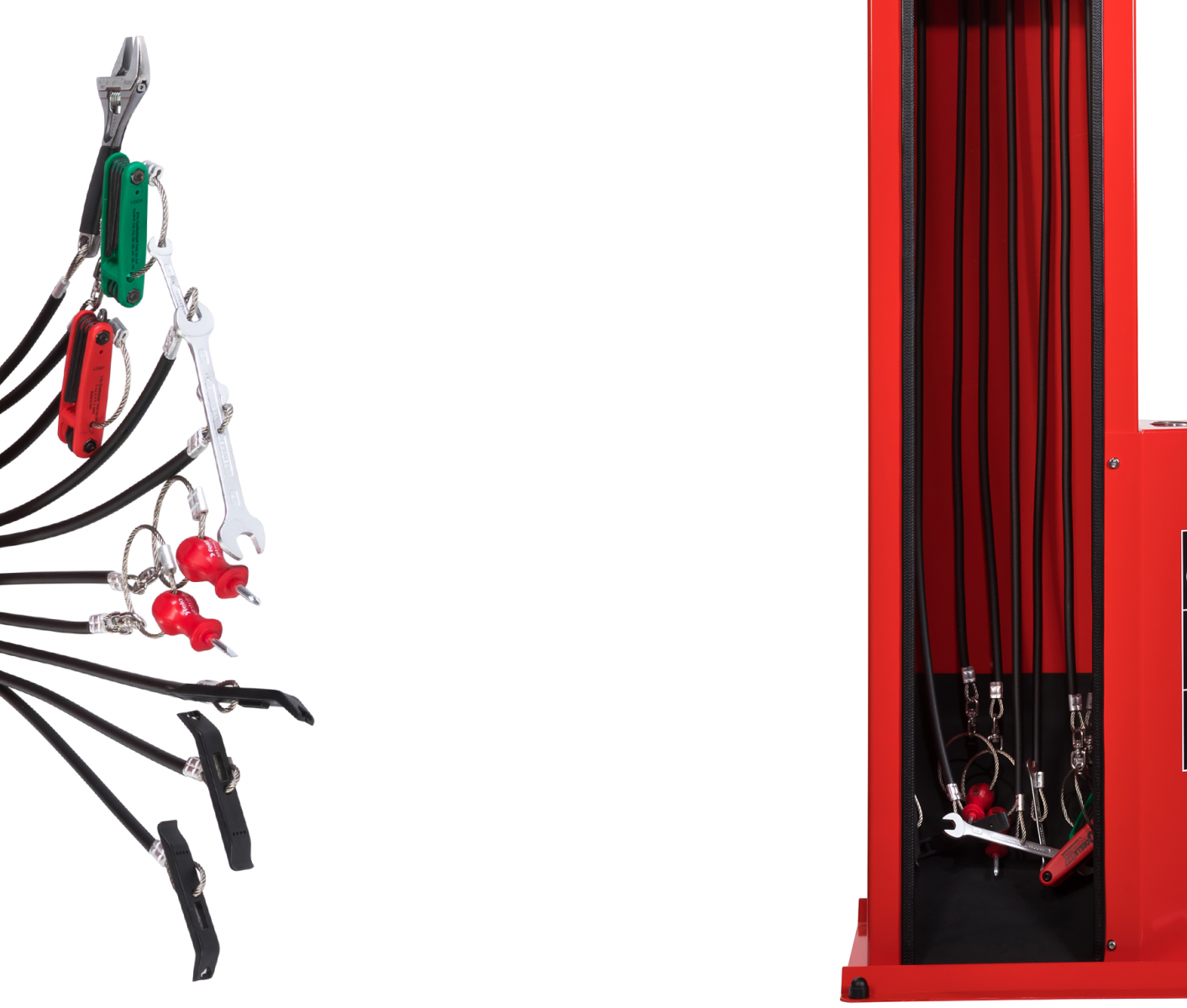

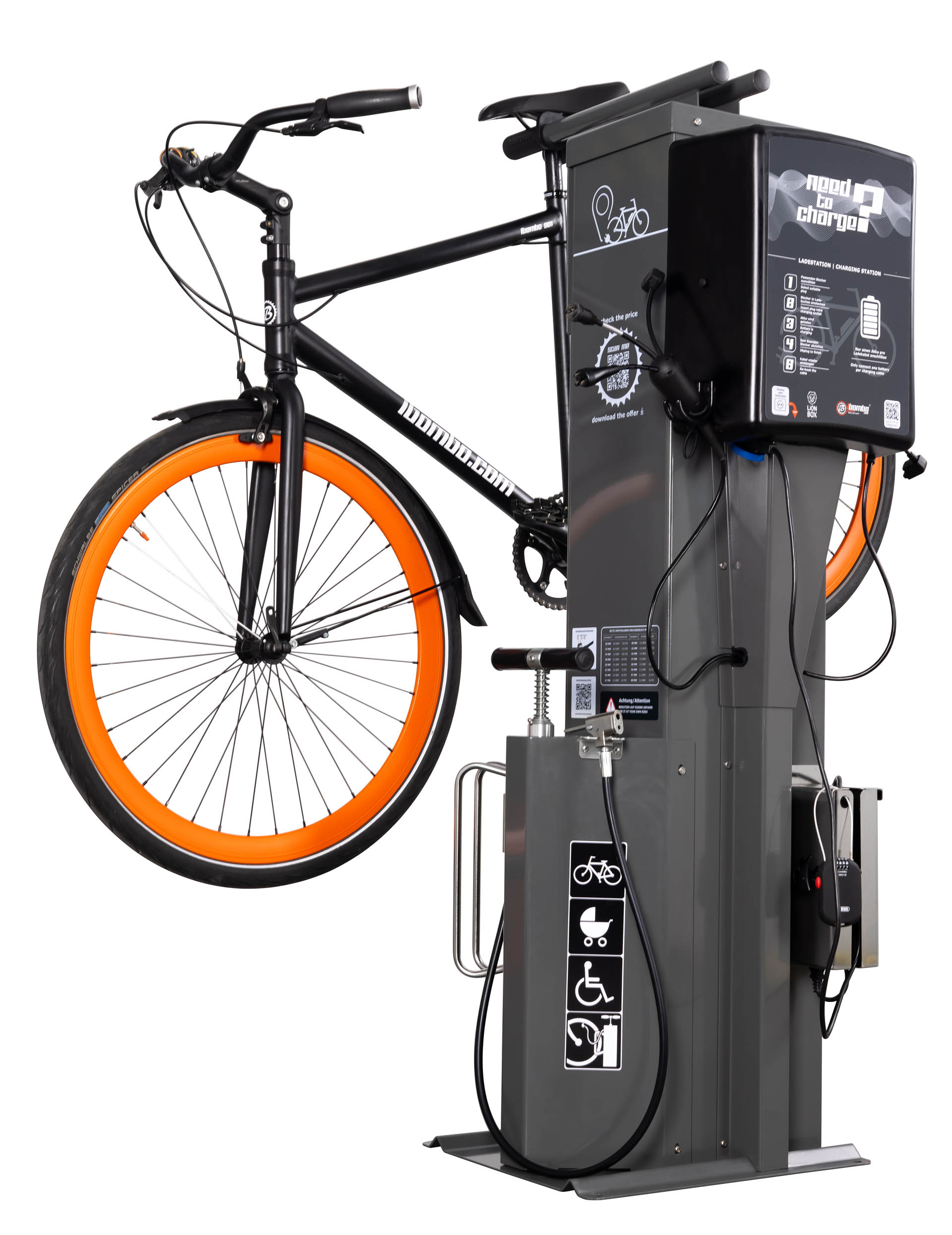

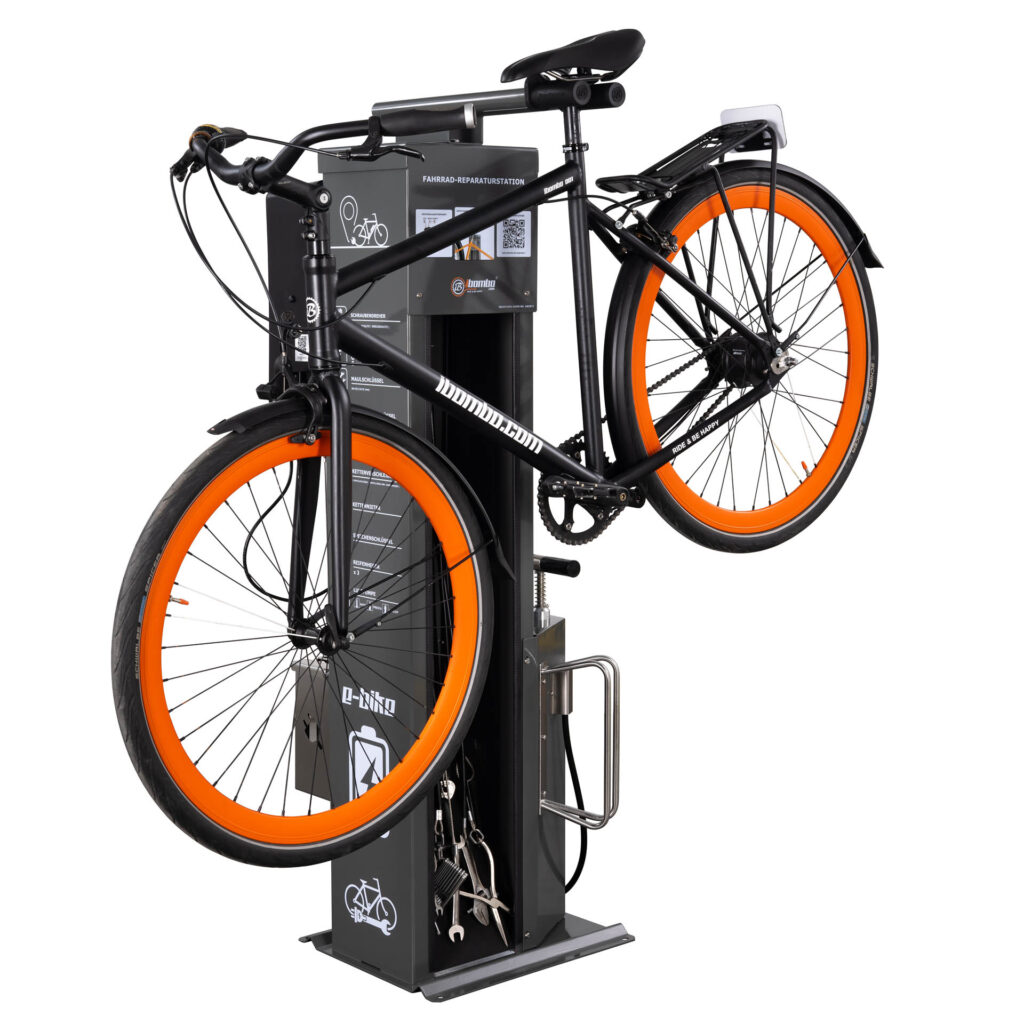

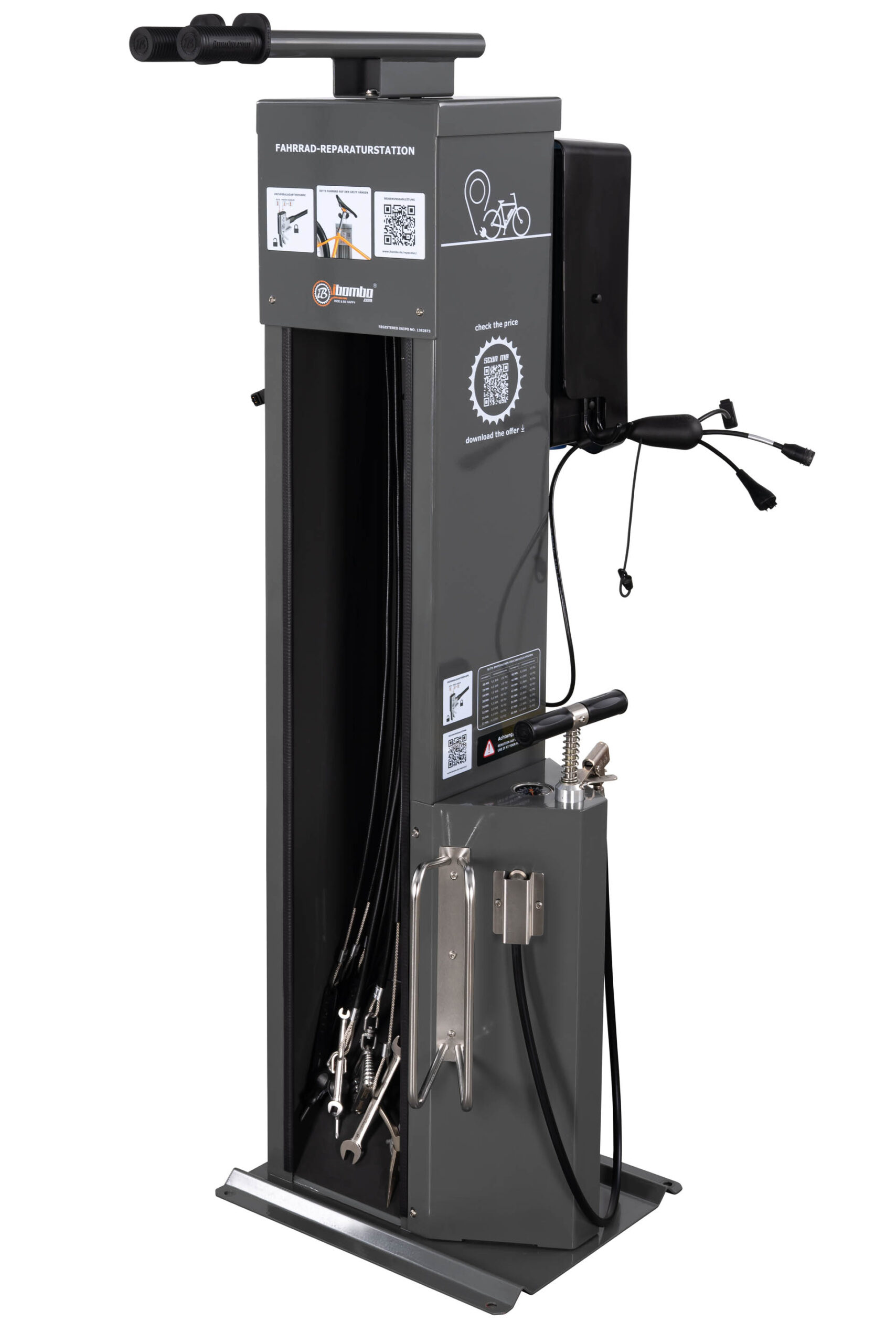

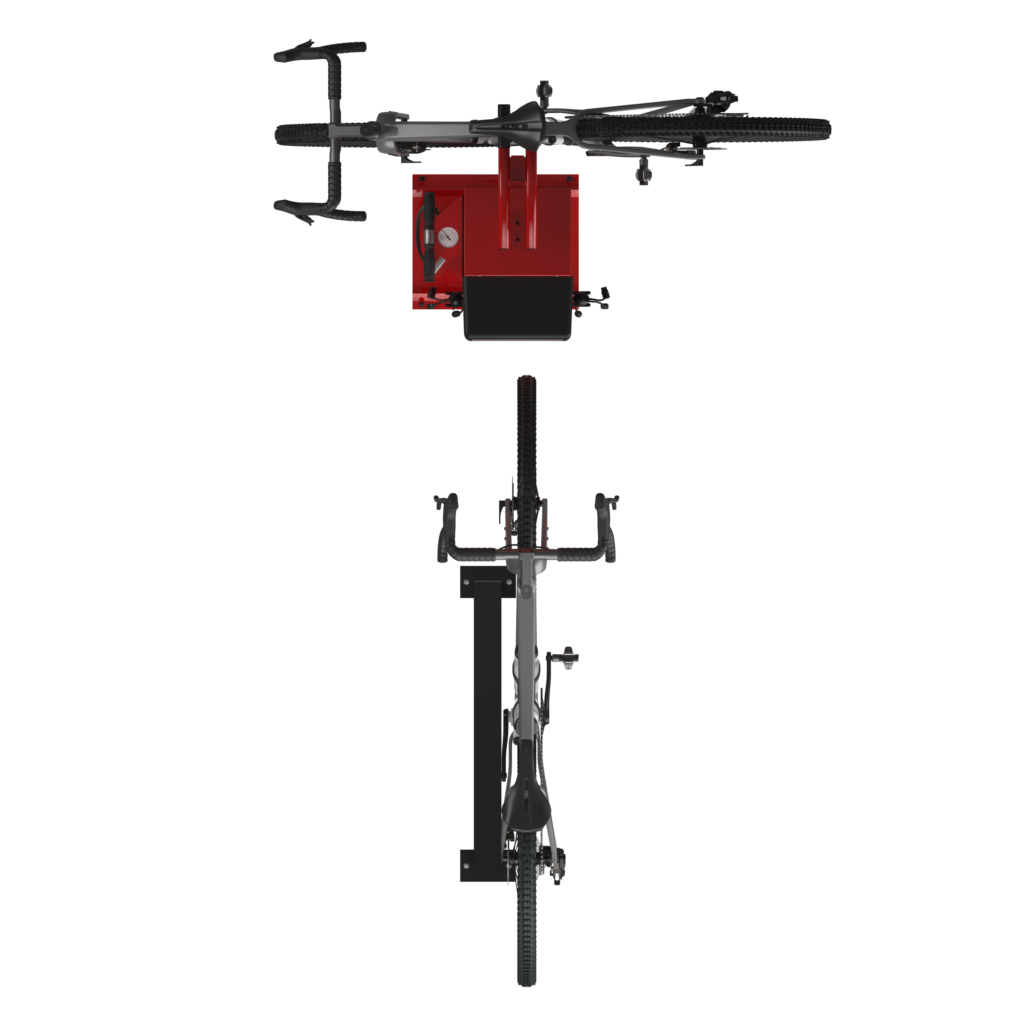

The tools are attached to stainless steel ropes hanging inside the column of the station; the length of the ropes allows you to reach all bicycle components. The rubber coating of the ropes prevents tools from tangling and protects the bicycle frame from scratching. The station is equipped with a hand pump with an adapter for all valve types. The sturdy design makes it possible to place the bike on the station’s handle so that you can easily turn the crank while repairing the bike.
A QR CODE placed on the front allows immediate access to repair instructions.
The E-BIKE module complies with European standards:
Directive 2011/65/EU i 2014/53/EU
Used standards: ETSI EN 300 330 V2.1.1; ETSI EN 301 489-1 V2.2.3;
ETSI EN 301 489-3 V2.1.1; EN 61439-1:2011; EN 61439-7:2020;
EN 62233:2008; EN IEC 63000:2018

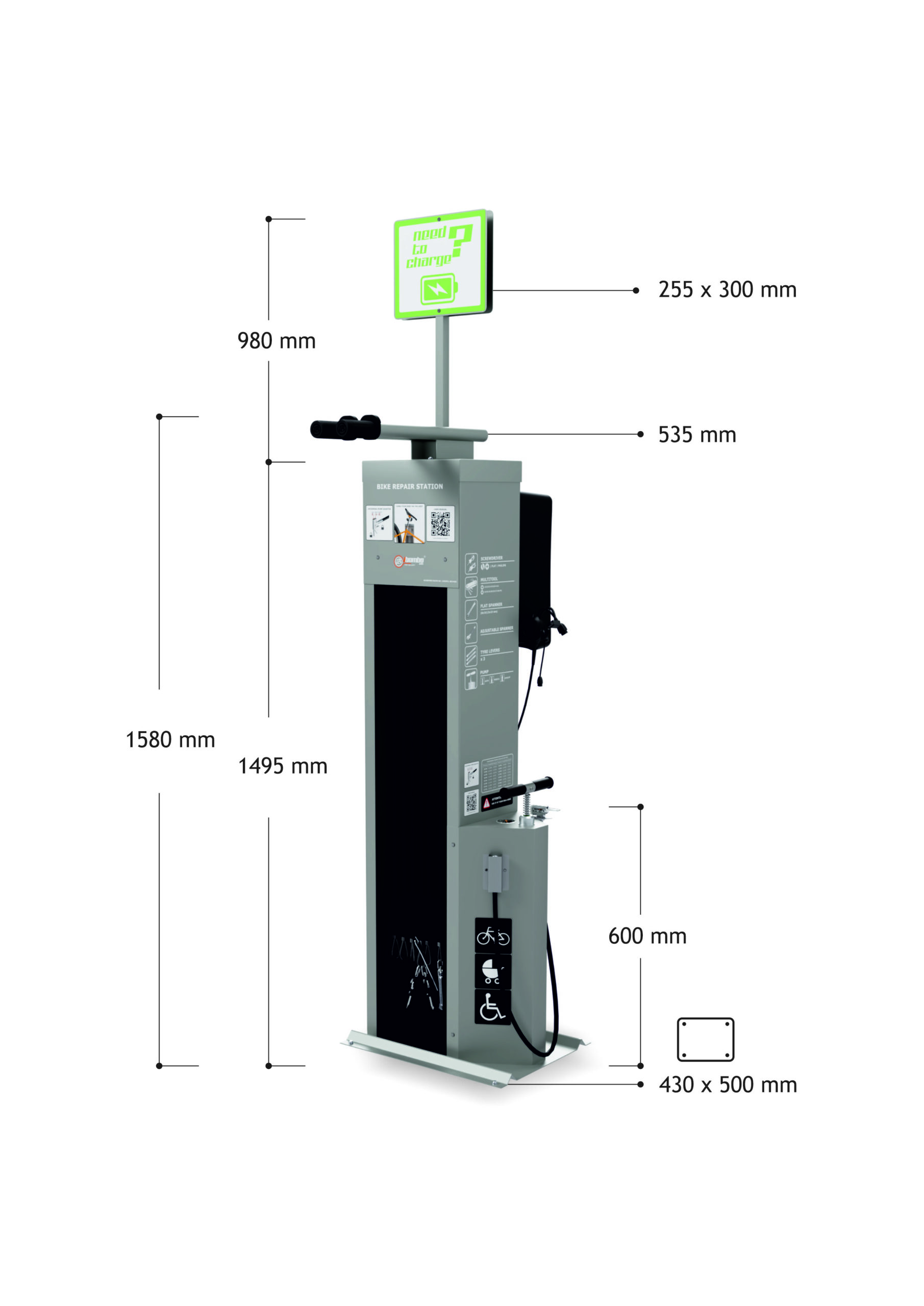

Dimensions:
156/226 x 51/61 x 46 cmWeight:
75-100 kgCharger:
up to 4 different plugs for direct chargingAdditional charging point:
1 x 230V Schuko socketAdvertising area:
up to 7000 cm2Materials:
galvanized | stainless steel AISI 304-
Housing made of galvanized or stainless steel (AISI 304)
Galvanized sheet metal
Stainless steel sheet AISI 304
- Powder coating

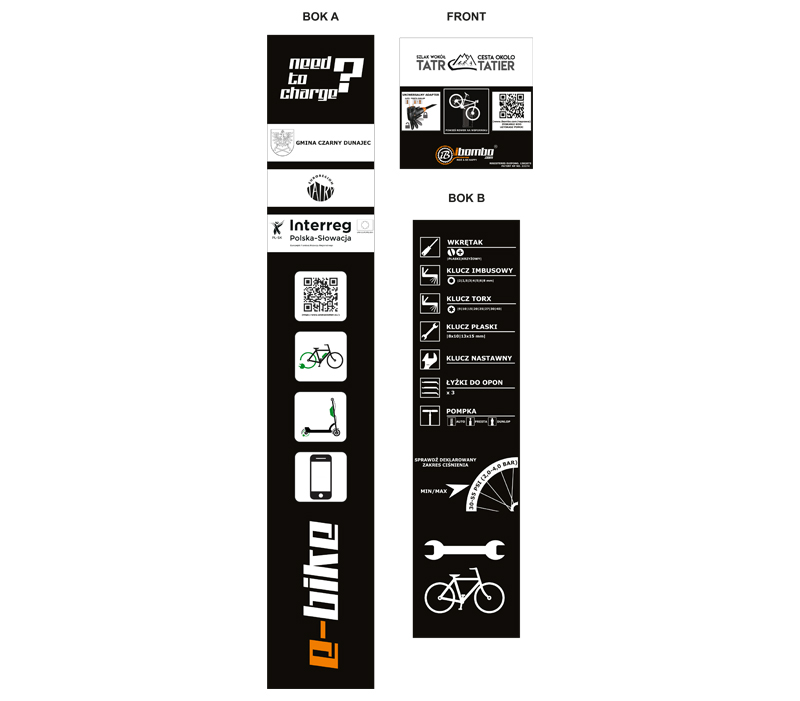

- Up to 7000 cm2 of advertising area
-
QR CODE leading to repair manuals
QR CODE leading to repair manuals
-

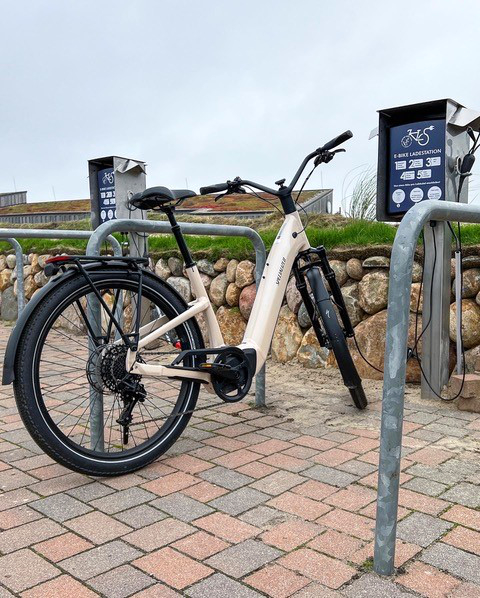

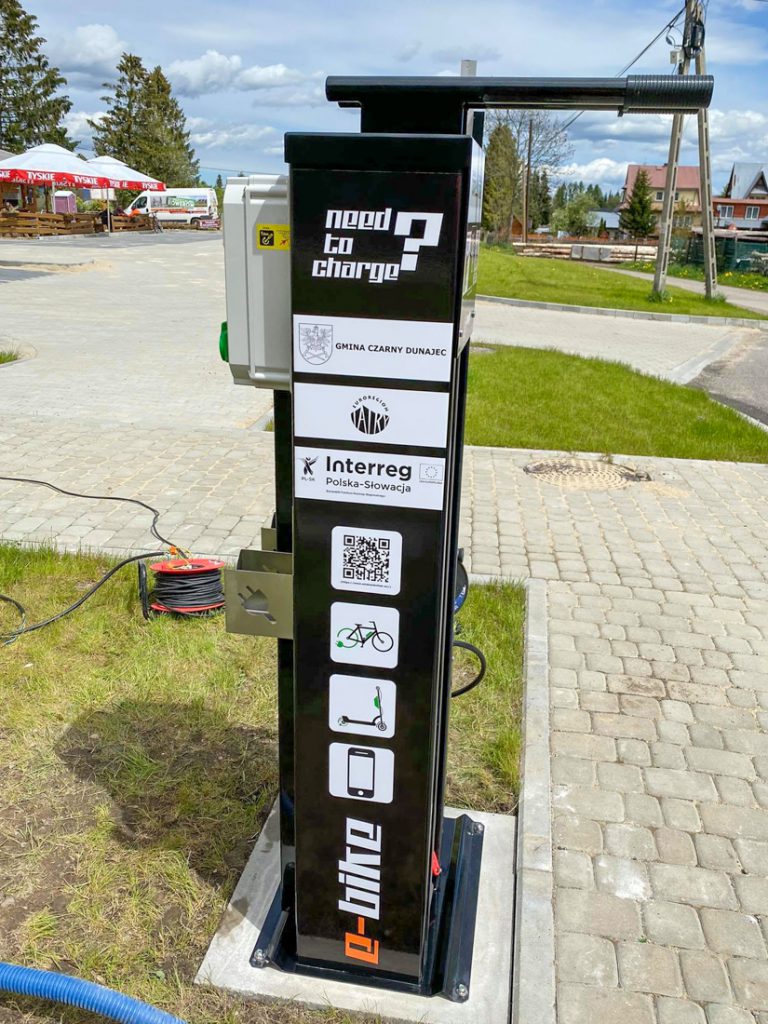

E-BIKE charging module
E-BIKE charging module
- 1x additional 230V Schuko socket
-

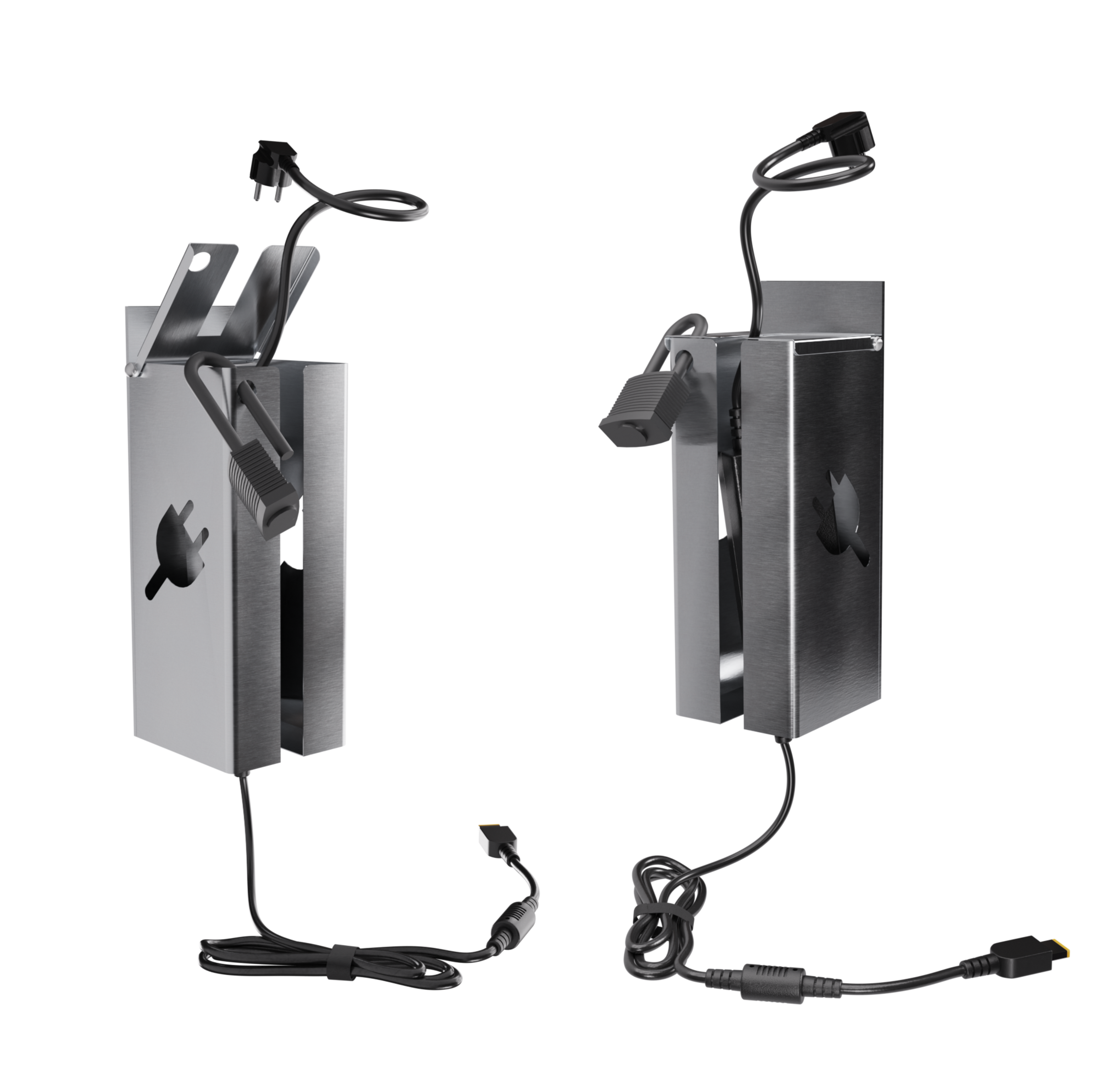

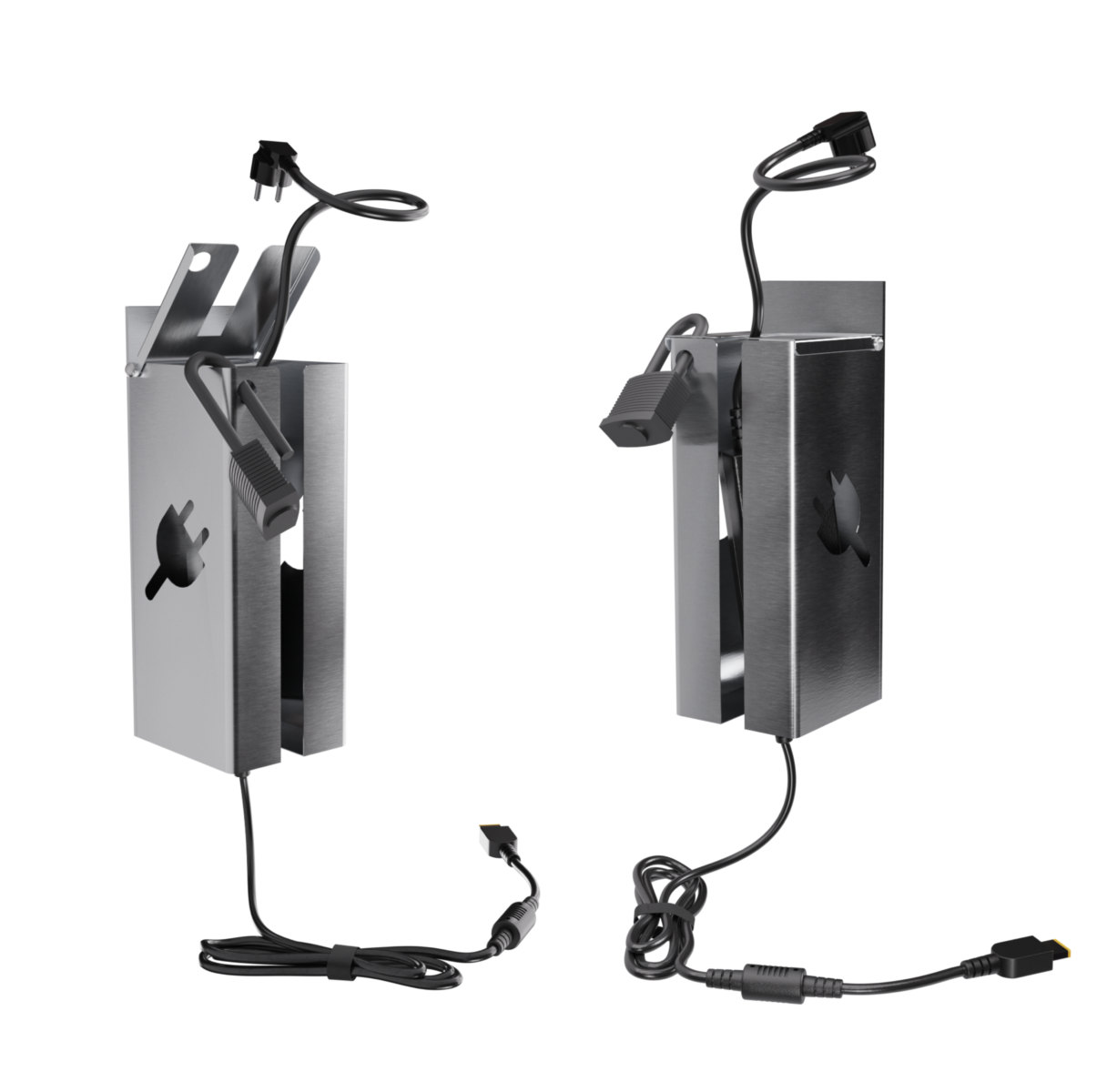

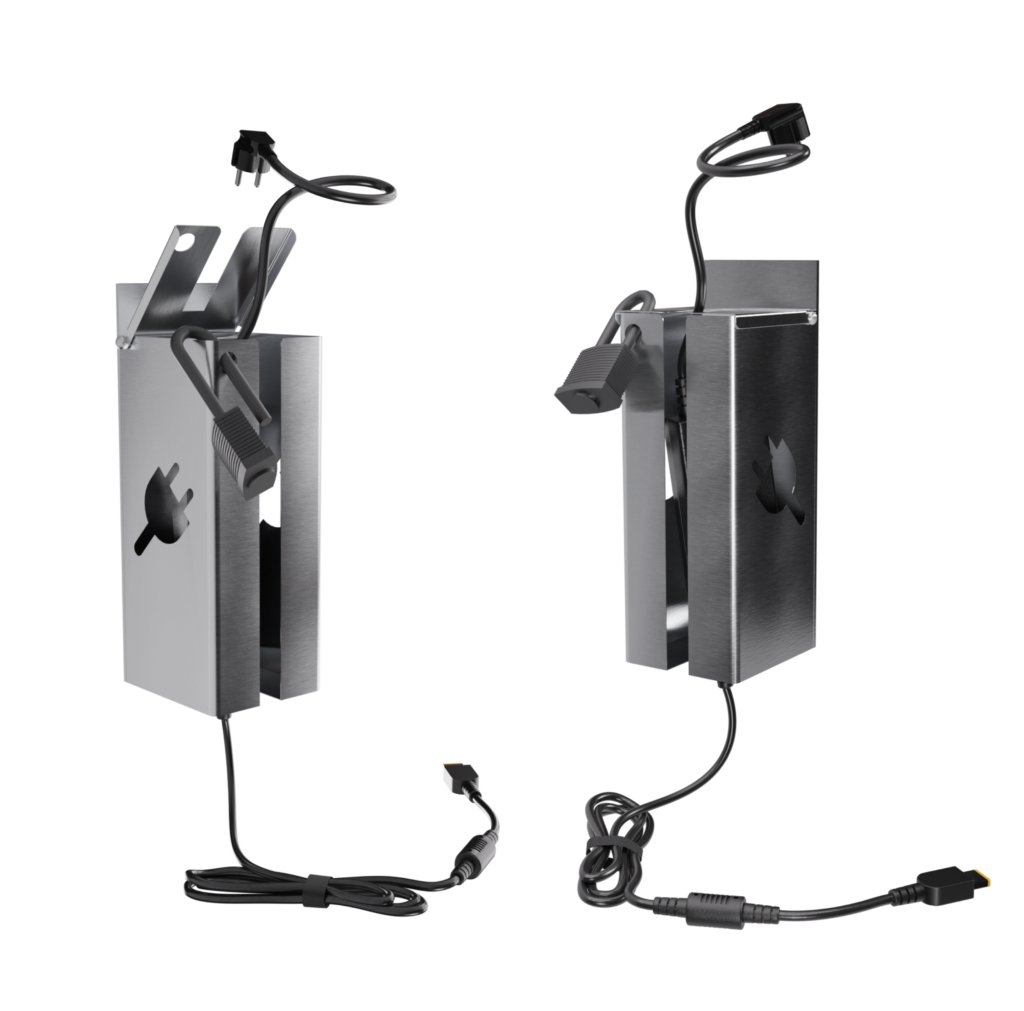

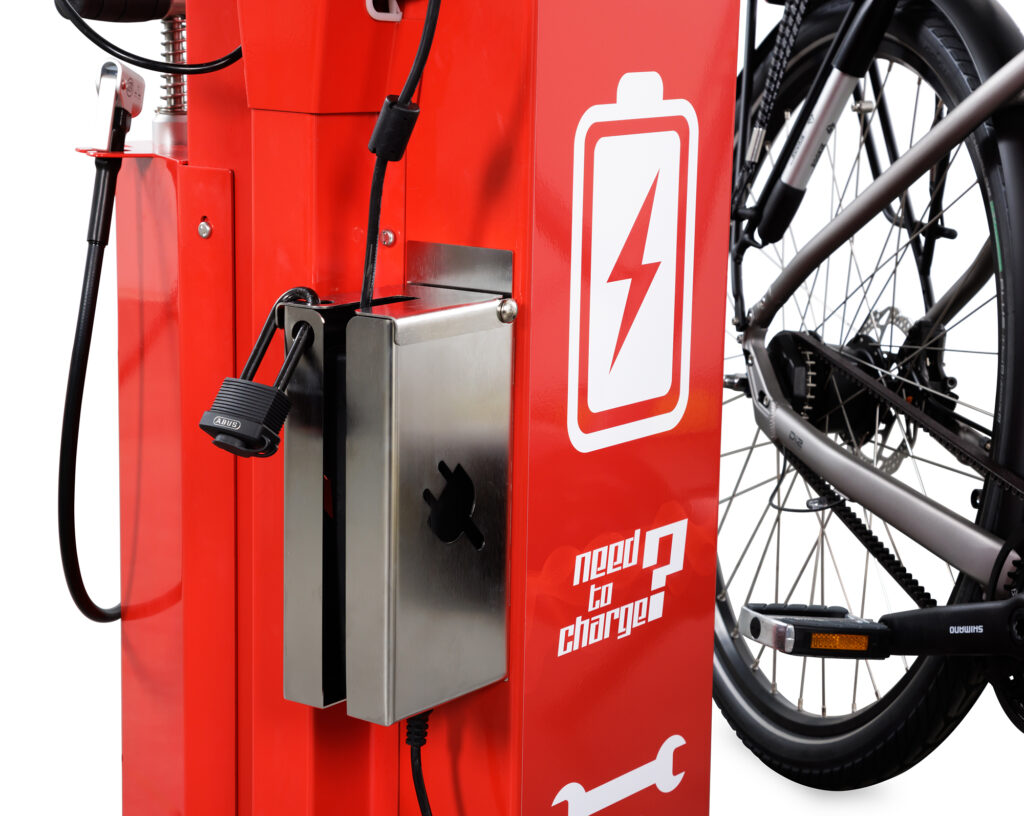

1 x holder for your own charger
1 x holder for your own charger
-

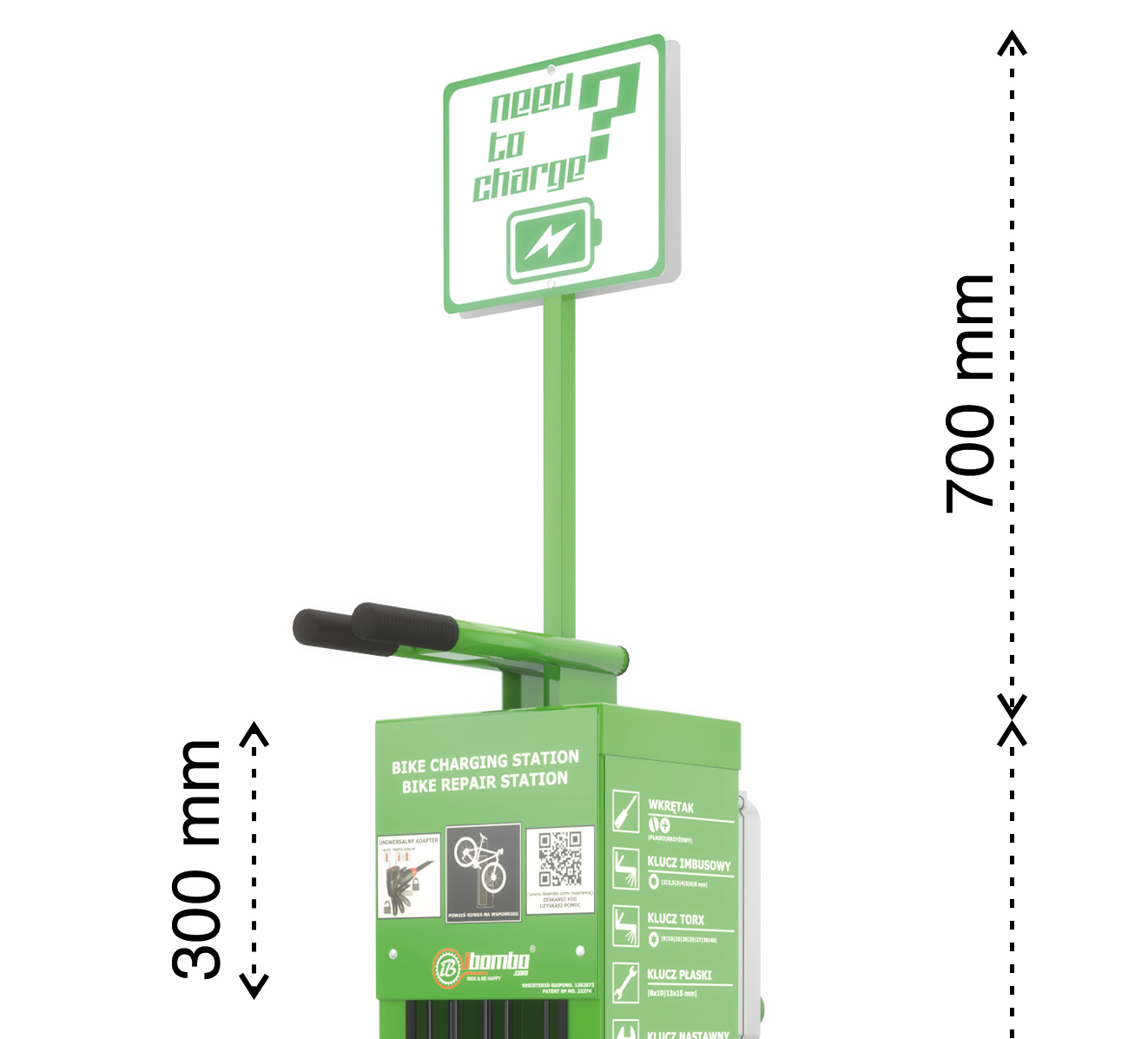

1 x stand with an E-BIKE info sign
1 x stand with an E-BIKE info sign
-

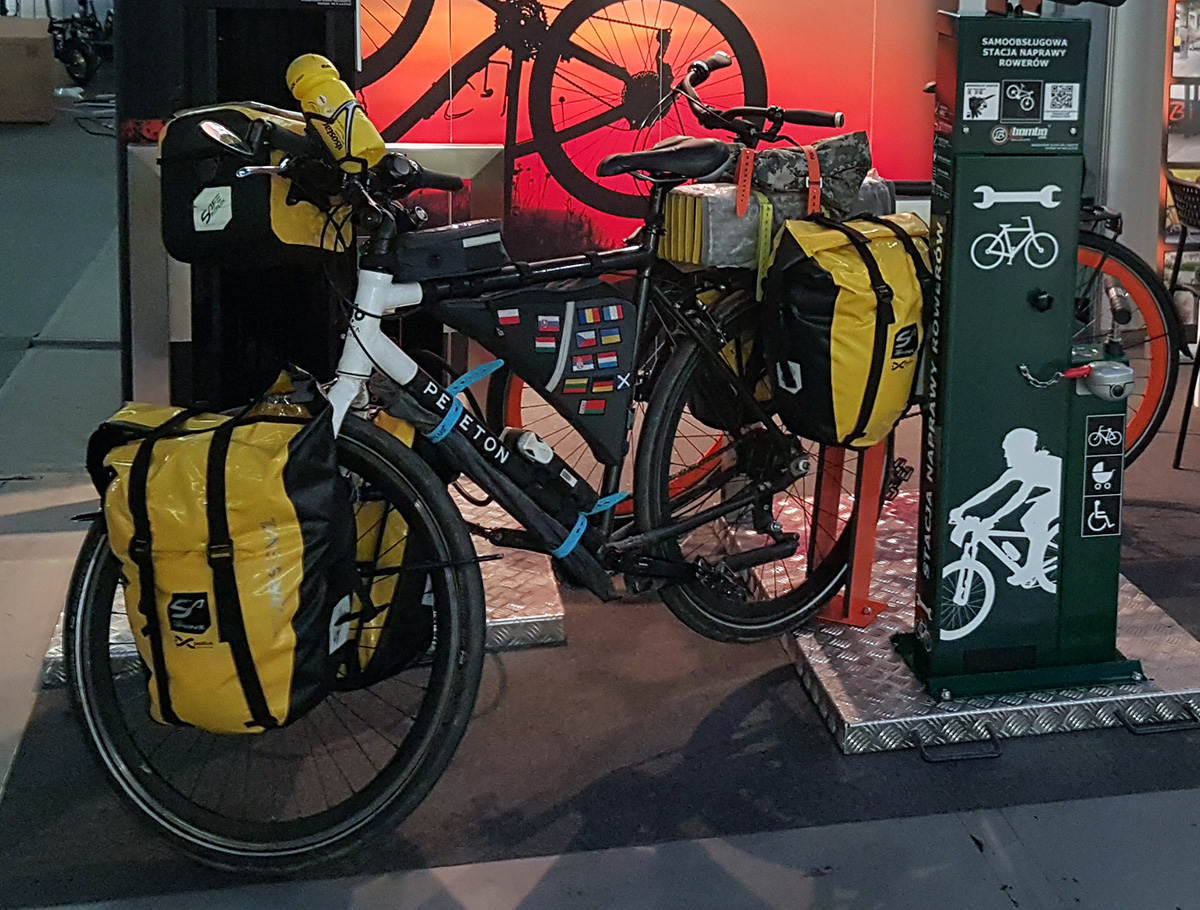

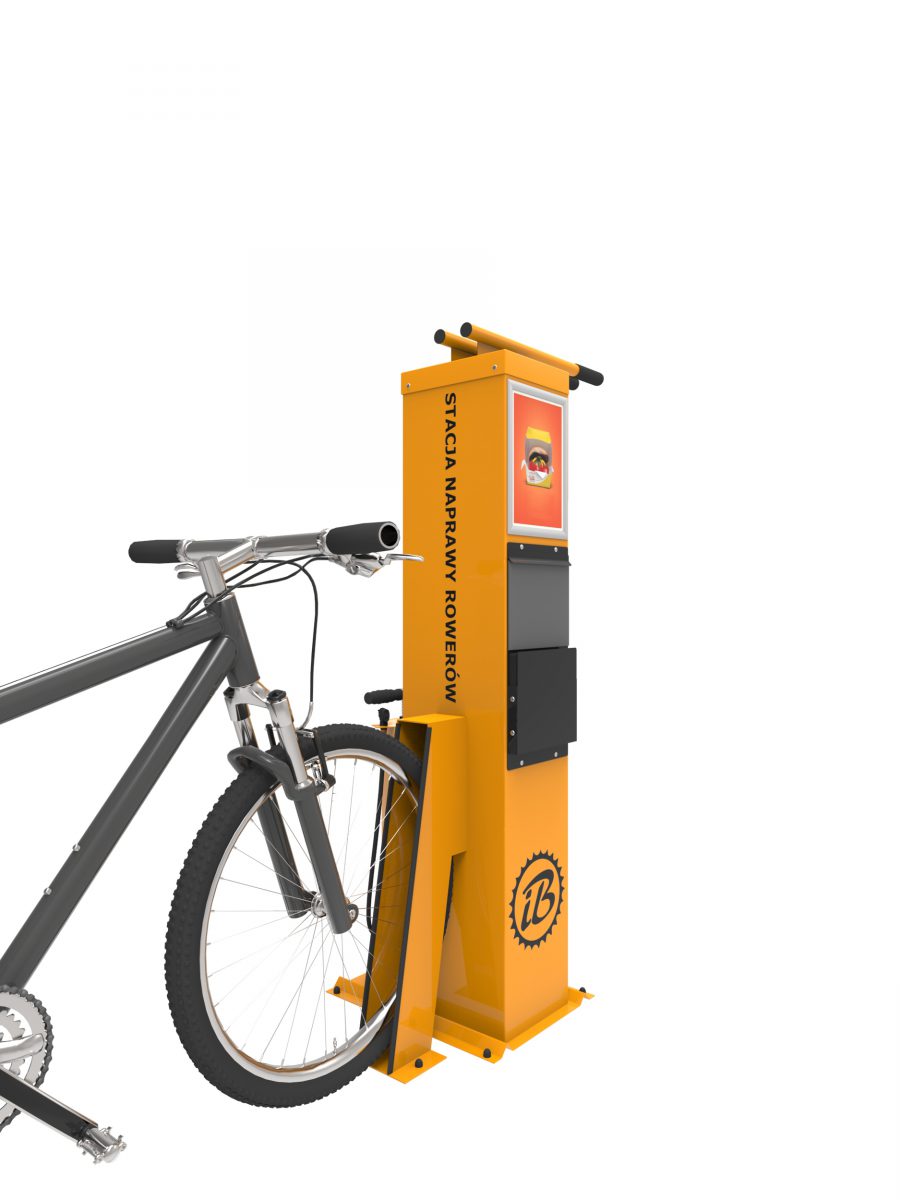

Big Side-or-back bike stand – powder coated
Big Side-or-back bike stand – powder coated
Big Side-or-back bike stand – powder coated
Big Side-or-back bike stand – powder coated
-
Small Side-or-back bike stand- polished stainless steel AISI 304 + electropolished
Small Side-or-back bike stand- polished stainless steel AISI 304 + electropolished
-

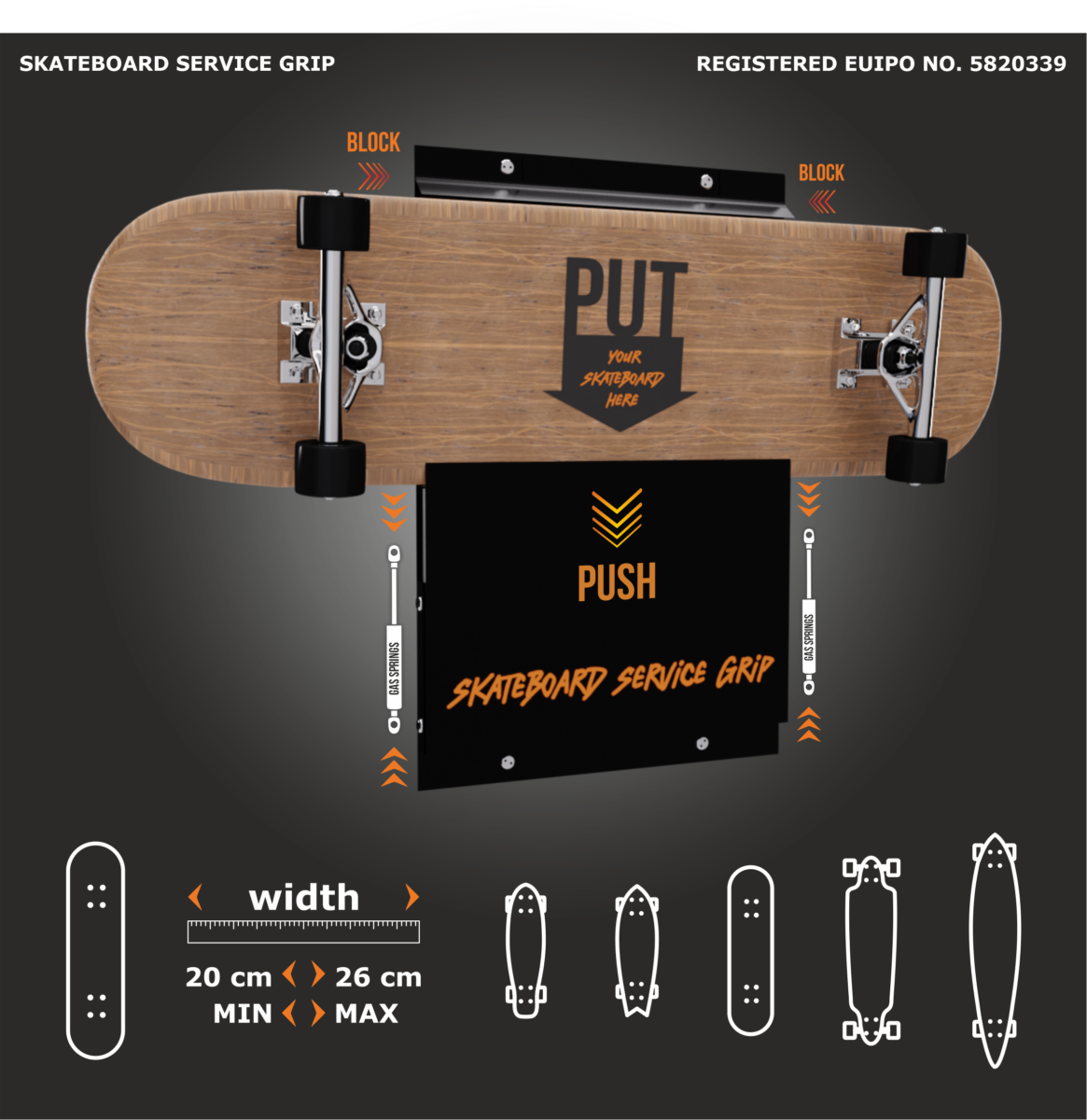

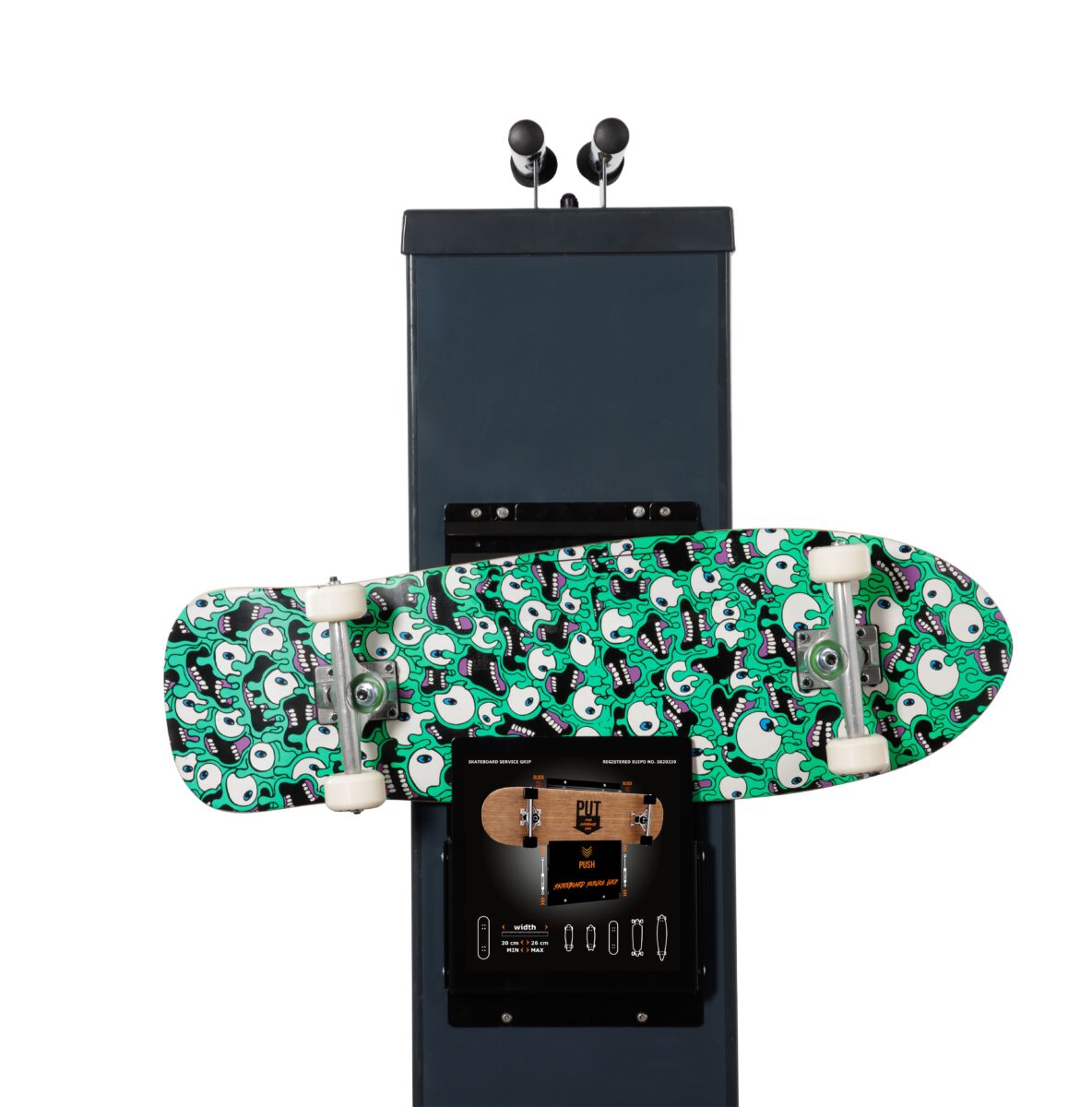

Pneumatic skateboard mount - stainless steel + Skateboard Tool - AISI 420 stainless steel + nickel plated
Pneumatic skateboard mount - stainless steel + Skateboard Tool - AISI 420 stainless steel + nickel plated
Pneumatic skateboard mount - stainless steel + Skateboard Tool - AISI 420 stainless steel + nickel plated
Pneumatic skateboard mount - stainless steel + Skateboard Tool - AISI 420 stainless steel + nickel plated
Pneumatic skateboard mount - stainless steel + Skateboard Tool - AISI 420 stainless steel + nickel plated
-
Aluminium waterproof frames (exchangeable A4 content)
Aluminium waterproof frames (exchangeable A4 content)
Aluminium waterproof frames (exchangeable A4 content)
-
Anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
Anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
-
Tools on stainless steel wire Ø 4 mm AISI 316 in rubber coating Ø 11
Tools on stainless steel wire Ø 4 mm AISI 316 in rubber coating Ø 11
-
Phillips screwdriver PH2 with integrated swivel-stainless steel AISI 304/420
Phillips screwdriver PH2 with integrated swivel-stainless steel AISI 304/420
Phillips screwdriver PH2 with integrated swivel-stainless steel AISI 304/420
-
Flat screwdriver 5.5 mm with integrated swivel- stainless steel AISI 304/420
Flat screwdriver 5.5 mm with integrated swivel- stainless steel AISI 304/420
Flat screwdriver 5.5 mm with integrated swivel- stainless steel AISI 304/420
-

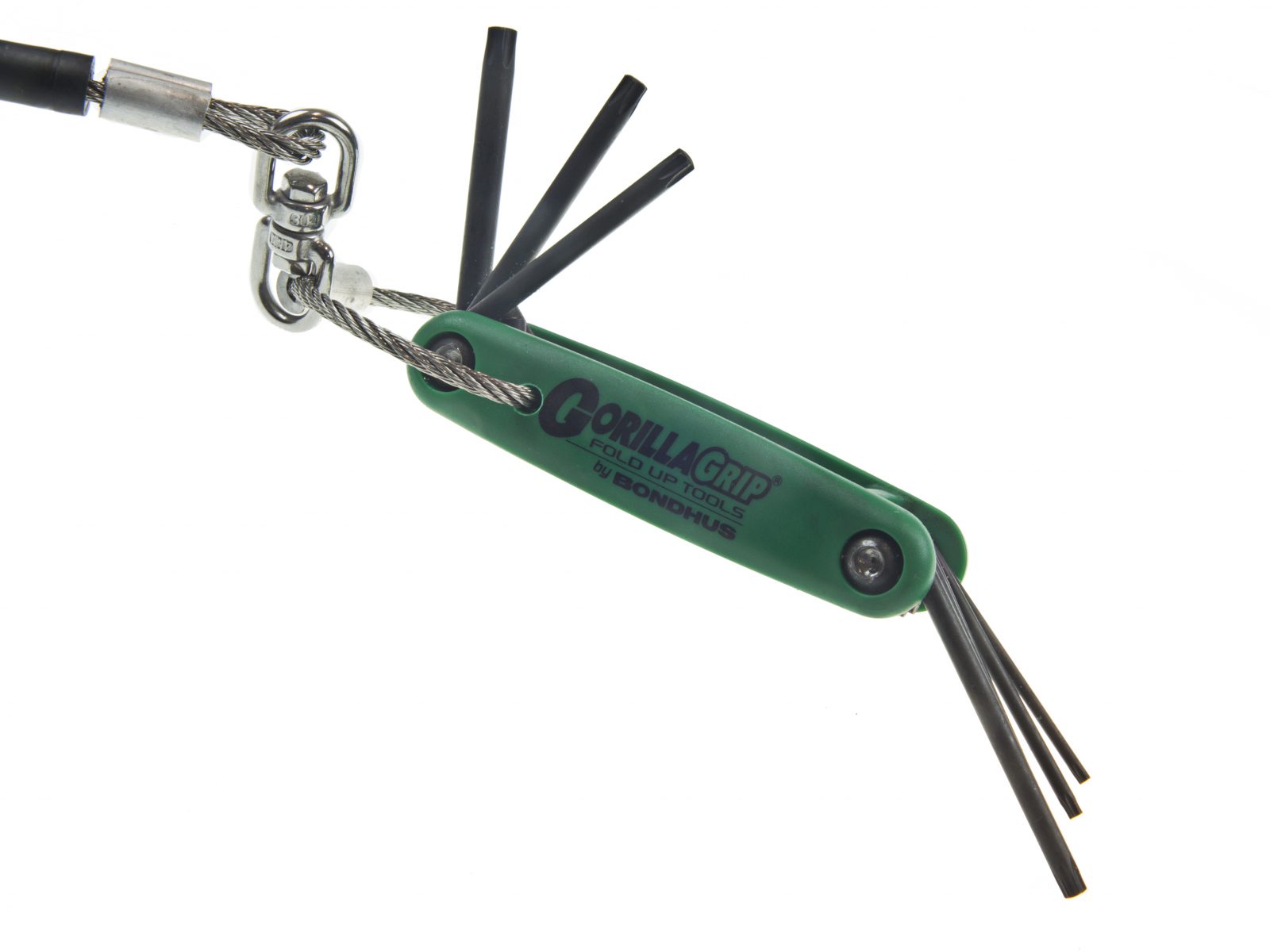

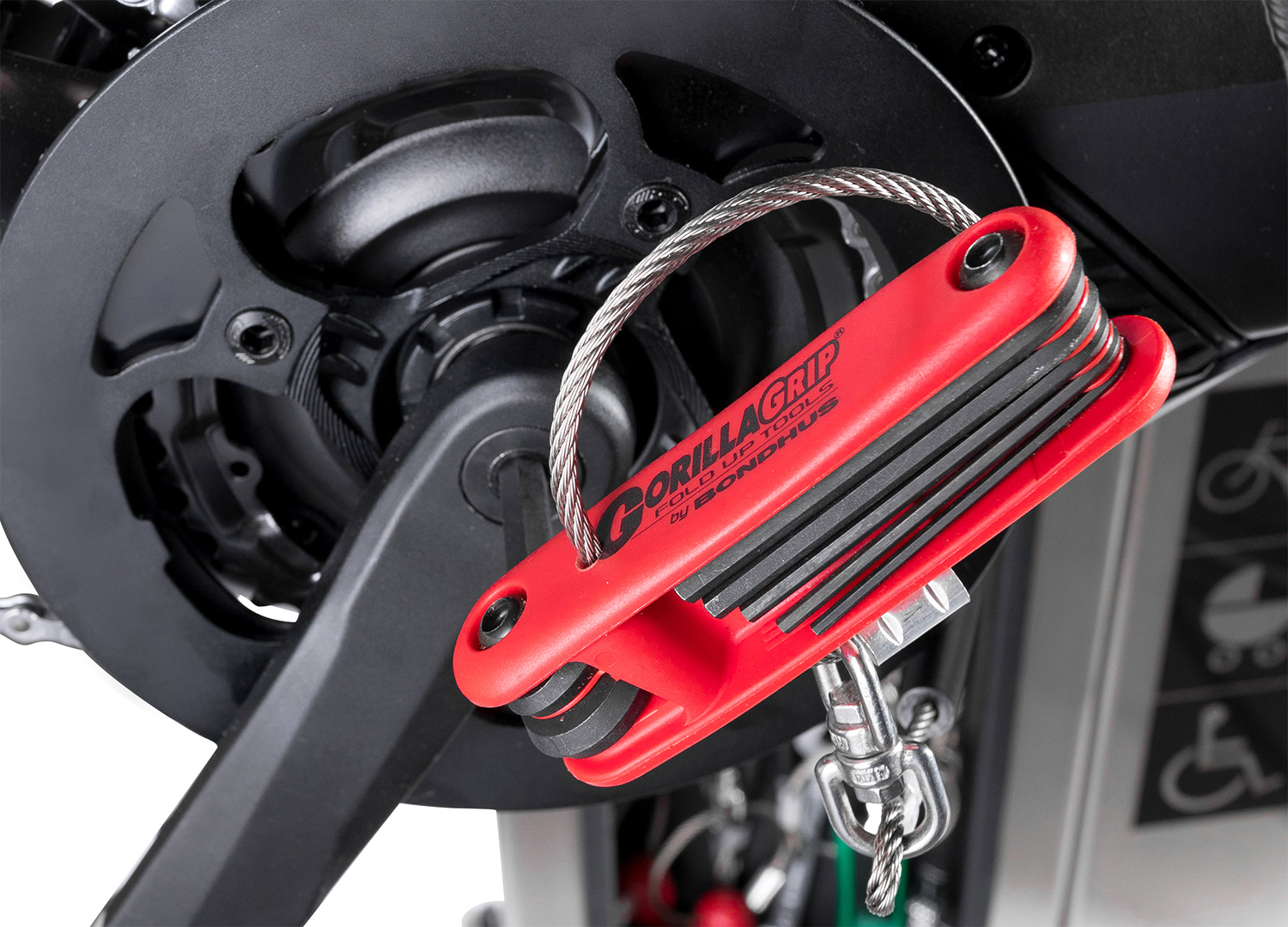

TORX/HEX multitool with integrated swivel – AISI 304/316/420 stainless steel + nickel-plated TORX |9|10|15|20|25|27|30|40| HEX |2|2.5|3|4|5|6|8|"
TORX/HEX multitool with integrated swivel – AISI 304/316/420 stainless steel + nickel-plated TORX |9|10|15|20|25|27|30|40| HEX |2|2.5|3|4|5|6|8|"
TORX/HEX multitool with integrated swivel – AISI 304/316/420 stainless steel + nickel-plated TORX |9|10|15|20|25|27|30|40| HEX |2|2.5|3|4|5|6|8|"
-

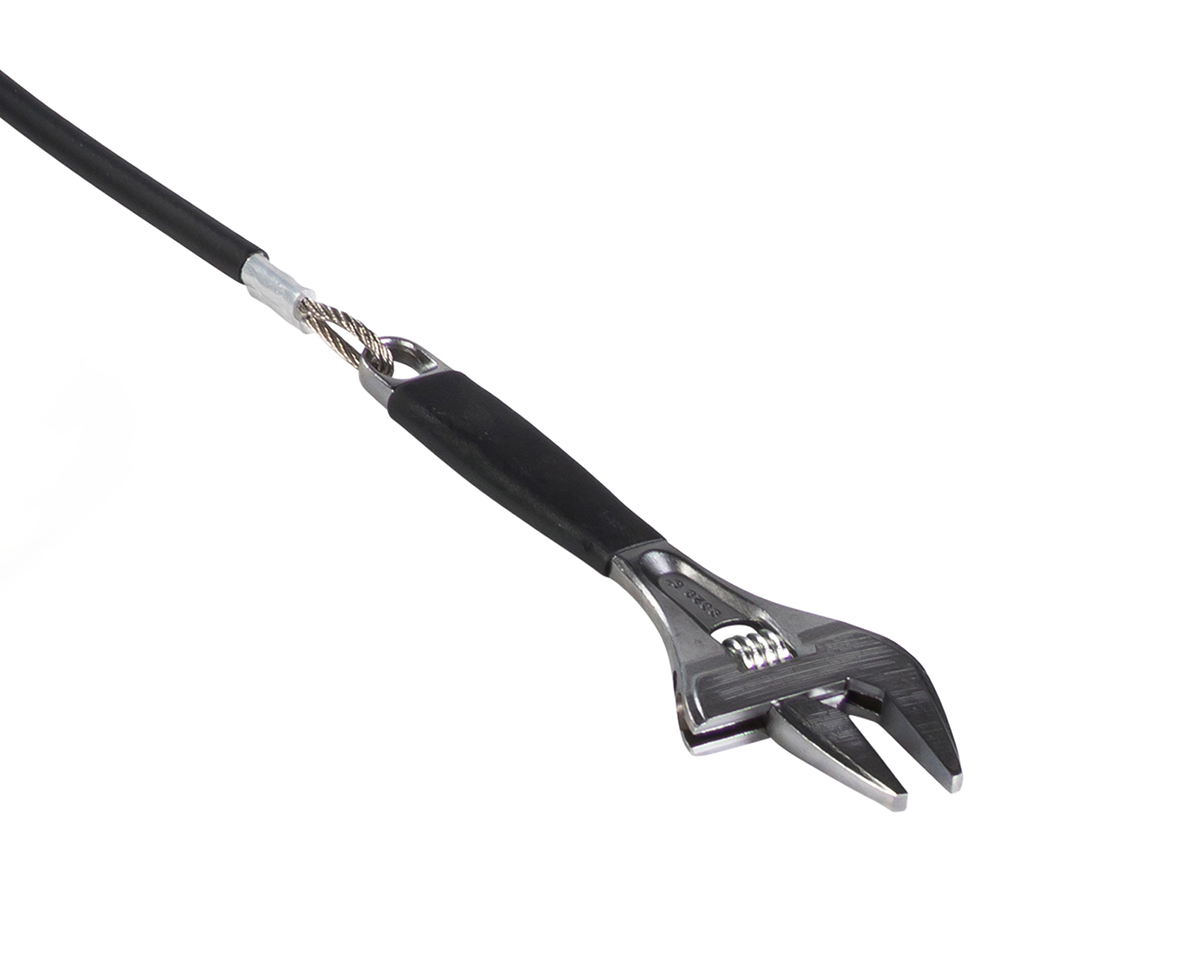

Adjustable spanner 0-36 mm - AISI 420 stainless steel + nickel plated
Adjustable spanner 0-36 mm - AISI 420 stainless steel + nickel plated
Adjustable spanner 0-36 mm - AISI 420 stainless steel + nickel plated
-
Flat spanners 8x10 mm and 13x15 mm- AISI 420 stainless steel, nickel-plated

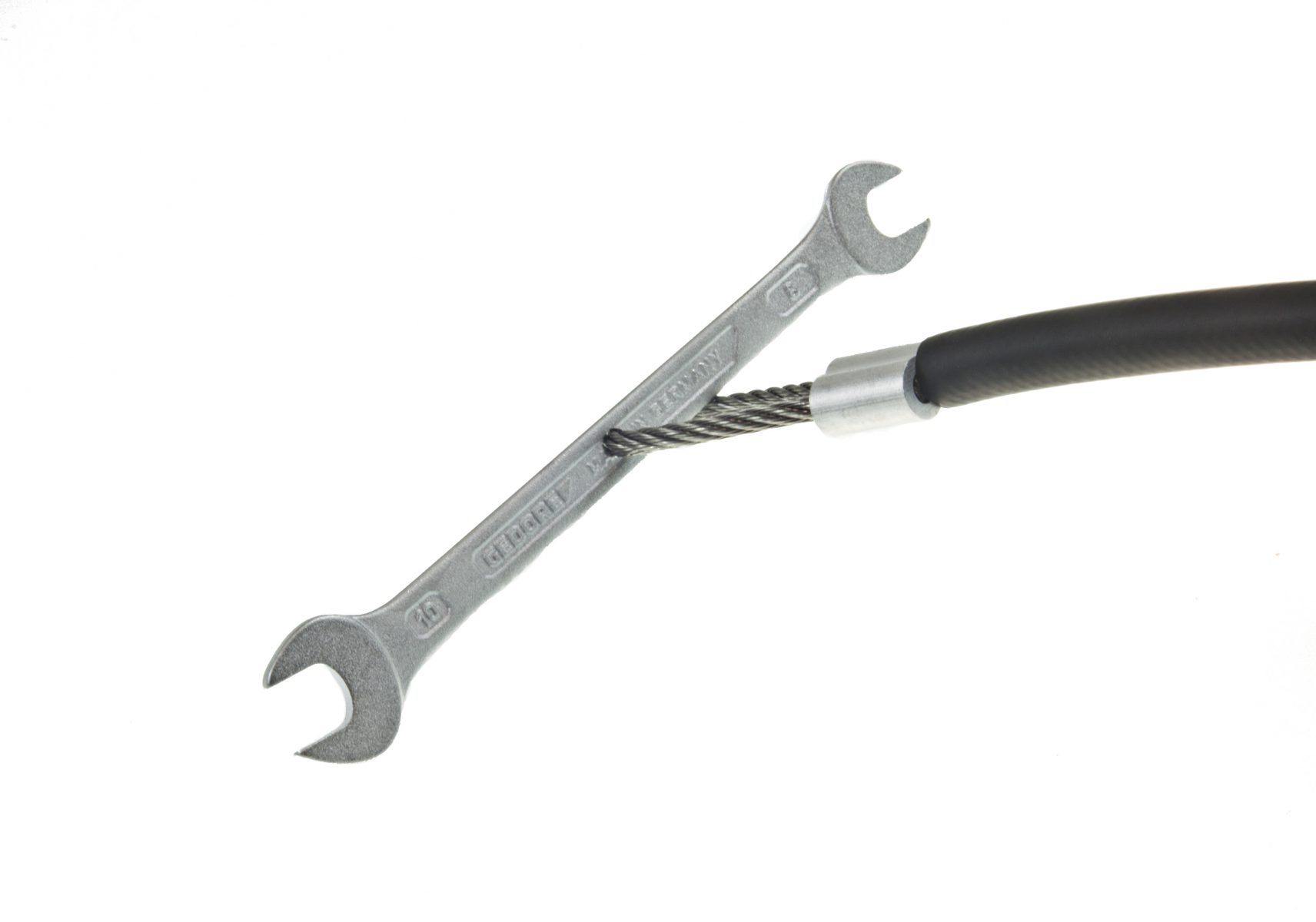

Flat spanner 8x10- AISI 420 stainless steel, nickel-plated

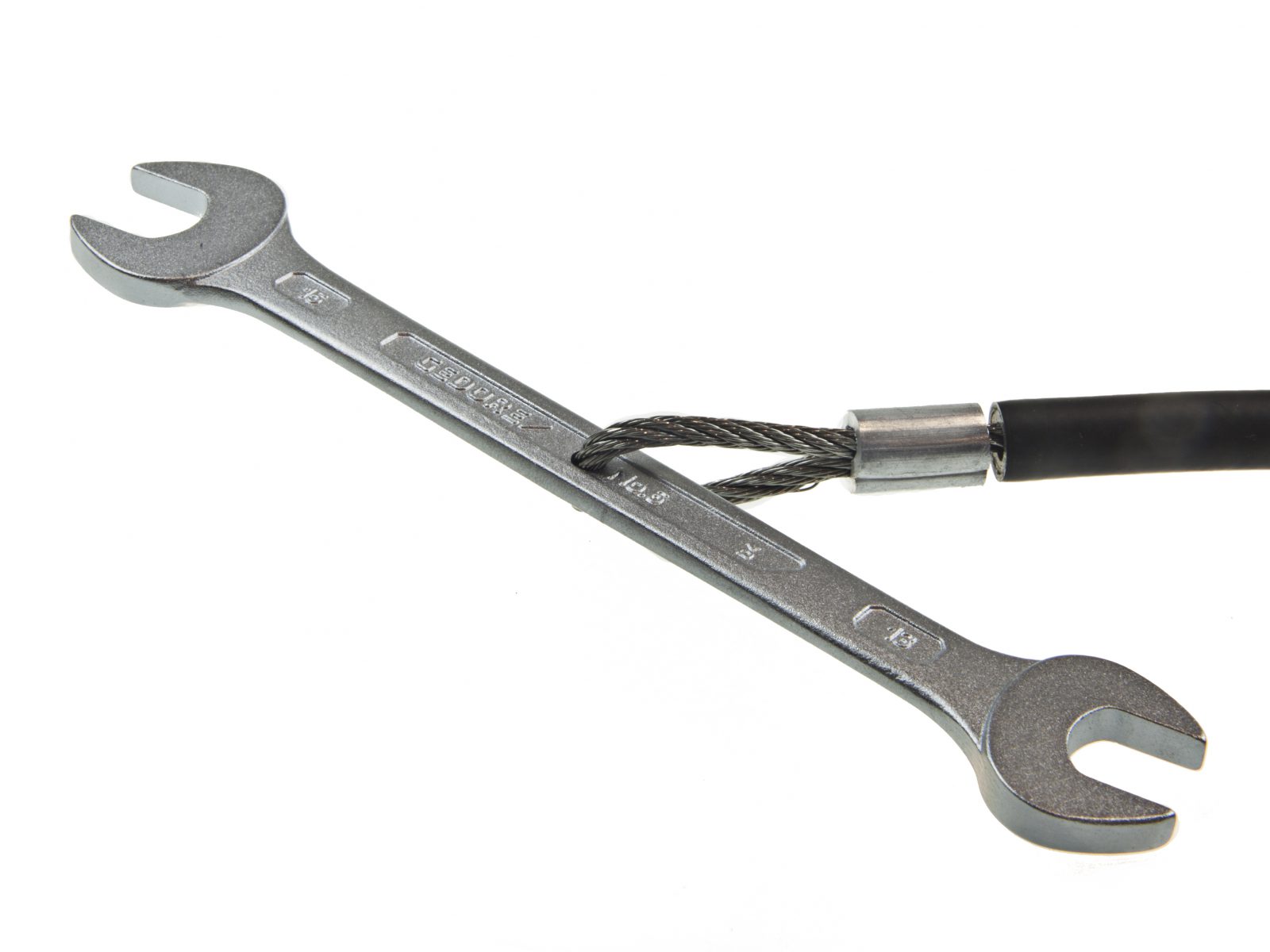

Flat spanner 13x15 mm- AISI 420 stainless steel, nickel-plated
-

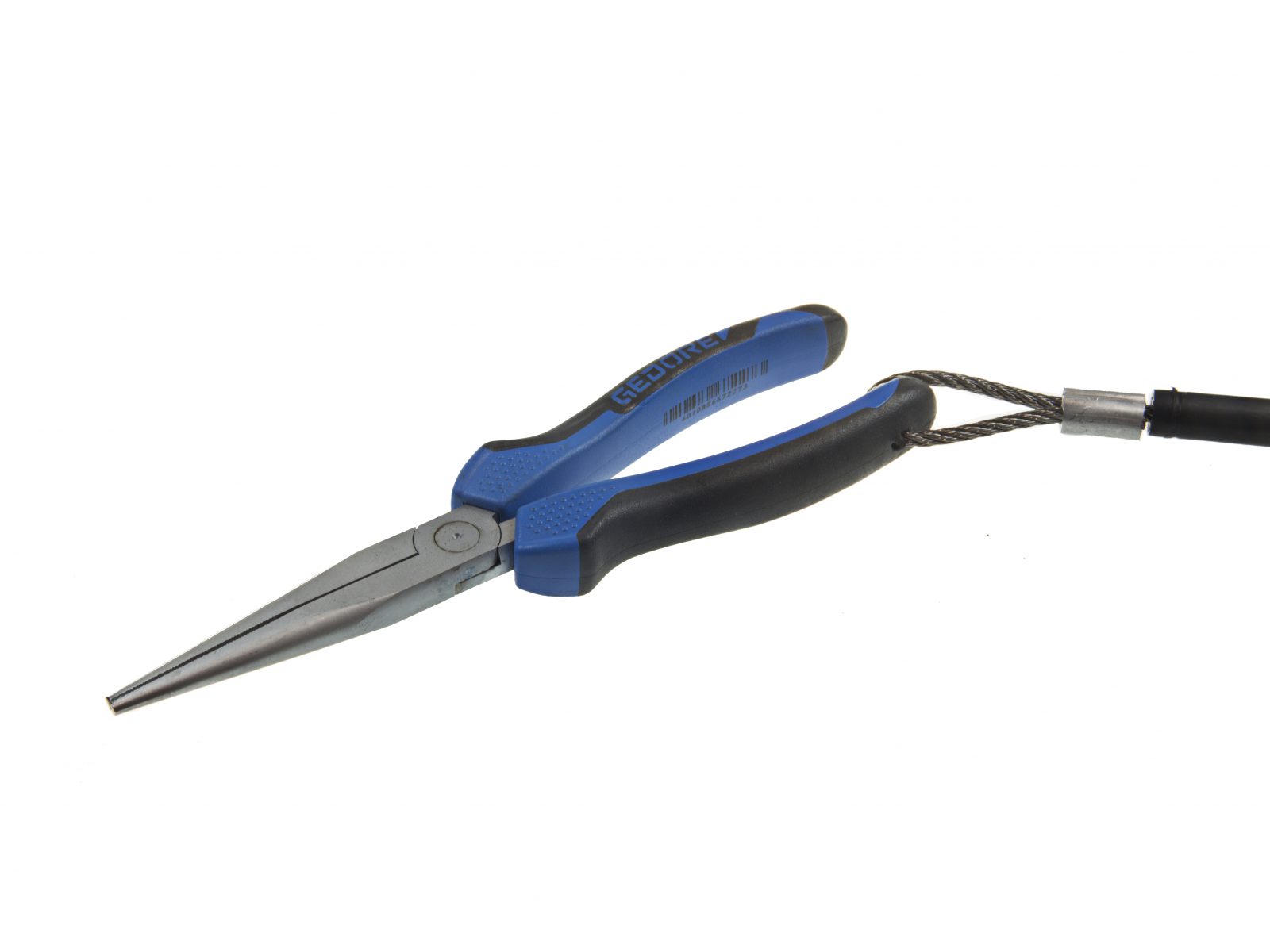

Flat pliers
Flat pliers
-

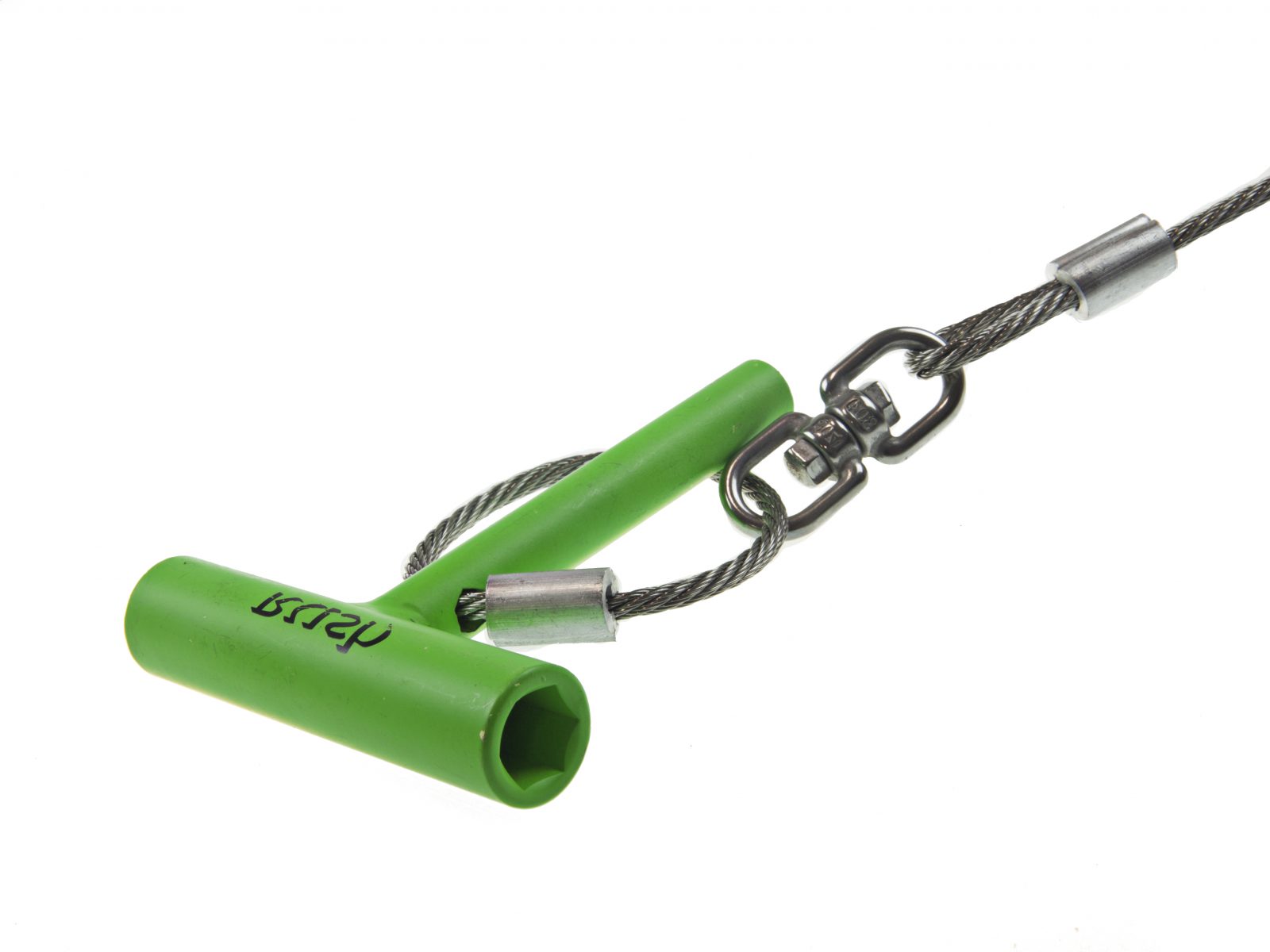

Skateboard socket wrench - AISI 420 stainless steel + nickel plated
Skateboard socket wrench - AISI 420 stainless steel + nickel plated
Skateboard socket wrench - AISI 420 stainless steel + nickel plated
-

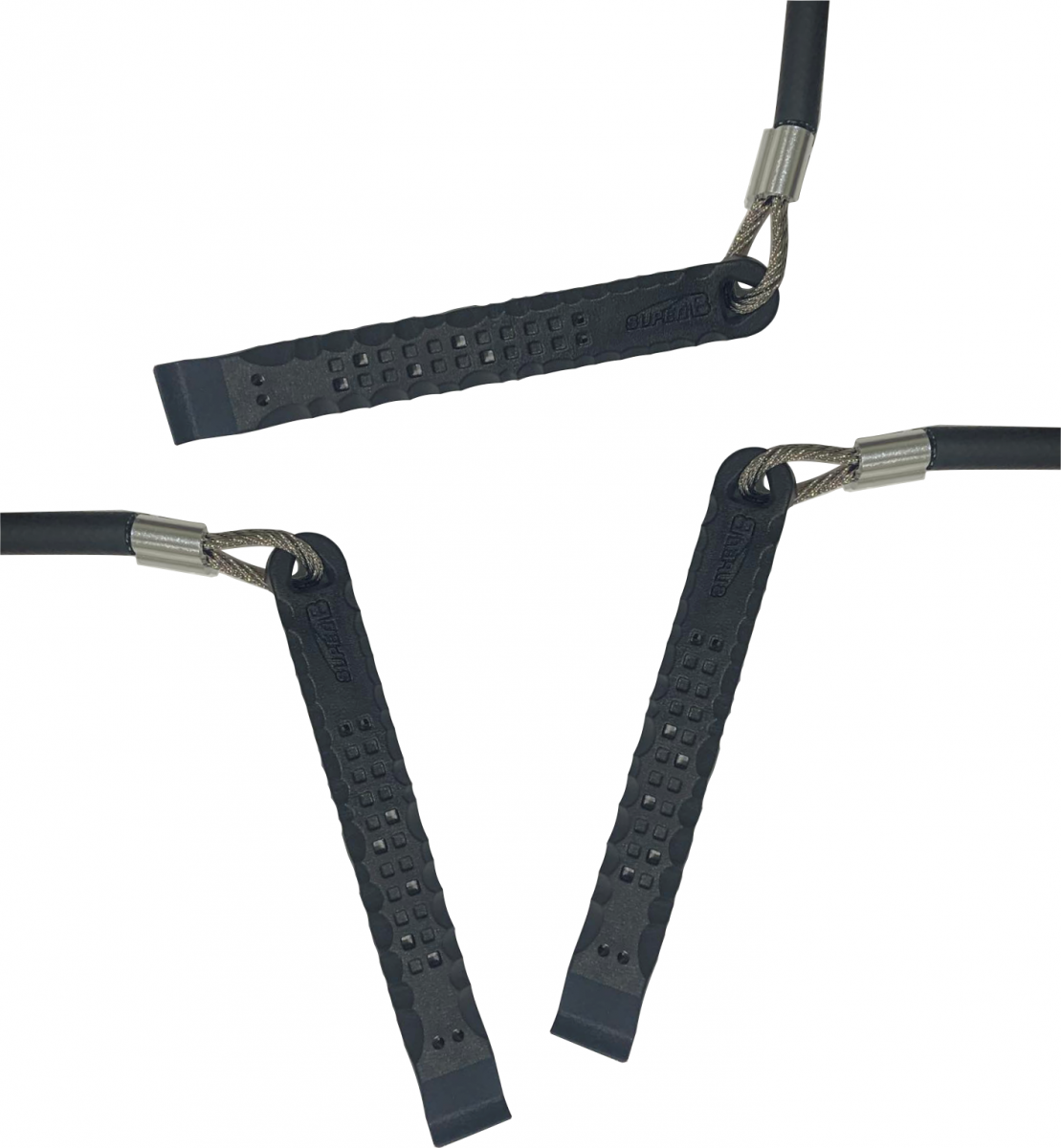

3 x tire levers with AISI 420 stainless steel core – nylon-coated to protect rims
3 x tire levers with AISI 420 stainless steel core – nylon-coated to protect rims
-

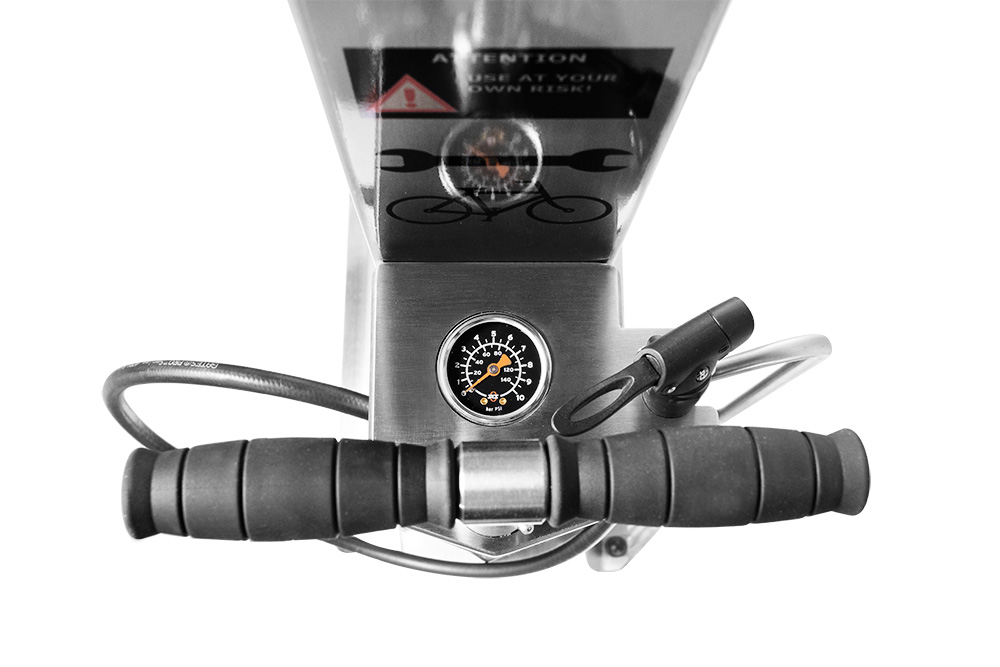

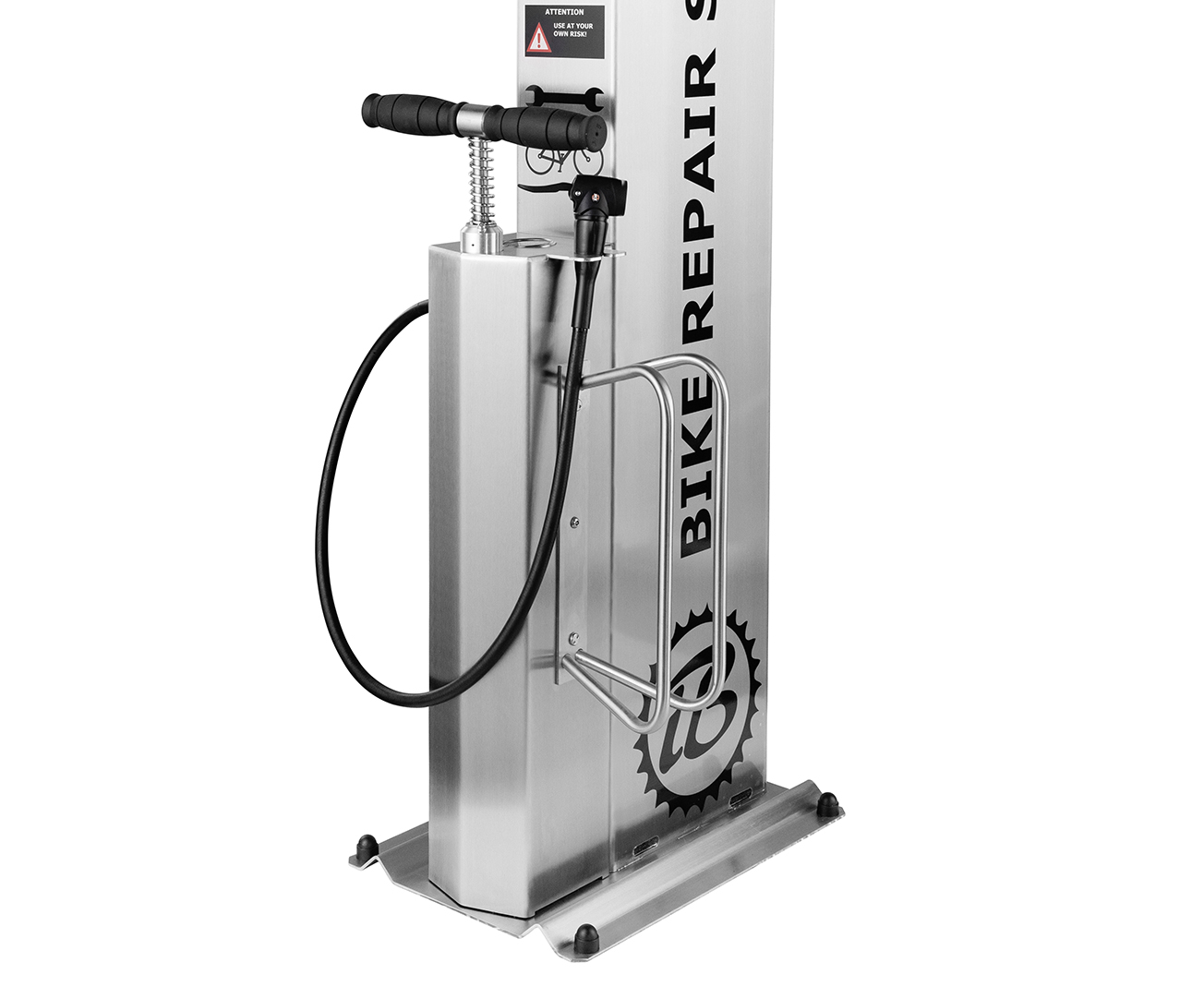

Stationary hand pump with piston (Ø14) and handle (Ø32) made of stainless steel (AISI 304) – pressure range 0–10 BAR + glycerin-filled (Antifog) pressure gauge + anodized aluminum (PA6) sealing-lubricating flange
Stationary hand pump with piston (Ø14) and handle (Ø32) made of stainless steel (AISI 304) – pressure range 0–10 BAR + glycerin-filled (Antifog) pressure gauge + anodized aluminum (PA6) sealing-lubricating flange
Stationary hand pump with piston (Ø14) and handle (Ø32) made of stainless steel (AISI 304) – pressure range 0–10 BAR + glycerin-filled (Antifog) pressure gauge + anodized aluminum (PA6) sealing-lubricating flange
-

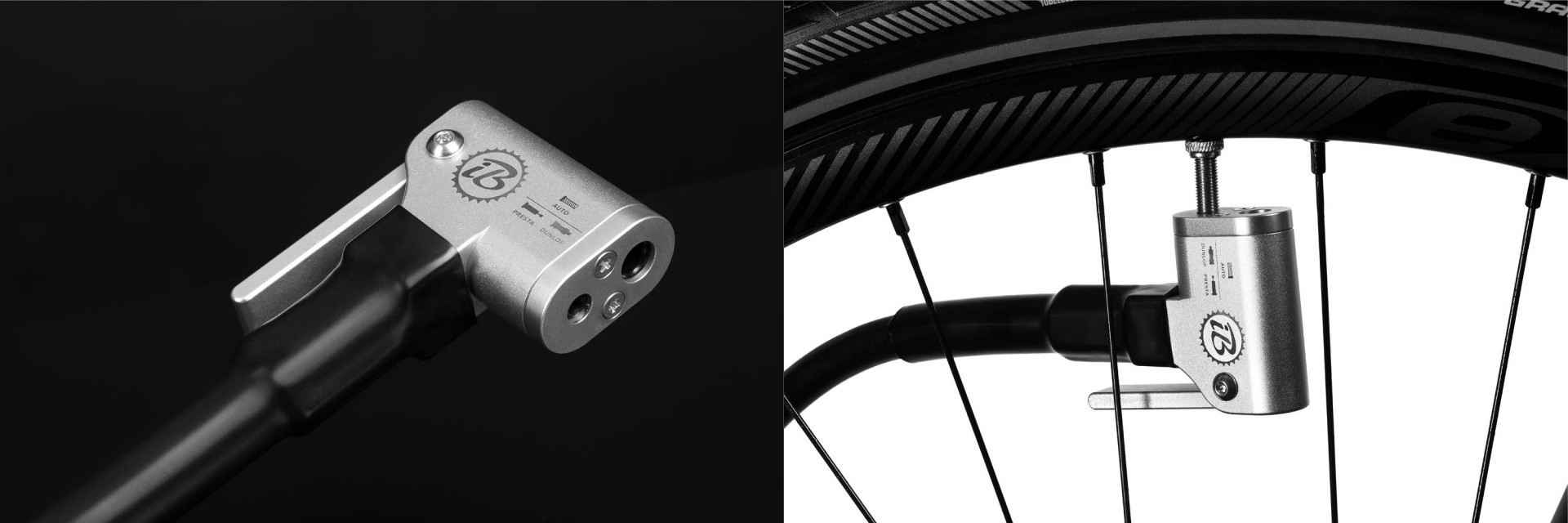

Dual-chamber pump adapter – stainless steel AISI 630 + nickel-plated – compatible with all types of bicycle valves (Presta, Schrader, and Dunlop) with industrial-grade AISI 304 components (IBOMBO AISIPRO 630 HEAD™
Dual-chamber pump adapter – stainless steel AISI 630 + nickel-plated – compatible with all types of bicycle valves (Presta, Schrader, and Dunlop) with industrial-grade AISI 304 components (IBOMBO AISIPRO 630 HEAD™
Dual-chamber pump adapter – stainless steel AISI 630 + nickel-plated – compatible with all types of bicycle valves (Presta, Schrader, and Dunlop) with industrial-grade AISI 304 components (IBOMBO AISIPRO 630 HEAD™
-
Spoke ring wrench - AISI 420 stainless steel
Spoke ring wrench - AISI 420 stainless steel
Spoke ring wrench - AISI 420 stainless steel
-
Chain wear gauge - AISI 316 stainless steel + nickel plated
Chain wear gauge - AISI 316 stainless steel + nickel plated
Screw size gauge – stainless steel AISI 316 + nickel-plated
Presta valve removal wrench – stainless steel AISI 316 + nickel-plated
Chain link clip – stainless steel AISI 316 + nickel-plated
Measuring gauge – stainless steel AISI 316 + nickel-plated
Pure white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Bright red orange
Traffic red
Telemagenta
Claret violet
Yellow green
Moss green
Light blue
Sky blue
Traffic blue
Ultramarine blue
Sapphire blue
Our products can be powder coated in many colours from the RAL palette – after checking the availability.
Despite all efforts to keep the most accurate colour representation possible, our palette is used for informational purposes only. The best colour representation can be found in samplers.

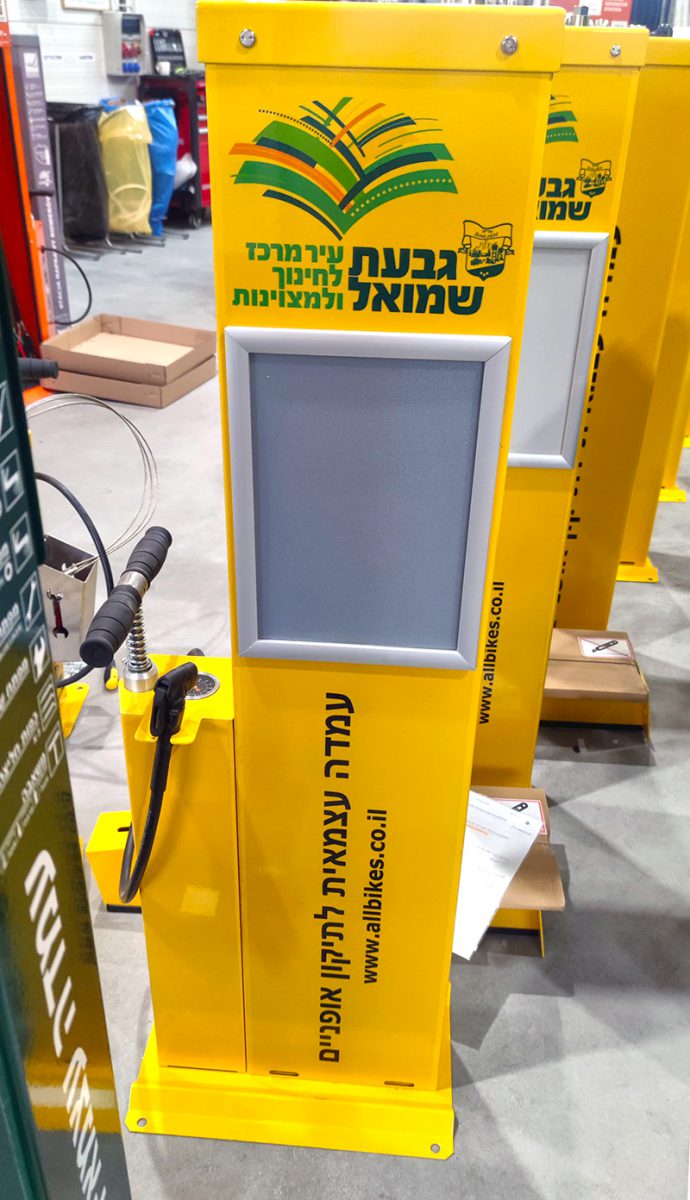

We can place your logo / graphics on our products to take care of your brand image.
See our portfolio
PRODUCT REGISTERED IN EUIPO No. 1447197, 1382873
We have the priority right to register an industrial design at the European Union Intellectual Property Office (EUIPO) in Alicante. We have acquired the exclusive right to use the design throughout the EU.
