IBOMBO PRS-sV1
IBOMBO PRS – SV1 Self-Service Bike Repair Station is adapted for use in public spaces. The advantage of this model is its small size, which allows it to be mounted almost anywhere. The construction of this model does not allow the bike to be hung on the grip.
The housing of the device is made of galvanized or stainless steel (AISI 304) profile with powder or thermoplastic coating. The device is mounted to the ground or wall with the aid of anchors. The tools are attached to the stainless steel ropes coming out of the station column. The station is equipped in a hand pump with an adapter for all valve types. Sheet metal elements of the device are fastened with anti-theft screws – the bits for these screws will be handed over to the customer. The QR CODE placed on the station allows you to use online publications containing instructions on repairing bicycle faults.

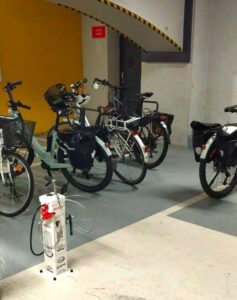

This model of the station can be equipped with a mobile installation ground plate – hot-dip galvanized. This solution allows you to make the station available during opening hours, e.g. in restaurants, bicycle service points, tourist information. You do not need to mount the station permanently to the ground; instead, you can place it in the mobile plate and fasten it to an existing durable element with a steel rope and a padlock.
Dimensions:
71 x 20 x 20 cmWeight:
10-18 kgAdvertising area:
2500 cm2Material:
galvanized | stainless steel (AISI 304)- housing made of galvanized or stainless steel (AISI 304)
-
Big Side-or-back bike stand – powder coated
Big Side-or-back bike stand – powder coated
Big Side-or-back bike stand – powder coated
-
Small Side-or-back bike stand - stainless steel (AISI 304)
Small Side-or-back bike stand - stainless steel (AISI 304)
- powder or thermoplastic coating
- up to 2500 cm2 of advertising area
-
mobile installation ground plate - hot-dip galvanized
mobile installation ground plate - hot-dip galvanized
mobile installation ground plate - hot-dip galvanized
mobile installation ground plate - hot-dip galvanized
mobile installation ground plate - hot-dip galvanized
-
QR CODE with repair manual
QR CODE with repair manual
-
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
-
stainless steel ropes fi 4 mm (AISI 316)
stainless steel ropes fi 4 mm (AISI 316)
-

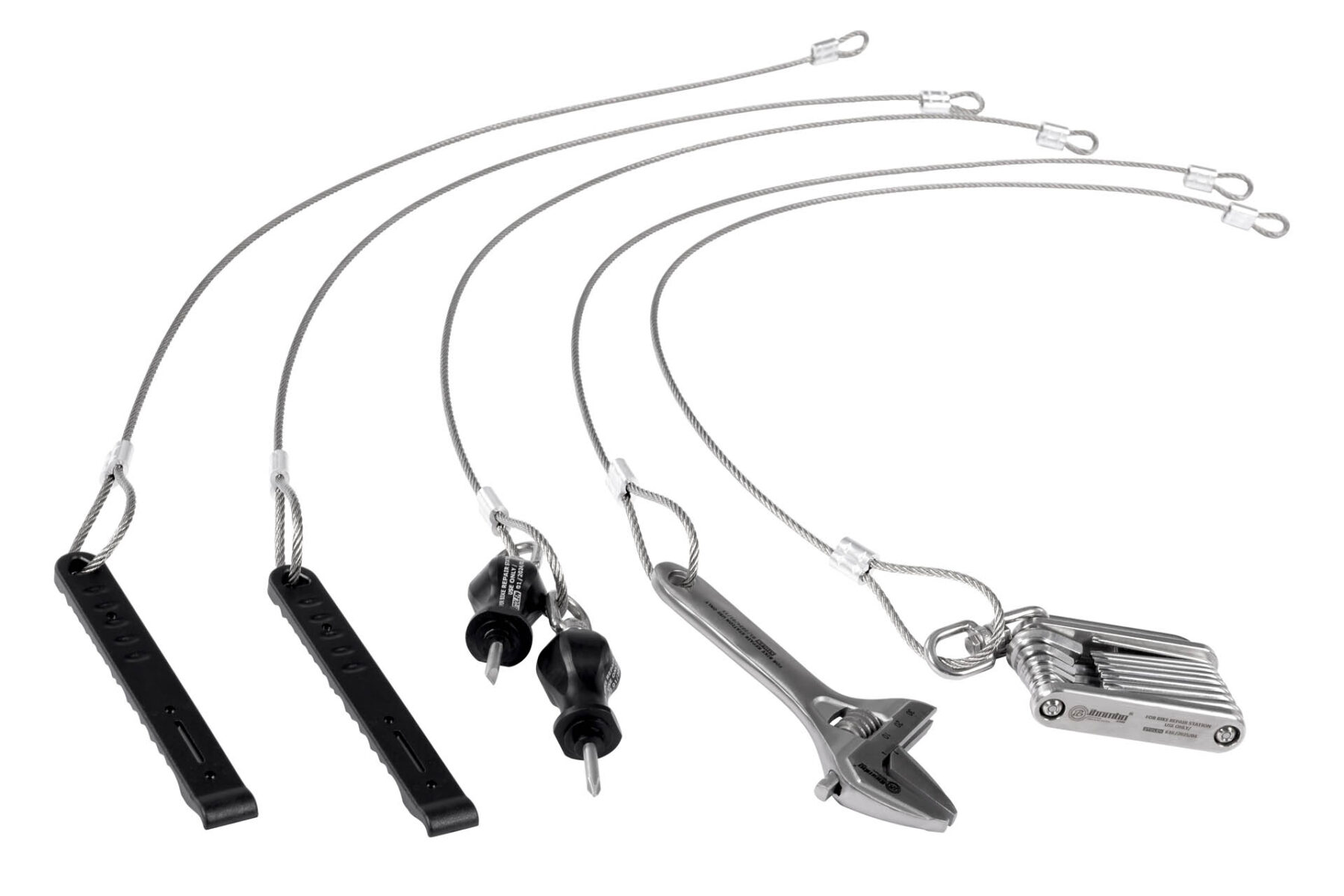

Phillips screwdriver PH2 + swivel fi4 (AISI 304)
Phillips screwdriver PH2 + swivel fi4 (AISI 304)
swivel fi4 (AISI 304)
-
flat screwdriver 5.5 x 1.0 + fi4 swivel (AISI 304)
flat screwdriver 5.5 x 1.0 + fi4 swivel (AISI 304)
fi4 swivel (AISI 304)
-
hex key set | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivel fi4
hex key set | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivel fi4
swivel fi4
-
adjustable spanner 0-32 mm
adjustable spanner 0-32 mm
-

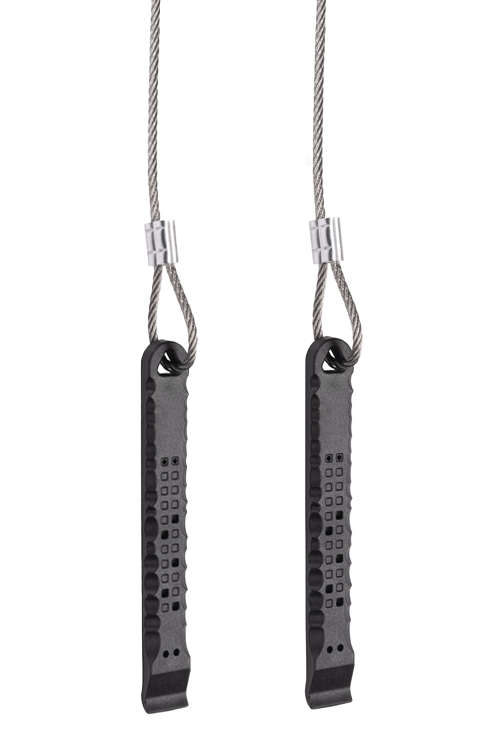

2 x tire levers with stainless steel core - nylon coated
2 x tire levers with stainless steel core - nylon coated
-
stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealant
stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealant
-
Dual chamber anodized aluminum pump adapter IBOMBO AISIPRO HEAD™ with industrial grade AISI304 stainless steel internals dedicated to all types of bicycle valves (Presta, Schrader and Dunlop)
Dual chamber anodized aluminum pump adapter IBOMBO AISIPRO HEAD™
Pure white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Bright red orange
Traffic red
Telemagenta
Claret violet
Yellow green
Moss green
Light blue
Sky blue
Traffic blue
Ultramarine blue
Sapphire blue
Our products can be powder coated in many colours from the RAL palette – after checking the availability.
Traffic white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Traffic red
Moss green
Light ivory
Traffic blue
Sky blue
Thermoplastic coating is the most comprehensive solution on the market. It provides the highest level of resistance against the influence of environmental factors, wear, damage and vandalism. It also requires little maintenance. It is recommended as a coating for our galvanized products.
More information »
Despite all efforts to keep the most accurate colour representation possible,
our palette is used for informational purposes only.
The best colour representation can be found in samplers.
We can place your logo / graphics on our products to take care of your brand image.
See our portfolio
PRODUCT REGISTERED IN EUIPO No. 1366587
We have the priority right to register an industrial design at the European Union Intellectual Property Office (EUIPO) in Alicante. We have acquired the exclusive right to use the design throughout the EU.
