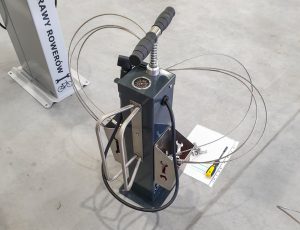

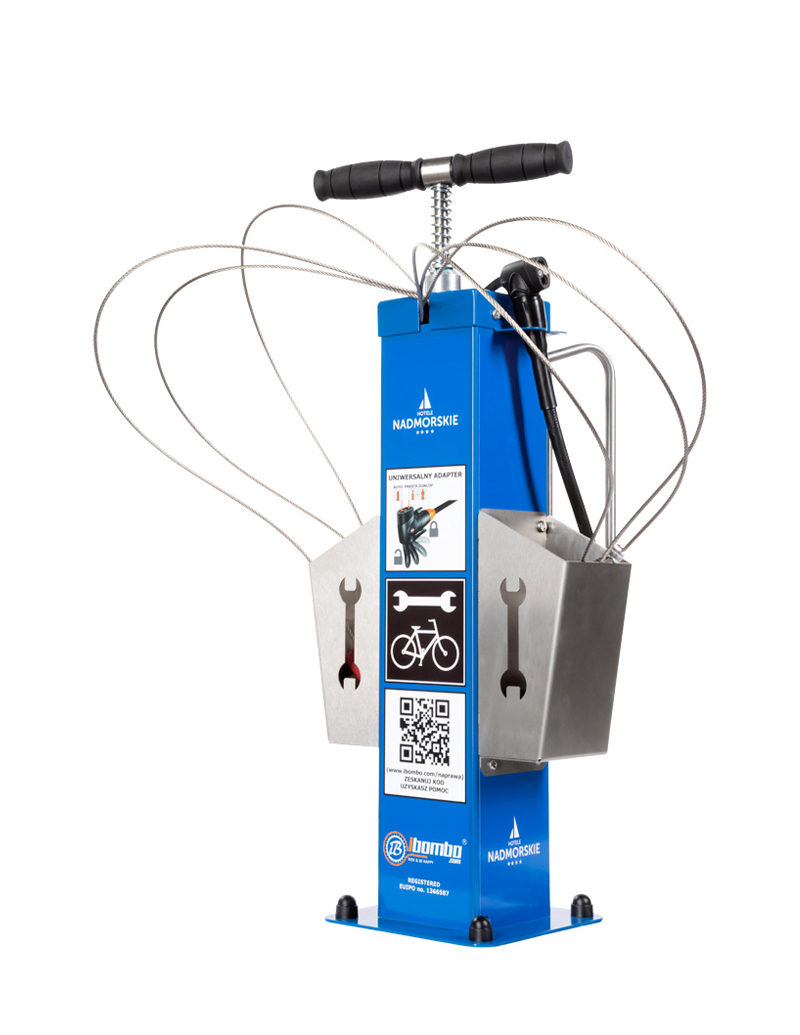

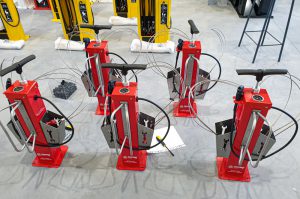

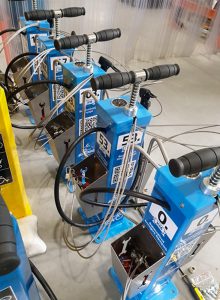

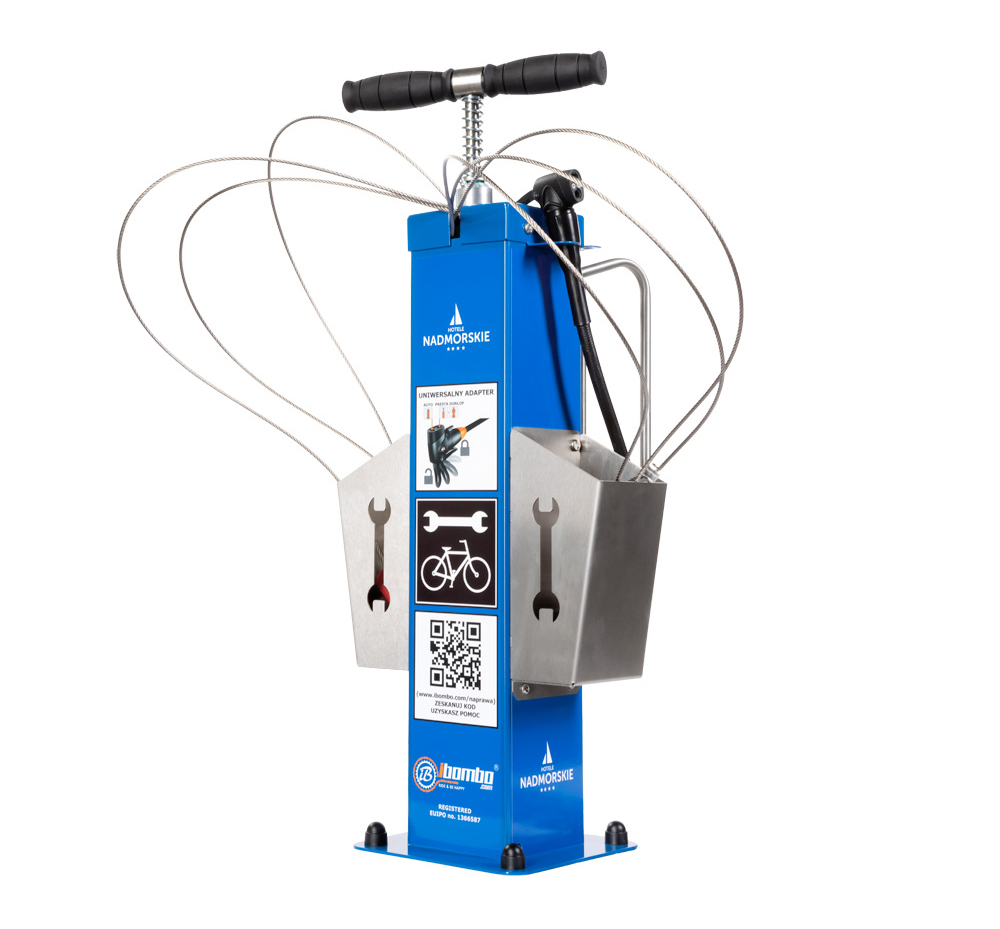

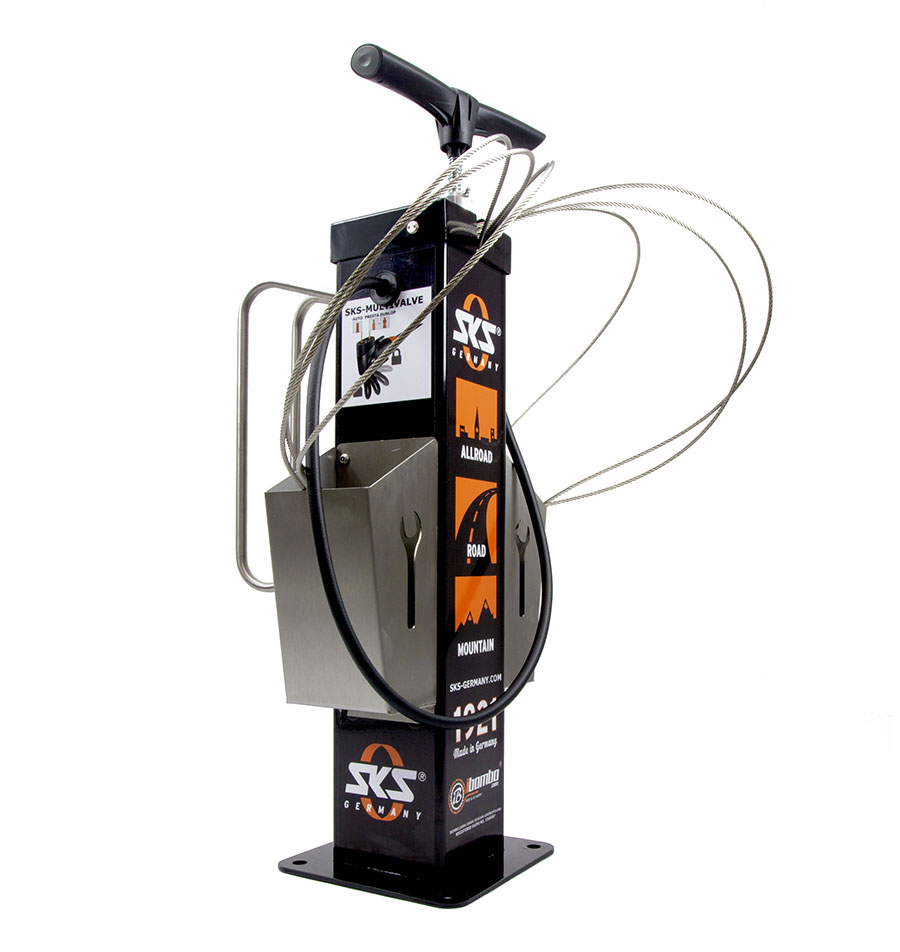

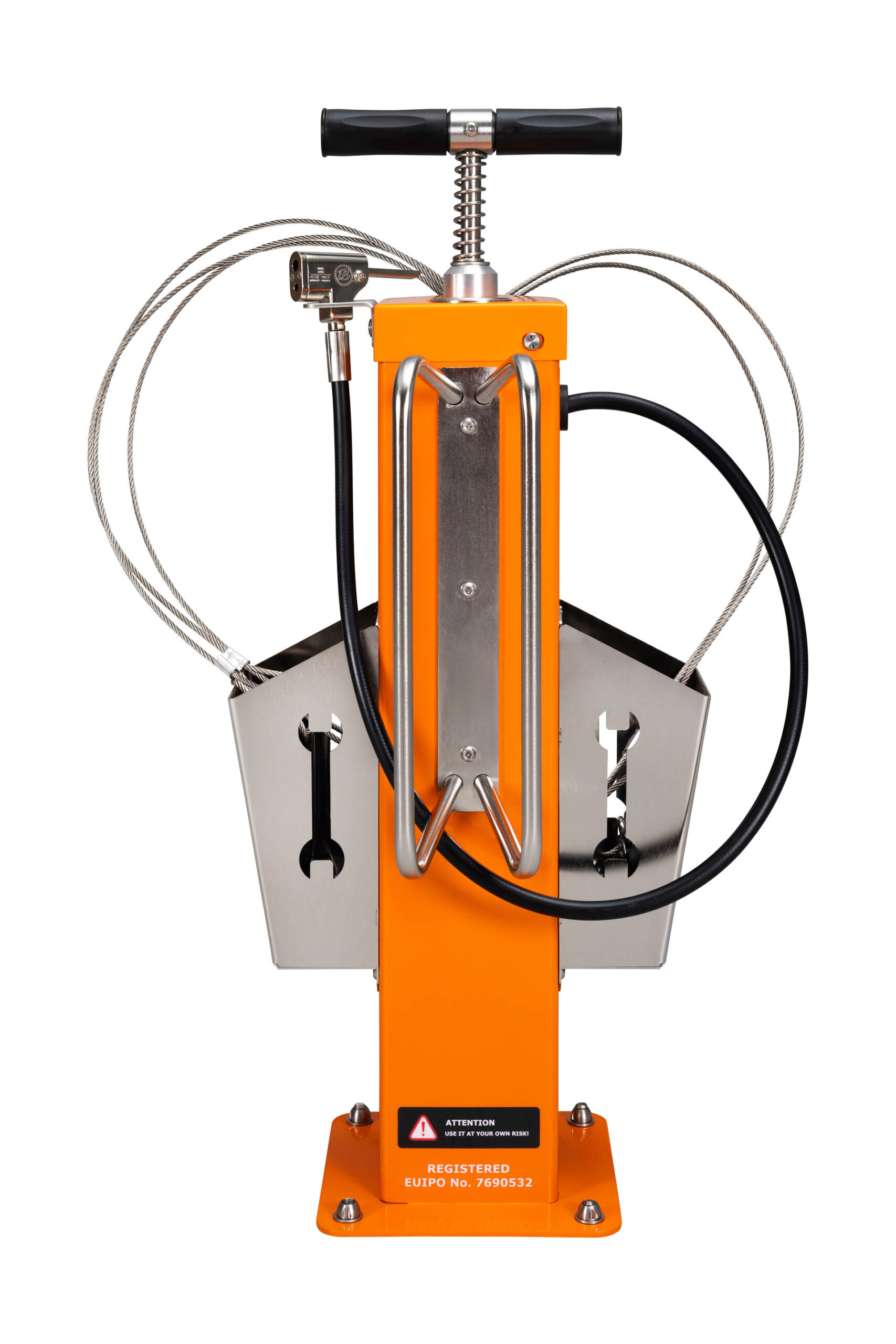

IBOMBO PRS-sV20

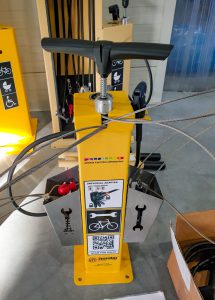

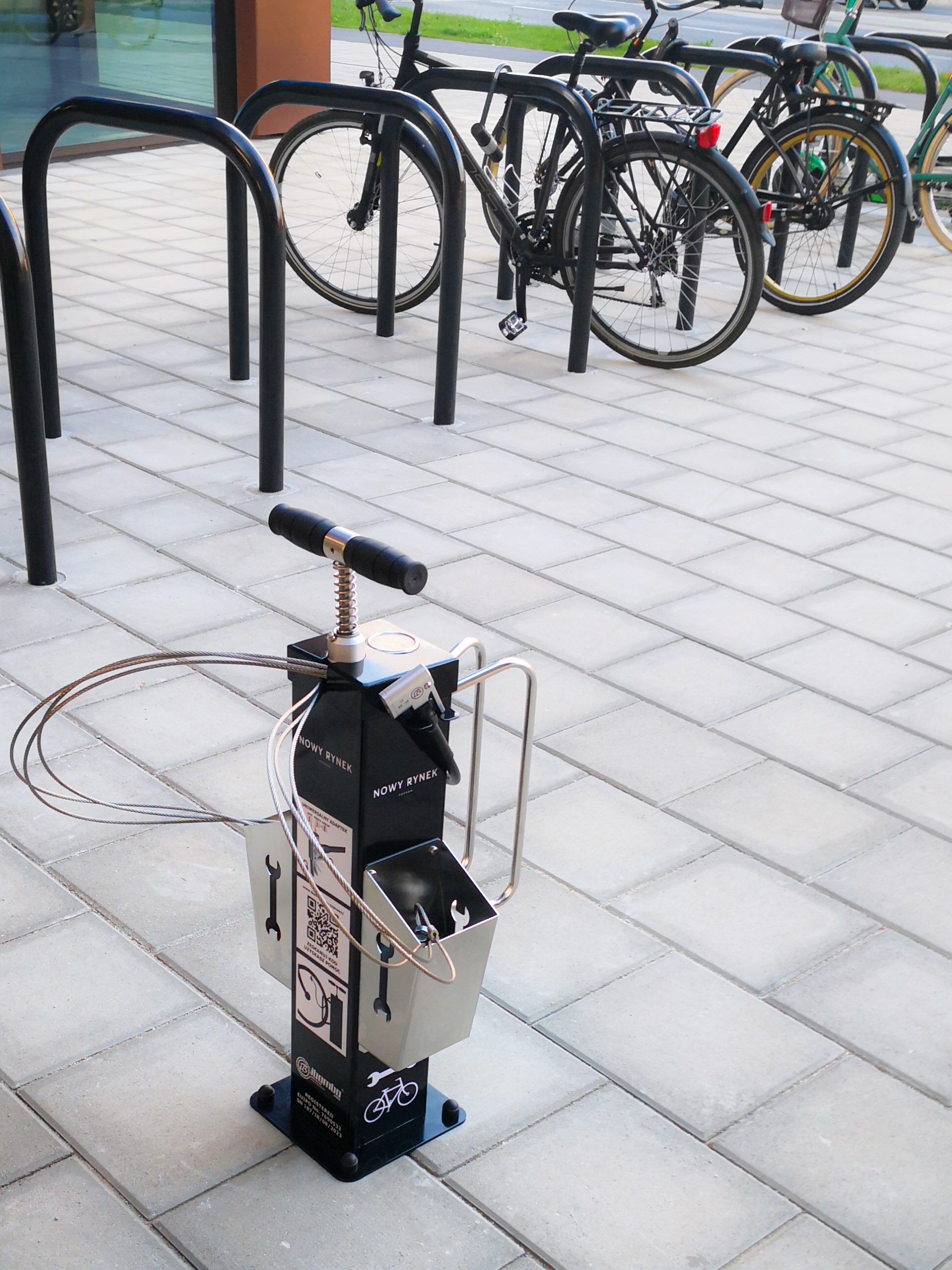

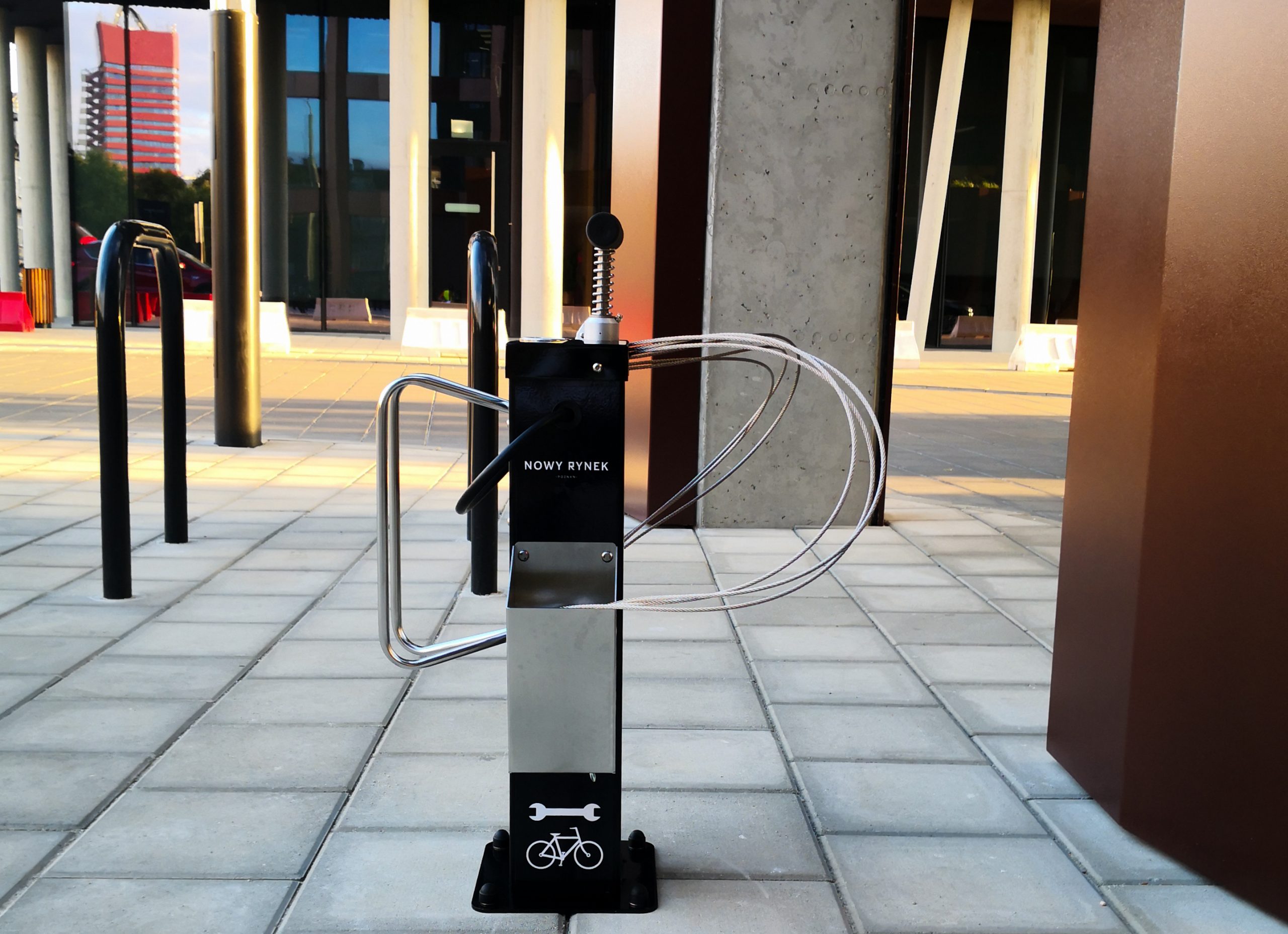

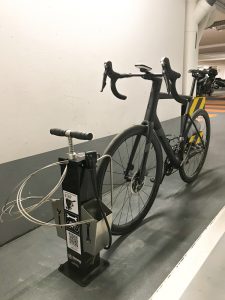

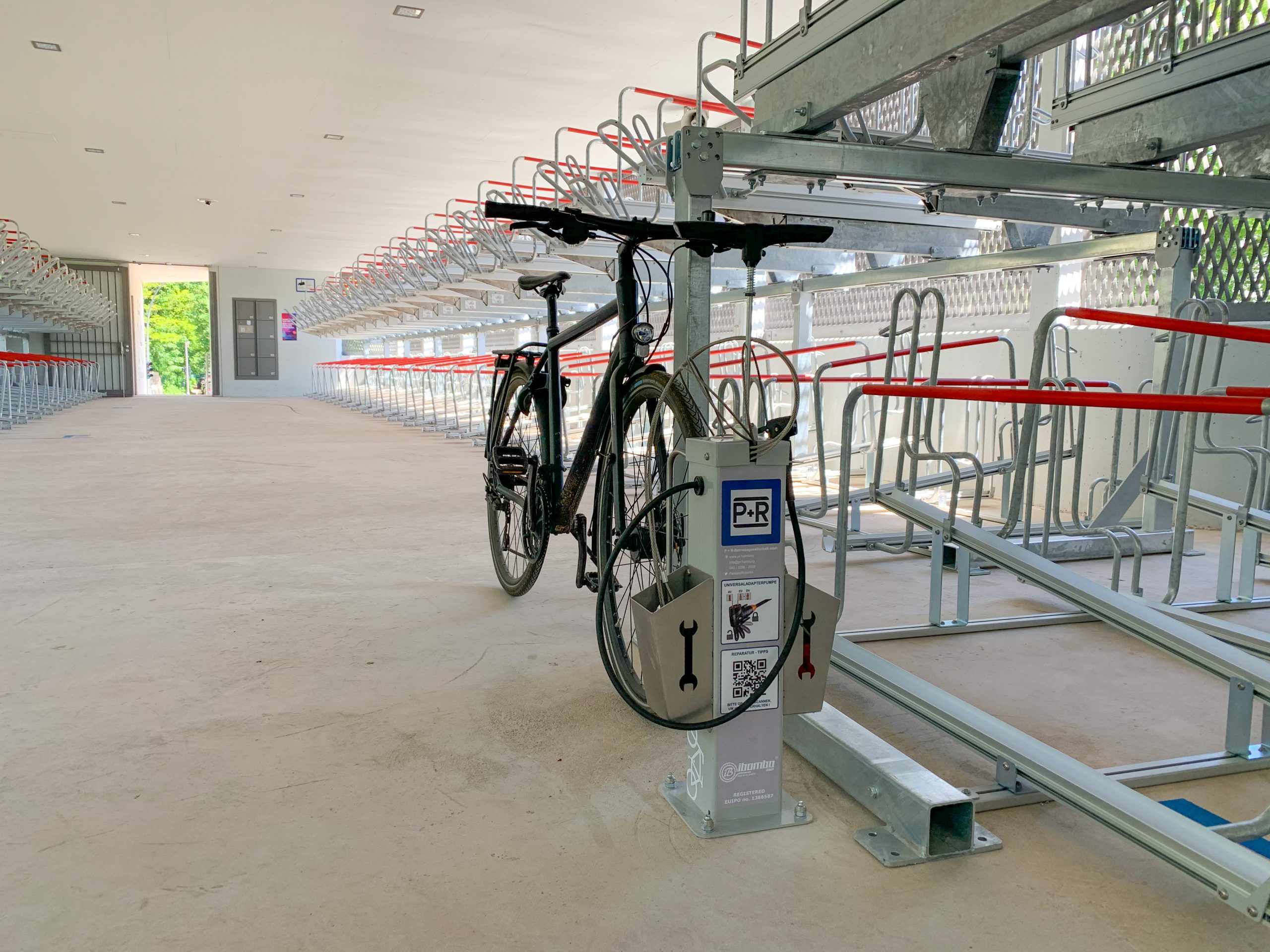

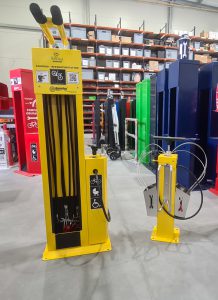

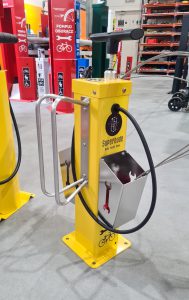

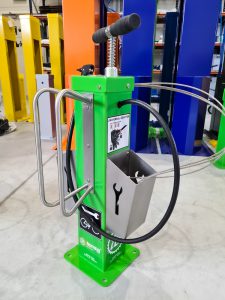

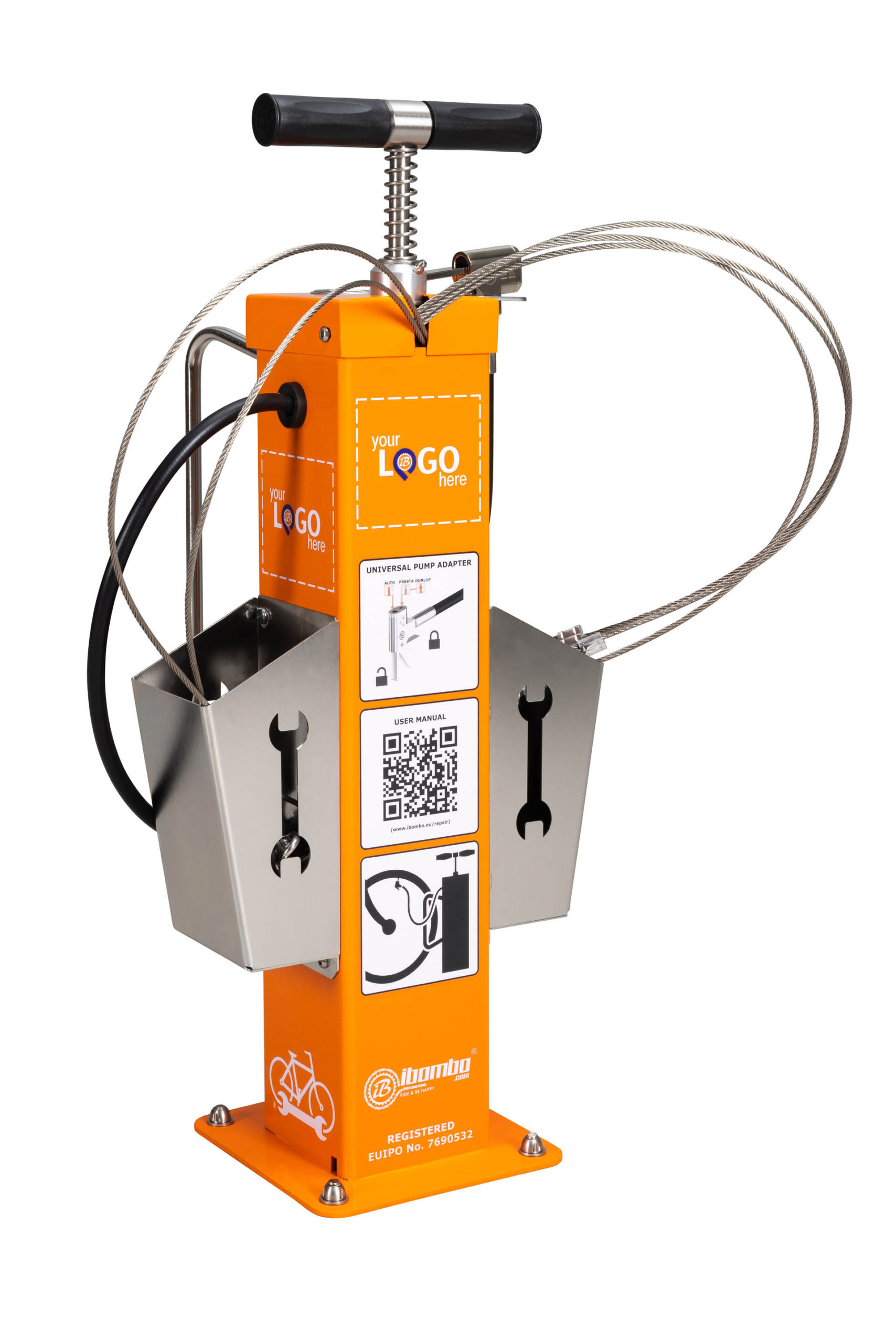

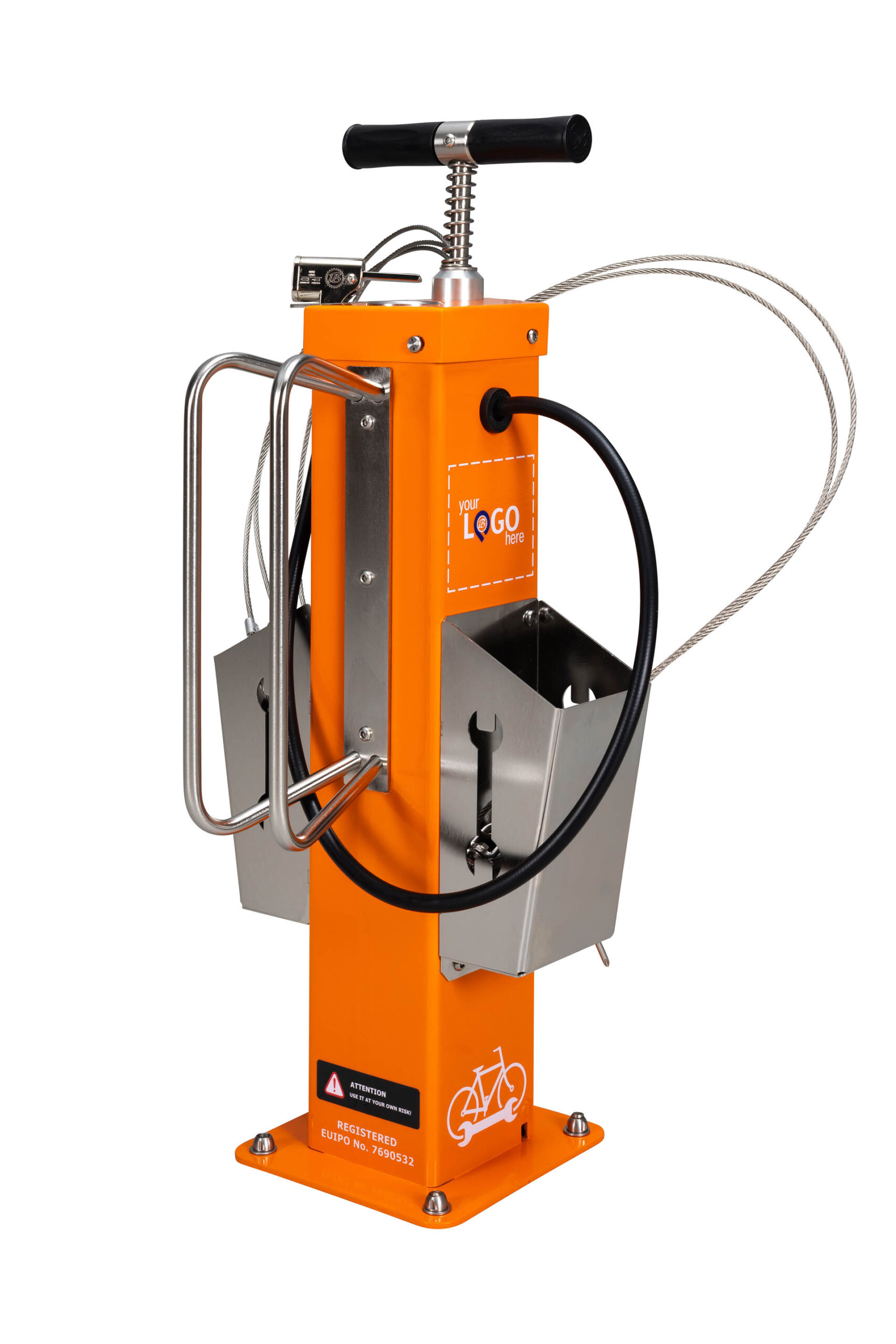

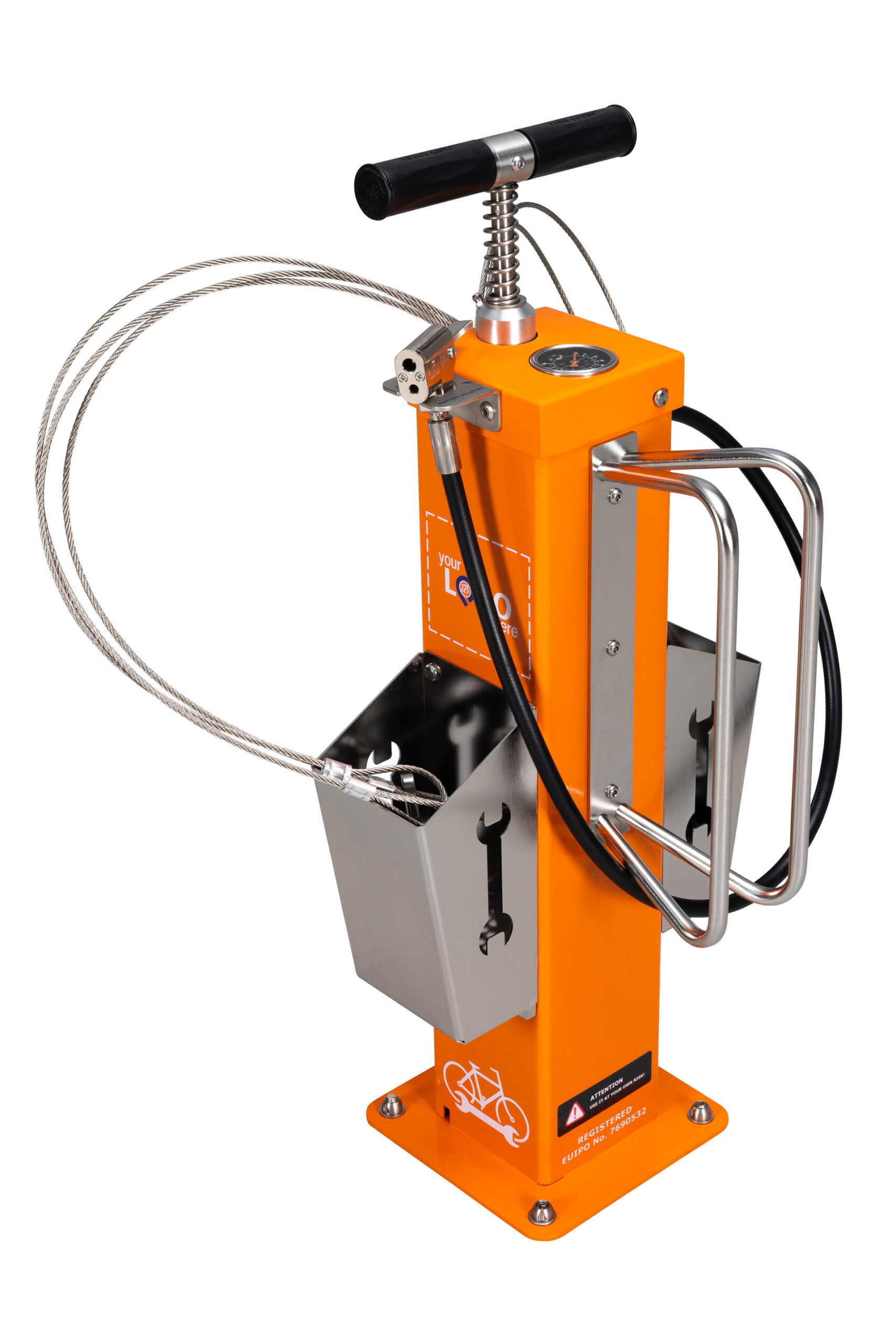

IBOMBO PRS-SV20 is an improved version of the Bike Repair Station IBOMBO PRS-SV1 and is adapted for use in public spaces. The advantage of this model is its small size, which allows it to be mounted almost anywhere. The construction of this model does not allow the bike to be hung on the grip.

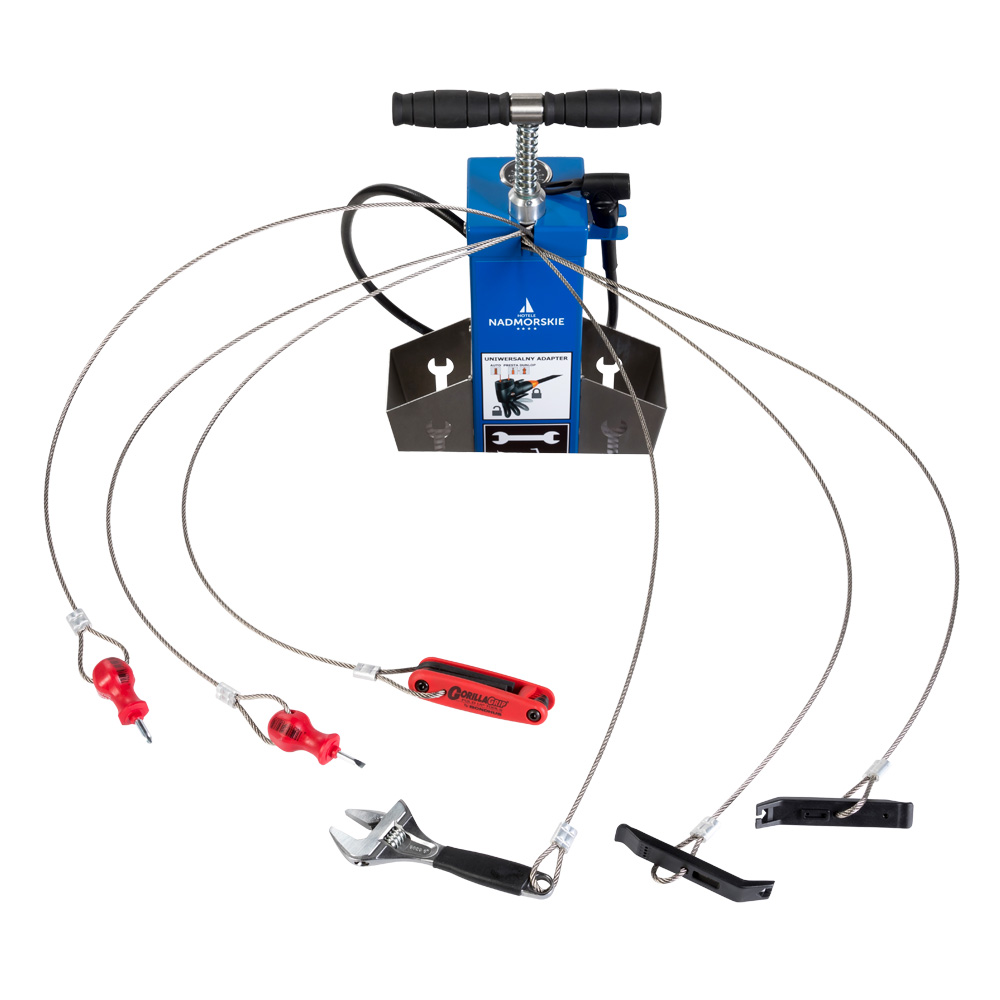

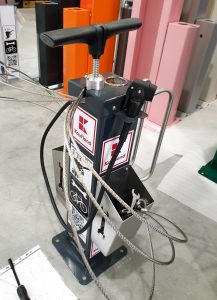

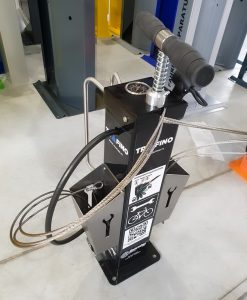

The housing of the device is made of galvanized or stainless steel (AISI 304) profile with powder or thermoplastic coating. We also offer this model in an exclusive version – brushed INOX stainless steel (AISI 304). The device is mounted to the ground or wall with the aid of anchors. The tools are attached to the stainless steel ropes coming out of the station column. The station is equipped in a hand pump with an adapter for all valve types. Sheet metal elements of the device are fastened with anti-theft screws – the bits for these screws will be handed over to the customer. The QR CODE placed on the station allows you to use online publications containing instructions on repairing bicycle faults.

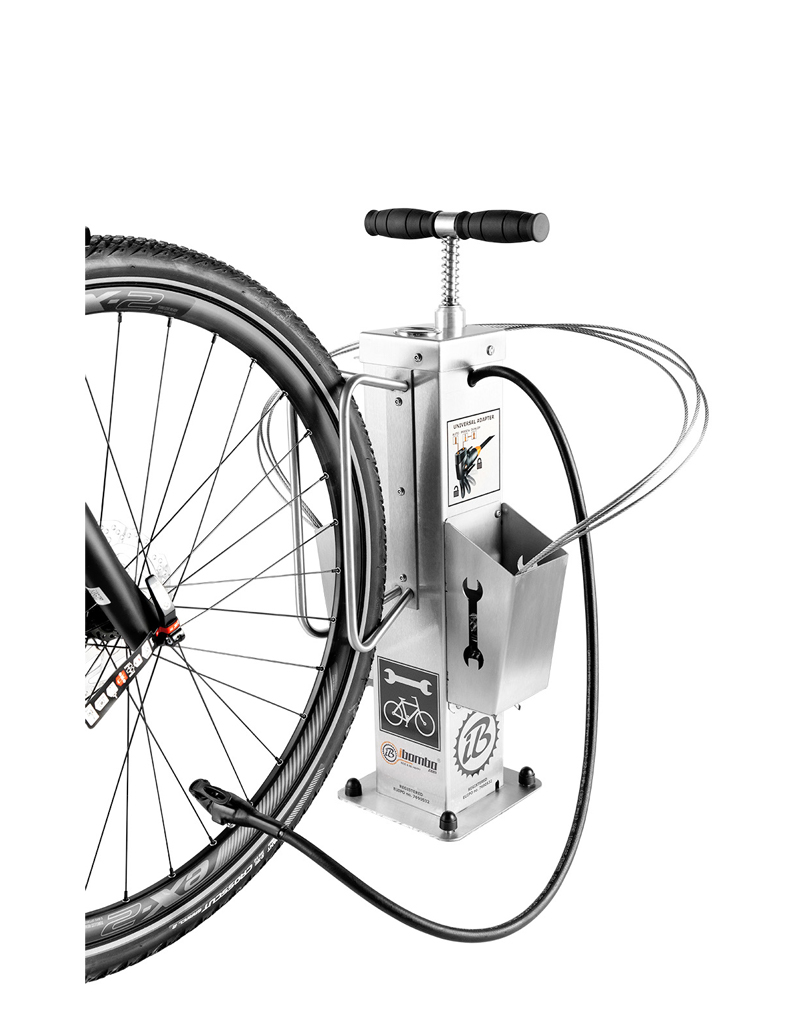

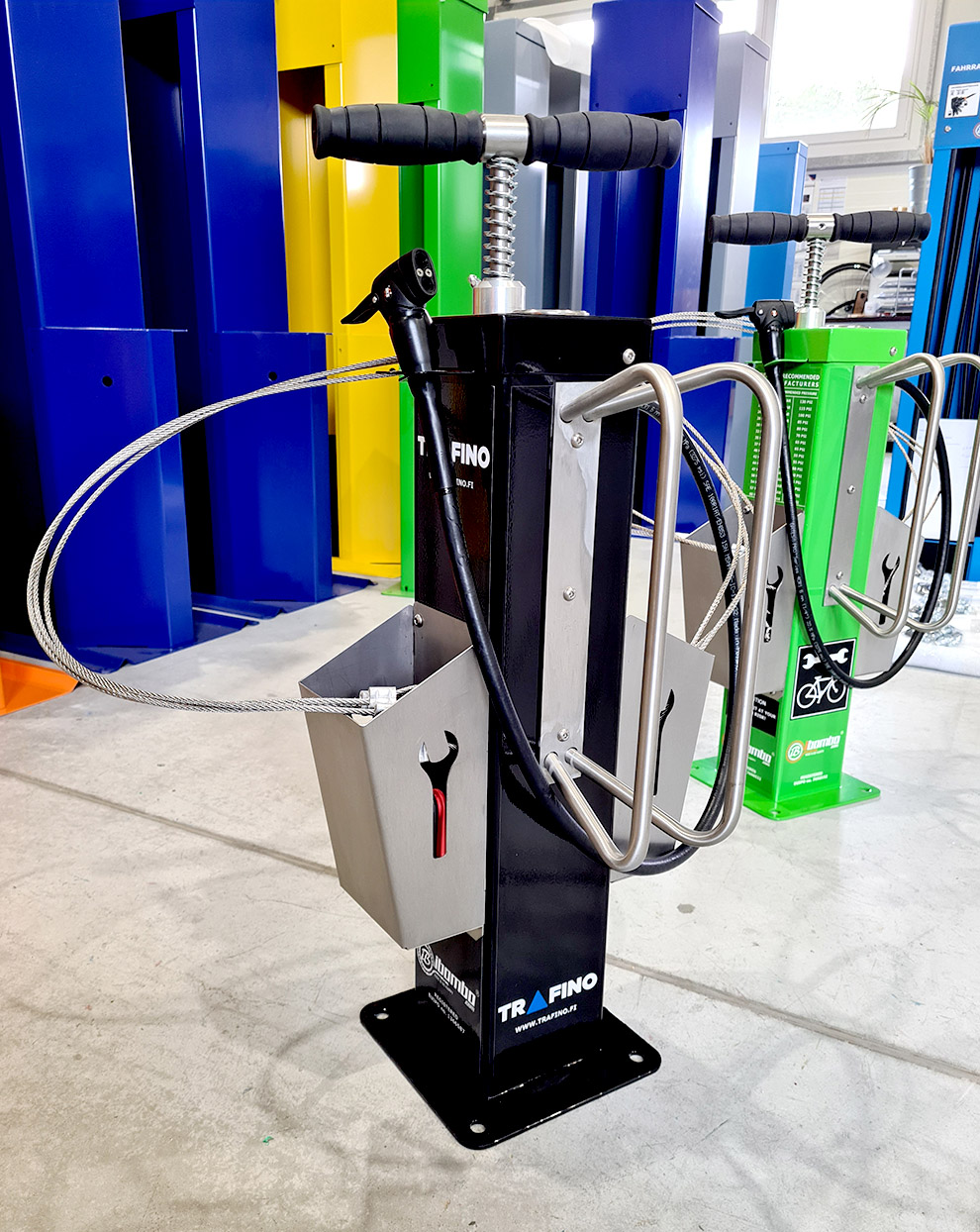

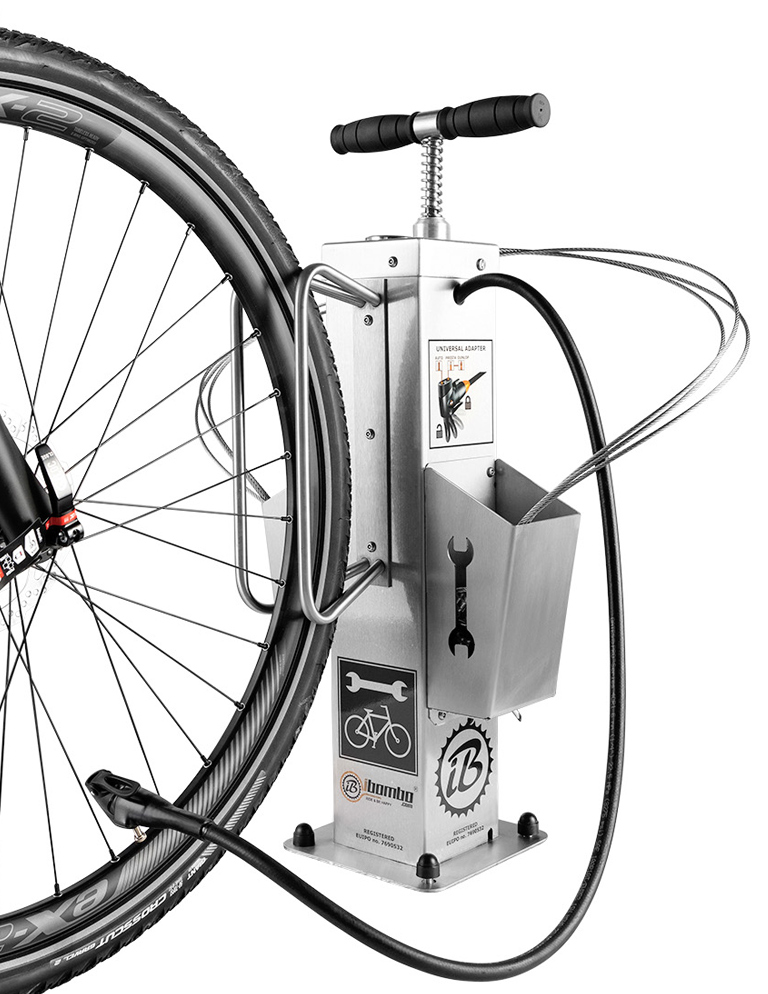

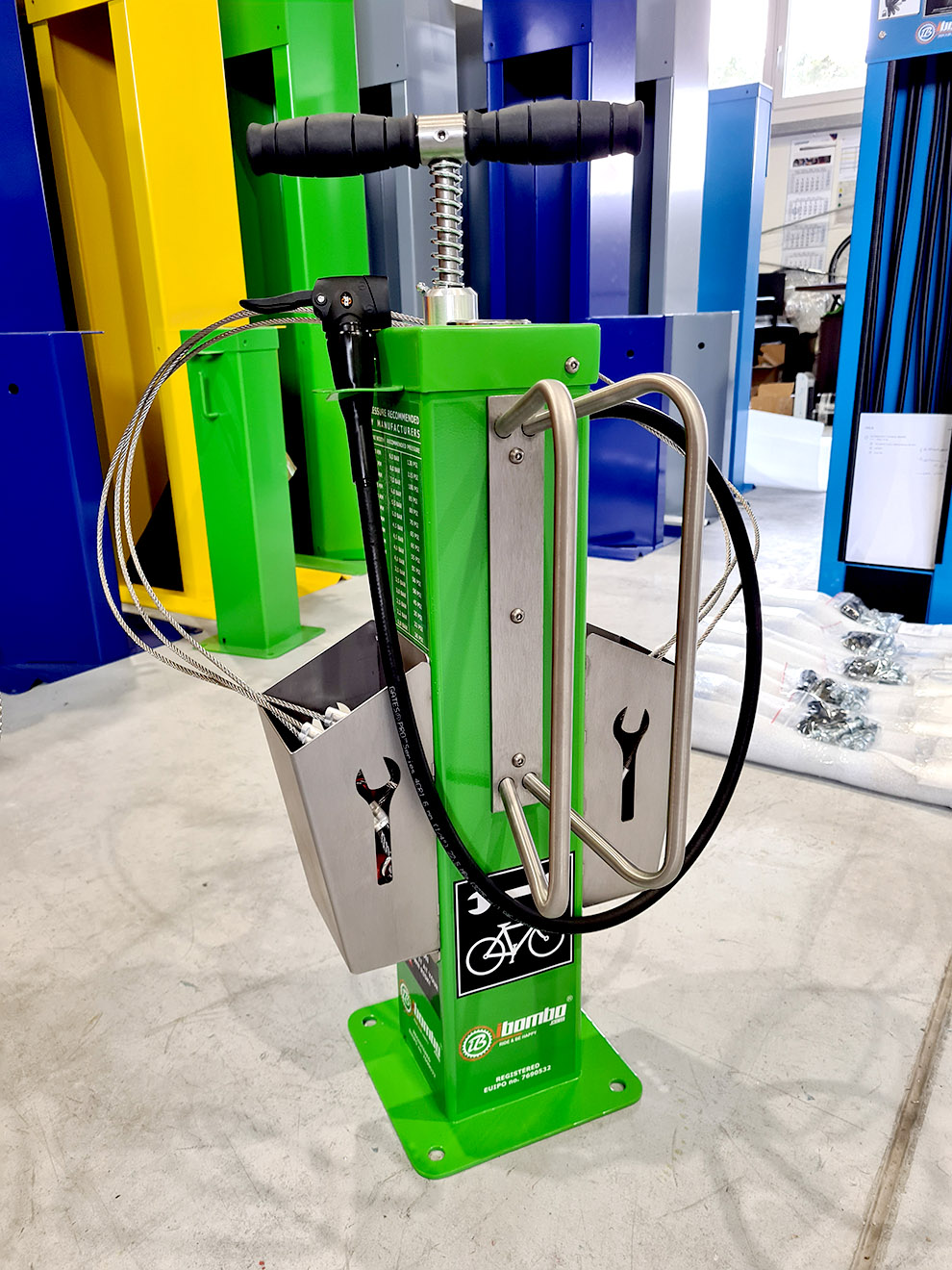

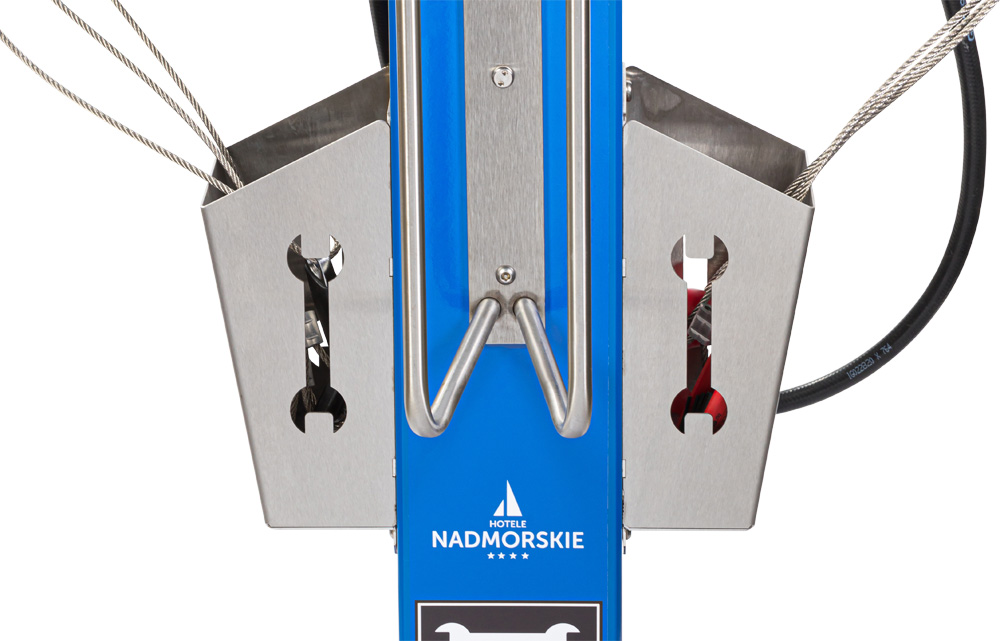

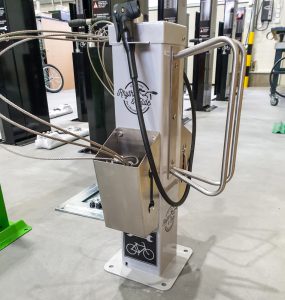

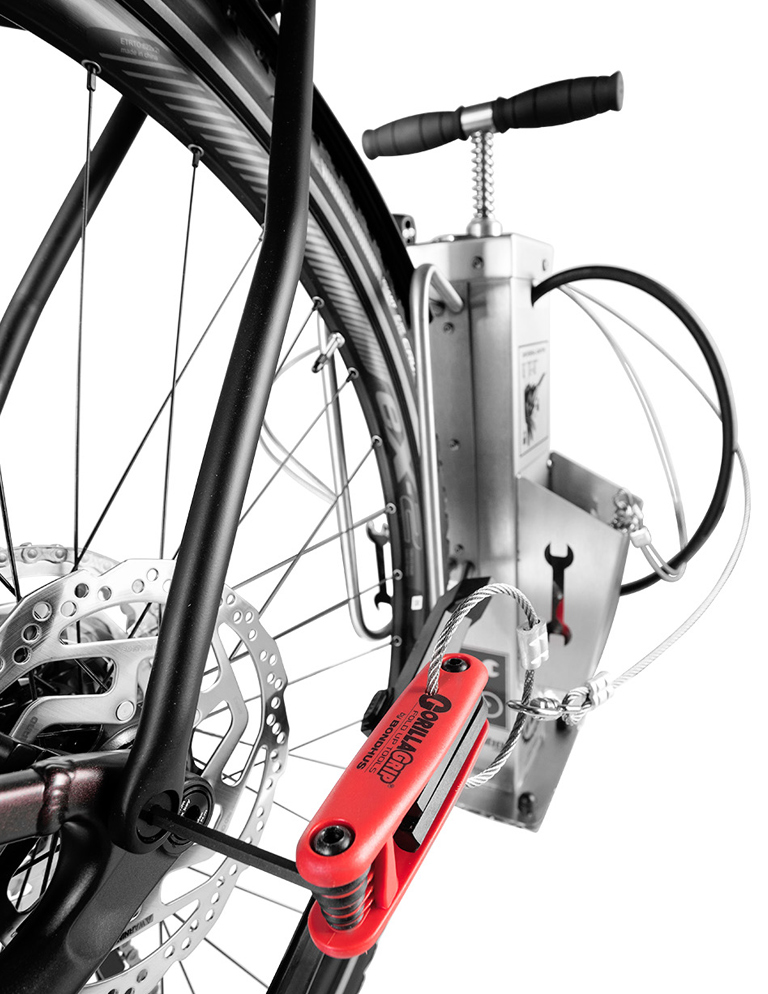

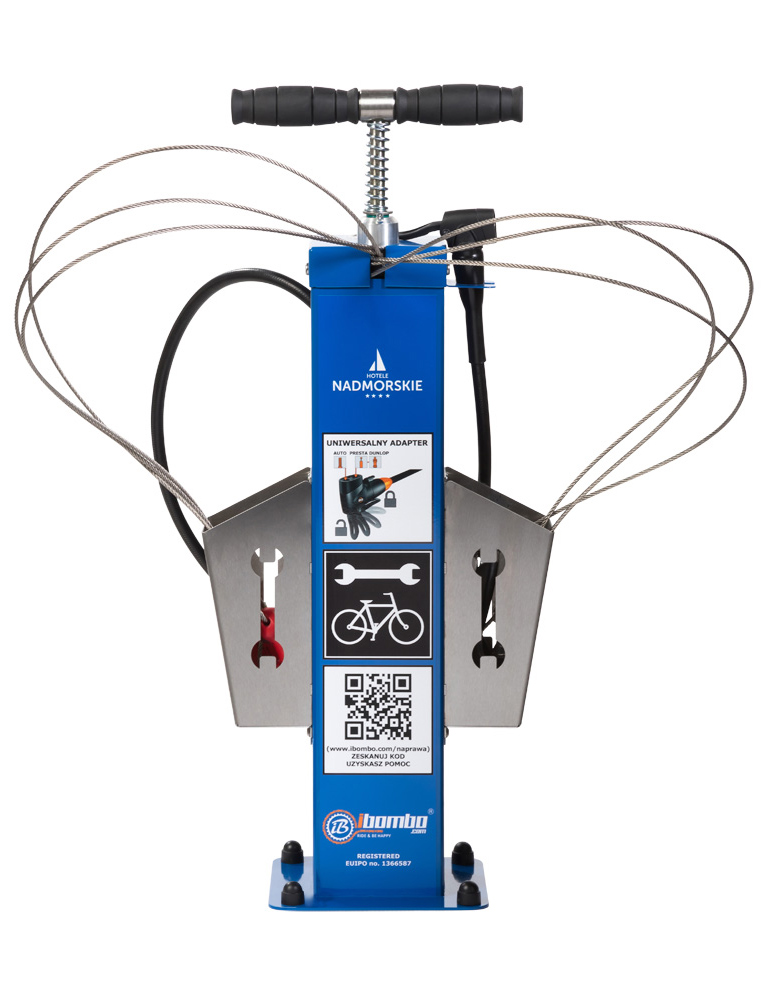

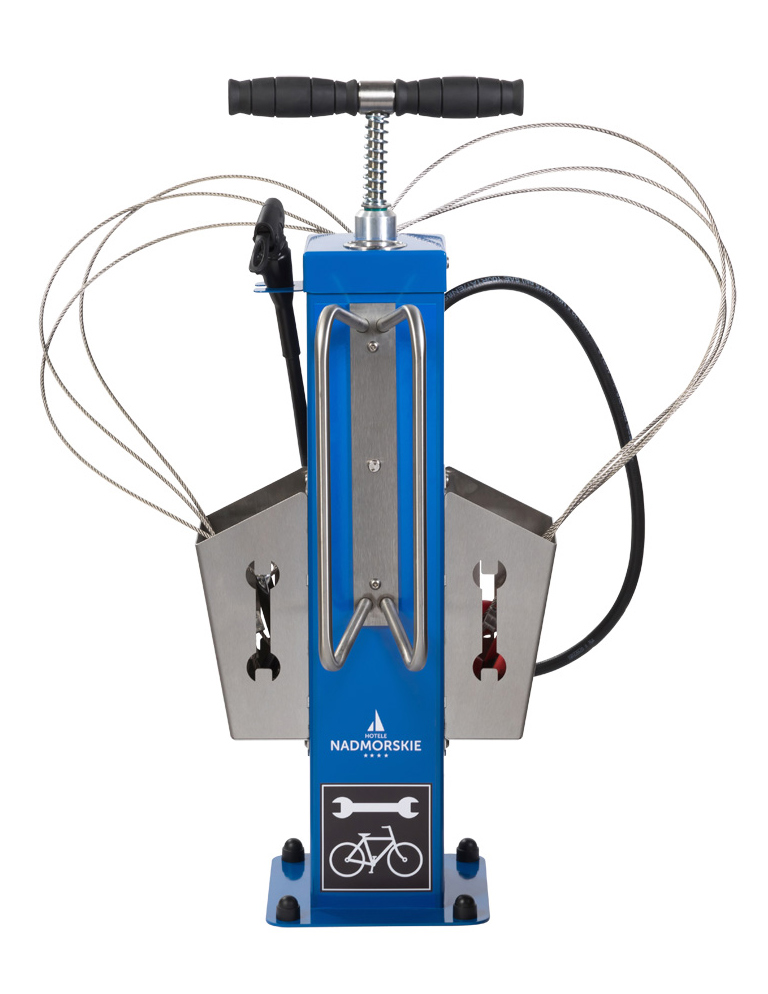

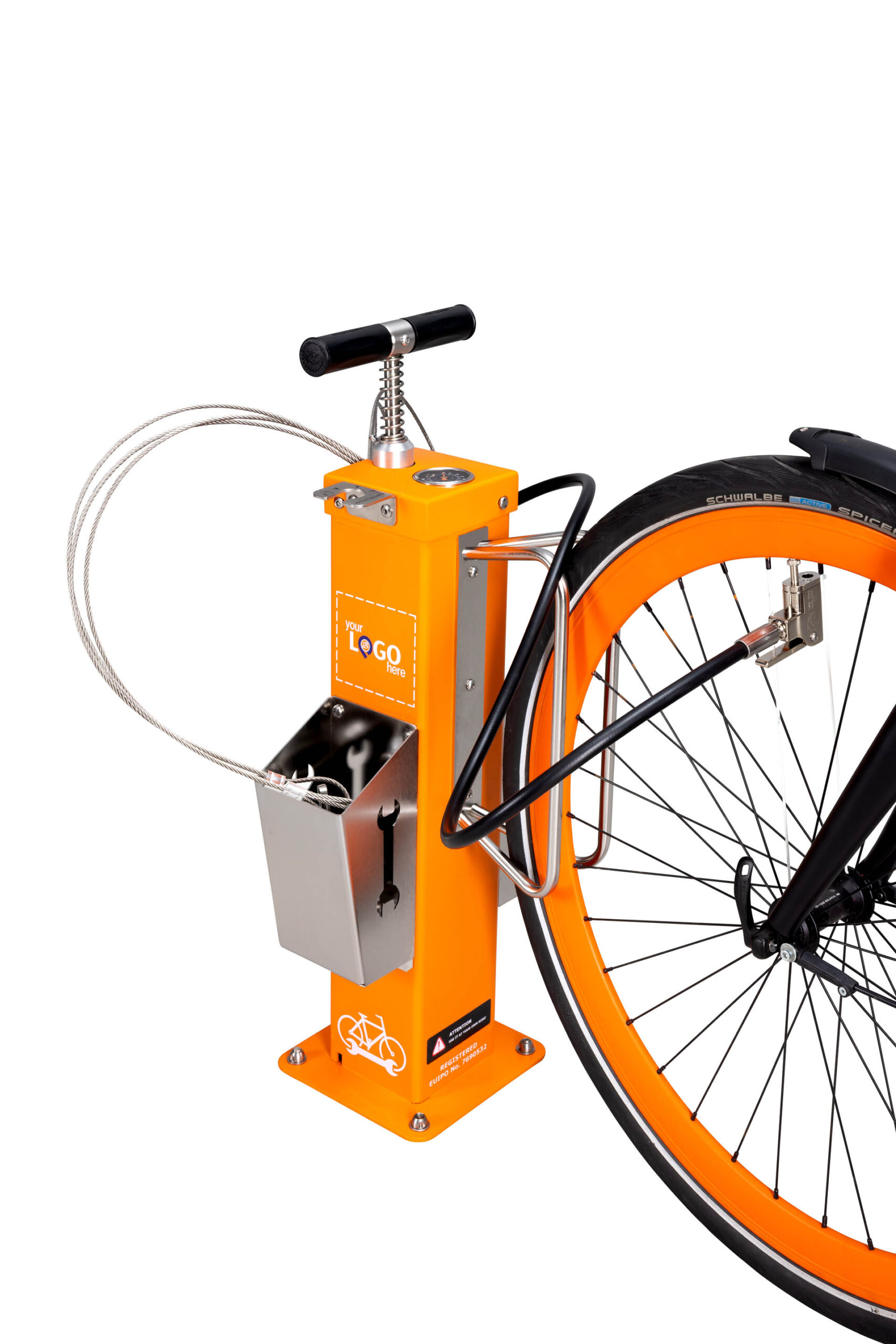

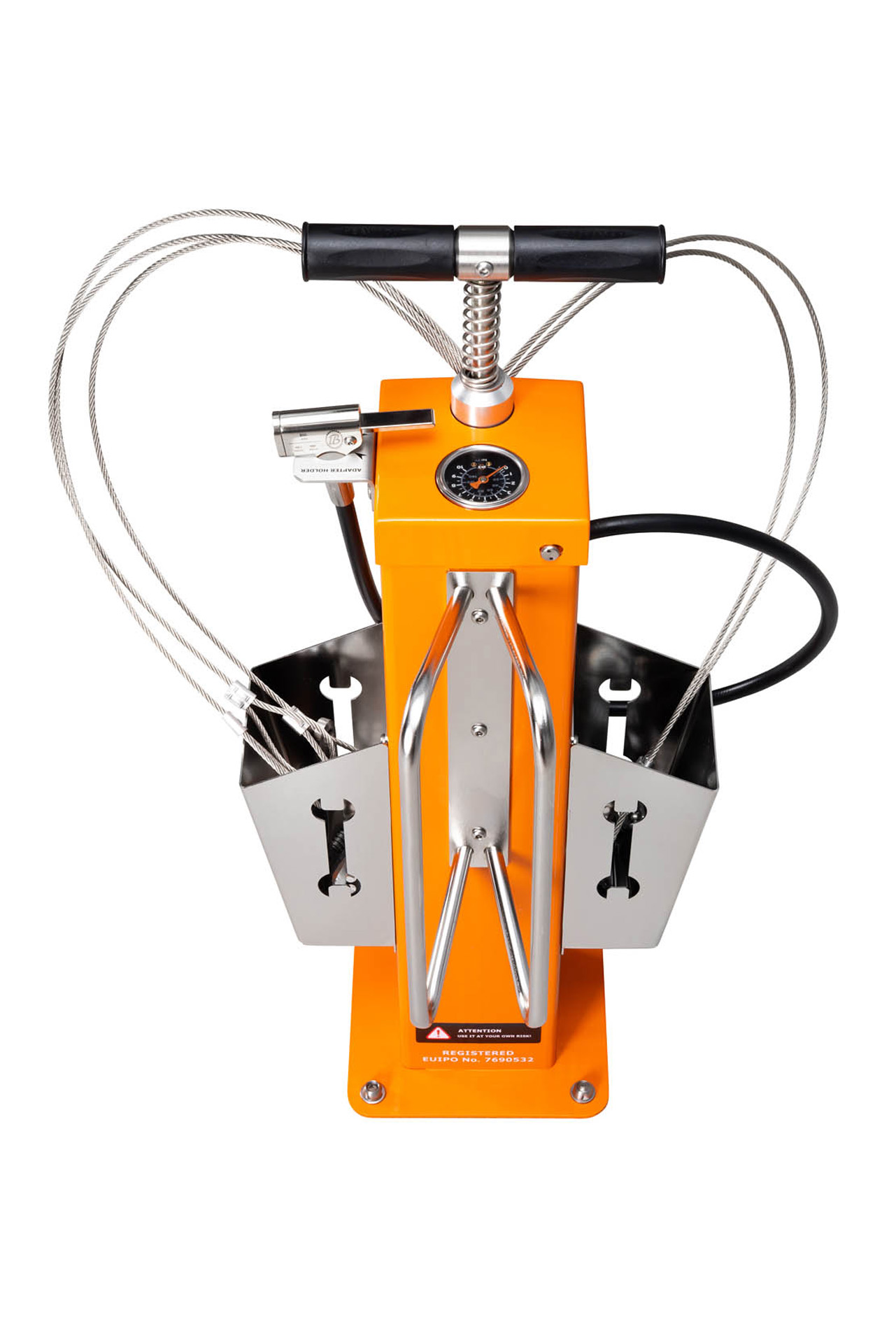

In this version of the station we designed containers – “baskets” for tools with a laser-cut key sign on both sides. An additional convenience is the stand that fits most bicycle tyres, which also increases the comfort of use. Additional elements are made of stainless steel (AISI 304). The choice of this material not only determines its robust appearance, but also its higher resistance to mechanical factors such as scratches or paint chips.

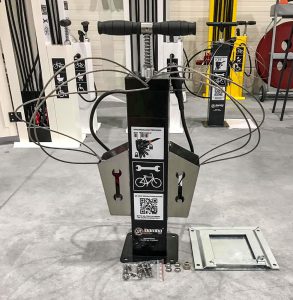

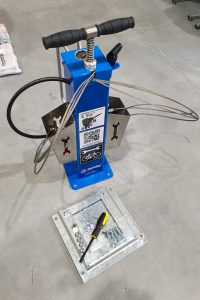

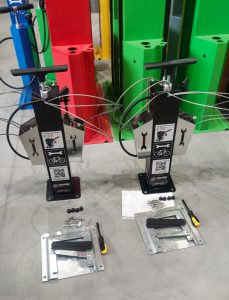

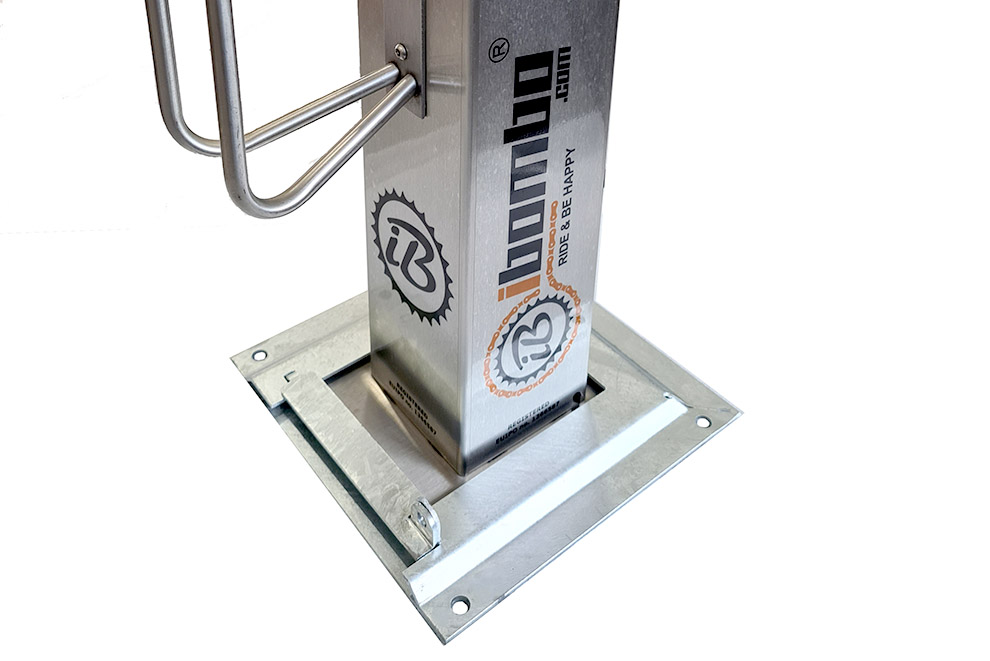

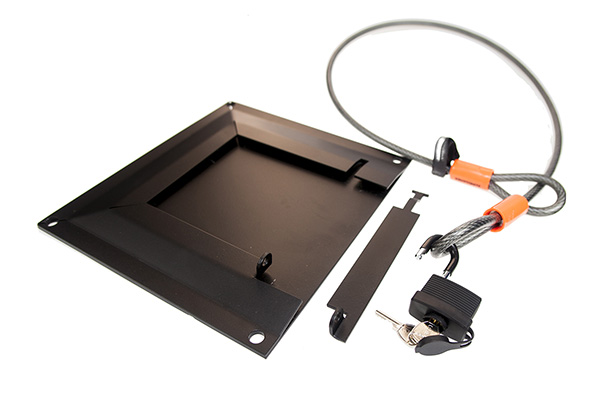

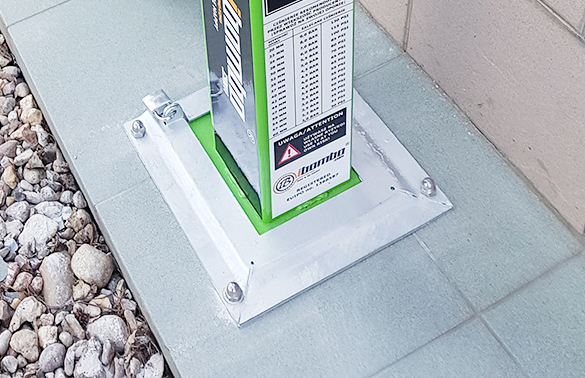

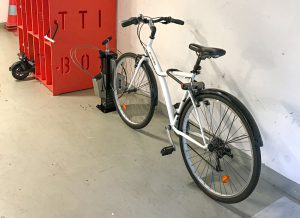

This model of the station can be equipped with a mobile installation ground plate – hot-dip galvanized. This solution allows you to make the station available during opening hours, e.g. in restaurants, bicycle service points, tourist information. You do not need to mount the station permanently to the ground; instead, you can place it in the mobile plate and fasten it to an existing durable element with a steel rope and a padlock.

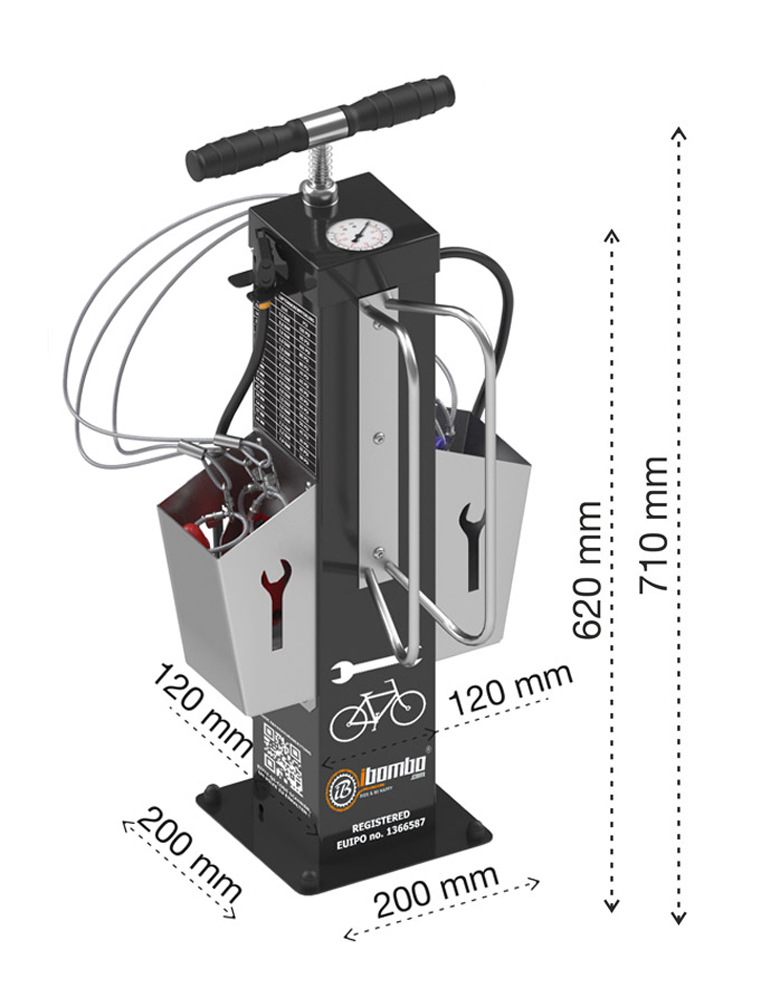

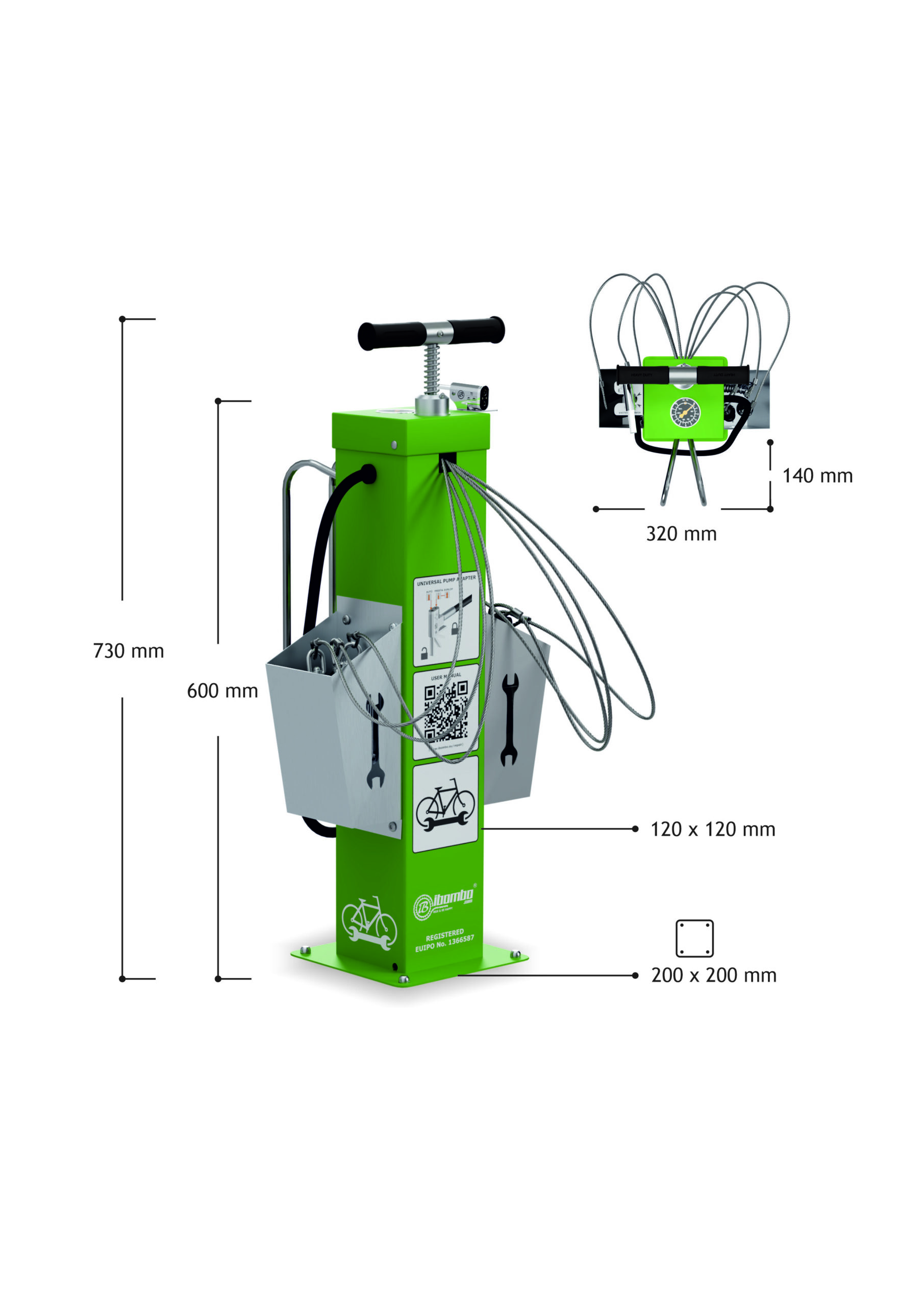

Dimensions:

71 x 32 x 33 cm

Weight:

12-18 kg

Advertising area:

1500 cm2

Material:

galvanized | stainless | INOX stainless steel (AISI 304)
Ask for price
  • housing made of galvanized steel, stainless steel (AISI 304) or brushed INOX stainless steel AISI 304 Galeria
  • 2 x stainless steel tool containers (AISI 304)Galeria
  • 1 x Small Side-or-bike stand - stainless steel (AISI 304)Galeria
  • powder or thermoplastic coating
  • up to 1500 cm2 of advertising area
  • mobile installation ground plate - hot-dip galvanizedGaleria

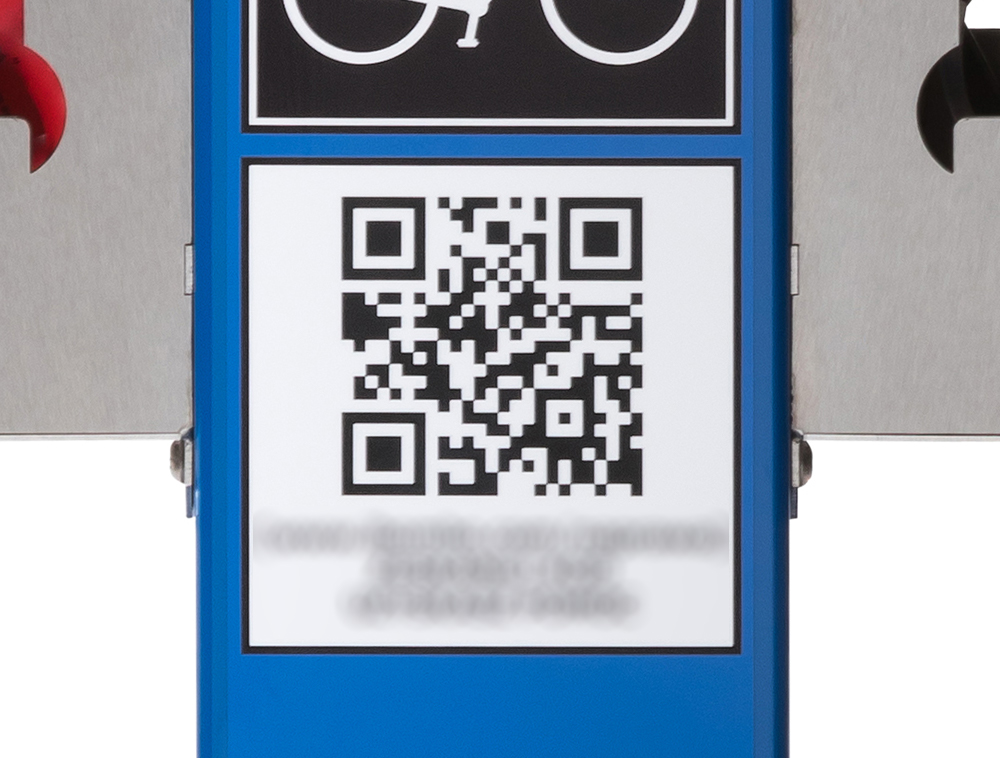

  • QR CODE with repair manual Galeria
  • anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the baseGaleria

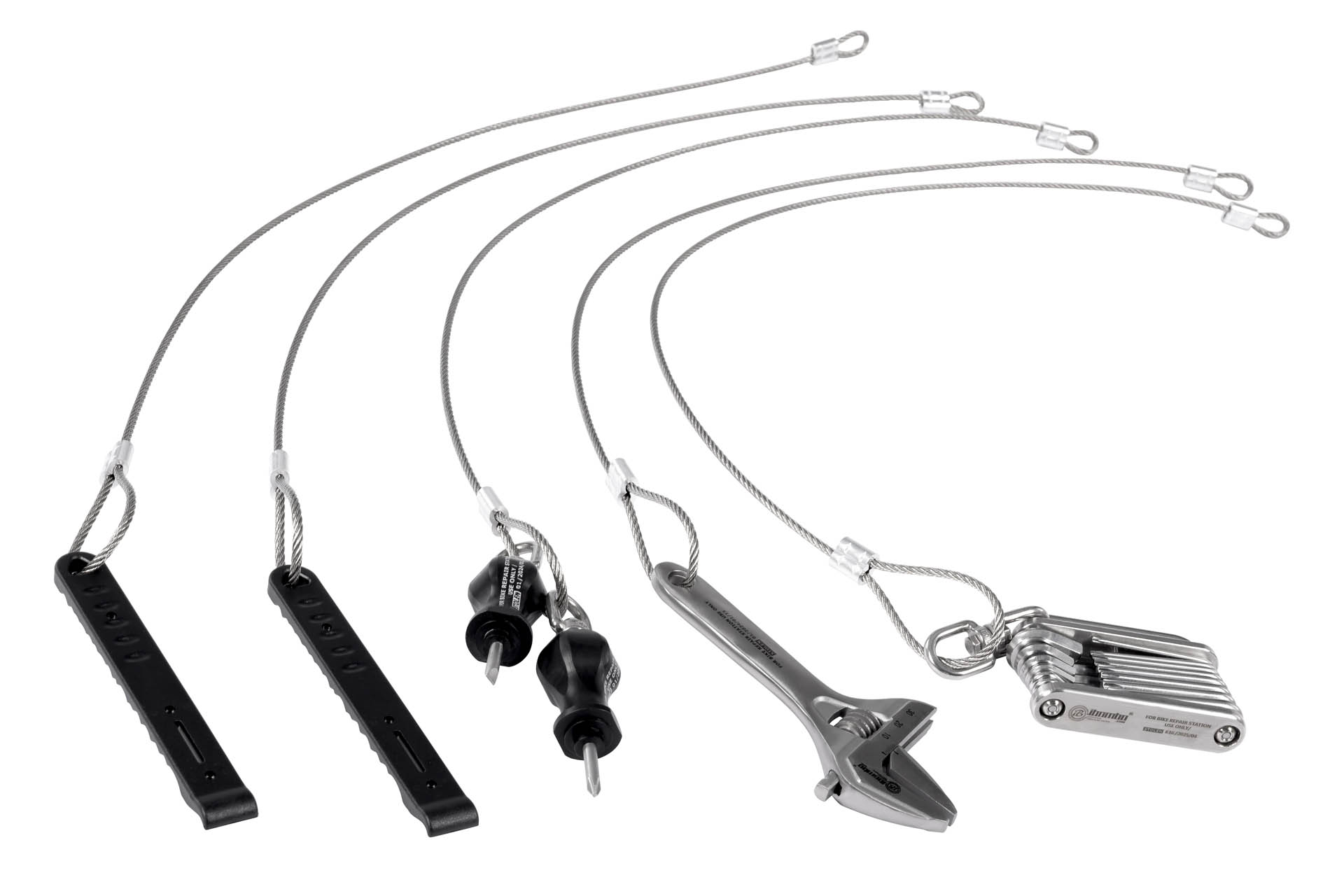

  • stainless steel ropes fi 4 mm (AISI 316)Galeria
  • Phillips screwdriver PH2 + swivel fi4 (AISI 304)Galeria
  • flat screwdriver 5.5 x 1.0 + swivelGaleria
  • hex key set| 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivelGaleria
  • adjustable spanner 0-32 mmGaleria
  • 2 x tire levers with stainless steel core - nylon coatedGaleria

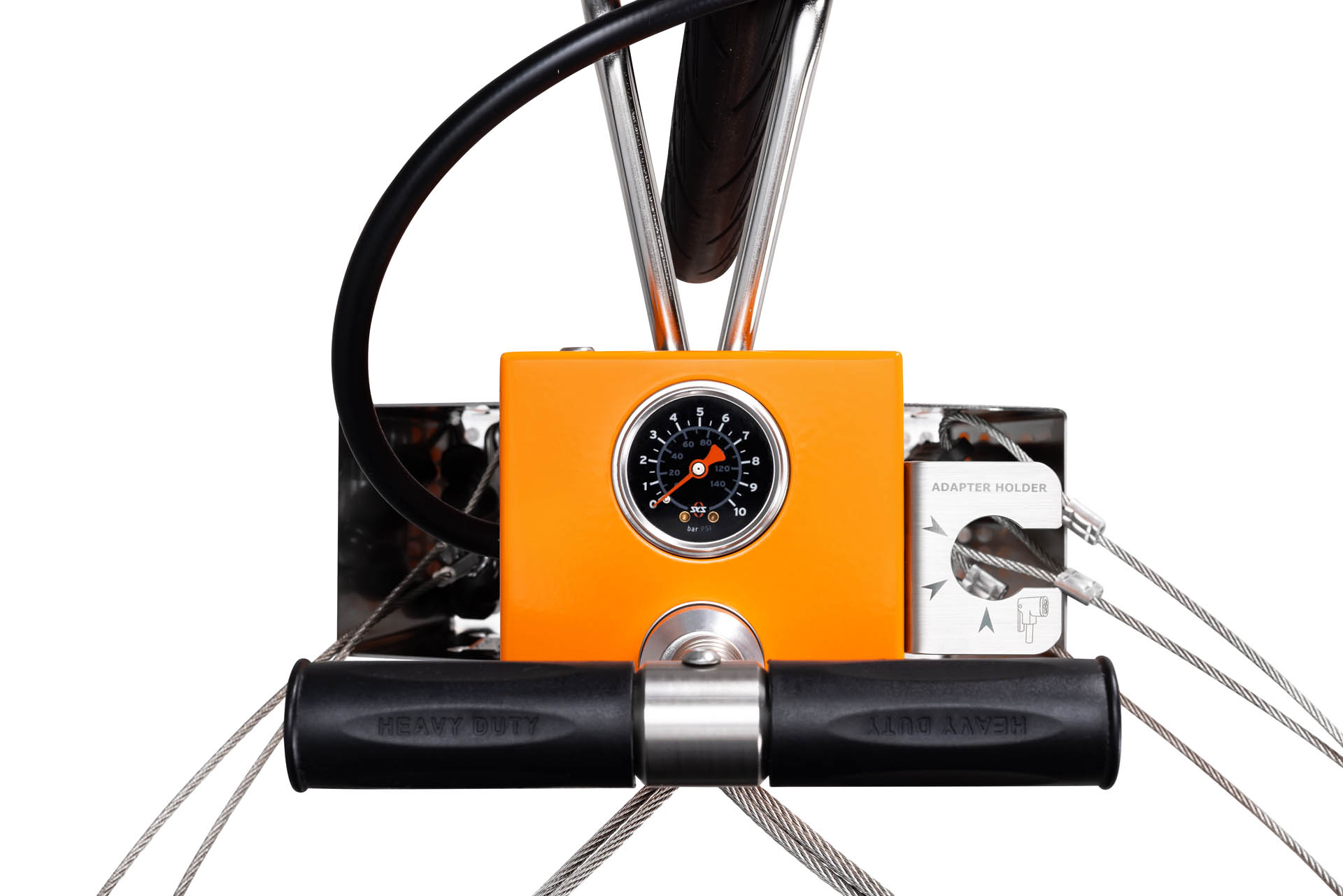

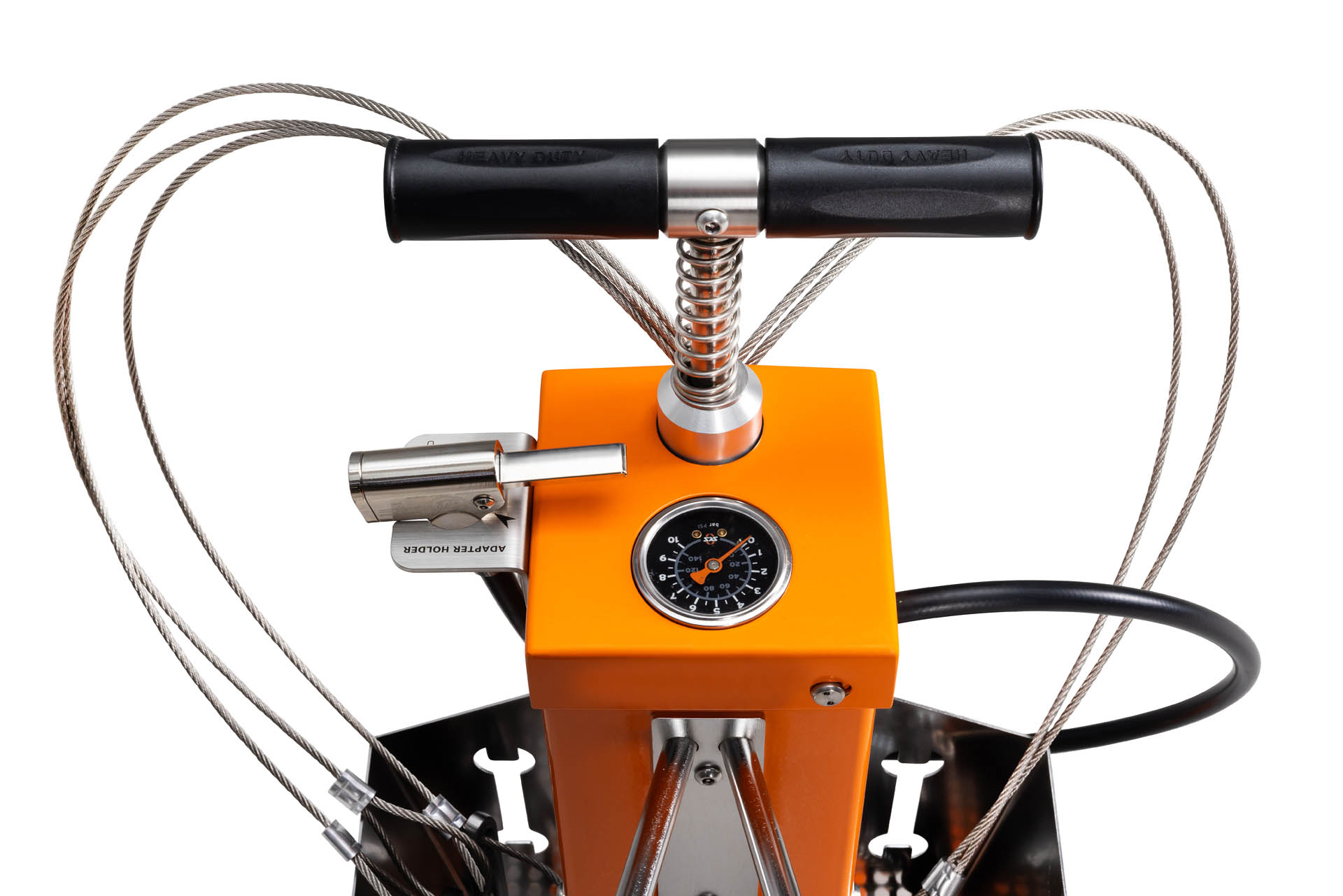

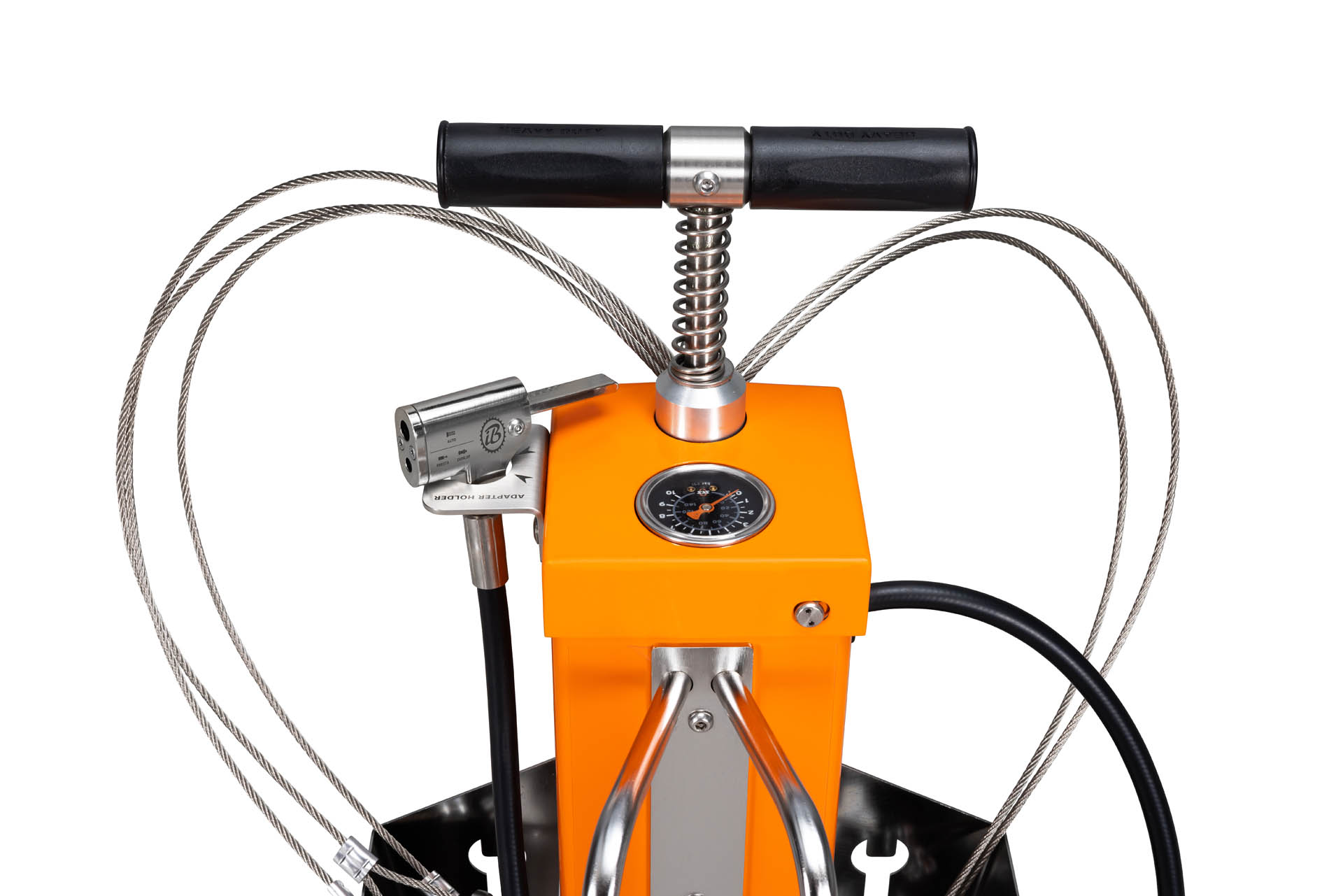

  • stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealantGaleria

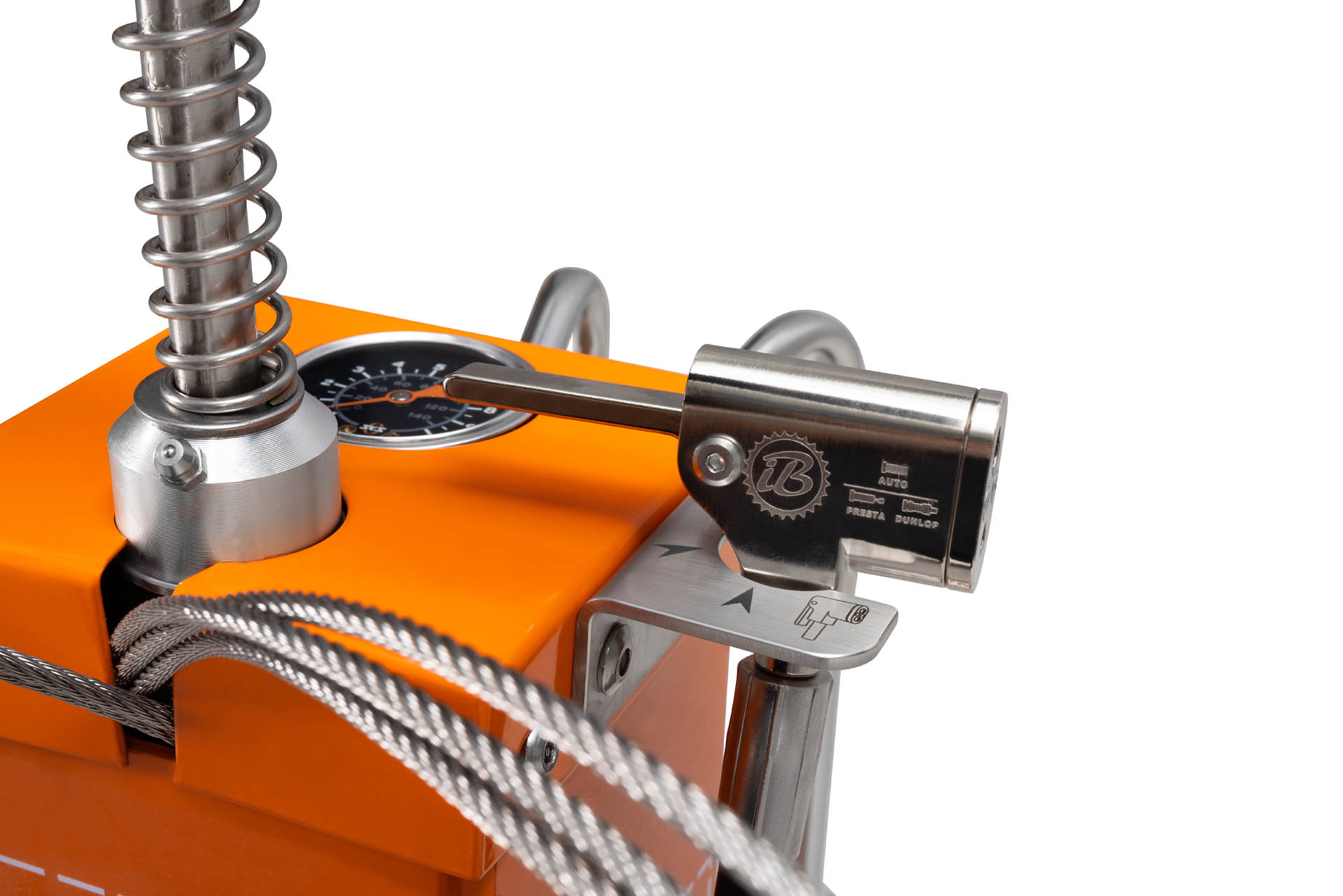

  • Dual chamber anodized aluminum pump adapter IBOMBO AISIPRO HEAD™ with industrial grade AISI304 stainless steel internals dedicated to all types of bicycle valves (Presta, Schrader and Dunlop)Galeria
Basic palette - powder coating
RAL 9010

Pure white

RAL 7035

Light grey

RAL 7001

Silver grey

RAL 9006

Silver metallic

RAL 7016

Anthracite grey

RAL 9005

Jet black

RAL 1021

Colza yellow

RAL 2008

Bright red orange

RAL 3020

Traffic red

RAL 4010

Telemagenta

RAL 4004

Claret violet

RAL 6018

Yellow green

RAL 6005

Moss green

RAL 5012

Light blue

RAL 5015

Sky blue

RAL 5017

Traffic blue

RAL 5002

Ultramarine blue

RAL 5003

Sapphire blue

Our products can be powder coated in many colours from the RAL palette – after checking the availability.

Basic palette - thermoplastic coating
RAL 9016

Traffic white

RAL 7035

Light grey

RAL 7001

Silver grey

RAL 9006

Silver metallic

RAL 7016

Anthracite grey

RAL 9005

Jet black

RAL 1021

Colza yellow

RAL 3020

Traffic red

RAL 6005

Moss green

RAL 3009

Oxcide red

RAL 1015

Light ivory

RAL 5017

Traffic blue

RAL 5015

Sky blue

Thermoplastic coating is the most comprehensive solution on the market. It provides the highest level of resistance against the influence of environmental factors, wear, damage and vandalism. It also requires little maintenance. It is recommended as a coating for our galvanized products.
More information »





Despite all efforts to keep the most accurate colour representation possible,
our palette is used for informational purposes only.
The best colour representation can be found in samplers.

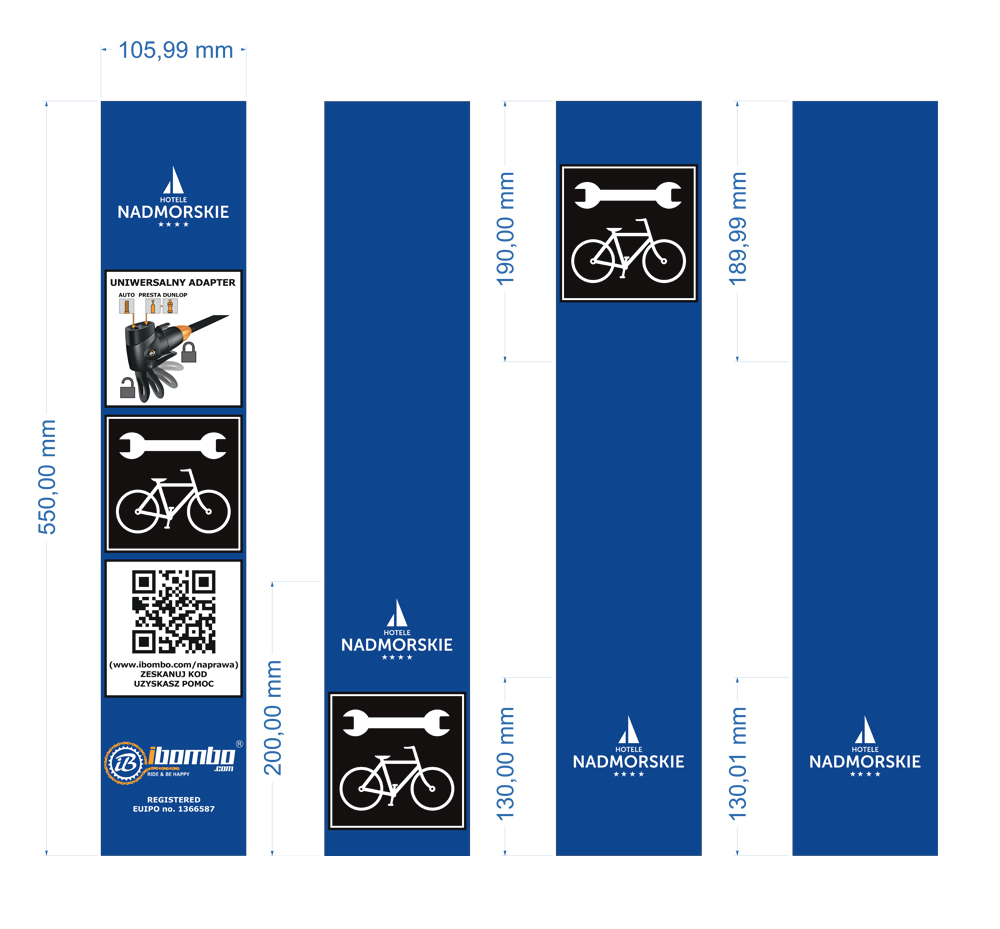

Place your logo for free!

We can place your logo / graphics on our products to take care of your brand image.

See our portfolio

PRODUCT REGISTERED IN EUIPO no. 7690532

We have the priority right to register an industrial design at the European Union Intellectual Property Office (EUIPO) in Alicante. We have acquired the exclusive right to use the design throughout the EU.
