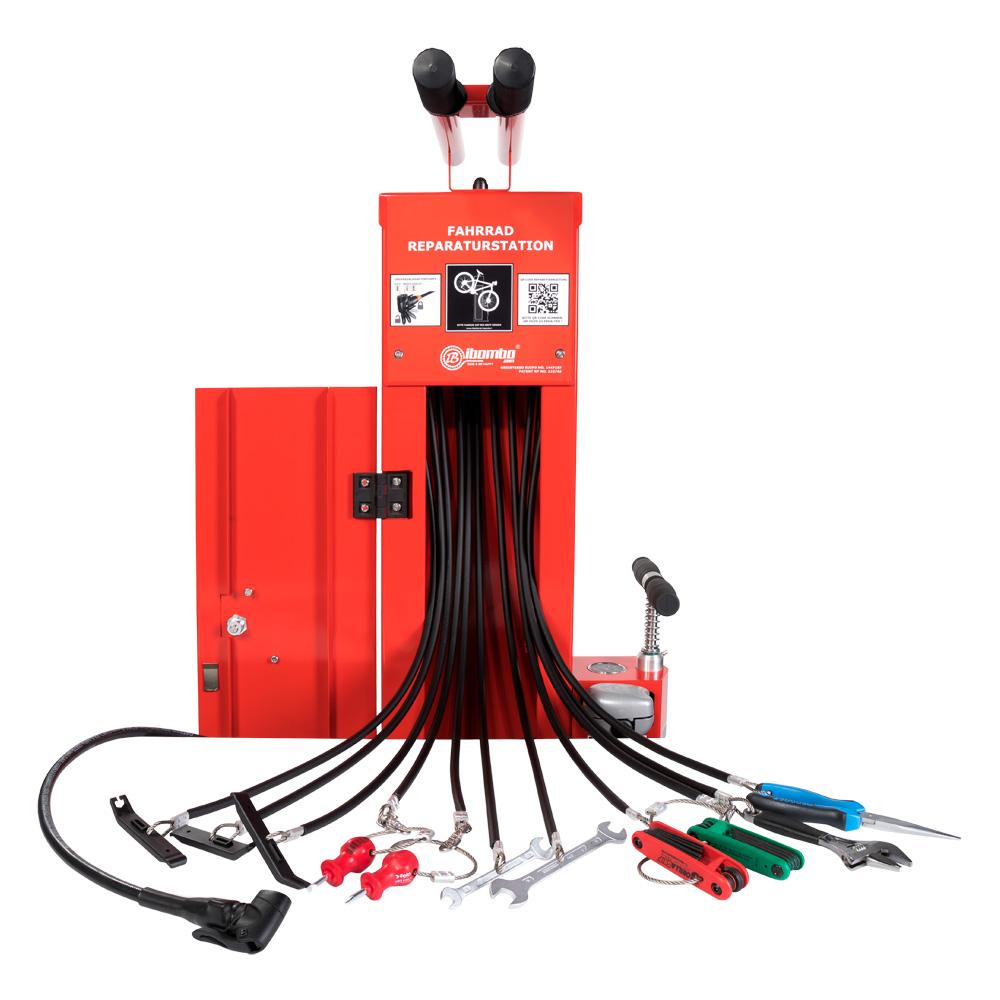

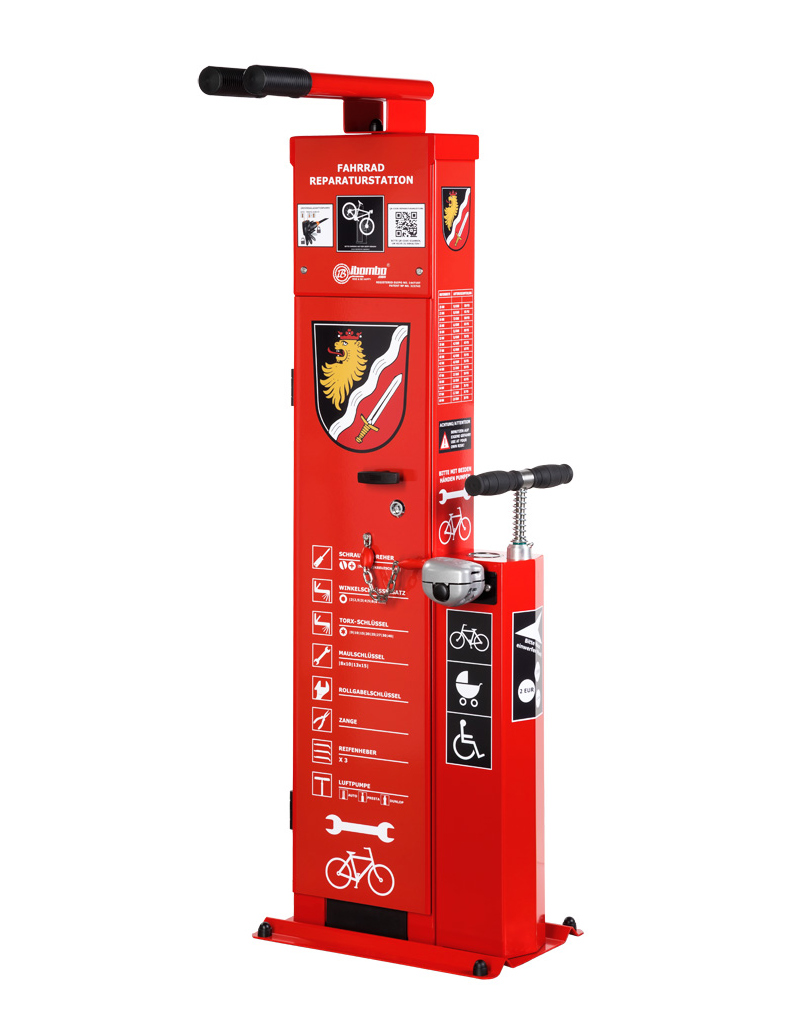

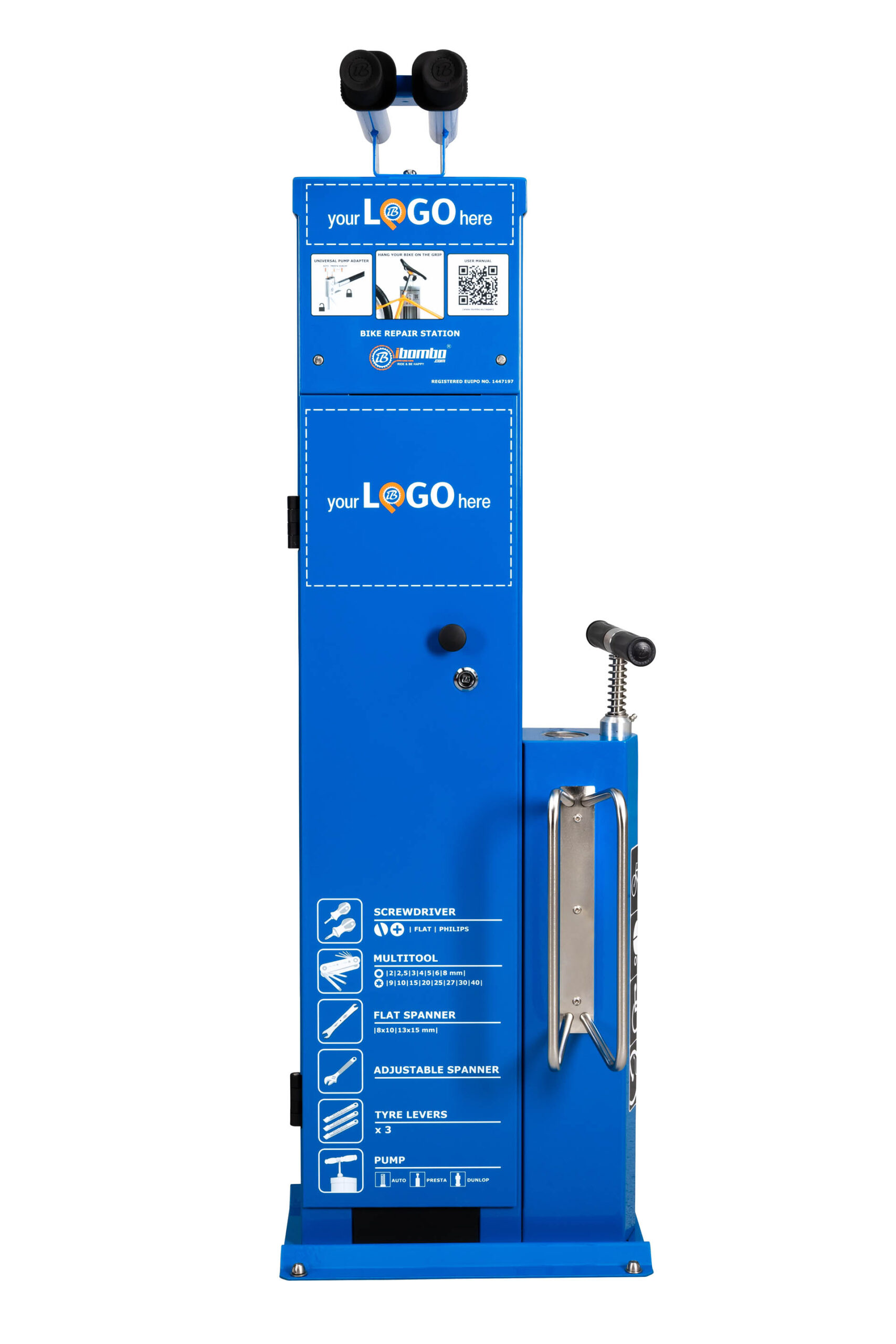

IBOMBO PRS-SCANDIC WITH DOOR

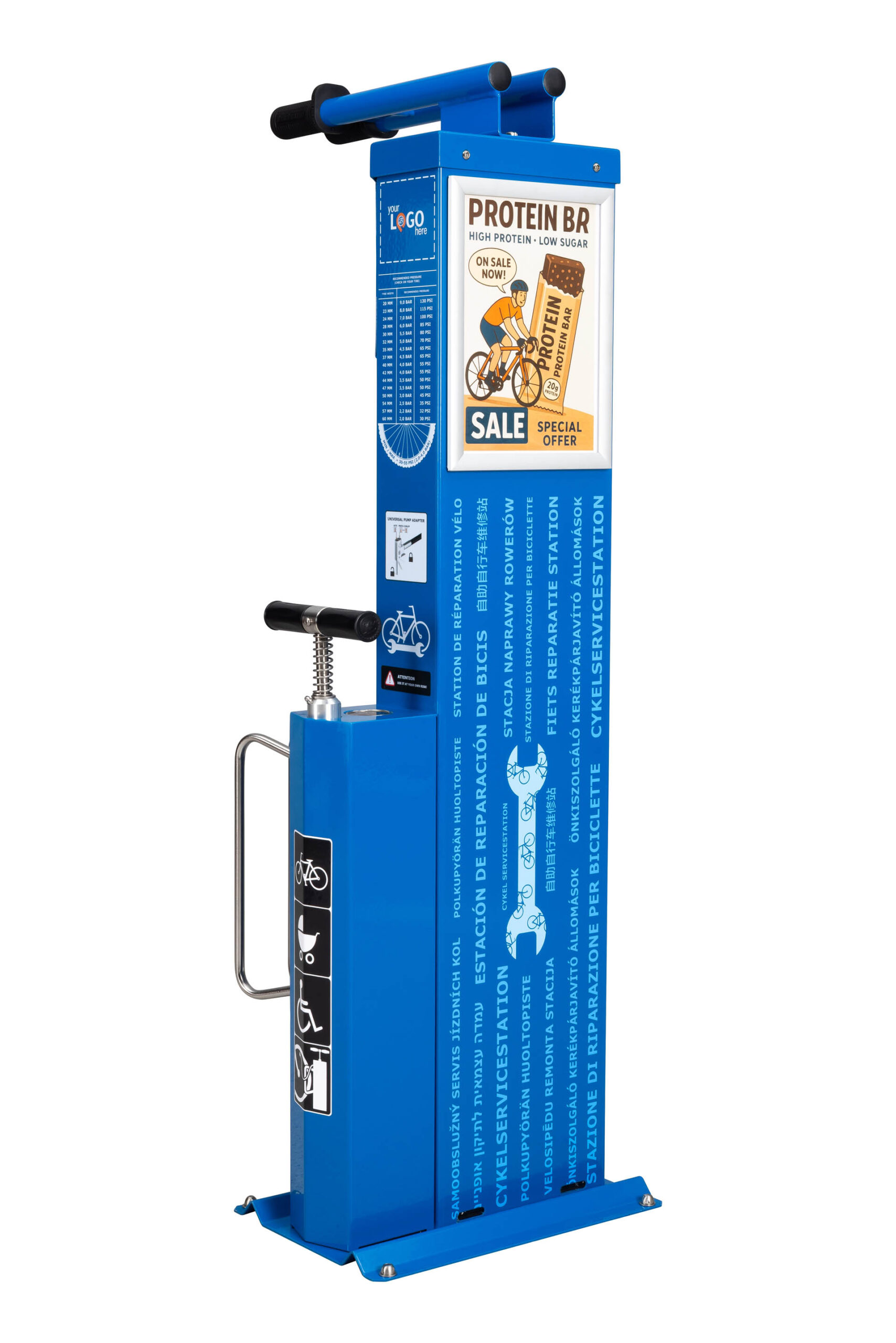

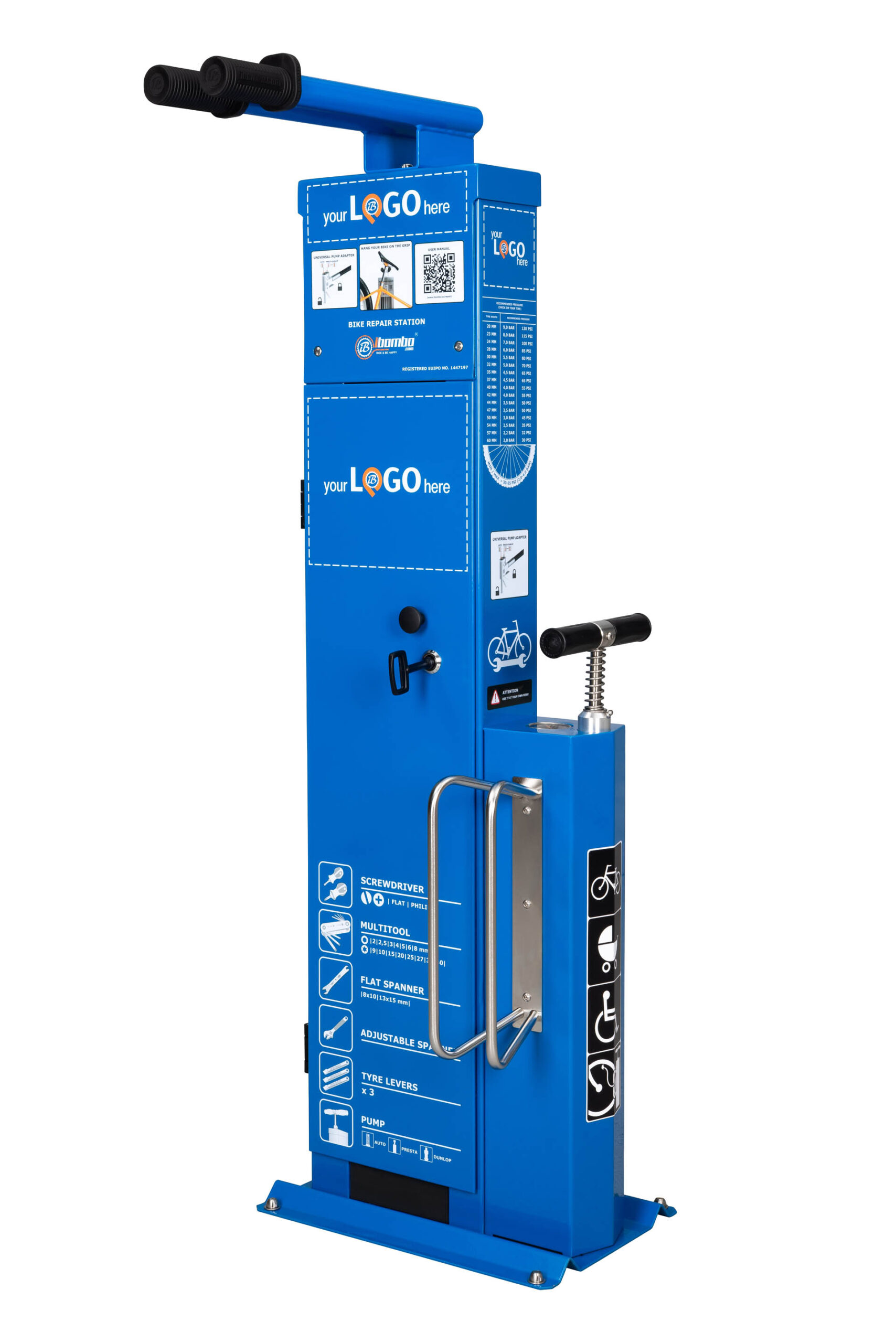

Self-Service Bike Repair Station – IBOMBO SCANDIC is, like all our stations, adapted for use in public spaces. It is a compact version of our flagship model IBOMBO PRS-LV2.

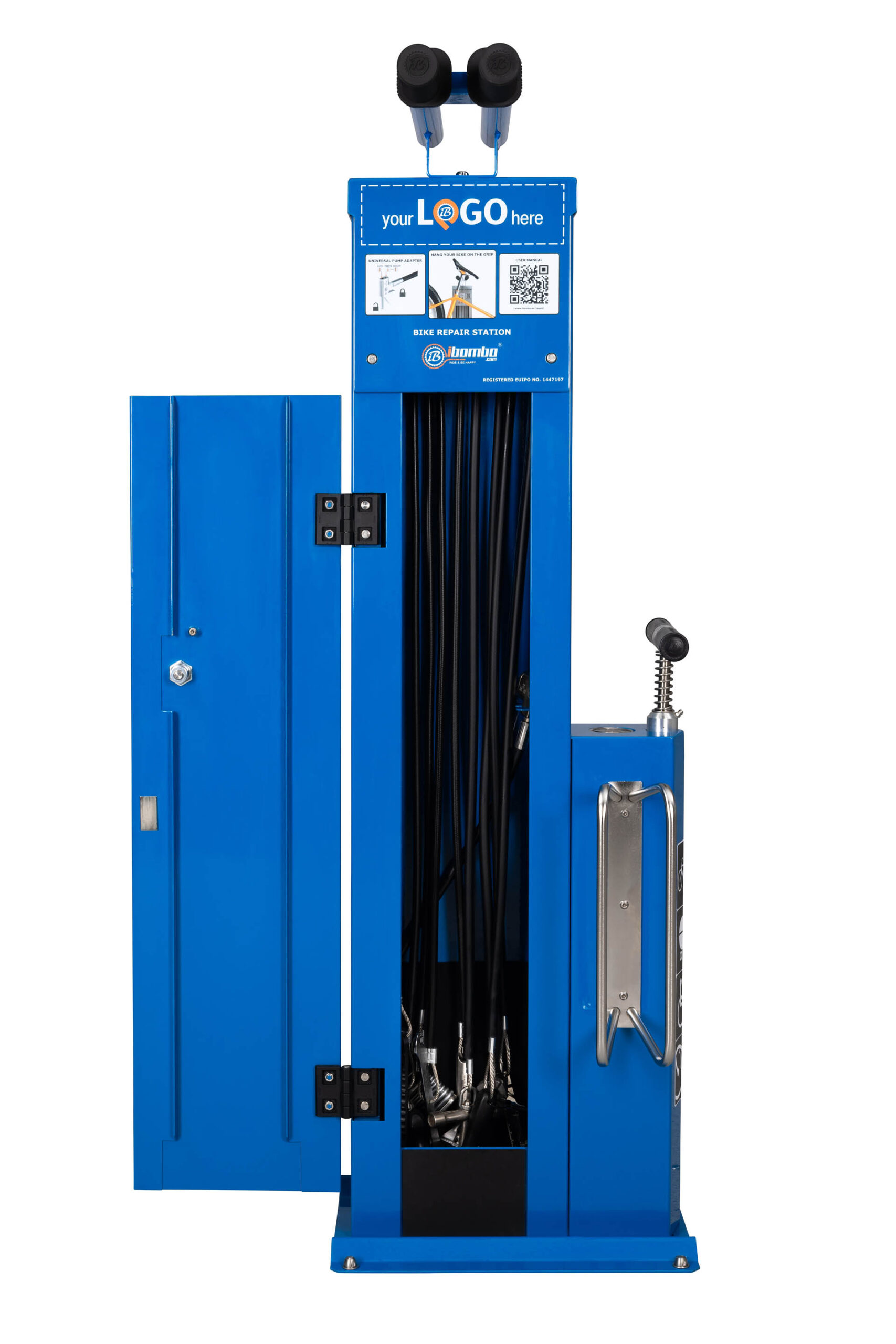

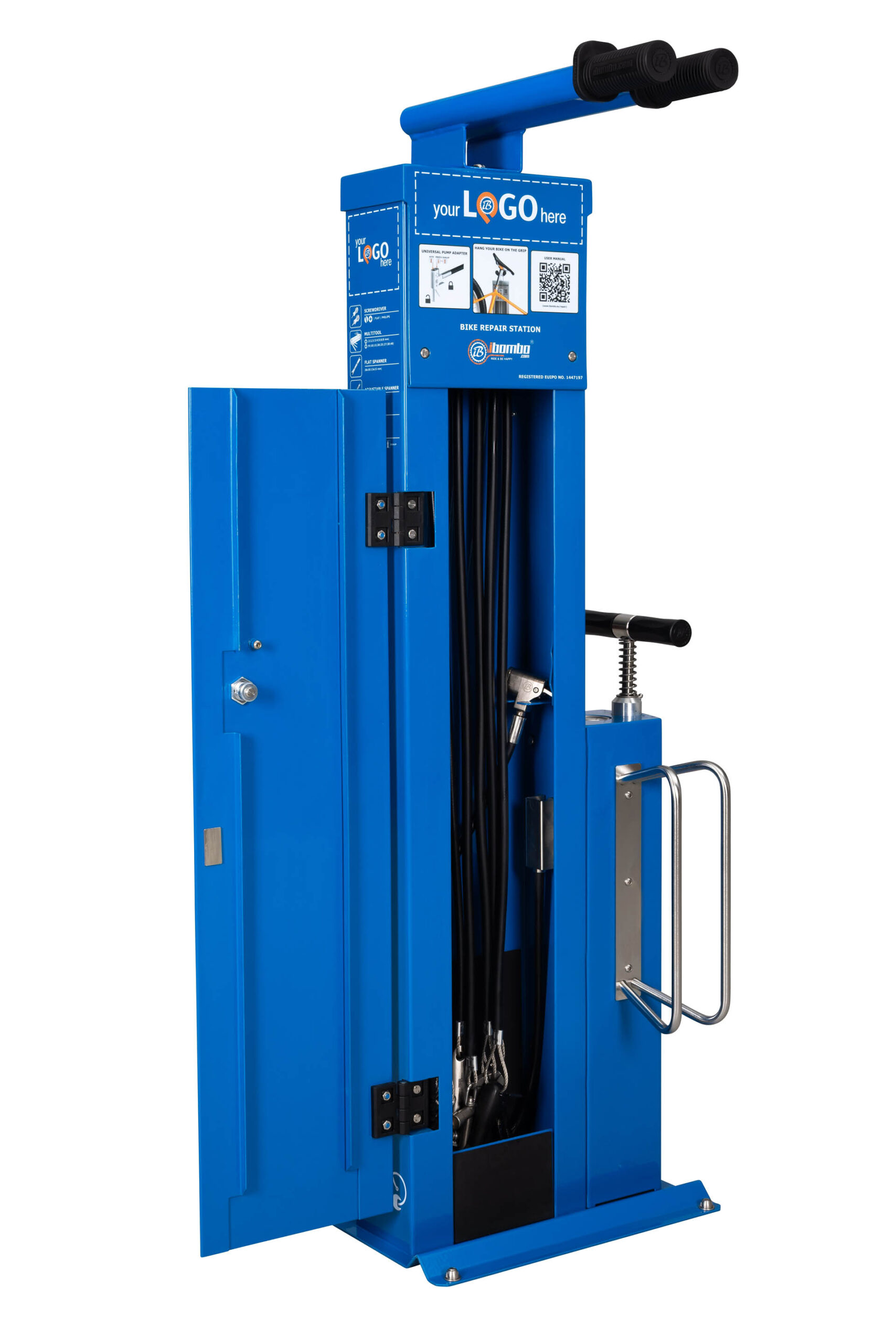

We created this model based on the needs and experiences of the Scandinavian markets. Tools can be better protected against severe weather conditions or theft thanks to the possibility of mounting the door on solid hinges. We developed an additional coin opening system as in shopping trolleys, or a temporary / limited opening system with a key lock, e.g. in the opening hours of a store or restaurant.

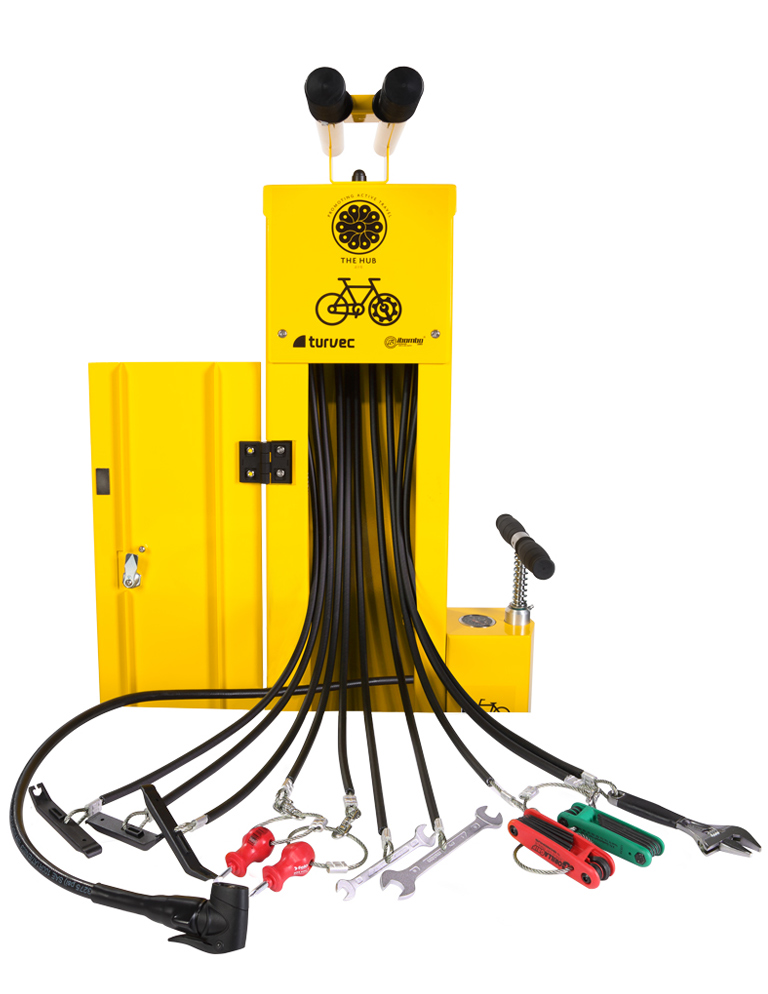

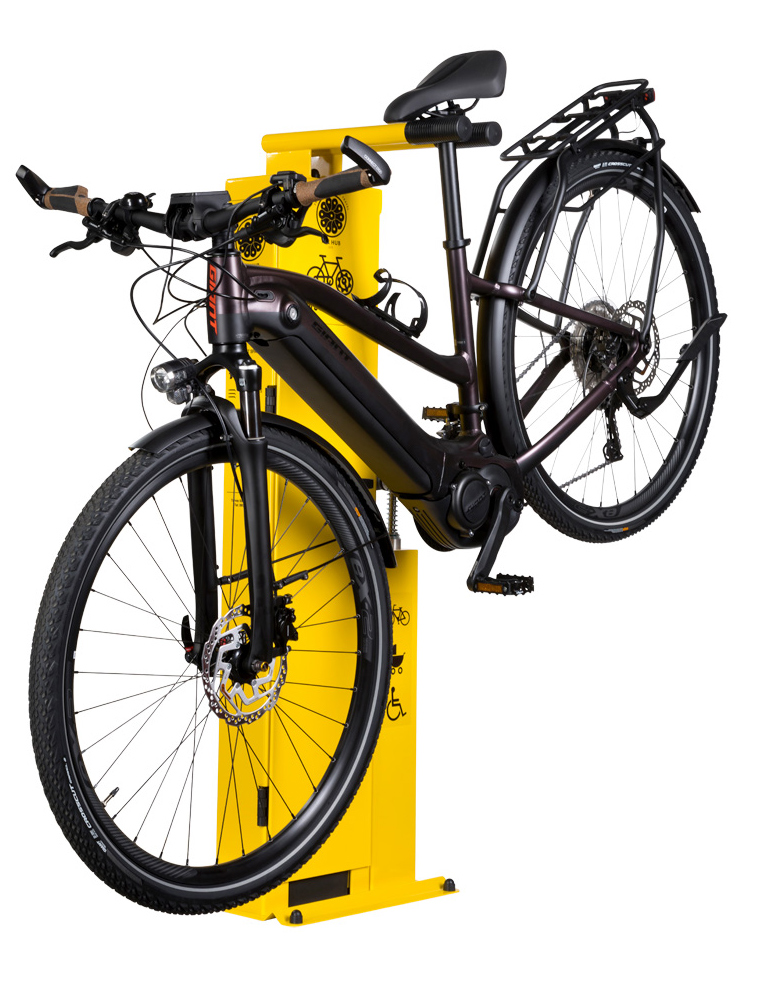

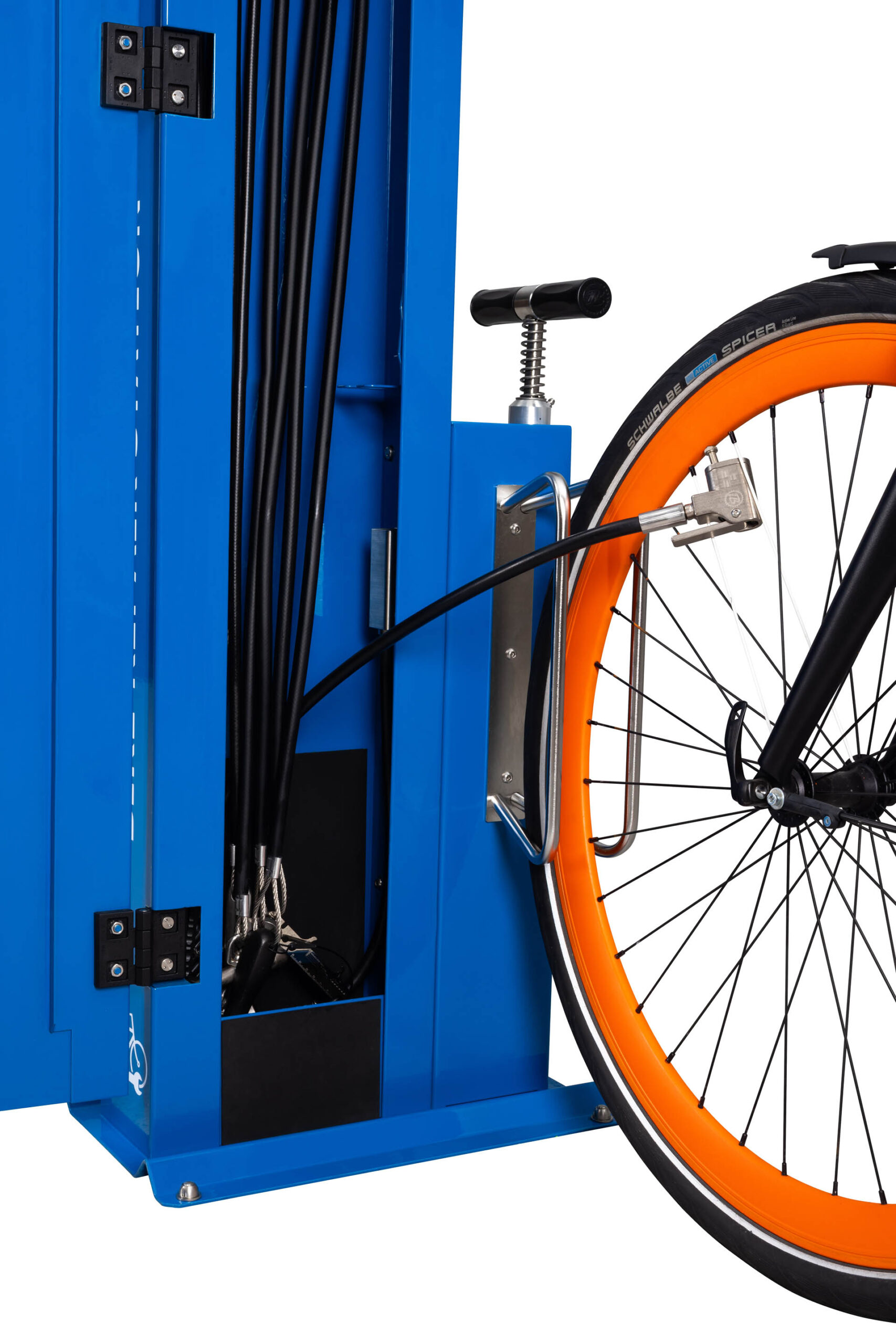

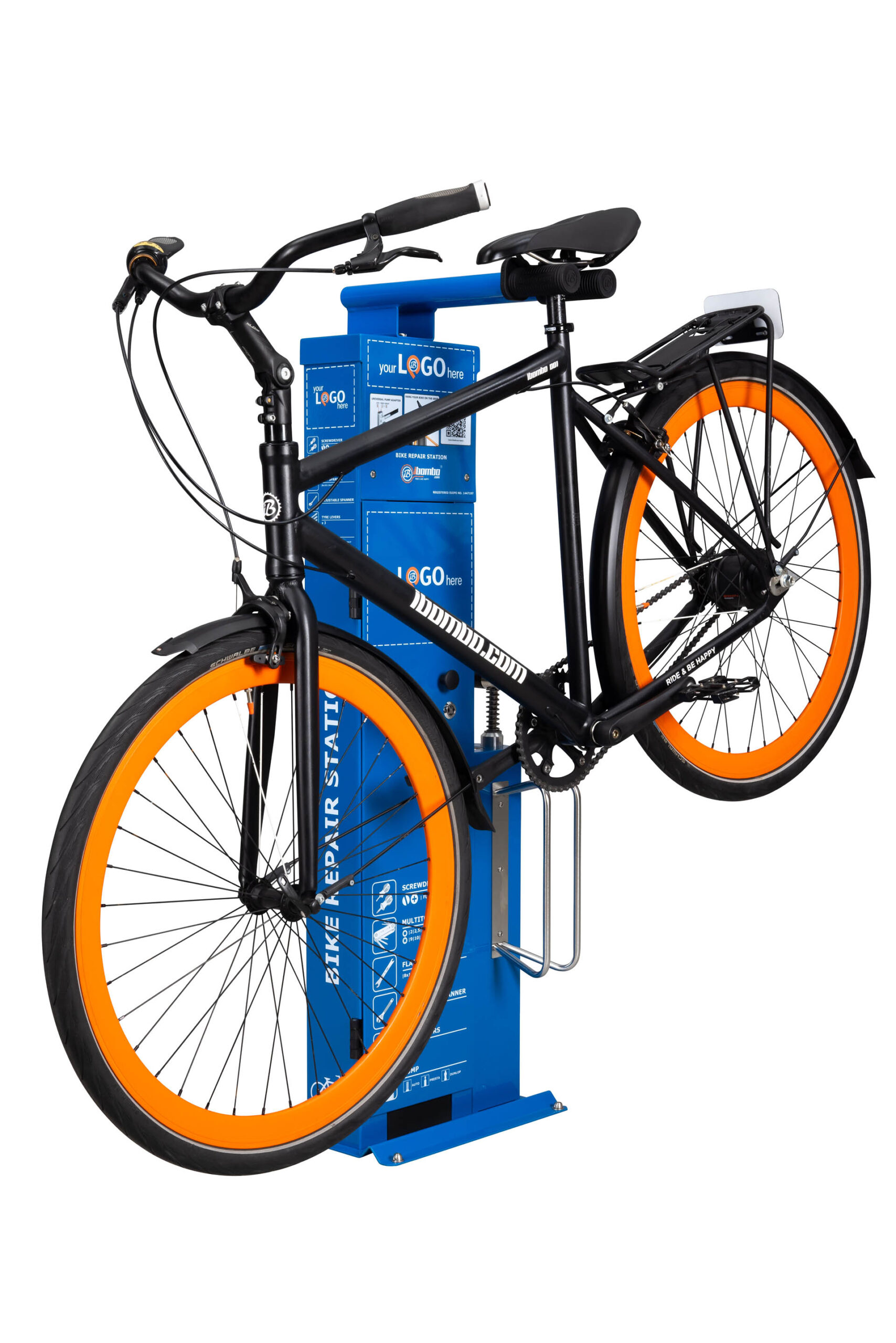

The housing of the device is made of galvanized or stainless steel (AISI 304) with powder or thermoplastic coating. The tools are attached to the stainless steel ropes hanging inside the column of the station; the length of the ropes allows you to reach all bicycle components. The rubber coating of the ropes prevents tools from tangling and protects the bicycle frame from scratching. The station is equipped in a hand pump with an adapter for all valve types. The construction of the station allows you to place the bicycle on the grip, so you can easily turn the crank while repairing the bike.

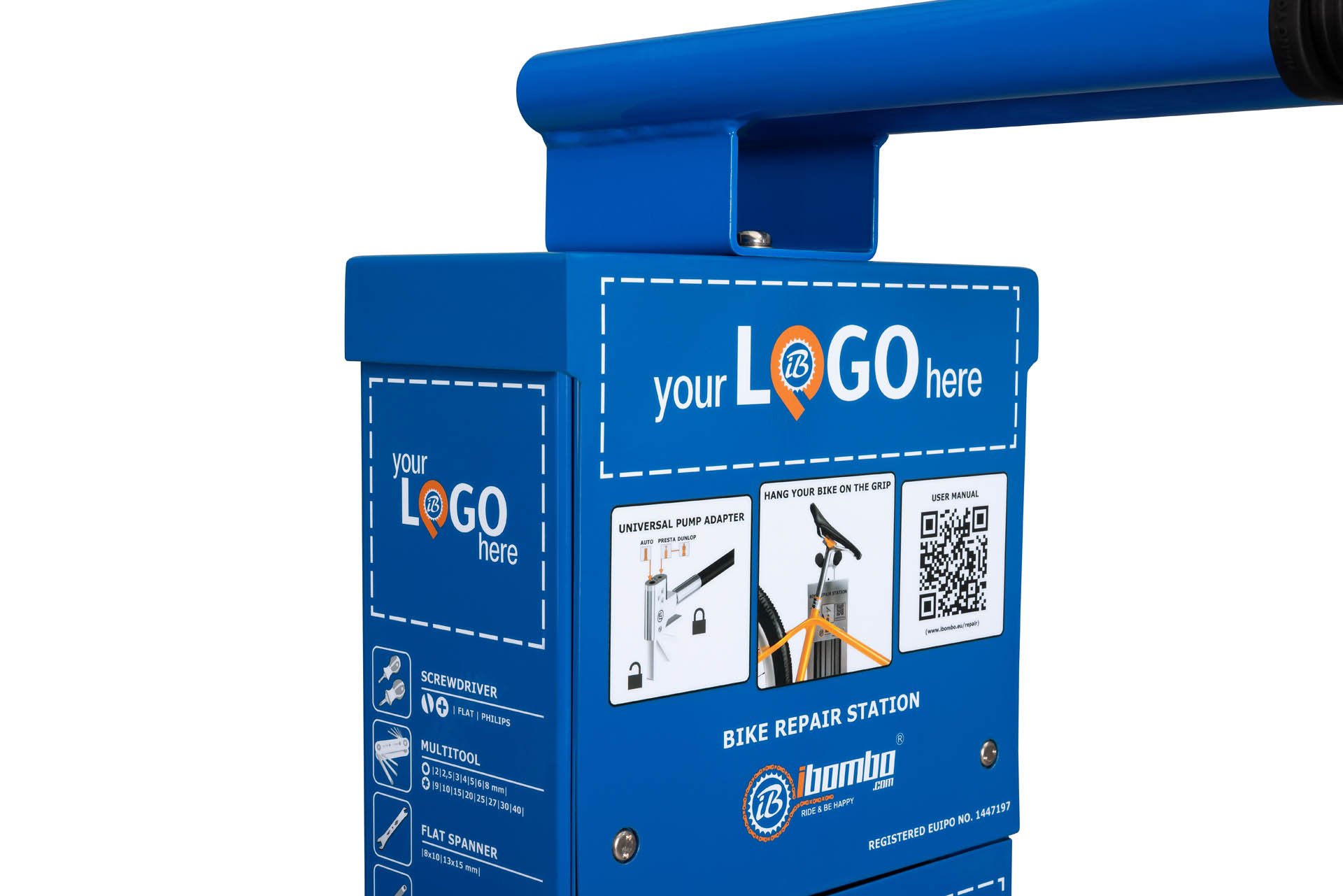

The QR CODE located on the front of the station allows you to use online publications containing instructions on repairing bicycle faults. The sheet metal elements of the device are fastened with anti-theft screws – the bits for these screws will be handed over to the customer. This model of the station can be additionally equipped with, among others, aluminium waterproof frames, side-or-back bike stand, pneumatic skateboard holder.

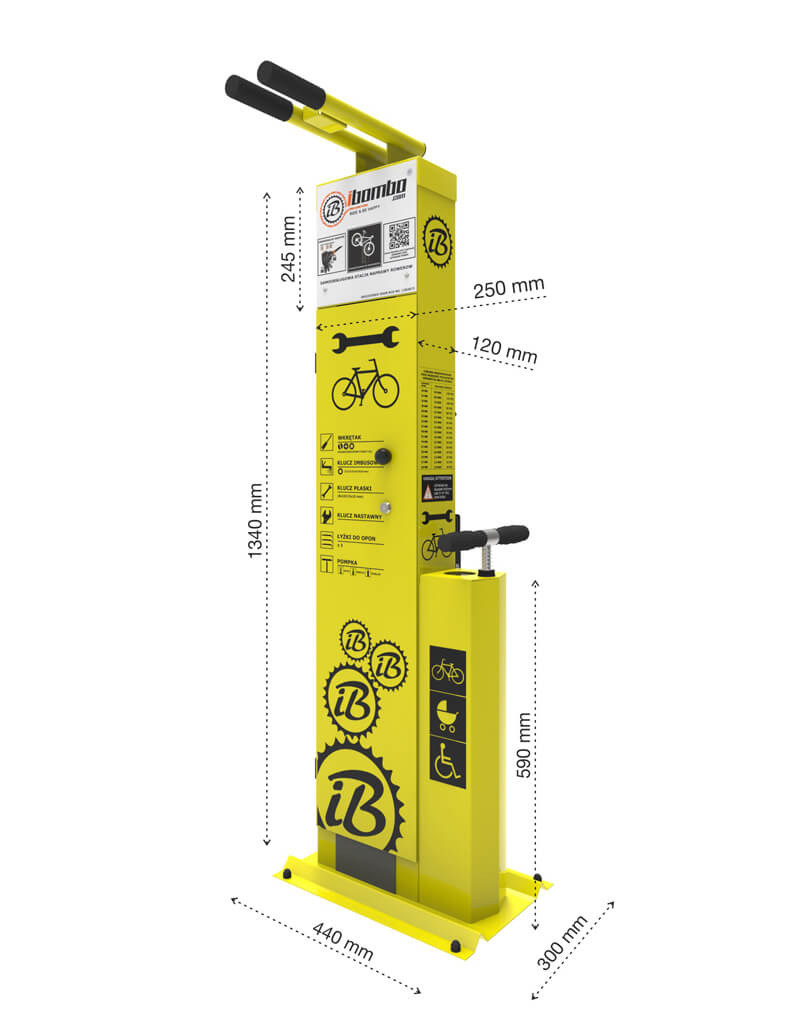

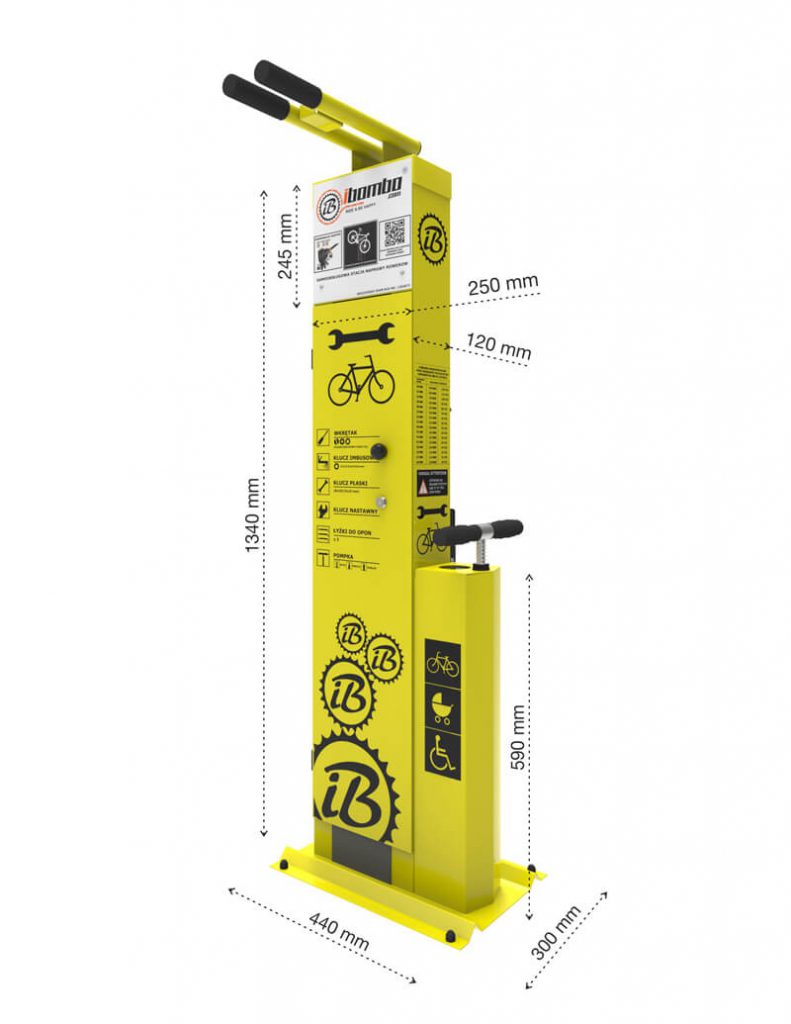

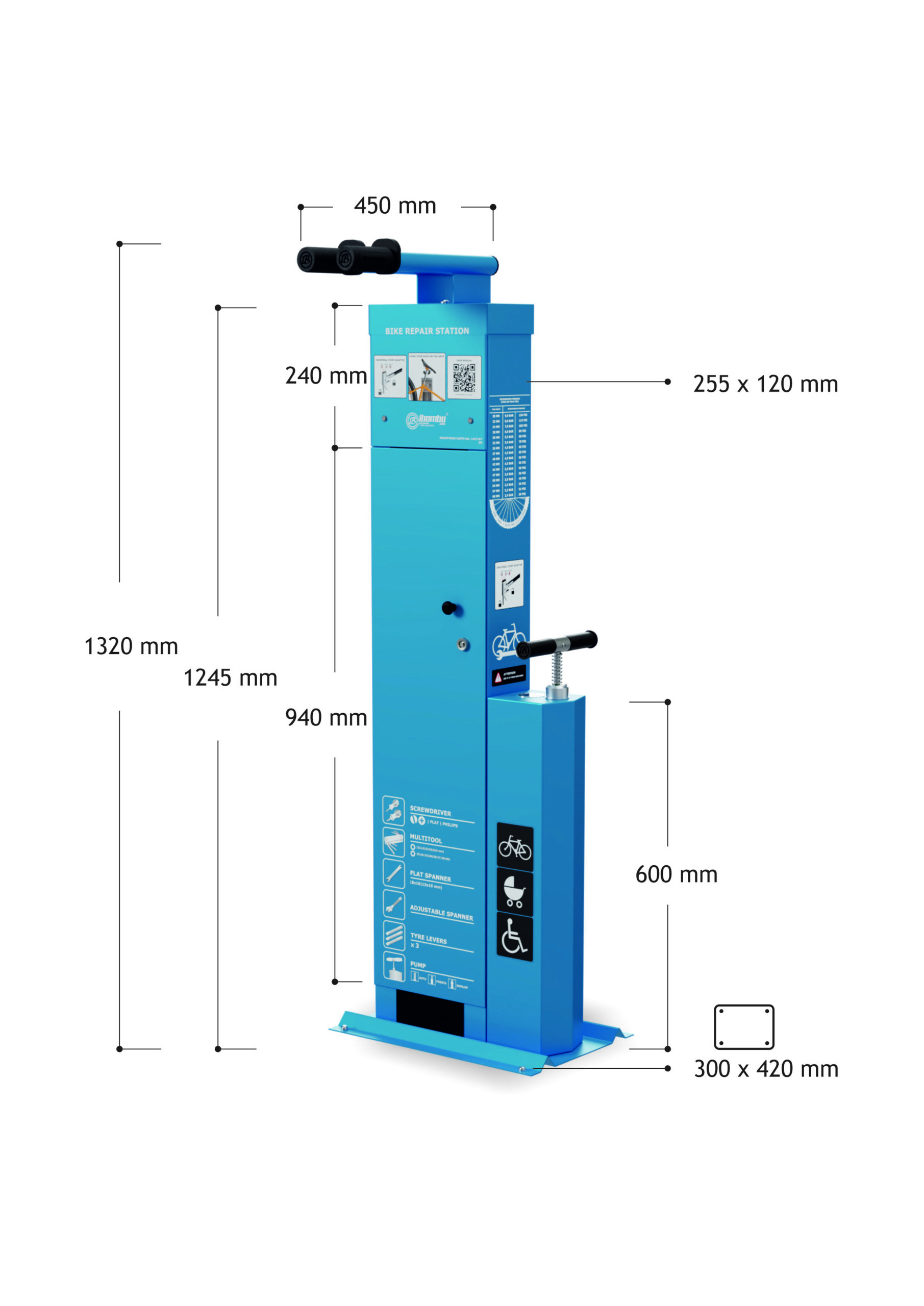

Dimensions:
134 x 44 x 30 cmWeight:
30-48 kgAdvertising area:
11000 cm2Material:
galvanized | stainless steel (AISI 304)- housing made of galvanized or stainless steel (AISI 304)
- powder or thermoplastic coating
- up to 11000 cm2 of advertising area
-
QR CODE with repair manual
QR CODE with repair manual
-

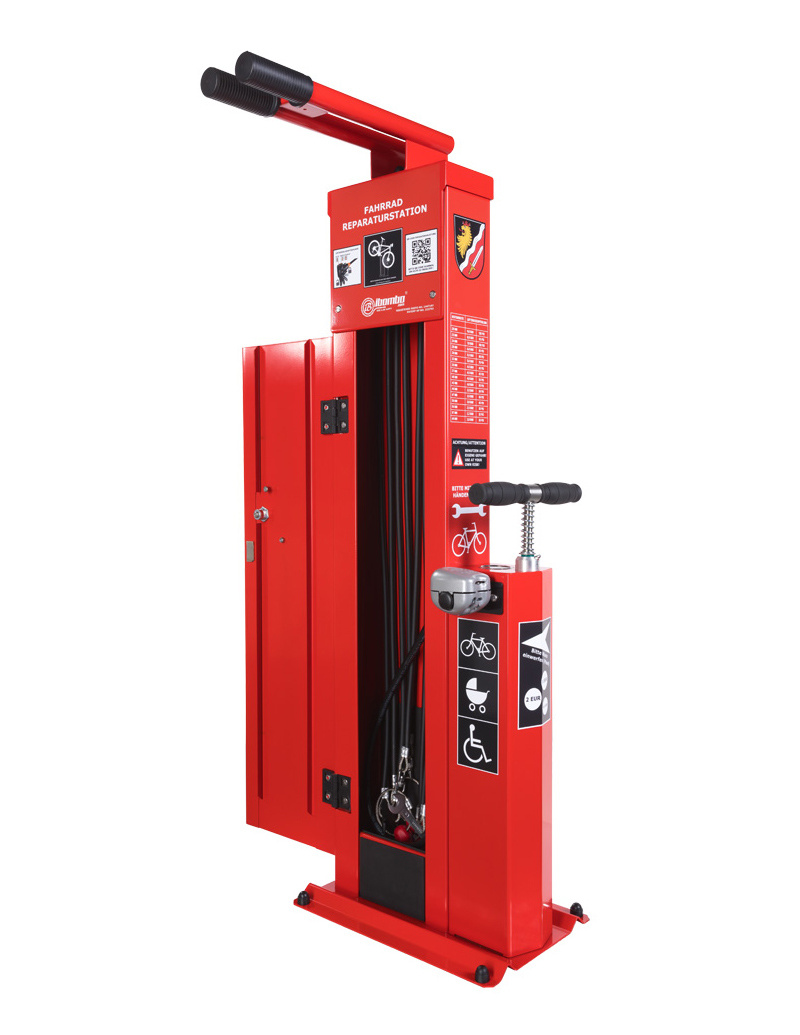

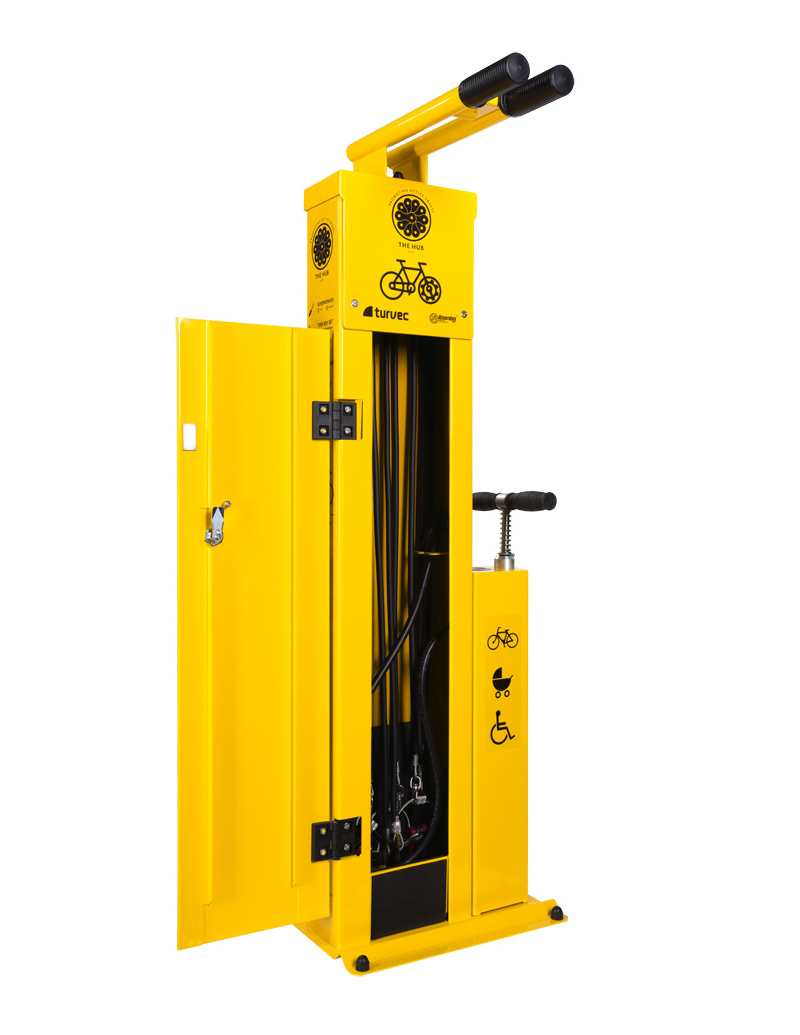

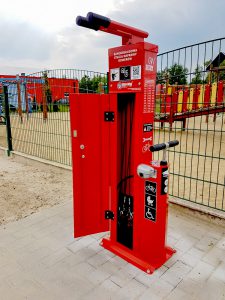

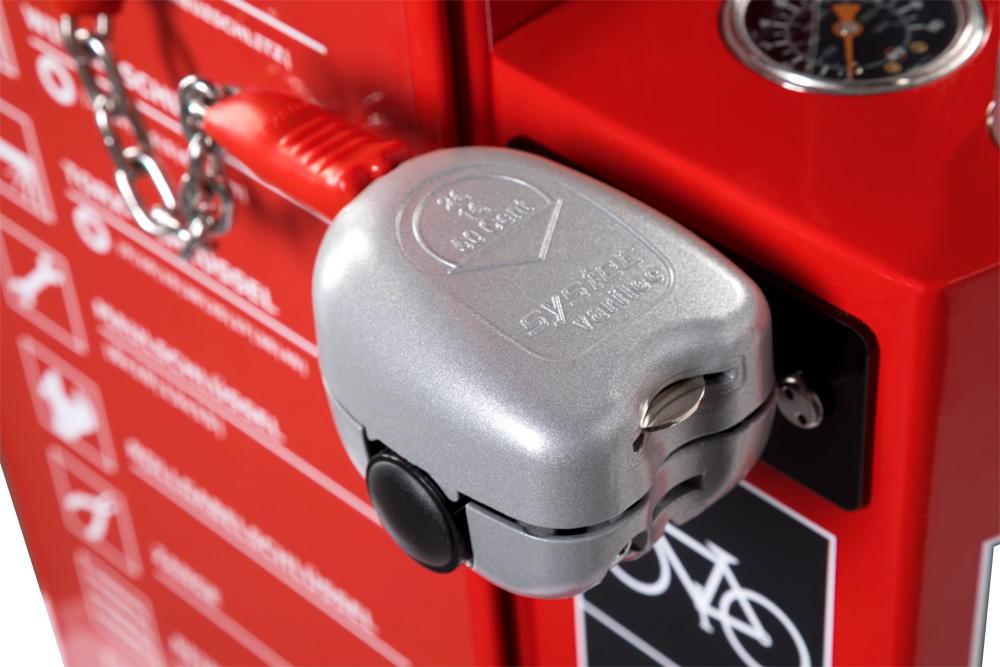

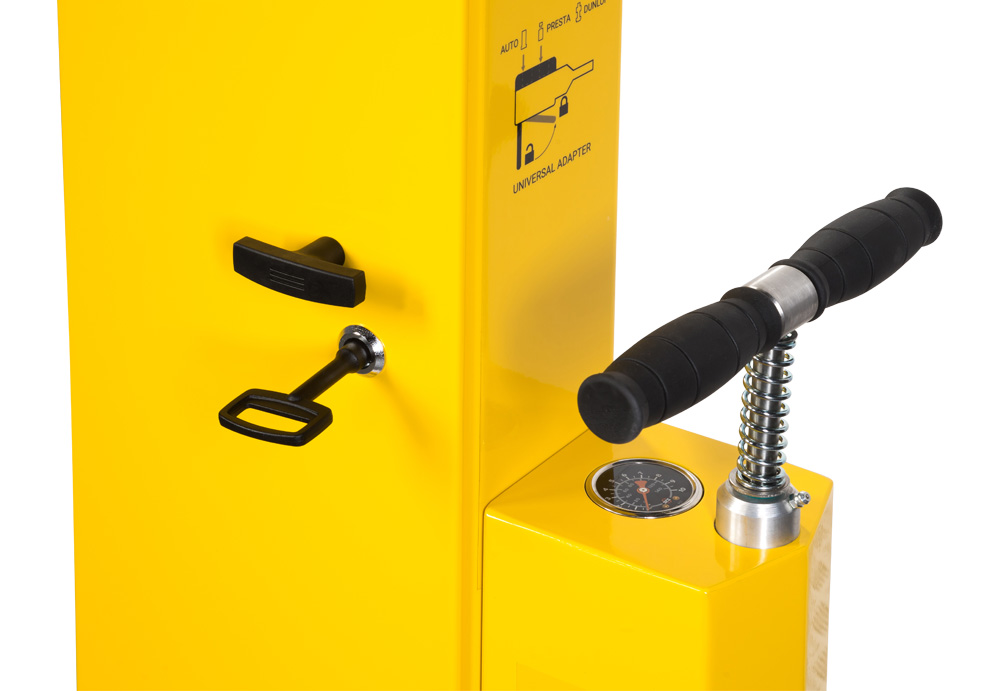

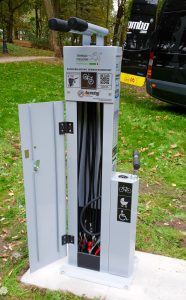

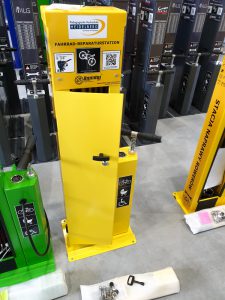

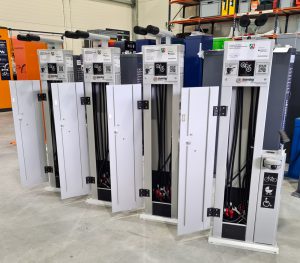

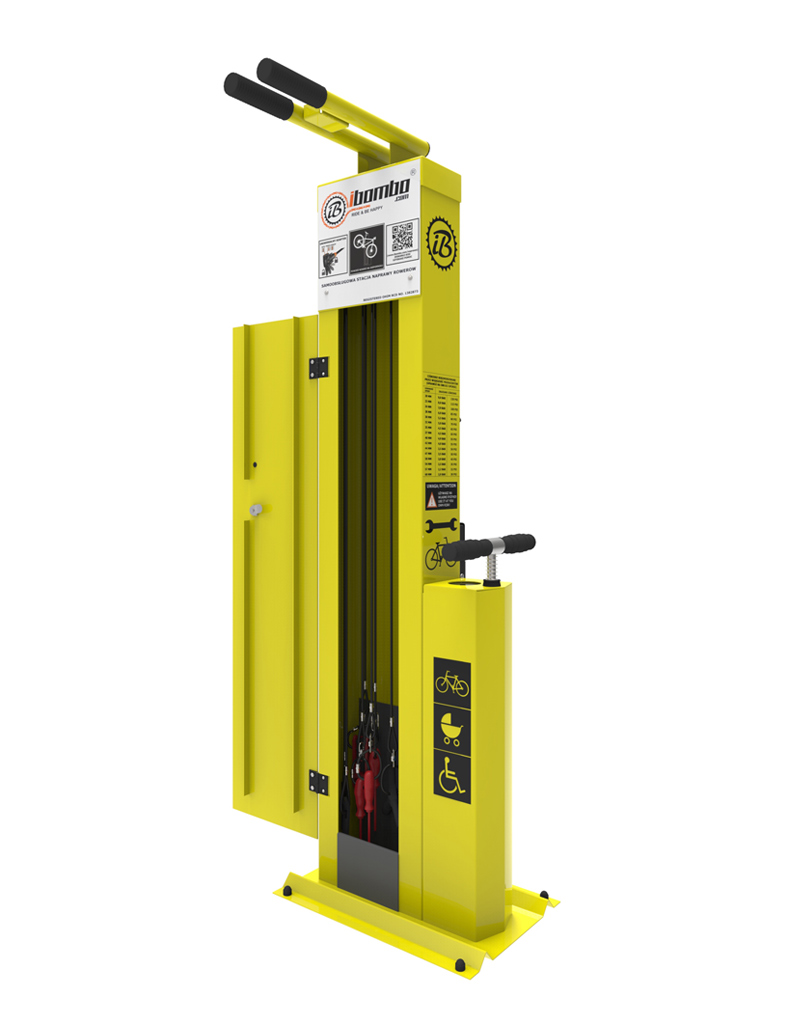

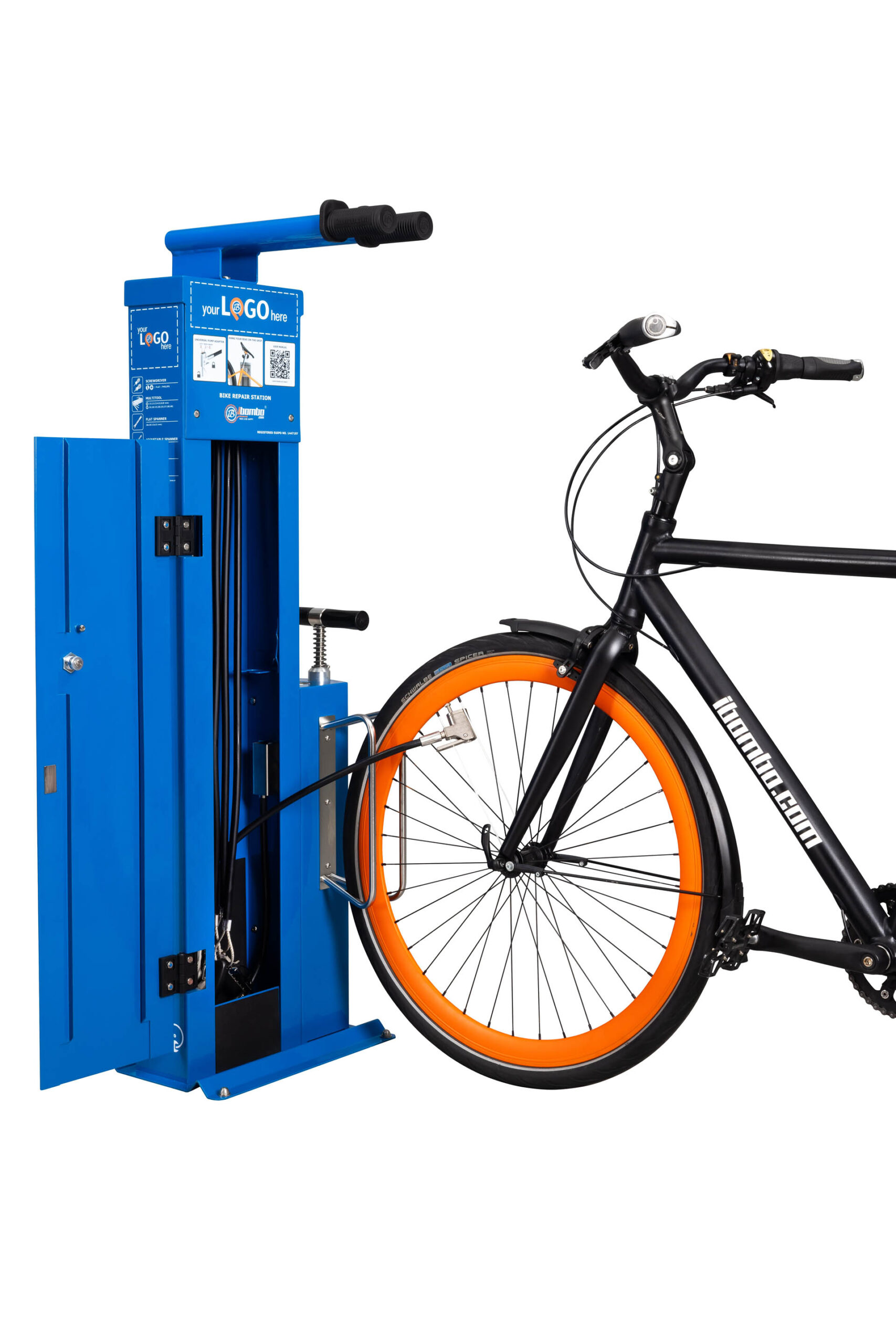

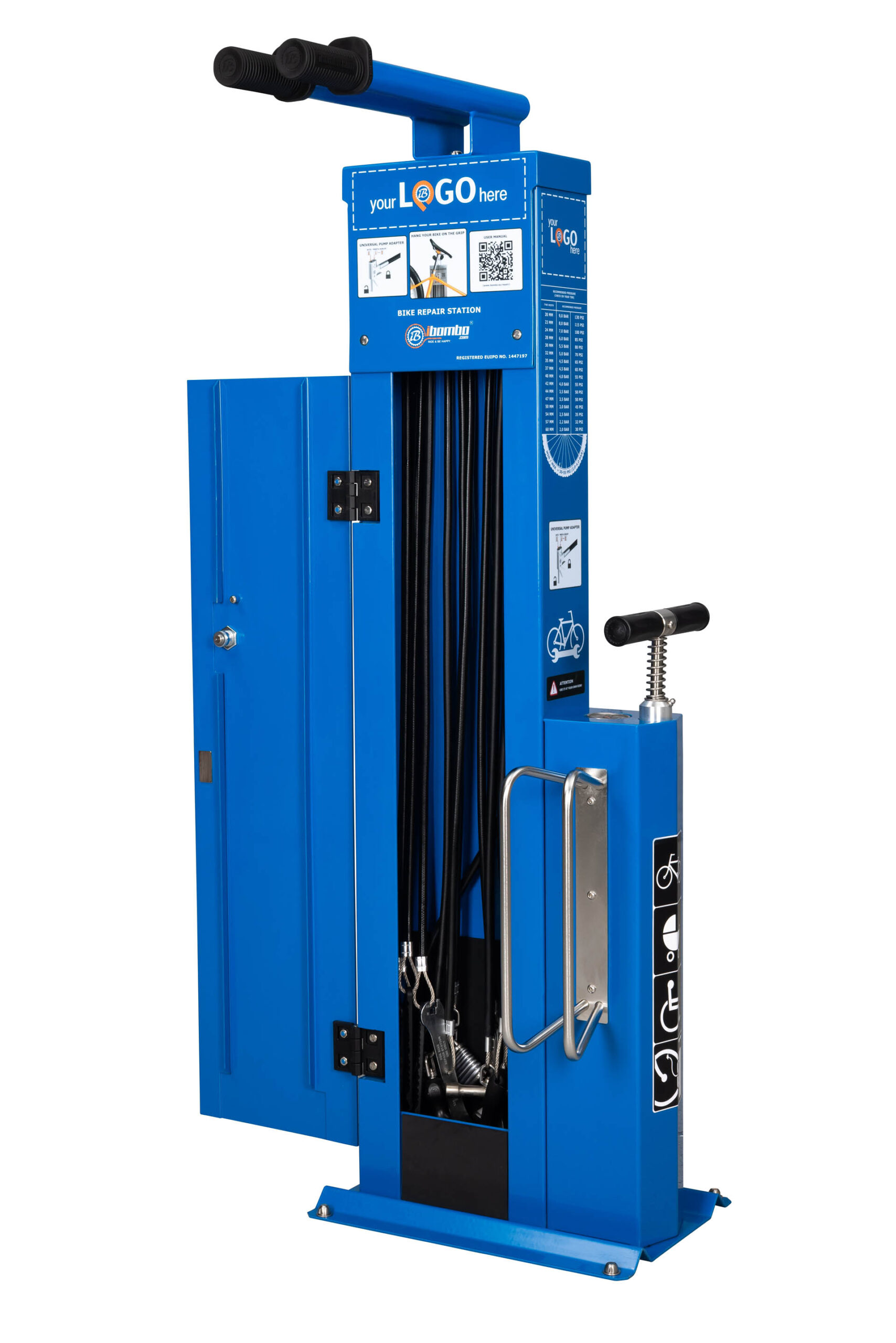

Door with coin locking system or with lock and key
Door with coin locking system or with lock and key
Door with coin locking system or with lock and key
-
Big Side-or-back bike stand – powder coated
Big Side-or-back bike stand – powder coated
Big Side-or-back bike stand – powder coated
-
Small Side-or-back bike stand - stainless steel (AISI 304)
Small Side-or-back bike stand - stainless steel (AISI 304)
-
Pneumatic skateboard holder
Pneumatic skateboard holder
Pneumatic skateboard holder
Pneumatic skateboard holder
-
aluminium waterproof frames (exchangeable A4 content)
aluminium waterproof frames (exchangeable A4 content)
aluminium waterproof frames (exchangeable A4 content)
-
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
-

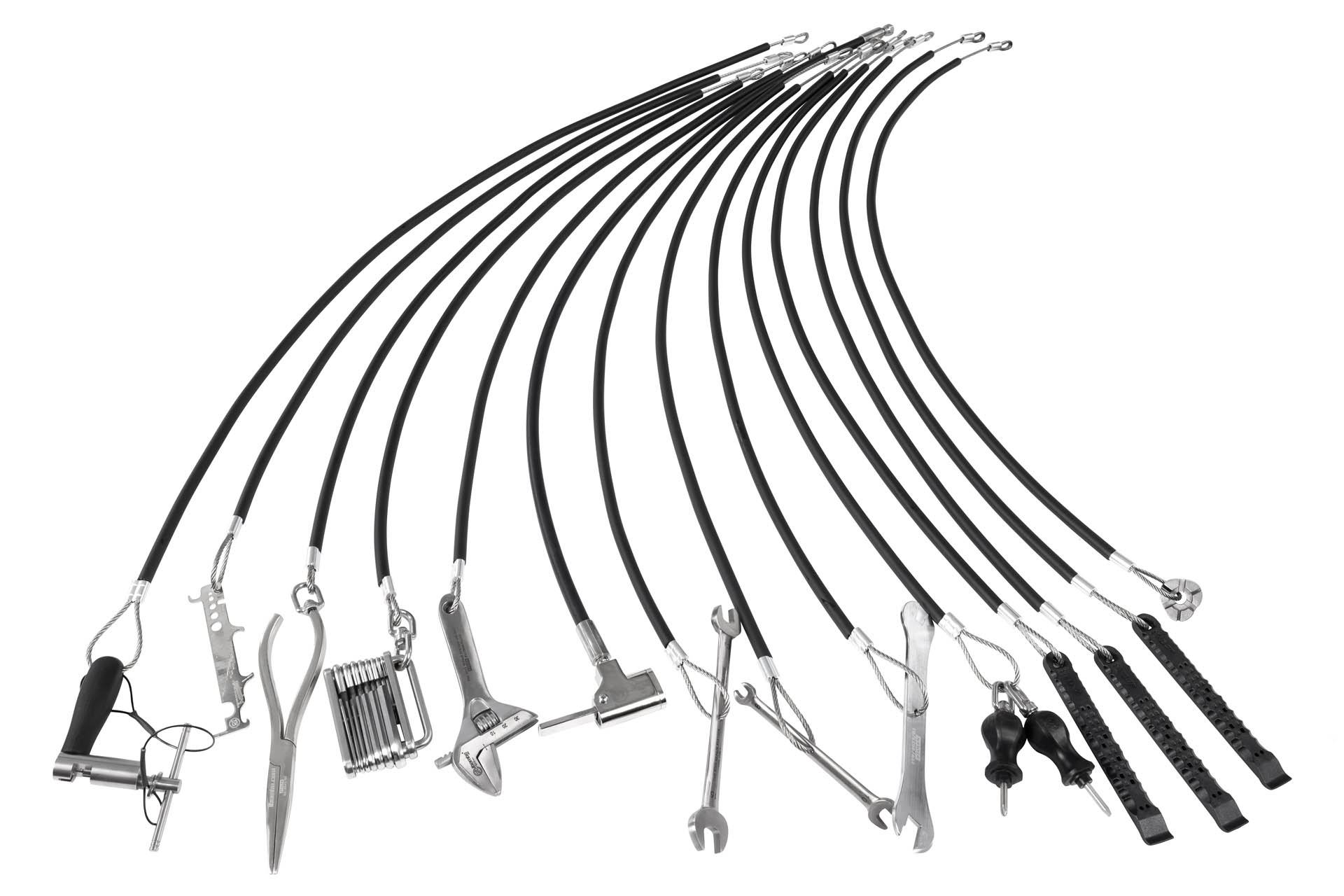

ropes made of stainless steel fi 4 (AISI 316) with rubber coating fi11
ropes made of stainless steel fi 4 (AISI 316) with rubber coating fi11
-
Phillips screwdriver PH2 + swivel fi4 (AISI 304)
Phillips screwdriver PH2 + swivel fi4 (AISI 304)
swivel fi4 (AISI 304)
-
flat screwdriver 5.5 x 1.0 + swivel
flat screwdriver 5.5 x 1.0 + swivel
swivel
-
hex key set| 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivel
hex key set| 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivel
swivel
-
TORX key set | 9 | 10 | 15 | 20 | 25 | 27 | 30 | 40 | + swivel
zestaw kluczy TORX w rękojeści |9|10|15|20|25|27|30|40| + krętlik (AISI 304)
swivel
-
adjustable spanner 0-32 mm
adjustable spanner 0-32 mm
-
flat spanners 8x10 mm and 13x15 mm (stainless steel)

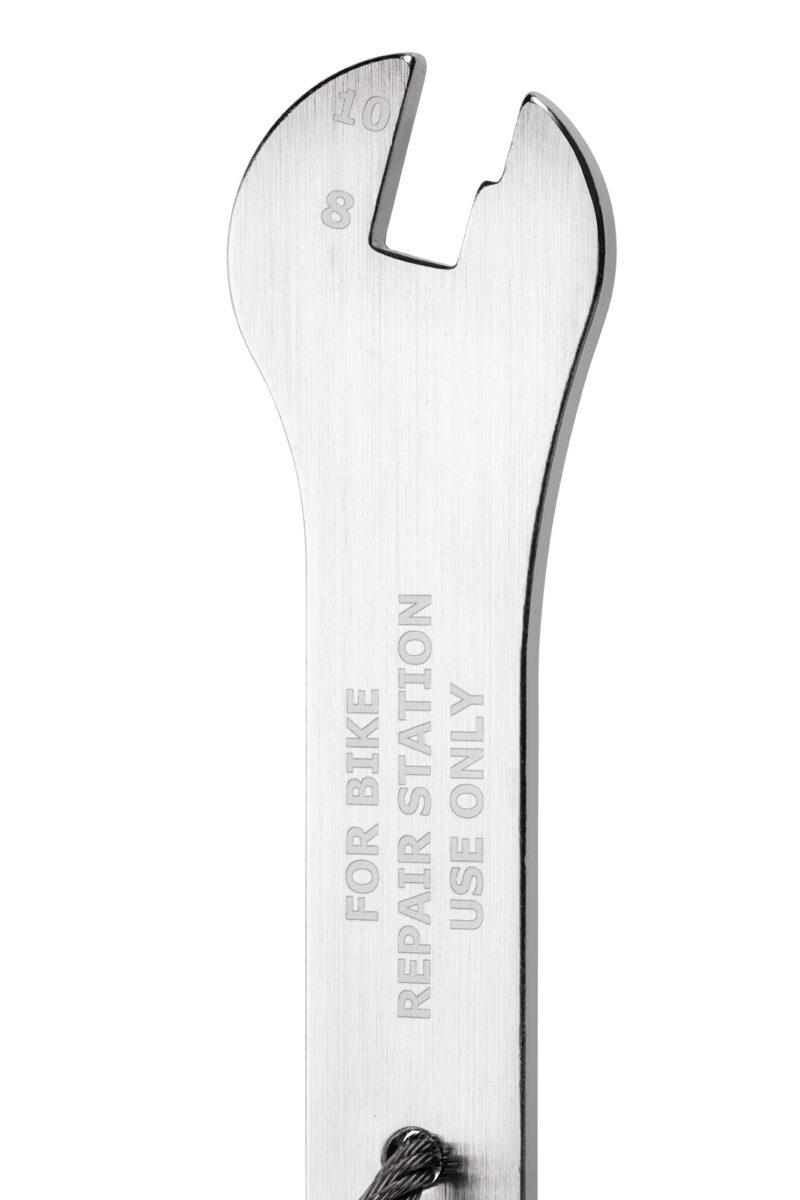

flat spanner 8x10 mm
flat spanner 13x15 mm
-
flat pliers
flat pliers
-
skateboard tools | 9/16 | 1/2 | 3/8 | + swivel
skateboard tools | 9/16 | 1/2 | 3/8 | + swivel
swivel
-
3 x tire levers with stainless steel core - nylon coated
3 x tire levers with stainless steel core - nylon coated
-
Stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealant
Stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealant
Stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) - pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealant
-
Dual chamber anodized aluminum pump adapter IBOMBO AISIPRO HEAD™ with industrial grade AISI304 stainless steel internals dedicated to all types of bicycle valves (Presta, Schrader and Dunlop)
Dual chamber anodized aluminum pump adapter IBOMBO AISIPRO HEAD™
Pure white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Bright red orange
Traffic red
Telemagenta
Claret violet
Yellow green
Moss green
Light blue
Sky blue
Traffic blue
Ultramarine blue
Sapphire blue
Our products can be powder coated in many colours from the RAL palette – after checking the availability.
Traffic white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Traffic red
Moss green
Light ivory
Traffic blue
Sky blue
Thermoplastic coating is the most comprehensive solution on the market. It provides the highest level of resistance against the influence of environmental factors, wear, damage and vandalism. It also requires little maintenance. It is recommended as a coating for our galvanized products.
More information »
Despite all efforts to keep the most accurate colour representation possible,
our palette is used for informational purposes only.
The best colour representation can be found in samplers.

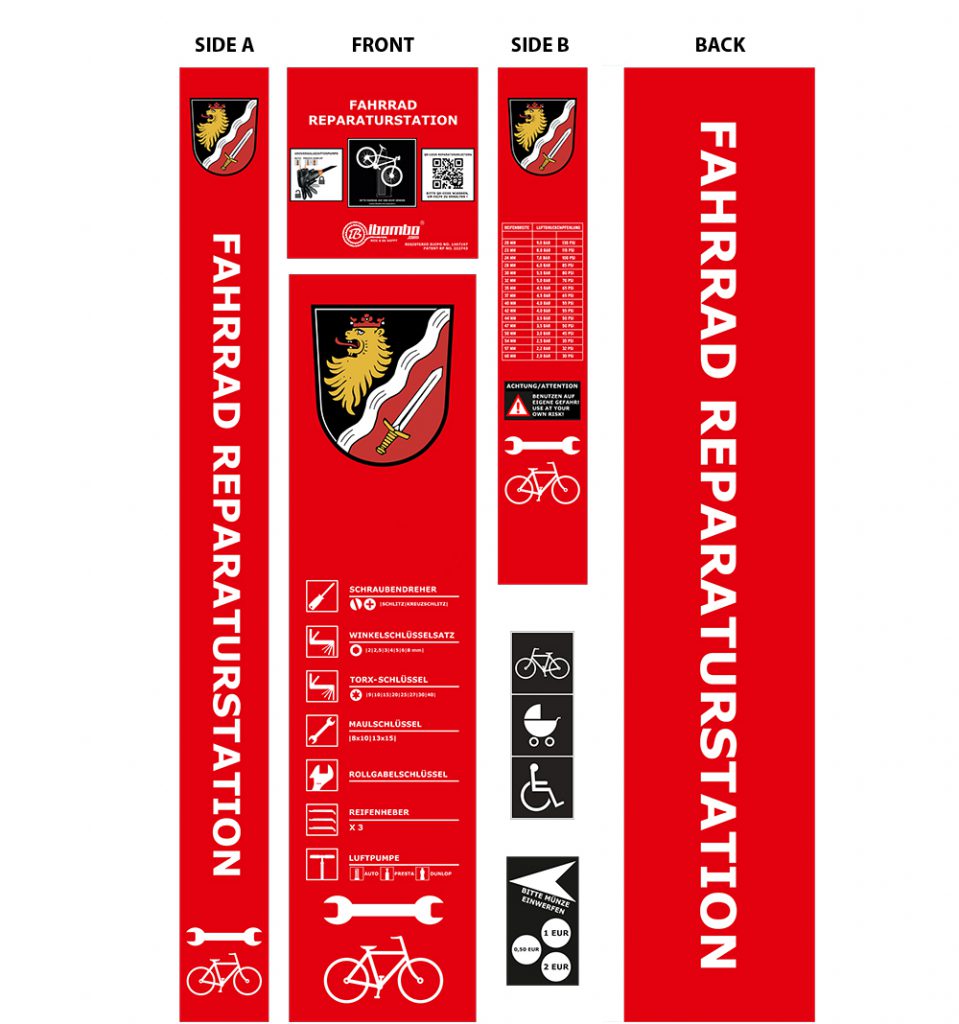

We can place your logo / graphics on our products to take care of your brand image.
See our portfolio
PRODUCT REGISTERED IN EUIPO No. 1447197, 1382873
We have the priority right to register an industrial design at the European Union Intellectual Property Office (EUIPO) in Alicante. We have acquired the exclusive right to use the design throughout the EU.
